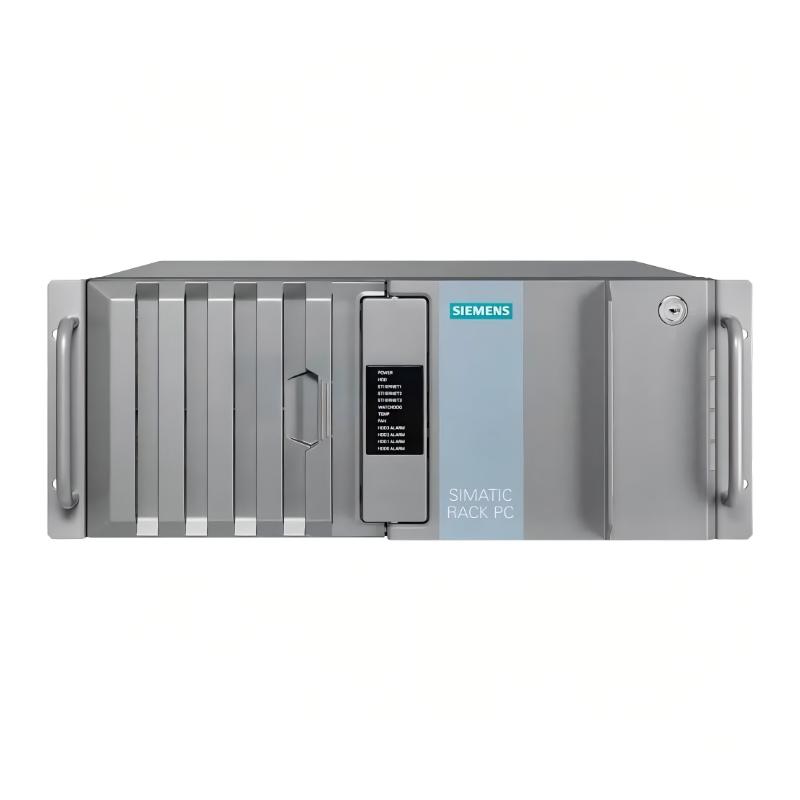

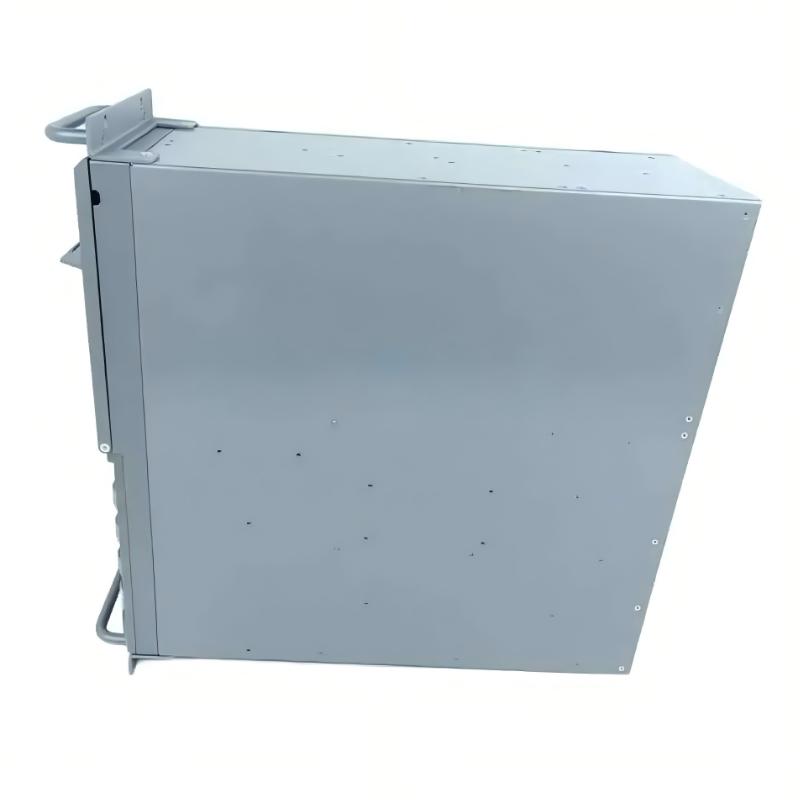

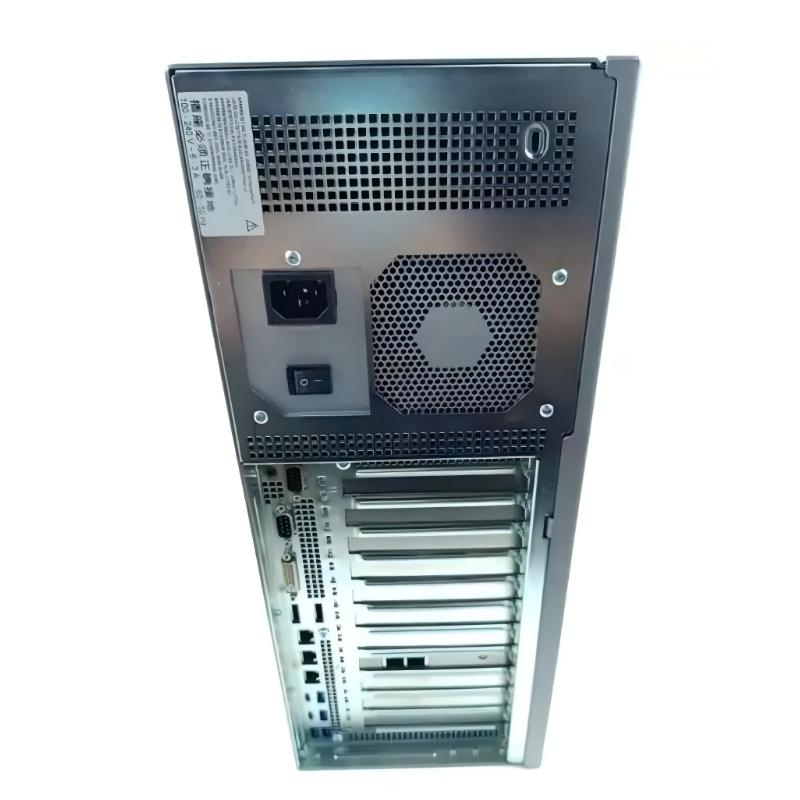

Siemens 6AG4114-3HR53-0DX0 Rack-Mount Industrial Computer
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Siemens 6AG4114-3HR53-0DX0 |
| Product Series | SIMATIC IPC847E |
| Product Type | Rack-Mount Industrial Computer |
| Rack Format | 19-inch, 4U |
| Processor | Intel Core i7-8700 |
| Processor Cores | 6 Cores / 12 Threads |
| Base Frequency | 3.2 GHz |
| Maximum Turbo Frequency | 4.6 GHz |
| Processor Cache | 12 MB |
| Chipset | Intel C246 |
| Memory | 32 GB DDR4 SDRAM, 2 × 16 GB, Dual Channel |
| Storage | 2 × 1 TB 3.5-inch SATA HDD |
| Storage Configuration | RAID 1 |
| Network Interfaces | 3 × Gigabit Ethernet, RJ45 |
| Display Interfaces | 1 × DVI-D, 2 × DisplayPort |
| Serial Interface | 1 × COM1, RS-232 |
| USB Interfaces | 2 × USB 3.0 on front; 4 × USB 3.1 and 2 × USB 3.1 Type-C on rear; 1 × USB 3.1 internal |
| Audio Interfaces | Microphone Input, Line Input, Line Output |
| PCI Slots | 3 × PCI |
| PCIe Slots | 1 × PCIe x16 (8 lanes), 5 × PCIe x16 (4 lanes), 2 × PCIe x4 (4 lanes) |
| Graphics | Integrated Intel UHD Graphics 630 |
| Power Supply | 100/240 VAC, 50/60 Hz, autorange |
| Operating System | Windows 10 Enterprise 2016 LTSB, 64-bit |
| Monitoring Functions | Temperature Monitoring and Fan Monitoring |
| Watchdog | Integrated Watchdog Function |
| Mounting | 19-inch rack mounting; suitable for horizontal or vertical installation |
| Front Protection | IP41 |
| Rear Protection | IP20 |
| Expansion Support | Expansion cards up to 312 mm |
| Typical Applications | SCADA, HMI, Industrial Data Acquisition, Production Monitoring and PC-Based Automation |
| Dimensions | 444 × 430 × 177 mm |
| Weight | 17 kg |
FAQ
1. What is the main application of the Siemens 6AG4114-3HR53-0DX0?
The Siemens 6AG4114-3HR53-0DX0 is a SIMATIC IPC847E rack-mount industrial computer designed for industrial automation and demanding PC-based applications. It can be used for SCADA servers, HMI visualization, production monitoring, industrial data acquisition, database applications, engineering stations, and centralized automation systems. Its 19-inch 4U design allows it to be installed in standard industrial equipment racks and control cabinets.
2. What processor does the 6AG4114-3HR53-0DX0 use?
This configuration uses an Intel Core i7-8700 processor with 6 cores and 12 threads. The processor operates at 3.2 GHz base frequency and supports Turbo operation up to 4.6 GHz, with 12 MB cache. This processing capability is suitable for running SCADA software, HMI applications, industrial databases, engineering tools, and multiple automation-related applications simultaneously.
3. What are the memory and storage configurations?
The system is equipped with 32 GB DDR4 SDRAM using two 16 GB modules in dual-channel operation. Storage consists of two 1 TB 3.5-inch SATA hard drives configured as RAID 1. RAID 1 mirrors data between the two drives, providing redundancy against a single drive failure and making it suitable for industrial applications where data availability is important.
4. What communication interfaces are available on this industrial PC?
The 6AG4114-3HR53-0DX0 provides three Gigabit Ethernet interfaces with RJ45 connectors. These interfaces can be used for Industrial Ethernet and PROFINET-related communication, SCADA networks, PLC connections, and other industrial Ethernet devices. Multiple network ports also allow different network segments to be separated according to the automation system architecture.
5. Can the 6AG4114-3HR53-0DX0 be expanded with PCI or PCIe cards?
Yes. The IPC847E platform provides multiple PCI and PCI Express expansion slots. The configuration includes three PCI slots and several PCIe slots, allowing the installation of industrial communication cards, fieldbus interfaces, data acquisition cards, specialized interface modules, and other expansion hardware. Before installation, check the interface type, PCIe lane requirements, card length, power consumption, and driver compatibility.
6. What display and USB interfaces are provided?
The system provides one DVI-D interface and two DisplayPort interfaces for industrial monitors and visualization equipment. USB connectivity includes two USB 3.0 ports on the front panel, four USB 3.1 ports and two USB 3.1 Type-C ports on the rear, plus one internal USB 3.1 interface. Front USB ports are convenient for maintenance devices, while rear ports can be used for permanently connected peripherals.
7. What protection and monitoring functions are included?
The 6AG4114-3HR53-0DX0 includes temperature monitoring, fan monitoring, and an integrated Watchdog function. These functions help monitor critical operating conditions and improve system reliability during continuous industrial operation. The front panel provides IP41 protection, while the rear side is rated IP20. If temperature or fan alarms occur, the cooling system, cabinet airflow, ventilation openings, and dust accumulation should be inspected.
8. How should the 6AG4114-3HR53-0DX0 be maintained?
Routine maintenance should include checking power connections, network cables, expansion cards, cooling fans, and ventilation paths. Dust should be removed periodically from cooling areas to prevent excessive internal temperature. The health and status of the RAID 1 storage system should also be monitored, and failed drives should be replaced according to the system maintenance procedure. Regular backups of the operating system, SCADA applications, communication settings, and project files are recommended for critical automation installations.
Siemens 6AG4114-3HR53-0DX0 Rack-Mount Industrial Computer is in stock. Please contact us for a quick quote and competitive pricing.
