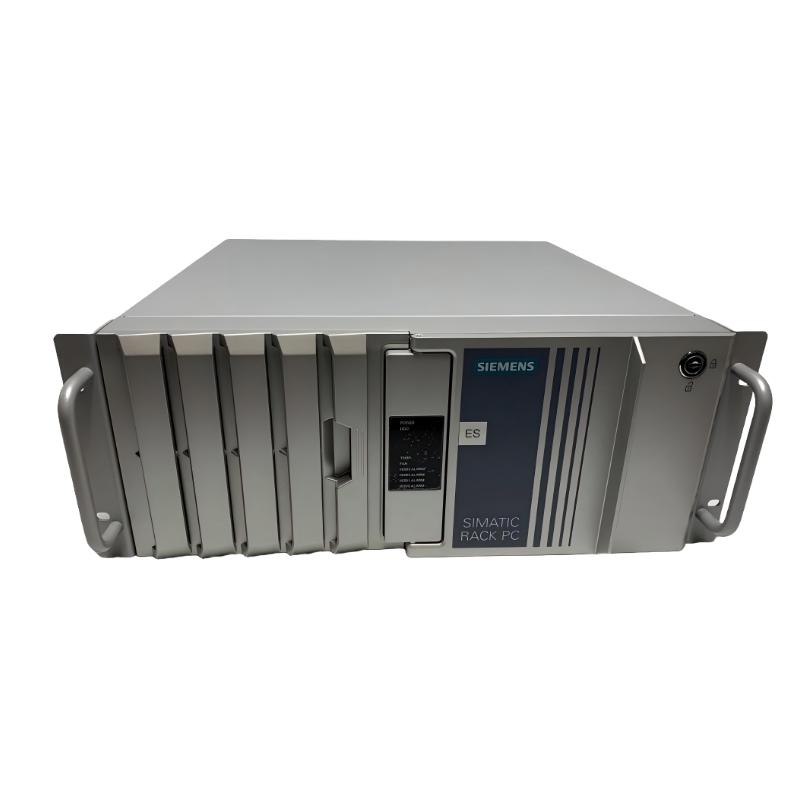

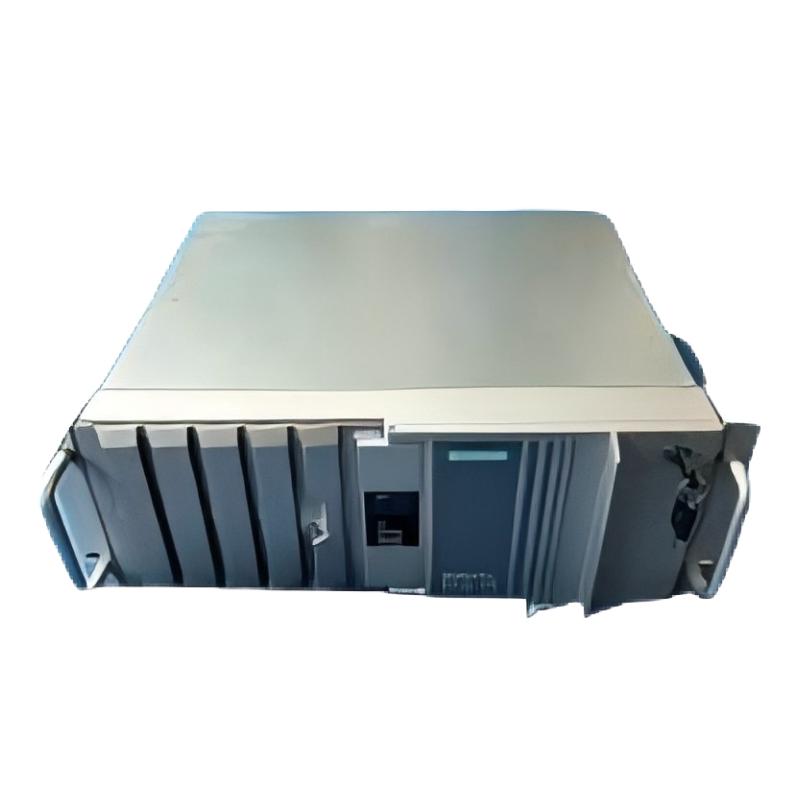

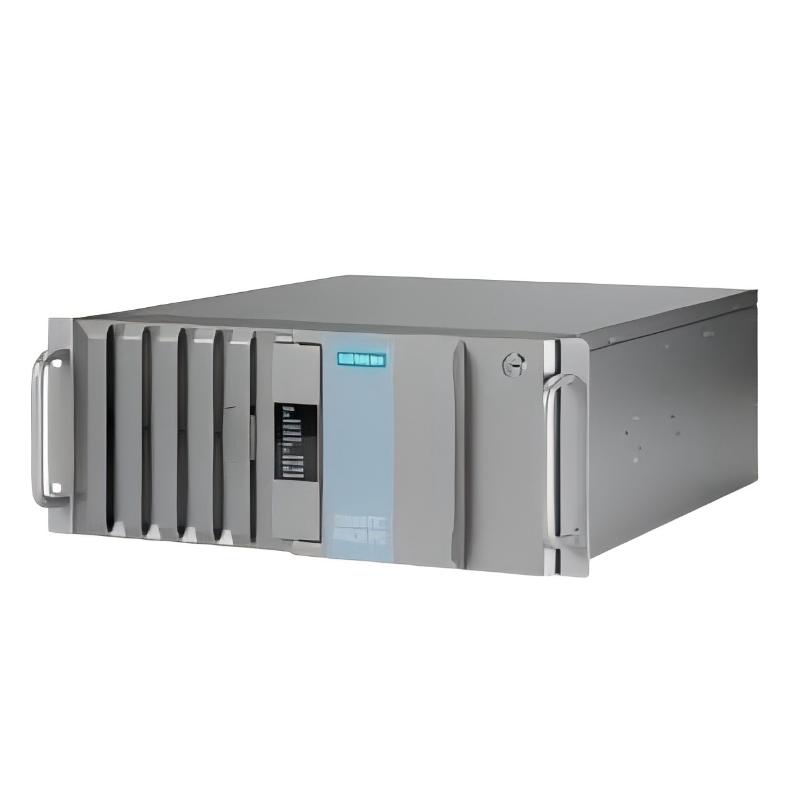

Siemens 6AG4114-3HT11-0DA3 Rack-Mount Industrial Computer
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Siemens 6AG4114-3HT11-0DA3 |
| Product Series | SIMATIC IPC847E |
| Product Type | Rack-Mount Industrial Computer |
| Rack Format | 19-inch, 4U |
| Processor | Intel Core i7-8700 |
| Processor Cores | 6 Cores / 12 Threads |
| Base Frequency | 3.2 GHz |
| Maximum Turbo Frequency | 4.6 GHz |
| Processor Cache | 12 MB |
| Chipset | Intel C246 |
| Memory | 32 GB DDR4 SDRAM, 2 × 16 GB, Dual Channel |
| Storage | 2 × 1 TB 3.5-inch SATA HDD |
| Network Interfaces | 3 × Gigabit Ethernet, RJ45 |
| Display Interfaces | 1 × DVI-D, 2 × DisplayPort |
| Serial Interface | 1 × COM1, RS-232 |
| USB Interfaces | Front: 2 × USB 3.0; Rear: 4 × USB 3.1 and 2 × USB 3.1 Type-C; Internal: 1 × USB 3.1 |
| Audio Interfaces | Microphone Input, Line Input, Line Output |
| PCI Slots | 3 × PCI |
| PCIe Slots | 1 × PCIe x16, 5 × PCIe x16, 2 × PCIe x4 |
| Graphics Controller | Integrated Intel UHD Graphics 630 |
| Power Supply | 100/240 VAC, 50/60 Hz |
| Operating System | Windows 10 Enterprise 2016 LTSB, 64-bit |
| Monitoring Functions | Temperature Monitoring and Fan Monitoring |
| Watchdog | Integrated Watchdog Function |
| Mounting | 19-inch Rack-Mount Installation, Horizontal or Vertical |
| Front Protection | IP41 |
| Rear Protection | IP20 |
| Typical Applications | SCADA, HMI, Industrial Data Acquisition, Production Monitoring and PC-Based Automation |
| Dimensions | 444 × 430 × 177 mm |
| Weight | 17 kg |
FAQ
1. What are the main applications of the Siemens 6AG4114-3HT11-0DA3?
The Siemens 6AG4114-3HT11-0DA3 is a SIMATIC IPC847E rack-mount industrial computer designed for demanding industrial automation and PC-based applications. Typical uses include SCADA systems, HMI visualization, production monitoring, industrial data acquisition, database applications, and centralized automation systems. Its 19-inch rack format makes it suitable for installation in industrial control cabinets and equipment racks.
2. What processor is used in the 6AG4114-3HT11-0DA3?
This configuration uses an Intel Core i7-8700 processor with 6 physical cores and 12 threads. The processor has a 3.2 GHz base frequency, up to 4.6 GHz Turbo frequency, and 12 MB cache. This processing capability is suitable for SCADA visualization, HMI applications, industrial data processing, engineering software, and multitasking environments.
3. What memory and storage configuration does the 6AG4114-3HT11-0DA3 provide?
The system is equipped with 32 GB DDR4 SDRAM using two 16 GB modules in dual-channel operation. Storage consists of two 1 TB 3.5-inch SATA hard drives. This configuration provides substantial capacity for operating-system files, industrial applications, production data, historical records, and system logs. Storage management should be planned according to the data volume and retention requirements of the automation system.
4. What communication interfaces are available on this industrial computer?
The 6AG4114-3HT11-0DA3 provides three Gigabit Ethernet interfaces with RJ45 connectors. These interfaces can be used for Industrial Ethernet, PROFINET-related communication, SCADA networks, PLC connections, and communication with other industrial devices. Multiple Ethernet interfaces can also support separate network connections for control, monitoring, and plant-level systems according to the network architecture.
5. Can PCI and PCIe expansion cards be installed in the 6AG4114-3HT11-0DA3?
Yes. The system provides multiple PCI and PCI Express expansion slots for additional industrial hardware. Depending on the application, expansion cards can be used for industrial communication, fieldbus connectivity, data acquisition, specialized interfaces, or other automation functions. Before installation, check the card interface type, PCIe lane requirements, power consumption, driver availability, and compatibility with the installed operating system.
6. What display and USB interfaces are provided?
The industrial PC provides one DVI-D interface and two DisplayPort interfaces for industrial monitors and visualization equipment. USB connectivity includes two USB 3.0 ports on the front panel, four USB 3.1 ports and two USB 3.1 Type-C ports on the rear, plus one internal USB 3.1 interface. Front USB ports are convenient for commissioning and maintenance, while rear interfaces are suitable for permanently connected peripherals.
7. What are the functions of temperature monitoring and the integrated Watchdog?
Temperature monitoring helps detect abnormal internal operating conditions, while fan monitoring provides information about the cooling system. The integrated Watchdog function monitors system operation and can respond to certain software or system lock-up conditions. These functions are useful for industrial computers operating continuously. If temperature or fan alarms occur, the cabinet ventilation, cooling fans, airflow, and dust accumulation should be checked.
8. How should the Siemens 6AG4114-3HT11-0DA3 be maintained?
Routine maintenance should include checking power connections, Ethernet cables, PCI/PCIe expansion cards, cooling fans, and ventilation passages. Dust should be removed periodically from cooling areas to maintain proper airflow. The condition of the installed hard drives should also be monitored, together with Windows event logs and SCADA/HMI application logs. For critical automation systems, regular backups of the operating system, applications, communication settings, and project files are recommended to simplify recovery after a system failure.
Siemens 6AG4114-3HT11-0DA3 Rack-Mount Industrial Computer is in stock. Please contact us for a quick quote and competitive pricing.
