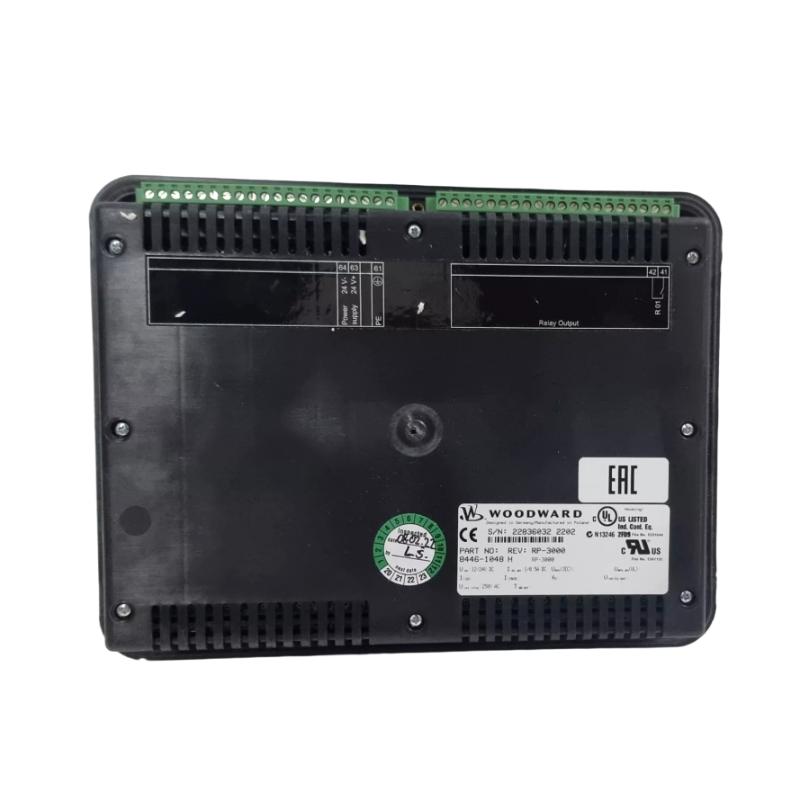

Woodward 8446-1048 Remote Control and Annunciation Panel
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Woodward |
| Product Model | 8446-1048 |
| Product Type | Remote Control and Annunciation Panel |
| Product Family | RP-3000 |
| Main Function | Remote monitoring, control and annunciation |
| Compatible Controllers | easYgen-3100/3200-P1/P2 and easYgen-3400/3500-P1/P2 |
| Display | Color LCD |
| Operator Interface | 11-button front-panel interface |
| Communication | 1 × CAN bus, 1 × RS-232 |
| Relay Output | 1 × relay output for “Ready for Operation” indication |
| Housing | Plastic housing for front-panel mounting |
| Mounting | Panel mounting |
| Approvals | UL/cUL, LR Marine, ABS Marine, CE |
| Operating Temperature | Application dependent |
| Dimensions | Approx. 282 × 217 × 67 mm |
| Weight | Approx. 2.72 kg |
| Typical Applications | Generator control panels, industrial power systems and remote genset operation |
FAQ
Q: What is the Woodward 8446-1048?
A: The 8446-1048 is an RP-3000 remote control and annunciation panel designed to provide a local operator interface for compatible Woodward easYgen generator controllers.
Q: Which easYgen controllers are compatible with the 8446-1048?
A: It supports easYgen-3100/3200-P1/P2 and easYgen-3400/3500-P1/P2 controllers. For easYgen-3100/3200-P1/P2, the controller software must be version 1.17xx or higher.

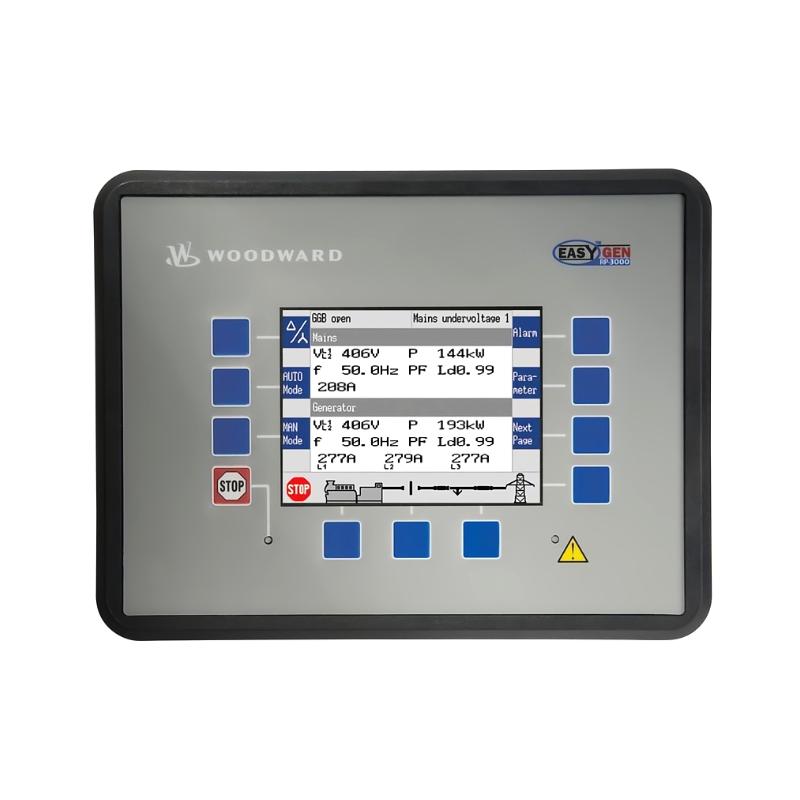

Q: What type of display does the 8446-1048 have?
A: The RP-3000 uses a color LCD display with an 11-button operator interface for viewing operating information and accessing control functions.

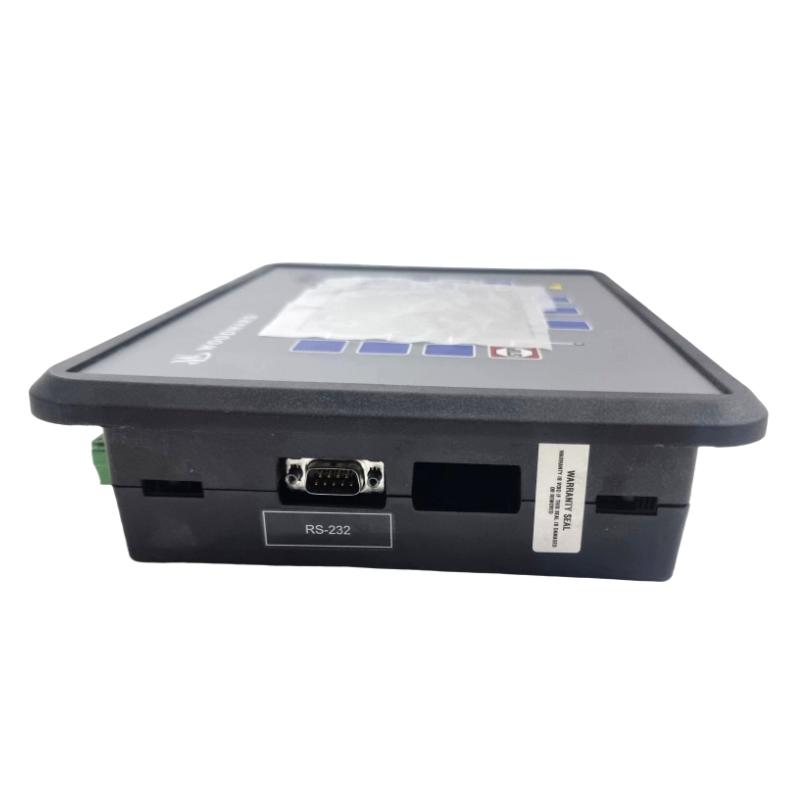

Q: What communication interfaces are provided?
A: The panel provides one CAN bus interface and one RS-232 interface. The CAN connection is used for communication with compatible easYgen generator controllers.
Q: Does the 8446-1048 have relay outputs?
A: Yes. It provides one relay output associated with the “Ready for Operation” indication.
Q: How is the 8446-1048 installed?
A: The unit uses a plastic housing designed for front-panel installation, making it suitable for integration into generator control cabinets and switchboards.
Q: What is the typical application of the 8446-1048?
A: It is used as a remote operator and annunciation interface for generator control systems, particularly where the easYgen controller needs to be operated or monitored from a control-panel location.
Q: What are the dimensions and weight of the 8446-1048?
A: The commonly listed overall dimensions are approximately 282 × 217 × 67 mm, with a weight of about 2.72 kg. The actual installed dimensions should be checked against the applicable mechanical drawing before panel fabrication.
Woodward 8446-1048 Remote Control and Annunciation Panel is in stock. Please contact us for a quick quote and competitive pricing.
