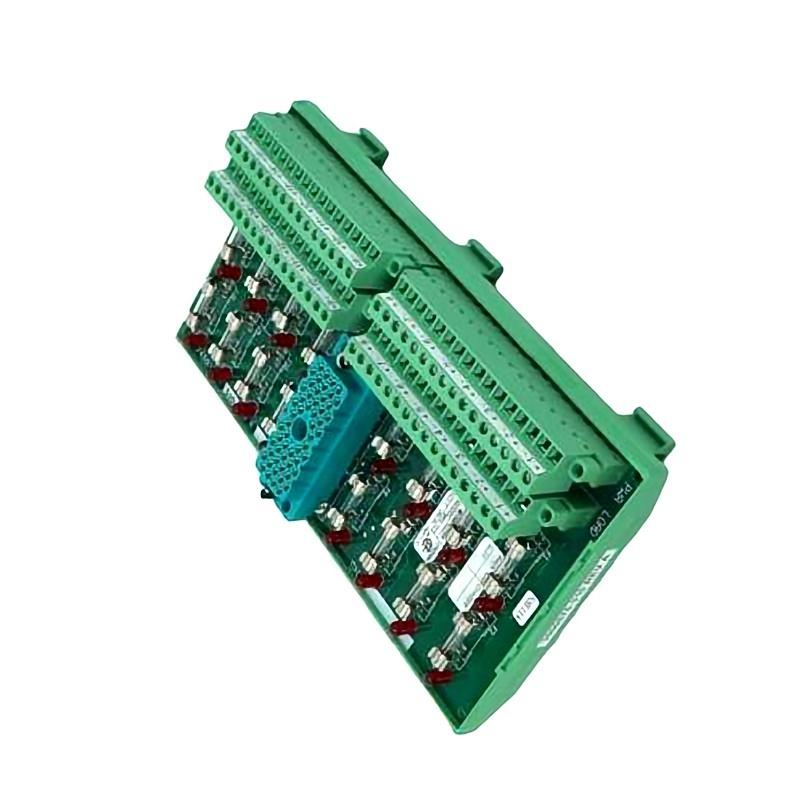

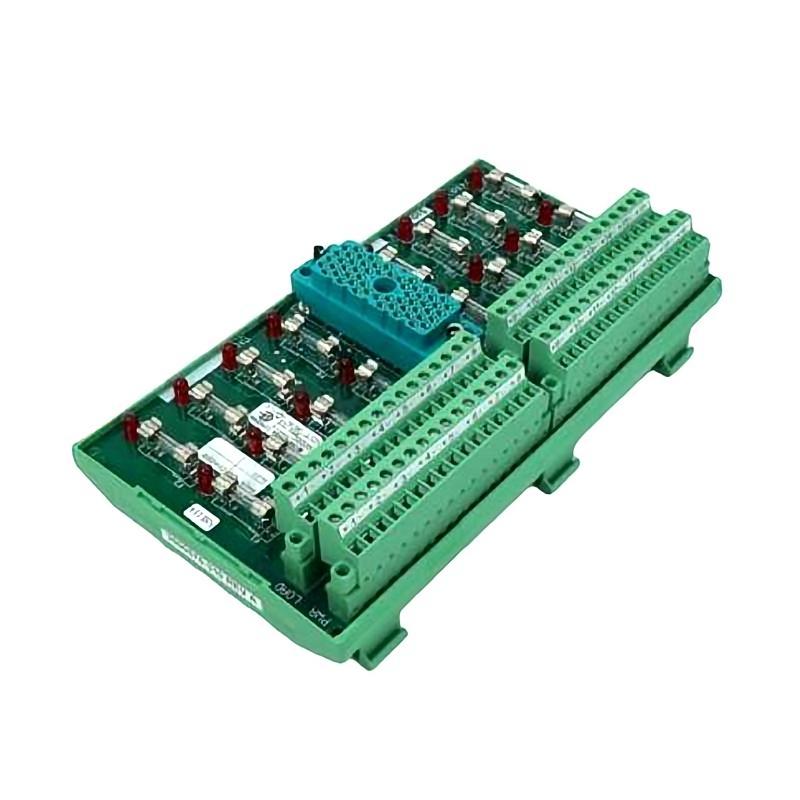

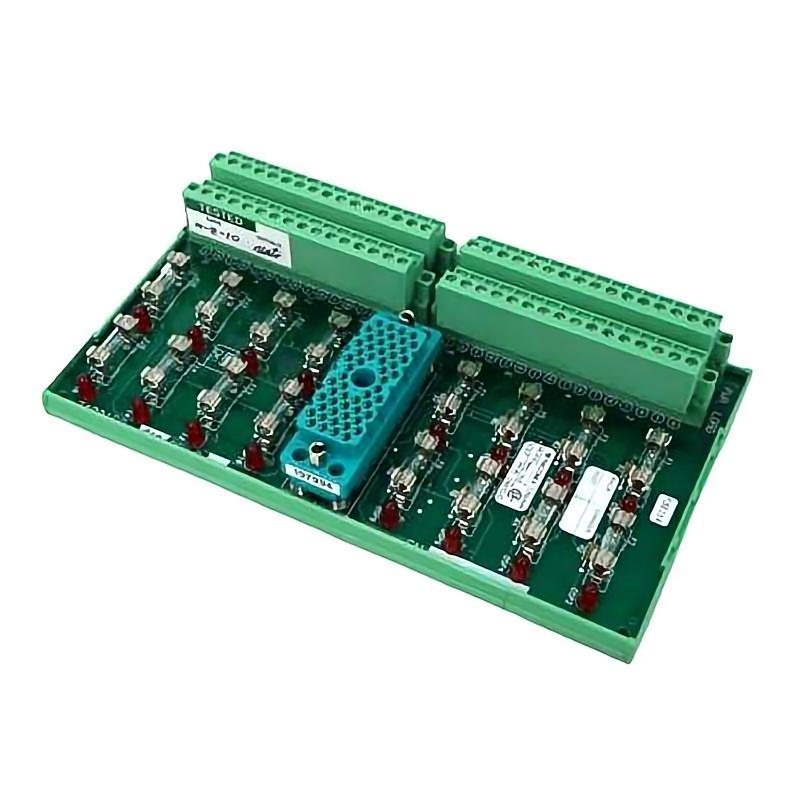

Woodward 9662-110 Termination Panel
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Invensys / Triconex |
| Product Model | 9662-110 |
| Product Type | Termination Panel |
| System | Tricon Safety Instrumented System |
| Panel Type | Non-commoned |
| Compatible Module | 3604E |
| I/O Type | 24 VDC Digital Output |
| Number of Points | 16 |
| Terminal Arrangement | 16 LOAD+ / LOAD− terminals and 16 PWR+ / PWR− terminals |
| Fuse Protection | 16 individual fuses |
| Fuse Indication | Blown-fuse indicators |
| Isolation | 500 VDC |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +85°C |
| Relative Humidity | 5–95% RH, non-condensing |
| Mounting | Control cabinet / panel installation |
| Dimensions | Approx. 198 × 112 × 60 mm |
| Weight | Approx. 0.52 kg |
| Typical Application | Industrial safety and process-control systems |
FAQ
Q: What is the Invensys Triconex 9662-110?
A: The 9662-110 is a field termination panel used with Triconex safety control systems. It provides organized field wiring and termination for compatible digital output modules.
Q: Which Triconex module is compatible with the 9662-110?
A: The 9662-110 is commonly specified for use with the Triconex 3604E digital output module.
Q: How many I/O points does the 9662-110 support?
A: The termination panel provides 16 points, with dedicated LOAD+ and LOAD− as well as PWR+ and PWR− terminals.
Q: What type of output system does it support?
A: It is associated with 24 VDC digital output applications and provides the field termination interface between the control module and external loads.
Q: Does the 9662-110 provide electrical isolation?
A: The published specification identifies 500 VDC isolation, providing separation between the termination circuitry and associated system wiring.
Q: Does each channel have fuse protection?
A: Yes. The panel incorporates 16 individual fuses, with blown-fuse indicators to help identify a failed protection device during maintenance.
Q: What environmental conditions can the 9662-110 withstand?
A: The specified operating temperature range is approximately -40°C to +70°C. Storage temperature is approximately -55°C to +85°C, with 5–95% relative humidity without condensation.
Q: What are the dimensions and weight of the 9662-110?
A: The commonly referenced shipping/physical size is approximately 198 × 112 × 60 mm, with a product weight of about 0.52 kg. Exact cabinet clearances should be checked against the applicable installation documentation.
Woodward 9662-110 Termination Panel is in stock. Please contact us for a quick quote and competitive pricing.
