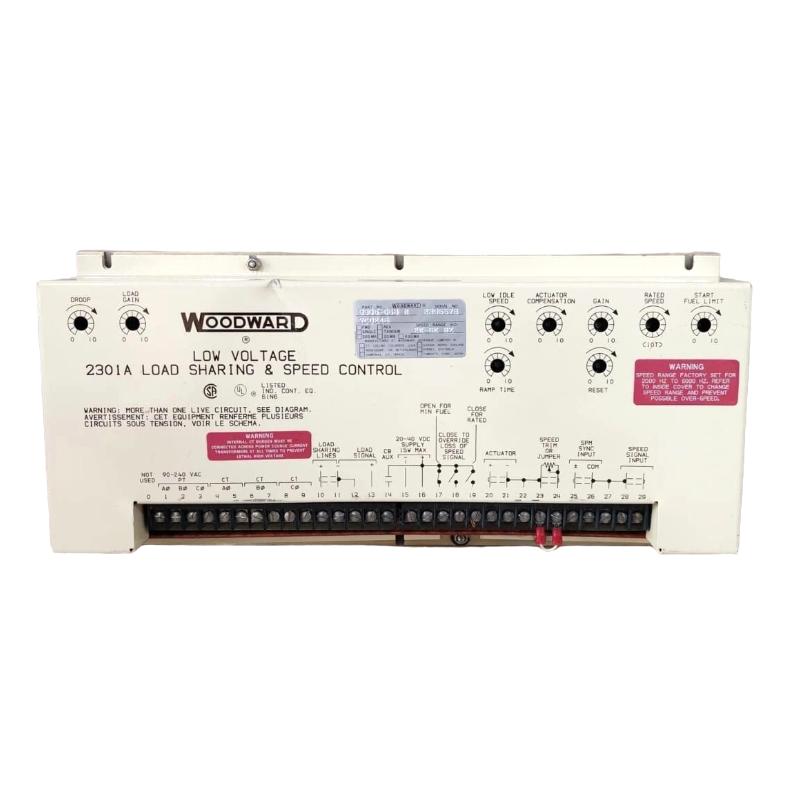

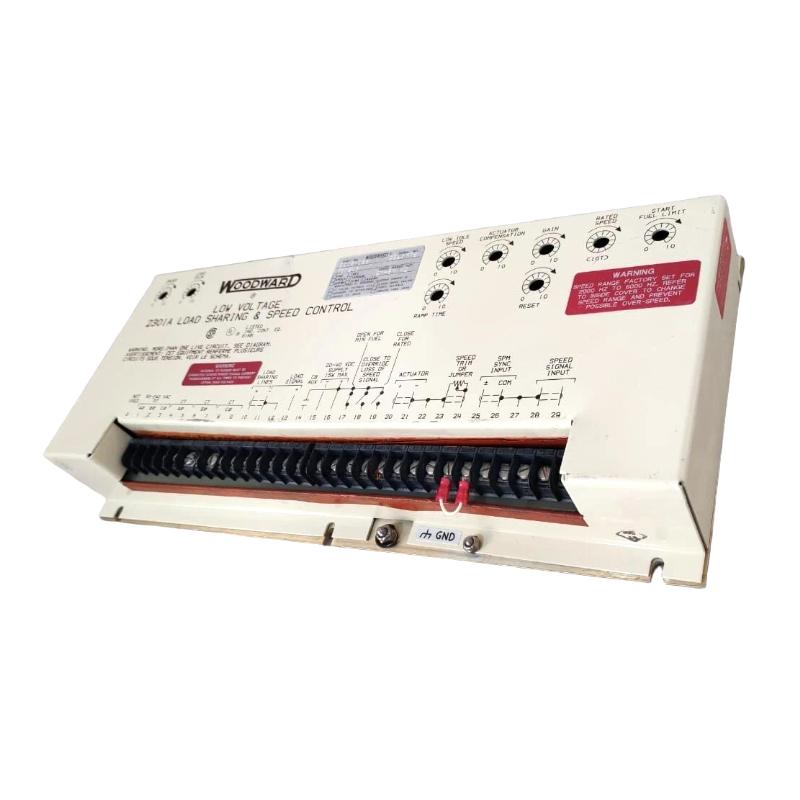

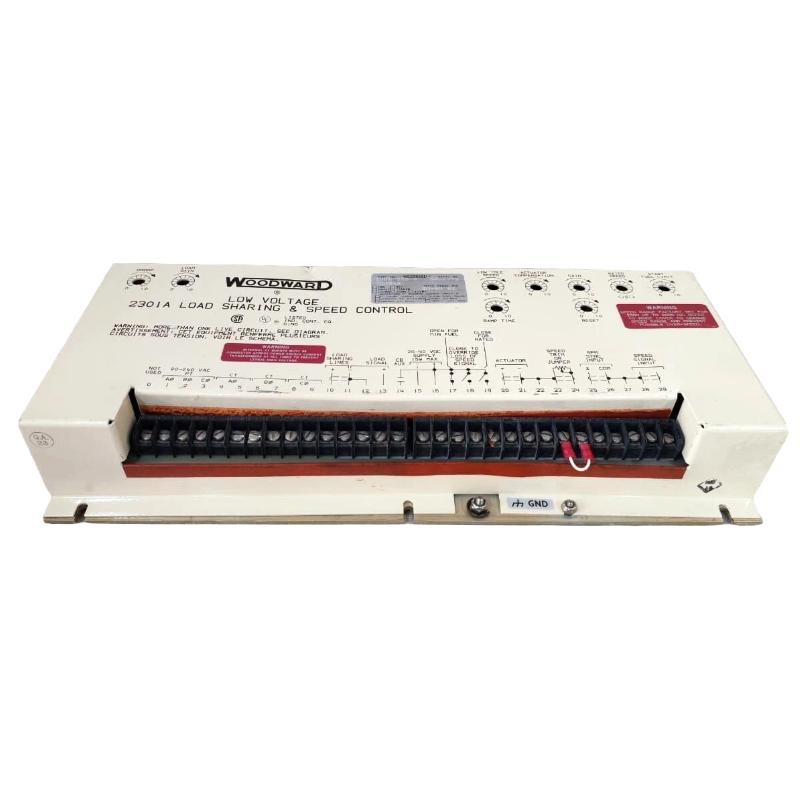

Woodward 9905-068 2301A Electronic Speed Control
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Woodward |
| Product Model | 9905-068 |
| Product Type | Electronic Speed Control |
| Product Family | 2301A |
| Main Function | Engine speed and load control |
| Application | Diesel and gas engine-driven generator sets |
| Speed Signal | Magnetic pickup (MPU) |
| Speed Range | 1,000–5,000 Hz input signal |
| Control Mode | Isochronous / droop |
| Load Sharing | Supported with compatible systems |
| Power Supply | 20–40 VDC |
| Nominal Supply | 24 VDC |
| Speed Setting | External speed-setting input |
| Actuator Output | Proportional actuator drive output |
| Protection | Loss-of-speed-signal and overspeed-related protection |
| Control Adjustment | Front-panel adjustment controls |
| Installation | Industrial control panel |
| Operating Temperature | Approx. -40°C to +70°C |
| Dimensions | Approx. 152 × 76 × 51 mm |
| Weight | Approx. 0.45 kg |
| Typical Applications | Generator sets, pumps, compressors and industrial prime movers |
FAQ
Q: What is the Woodward 9905-068?
A: The 9905-068 is a Woodward 2301A electronic speed control used to regulate the speed and load characteristics of engine-driven equipment.
Q: What is the primary function of the 2301A 9905-068?
A: It receives an engine-speed signal, compares the actual speed with the commanded setting and drives the connected actuator to maintain the required engine speed.
Q: What type of speed signal does the controller use?
A: The 9905-068 uses a magnetic pickup (MPU) signal to measure engine speed. The pickup frequency is processed by the controller as the engine-speed feedback signal.
Q: What power supply does the 9905-068 require?
A: The 2301A controller is designed for a nominal 24 VDC supply, with a commonly specified operating range of approximately 20–40 VDC.
Q: Does the 9905-068 support isochronous and droop operation?
A: Yes. The 2301A control platform supports both isochronous and droop operation. The appropriate setting depends on whether the prime mover is operating independently or participating in load sharing.
Q: What type of engines can be controlled by the 9905-068?
A: The controller is intended for compatible diesel and gas engines. It is normally used together with an appropriate actuator, magnetic pickup and engine fuel or throttle control system.
Q: Where is the 9905-068 commonly used?
A: Typical applications include generator sets, pumps, compressors and other industrial prime movers that require reliable electronic speed regulation.
Q: What are the dimensions and weight of the 9905-068?
A: The commonly referenced dimensions are approximately 152 × 76 × 51 mm, with a weight of about 0.45 kg. Actual mounting dimensions should be confirmed against the applicable Woodward hardware documentation before installation.
Woodward 9905-068 2301A Electronic Speed Control is in stock. Please contact us for a quick quote and competitive pricing.
