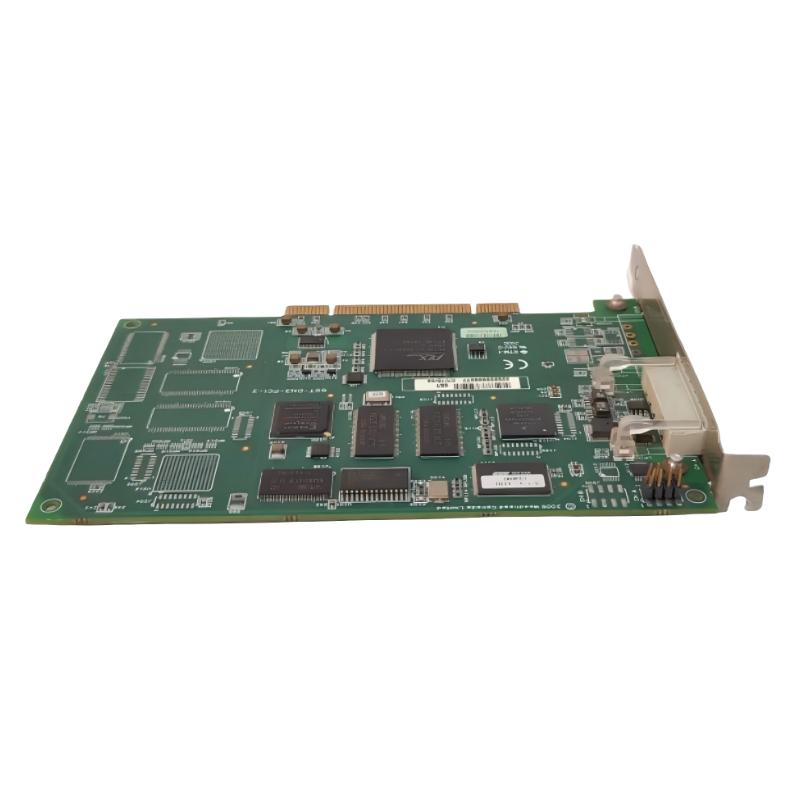

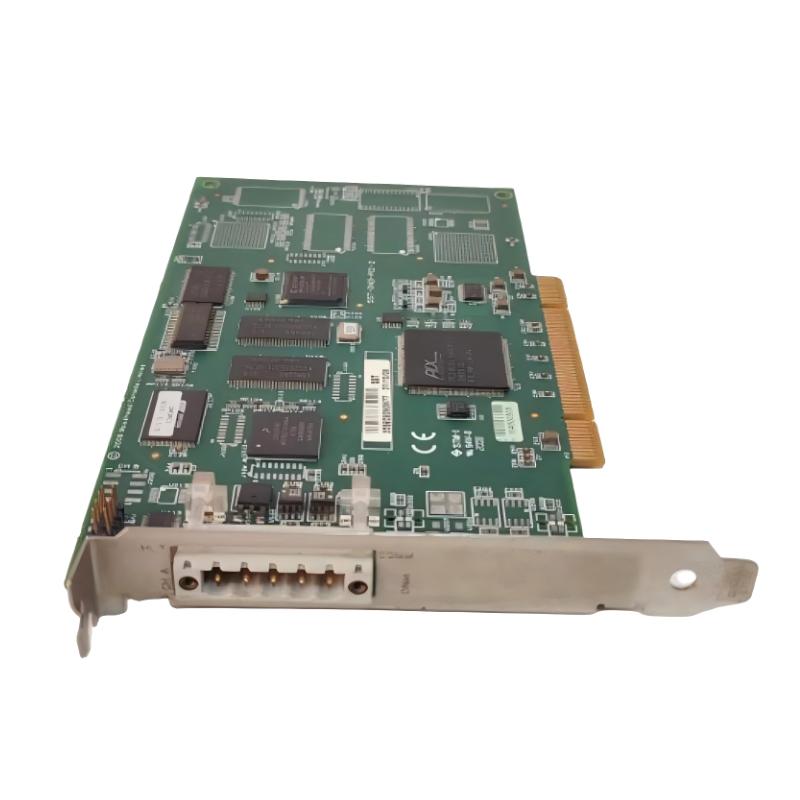

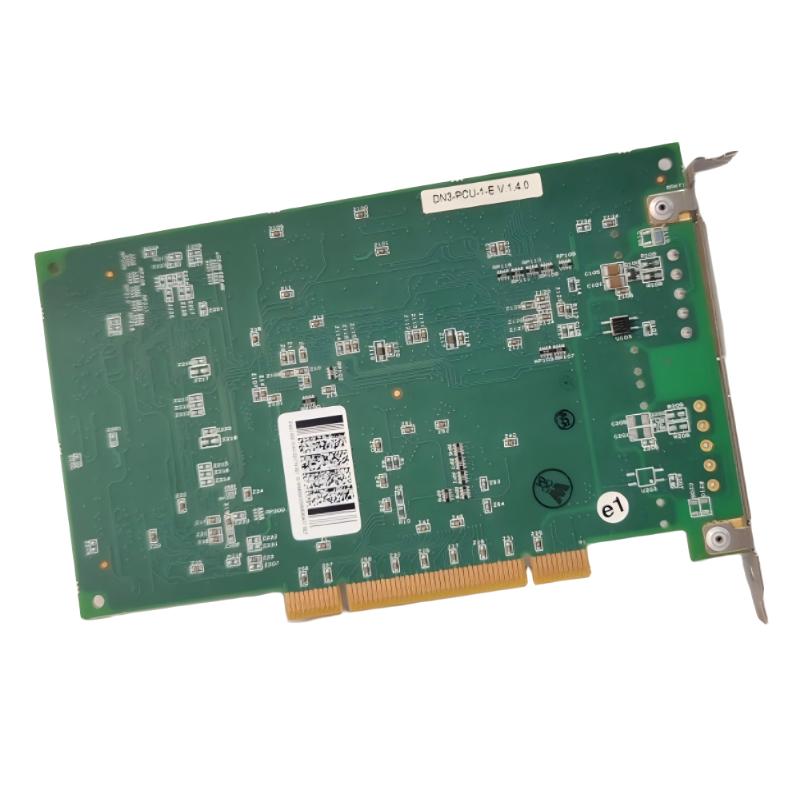

Woodward SST-DN3-PCI-2 Network Interface Card
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SST-DN3-PCI-2 |
| Brand | Woodward / Woodhead |
| Product Type | DeviceNet Network Interface Card |
| Communication Interface | DeviceNet |
| Host Bus Interface | 32-bit PCI |
| PCI Bus Frequency | 33 MHz |
| Communication Channels | 2 independent DeviceNet channels |
| Communication Protocol | DeviceNet, CAN 2.0A / CAN 2.0B |
| DeviceNet Baud Rates | 125 kbps, 250 kbps, 500 kbps |
| CAN Data Rate | Up to 1 Mbaud |
| Network Function | DeviceNet Master/Scanner and Slave/Adapter communication |
| Message Types | Polled, Cyclic, Change-of-State (COS), and Explicit Messaging |
| Network Cable | Shielded twisted pair |
| Network Isolation | 500 V |
| External Network Power | 11–24 VDC, typically 50 mA |
| PCI Power Supply | +5 V ±5% |
| Typical Current Consumption | Approximately 1.03 A for 2-channel operation |
| Network Connector | 5-pin DeviceNet/CAN connector |
| Status Indication | LED indicators for card and communication status |
| Operating Temperature | 0 to +55°C |
| Storage Temperature | -40 to +85°C |
| Relative Humidity | 5–95%, non-condensing |
| Form Factor | Standard half-length 32-bit PCI card |
| Typical Applications | PLC, industrial PC, automation control, DeviceNet network communication |
| Installation | Compatible standard PCI slot |
| Dimensions | 155 × 25 × 100 mm |
| Weight | 0.45 kg |
FAQ
1. What is the main function of the Woodward SST-DN3-PCI-2?
The SST-DN3-PCI-2 is a dual-channel PCI interface card designed to connect an industrial PC or control computer to DeviceNet networks. It provides communication between the host computer and DeviceNet field devices such as I/O modules, drives, sensors, actuators, and other intelligent devices. The card handles DeviceNet and CAN-based communication tasks, reducing the amount of low-level network processing required from the host computer.
2. How many DeviceNet channels does the SST-DN3-PCI-2 provide?
The card provides two independent DeviceNet communication channels. Each channel can be connected to a separate DeviceNet network, allowing one industrial PC to manage multiple fieldbus segments. This configuration is useful when automation equipment needs to communicate with different groups of field devices or separate network sections.
3. What DeviceNet communication speeds are supported?
The SST-DN3-PCI-2 supports the standard DeviceNet baud rates of 125 kbps, 250 kbps, and 500 kbps. For general CAN communication, the interface can support data rates of up to 1 Mbaud. The appropriate communication speed should be selected according to the network topology, cable length, connected devices, and DeviceNet specifications.
4. Is the SST-DN3-PCI-2 a PCI or PCIe interface card?
The SST-DN3-PCI-2 uses a conventional 32-bit PCI bus rather than PCI Express (PCIe). The host industrial computer must therefore have a compatible PCI slot. Before installation, verify the available PCI slot, operating system support, driver compatibility, and system resource allocation.
5. What communication modes are supported by the SST-DN3-PCI-2?
The card supports common DeviceNet communication methods including Polled, Cyclic, Change-of-State (COS), and Explicit Messaging. Polled and cyclic communication are typically used for regular process data exchange, while COS communication can reduce unnecessary network traffic by transmitting data when a monitored value changes. Explicit Messaging is generally used for configuration, parameter access, and diagnostic information.
6. How should communication problems with the SST-DN3-PCI-2 be diagnosed?
Start by checking whether the PCI card is correctly installed and recognized by the host computer. Then verify the DeviceNet power supply, network cable, node addresses, termination, and baud-rate settings. If the physical network is operating correctly, check the DeviceNet driver, scanner configuration, device mapping, and application software. LED status indicators can also help identify card or network-level problems.
7. Can the SST-DN3-PCI-2 be used with PLC and industrial automation systems?
Yes. The card is designed for PC-based industrial communication and can be used in systems involving PLCs, industrial PCs, distributed I/O, drives, sensors, and other DeviceNet devices. It provides a communication interface between the host control platform and DeviceNet field networks for monitoring, data acquisition, configuration, and control.
8. What should be checked when commissioning the SST-DN3-PCI-2?
During commissioning, verify the PCI installation, device driver, DeviceNet network power, node addresses, baud rate, cable wiring, network topology, and communication configuration. Each DeviceNet node should have a valid and unique network address, and the network should use appropriate cabling and termination. For dual-channel installations, the configuration and communication status of each channel should be checked independently.
