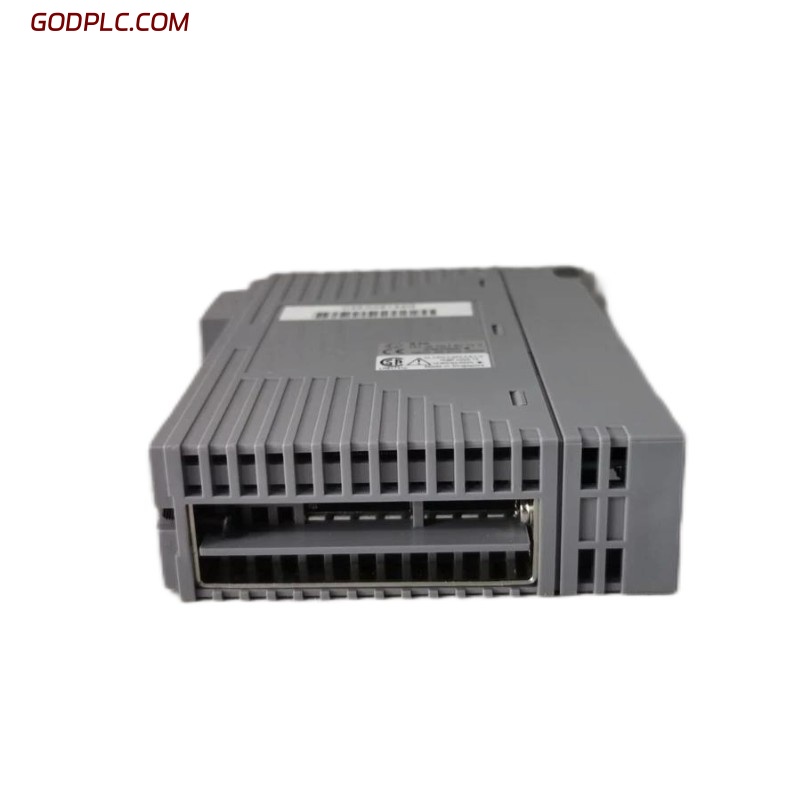

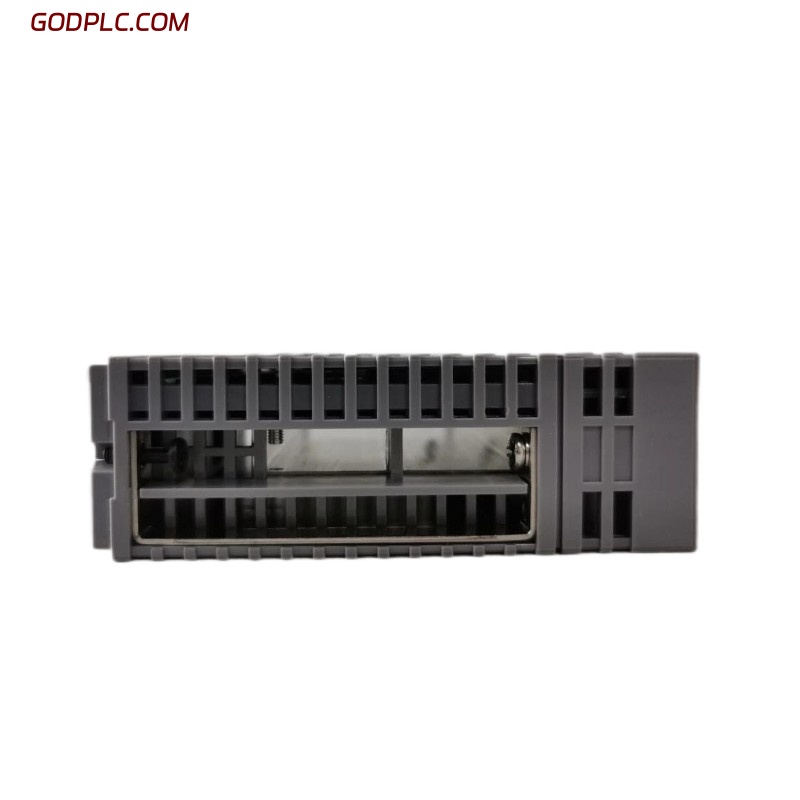

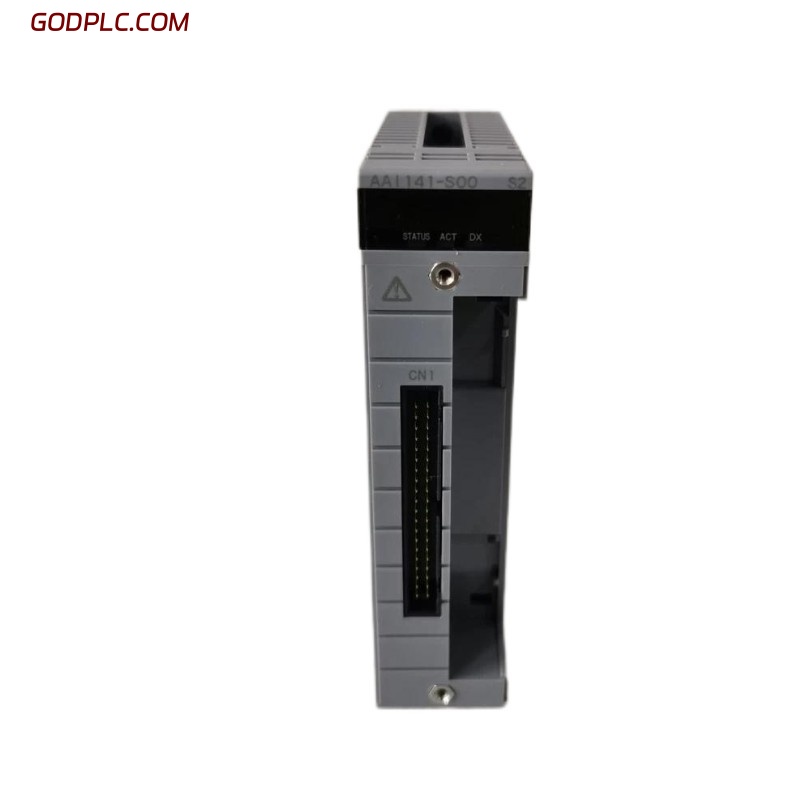

Yokogawa AAI141-S00/K4A00 Analog Input Modules
Product Overview
The Yokogawa AAI141-S00/K4A00 Analog Input Module provides highly accurate and reliable analog signal processing for industrial control systems. Designed for compatibility with Yokogawa’s Centum and ProSafe systems, this module supports multiple input types, including 4–20 mA, 0–10 V, and thermocouple signals. Its advanced features, including high-resolution signal conversion and channel-to-channel isolation, make it ideal for demanding process control applications in industries such as chemical, power generation, and oil & gas.
Key Features
-
Supports multiple analog input types: 4–20 mA, 0–10 V, and thermocouples (J, K, T, etc.)
-
16-bit resolution for high-precision data acquisition
-
Built-in diagnostics to detect open circuits, short circuits, and signal anomalies
-
Channel-to-channel isolation to ensure reliable and safe operation
-
Hot-swappable design for system flexibility and minimal downtime
-
Seamless integration with Yokogawa Centum and ProSafe control systems
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.2 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Channels | 4 isolated analog input channels |
| Input Signal | 4–20 mA, 0–10 V, Thermocouples (J, K, T, etc.) |
| Resolution | 16-bit analog-to-digital conversion |
| Input Impedance | 250 Ω (for current input) |
| Accuracy | ±0.1% of full scale |
| Isolation | 500 V channel-to-channel and to ground |
| Power Supply | 24 VDC (nominal), supplied via system |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Protection | IP20 (Enclosed unit) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| System | Yokogawa Centum, ProSafe systems |
| Application Type | Analog signal acquisition for process control |
| Redundancy Support | Supported with redundant systems |
| Field Device Support | Sensors, transmitters, and actuators with standard output signals |
Industry Applications
-
Chemical Processing – Accurate monitoring of temperature, pressure, and flow in reactors and distillation columns
-
Power Generation – Analog input from instrumentation for monitoring turbine speed, pressure, and temperature in power plants
-
Oil & Gas – Signal acquisition from field sensors for drilling, refining, and pipeline operations
-
Pharmaceutical – Precise signal conditioning for batch control and monitoring of critical production processes
-
Water and Wastewater – Reliable monitoring of flow, pressure, and level sensors in water treatment facilities
The Yokogawa AAI141-S00/K4A00 Analog Input Module offers versatile and high-precision signal acquisition, ensuring that industrial control systems maintain optimal performance. Its excellent integration with Yokogawa’s Centum and ProSafe systems provides enhanced process control for a wide range of applications.
Yokogawa AAI141-S00/K4A00 Analog Input Modules is in stock. Please contact us for a quick quote and competitive pricing.
