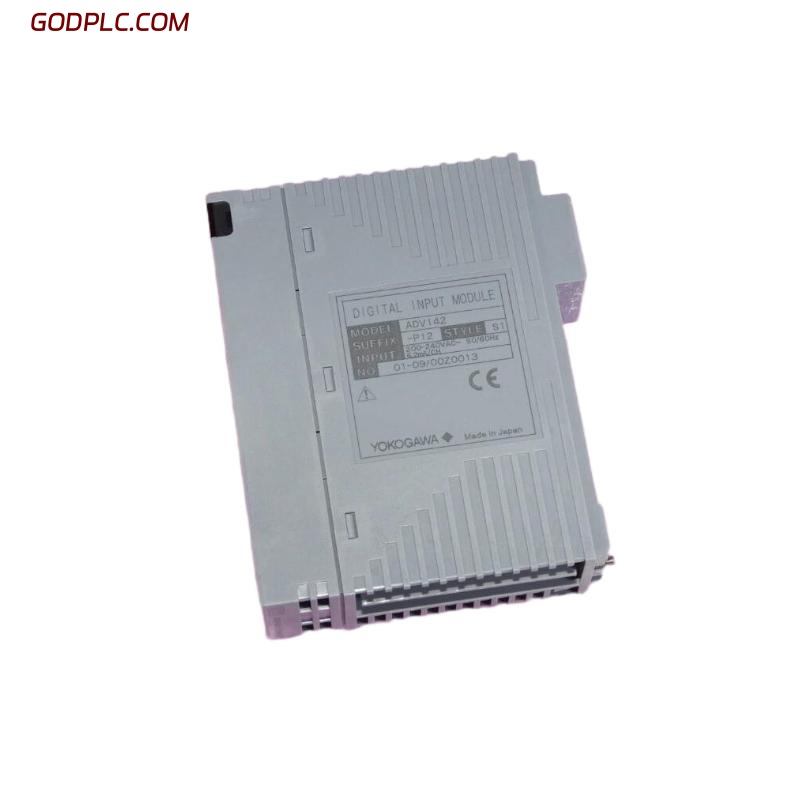

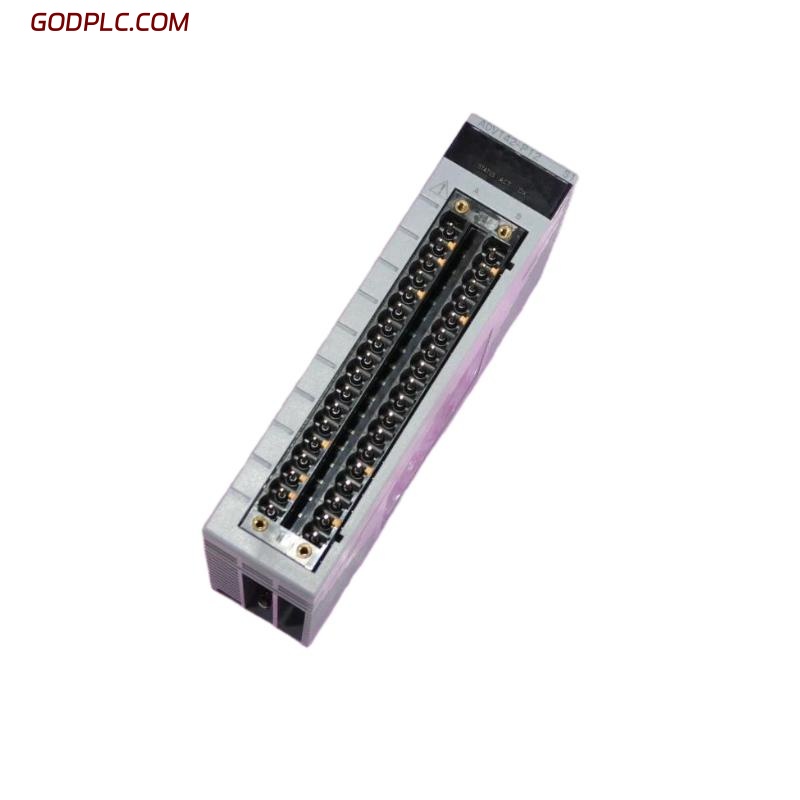

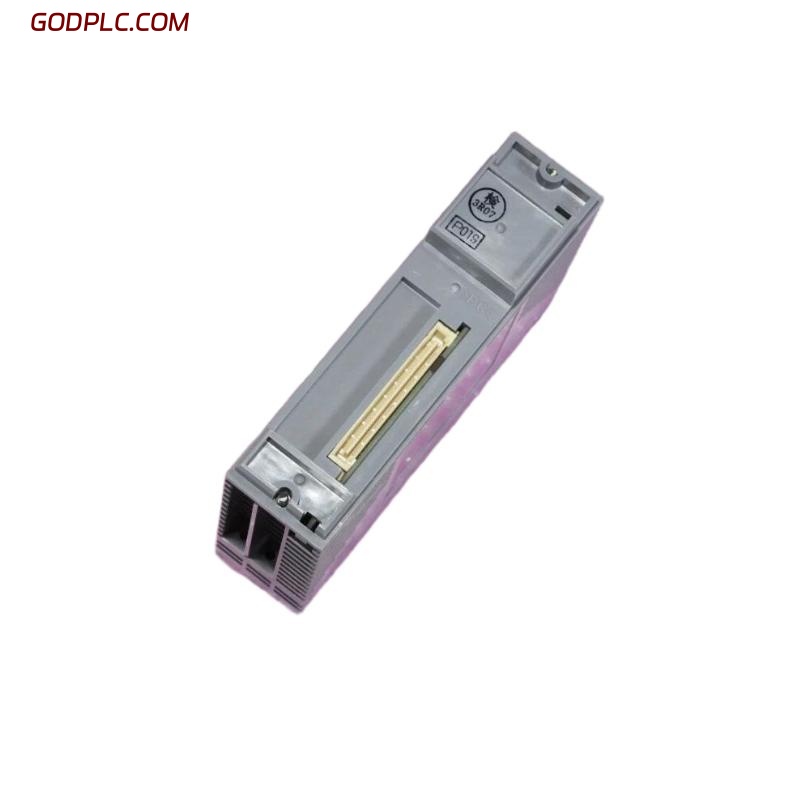

Yokogawa ADV142-P12 Digital Input Module
Product Overview
The Yokogawa ADV142-P12 is a high-density digital input module designed for use in Yokogawa’s CENTUM VP and ProSafe-RS control systems. Featuring 64 isolated input channels, this module allows efficient acquisition of discrete signals from field devices such as switches, push buttons, sensors, and interlock contacts.
The ADV142-P12 ensures reliable input signal processing with built-in isolation and diagnostic capabilities, providing fast and accurate status detection even in noisy industrial environments. Its compact form factor and high channel count make it an excellent choice for space-constrained applications where high I/O density is required.
Key Features
-
64 Digital Input Channels – High-density input configuration for monitoring numerous discrete signals
-
Channel Isolation – Channel-to-channel and channel-to-bus isolation improves noise immunity and safety
-
Input Status Monitoring – LED indicators provide real-time input signal status on the front panel
-
Compact Design – Efficient use of cabinet space in large-scale control systems
-
Diagnostic Functions – Supports built-in self-diagnostics and channel fault detection
-
Seamless System Integration – Fully compatible with Yokogawa’s control platforms for centralized I/O processing
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Number of Channels | 64 input points |
| Input Type | Dry contact or TTL-level signals |
| Rated Input Voltage | 24 VDC |
| Input Current | Approx. 4 mA per channel |
| Isolation Voltage | 1500 V AC (channel-to-bus and channel-to-channel) |
| Response Time | ≤ 10 ms |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +60°C |
| Storage Temp | -20°C to +70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Vibration Resistance | 10–57 Hz, 0.075 mm / 57–150 Hz, 9.8 m/s² |
| Enclosure Rating | Conforms to IEC standards |
System Compatibility
| Item | Specification |
|---|---|
| System Platform | Compatible with Yokogawa CENTUM VP, ProSafe-RS |
| Engineering Tools | Configurable using Yokogawa control system software |
| Terminal Module | Connects via dedicated FTA (Field Terminal Assembly) modules |
Industry Applications
-
Power and Energy – Monitoring breaker status, safety interlocks, and equipment state feedback
-
Oil & Gas – Capturing critical process signals from sensors and switches in hazardous zones
-
Water Treatment – Monitoring pump operation, level sensors, and flow switches
-
Pharmaceutical and Food Industries – Clean and accurate signal acquisition in GMP-compliant environments
-
Factory Automation – Input collection from control panels, machines, and safety systems
The Yokogawa ADV142-P12 Digital Input Module offers high input density, strong noise immunity, and reliable operation in demanding industrial applications. Its integration with Yokogawa control systems ensures seamless data acquisition for real-time process monitoring and control.
Yokogawa ADV142-P12 Digital Input Modules is in stock. Please contact us for a quick quote and competitive pricing.
