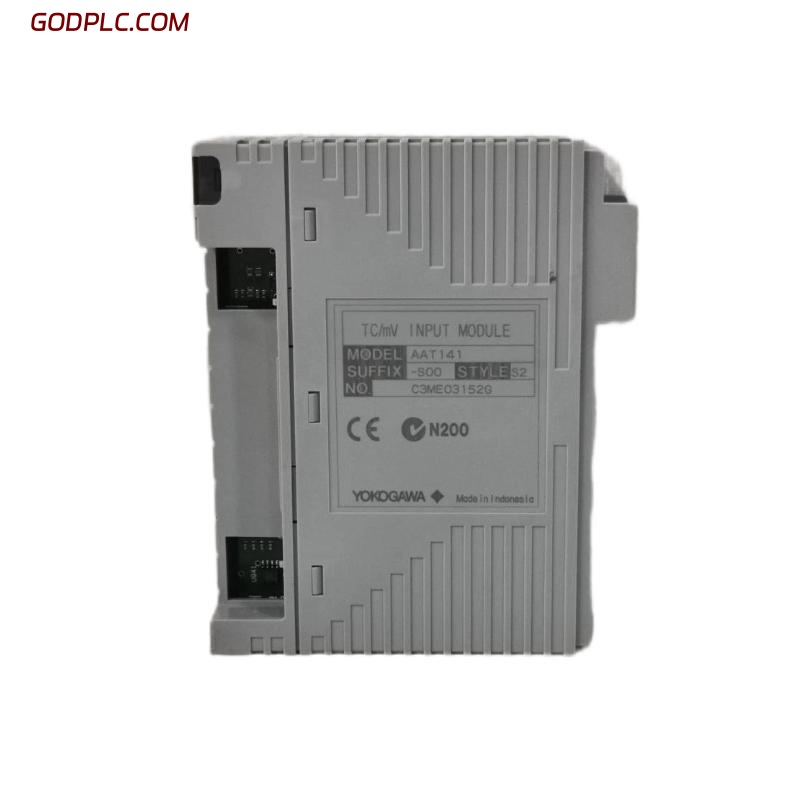

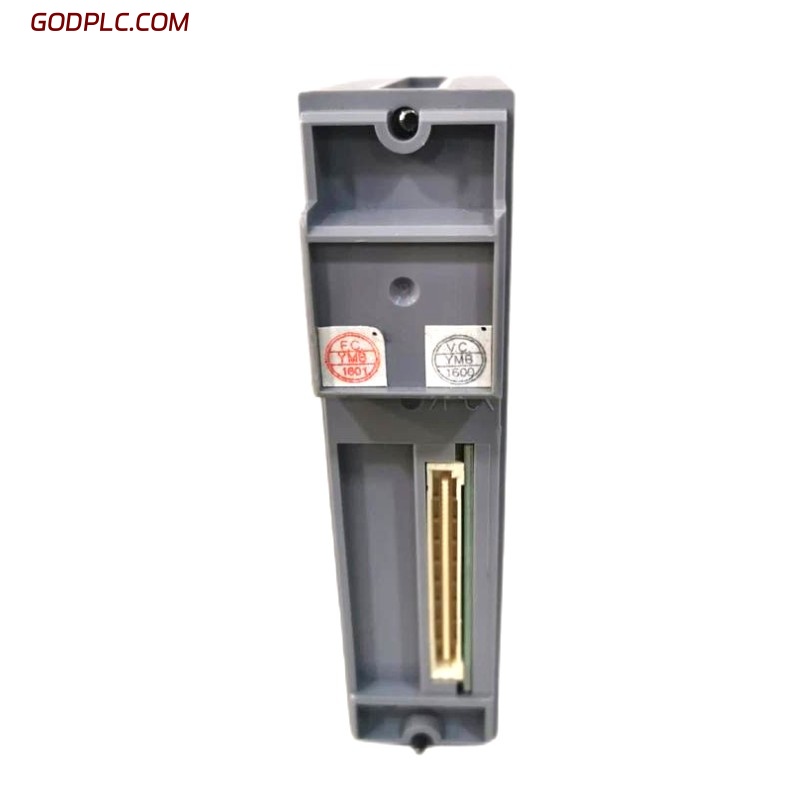

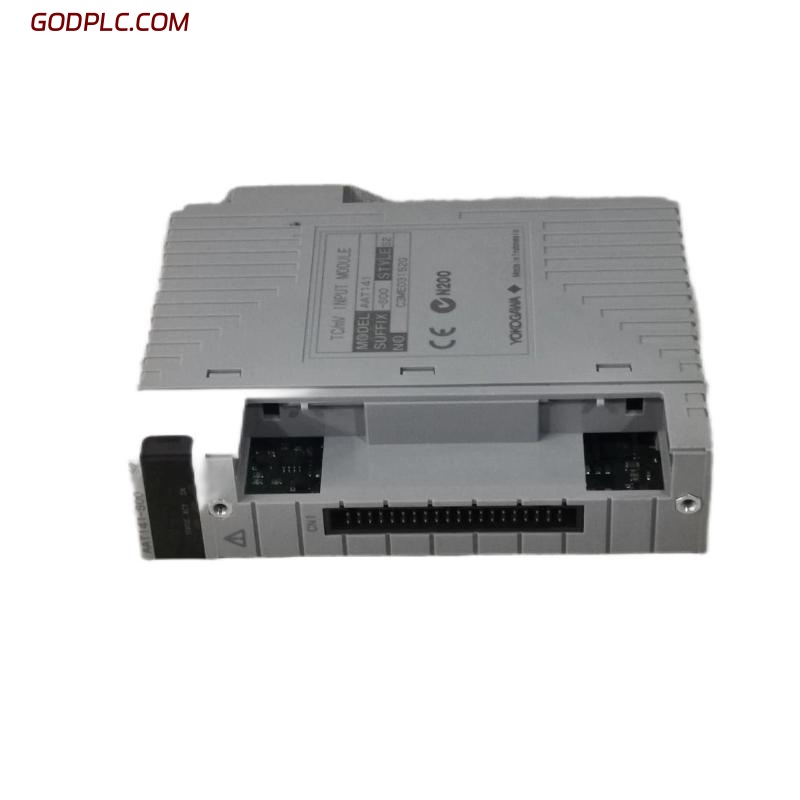

Yokogawa AAT141-S00 TC/mV Input Module
Product Overview
The Yokogawa AAT141-S00 TC/mV Input Module is designed to provide accurate and reliable acquisition of thermocouple and millivolt signals. It is ideal for applications requiring precise temperature measurement and signal conditioning in industrial environments. With support for a wide range of thermocouple types (J, K, T, E, etc.) and millivolt input signals, the module ensures high accuracy and stability. Compatible with Yokogawa’s Centum and ProSafe systems, it provides seamless integration and is equipped with advanced diagnostics to enhance system reliability.
Key Features
-
Wide Thermocouple Support – Compatible with various thermocouple types, including J, K, T, E, and more, for versatile applications
-
Millivolt Input – Supports millivolt signals, providing high-precision measurement capabilities
-
High-Resolution – 16-bit resolution for accurate signal conversion and processing
-
Built-in Diagnostics – Continuous monitoring for fault detection, such as open circuit or wiring issues, ensuring operational integrity
-
Channel-to-Channel Isolation – Prevents interference between input channels for improved signal fidelity
-
Seamless Integration – Fully compatible with Yokogawa Centum and ProSafe systems for efficient system setup and operation
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.2 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Channels | 4 isolated thermocouple or millivolt input channels |
| Input Signal | Thermocouples (J, K, T, E, etc.), Millivolt signals |
| Resolution | 16-bit analog-to-digital conversion |
| Input Impedance | 1 MΩ (for voltage inputs) |
| Accuracy | ±0.1% of full scale |
| Isolation | 500 V channel-to-channel and to ground |
| Power Supply | 24 VDC (nominal), supplied via system |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Protection | IP20 (Enclosed unit) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| System | Yokogawa Centum, ProSafe systems |
| Application Type | Temperature and voltage signal acquisition |
| Redundancy Support | Supported with redundant systems |
| Field Device Support | Thermocouples, voltage sensors, and other input devices |
Industry Applications
-
Chemical Processing – Used for temperature and signal acquisition in reactors, mixing tanks, and other process control equipment
-
Power Generation – For precise temperature measurement of turbines, boilers, and power generators using thermocouples and millivolt signals
-
Oil & Gas – Reliable signal acquisition in upstream and downstream operations, monitoring temperature and other critical parameters
-
Pharmaceutical – Temperature control and monitoring in pharmaceutical production lines to ensure optimal conditions
-
Water and Wastewater – Temperature and signal monitoring for pumps, motors, and other equipment in water treatment plants
The Yokogawa AAT141-S00 TC/mV Input Module is a versatile, high-precision solution for thermocouple and millivolt signal acquisition in industrial applications. Its exceptional accuracy, diagnostics, and compatibility with Yokogawa control systems make it a preferred choice for process control and temperature measurement.
Yokogawa AAT141-S00 TC/mV Input Module is in stock. Please contact us for a quick quote and competitive pricing.
