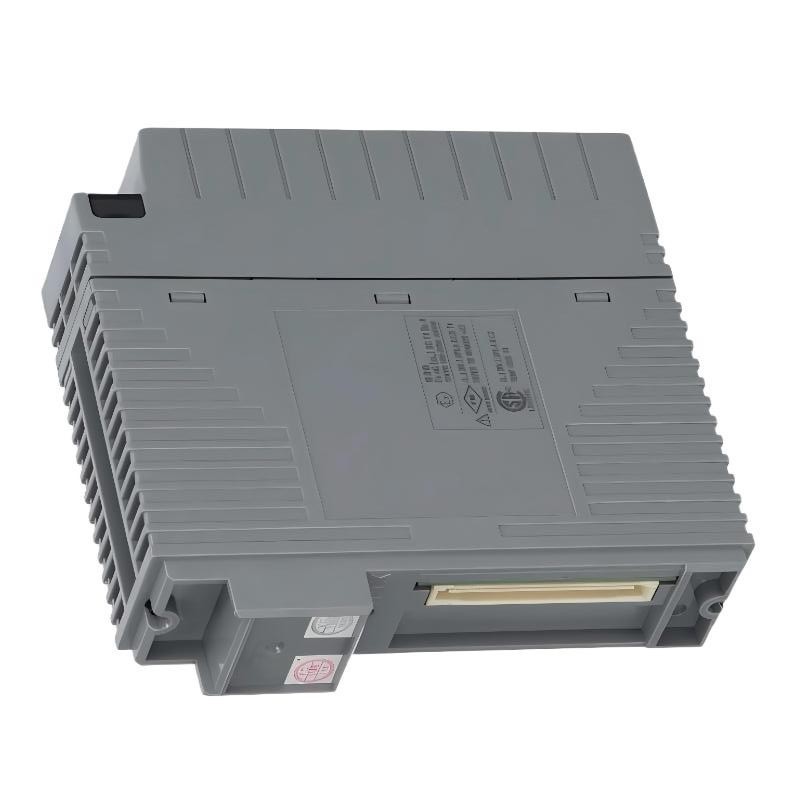

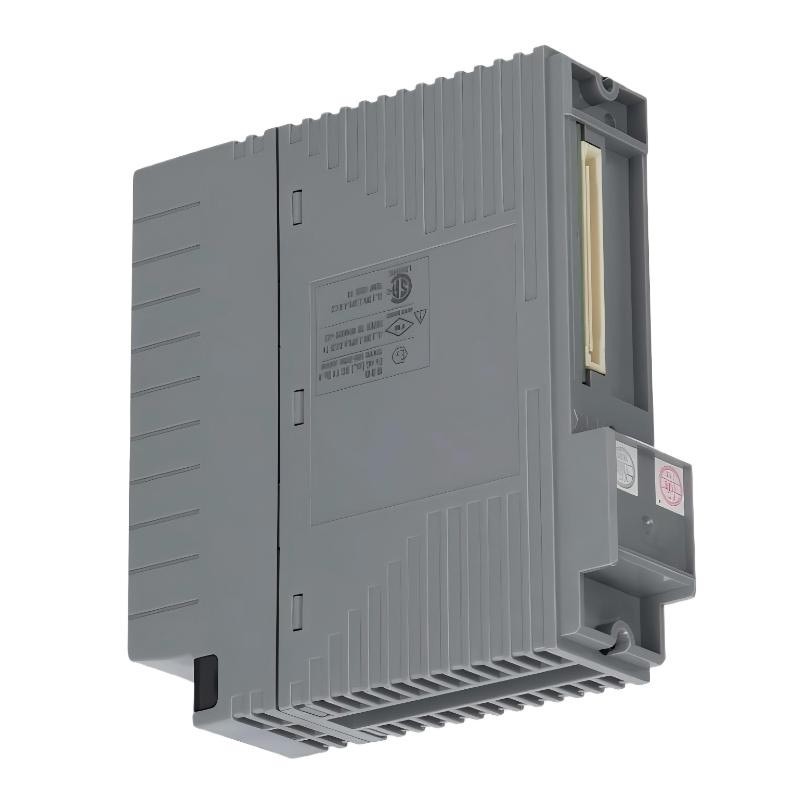

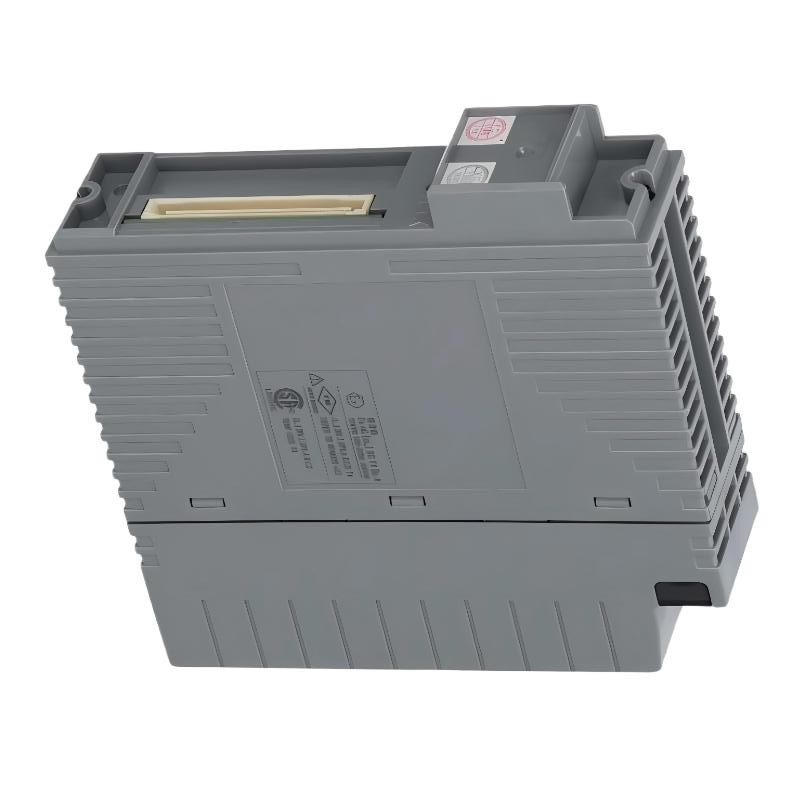

Yokogawa AAT145 TC/mV Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Yokogawa TC/mV Input Module |
| Model | AAT145 |
| Product Type | Thermocouple / mV Input Module |
| Brand | Yokogawa |
| Main Function | Acquisition and conversion of thermocouple and millivolt signals |
| Input Type | Thermocouple (TC), millivolt (mV) signals |
| Signal Processing | Temperature linearization and high-precision conversion |
| Application Area | Industrial process control and temperature monitoring systems |
| Compatible Systems | Yokogawa distributed control systems (DCS) |
| Mounting Method | Modular plug-in installation |
| Communication Method | Internal system bus communication |
| EMI Protection | Industrial-grade electromagnetic interference resistance |
| Input Channels | Multi-channel temperature signal input |
| Cold Junction Compensation | Built-in cold junction compensation |
| Calibration Function | Online calibration and diagnostics support |
| Operating Environment | Industrial control cabinet environment |
| Maintenance Mode | Online diagnostics and module replacement |
| Dimensions | 32.8 × 130 × 127.2 mm |
| Weight | 0.3 kg |
FAQ
1. What is the main function of the Yokogawa AAT145 TC/mV Input Module?
The AAT145 module is designed to acquire thermocouple (TC) and millivolt (mV) signals and convert them into standardized digital data for use in control systems. It performs high-precision signal conditioning, including linearization and compensation, ensuring accurate temperature measurement in industrial automation applications.
2. In which industries is this module commonly used?
This module is widely used in oil and gas, petrochemical, power generation, metallurgy, pharmaceuticals, food processing, and water treatment industries. It is typically applied in temperature-critical processes such as boiler monitoring, reactor control, and pipeline temperature measurement.
3. Why is a dedicated input module required for thermocouple signals?
Thermocouple signals are low-level millivolt signals that are highly sensitive to noise and non-linear in nature. A dedicated input module provides amplification, linearization, and cold junction compensation, ensuring accurate and stable temperature readings in industrial environments.
4. How can the operating status of the module be verified?
The module’s status can be checked through system diagnostics, input signal stability, channel health indicators, and communication status with the control system. Any abnormal readings, open-circuit alarms, or communication faults typically indicate a potential issue.
5. What is the purpose of cold junction compensation?
Cold junction compensation corrects measurement errors caused by variations in the reference junction temperature of thermocouples. Since thermocouples measure temperature differences rather than absolute values, compensation ensures accurate temperature readings under varying ambient conditions.
6. Can electromagnetic interference affect this module?
Yes. Industrial environments often contain electromagnetic noise from drives, motors, and high-power equipment. Without proper shielding and grounding, this interference may cause signal distortion or measurement inaccuracies.
7. Does the module support online maintenance?
Yes. The module supports hot-swapping and online diagnostics, allowing maintenance or replacement without shutting down the entire control system. This reduces downtime and improves system availability.
8. How can long-term reliability of the AAT145 module be improved?
Long-term stability can be improved by maintaining proper control cabinet conditions, ensuring tight and secure wiring connections, and regularly performing calibration and diagnostics. Proper grounding and minimizing electromagnetic interference also significantly enhance reliability.
Yokogawa AAT145 TC/mV Input Module is in stock. Please contact us for a quick quote and competitive pricing.
