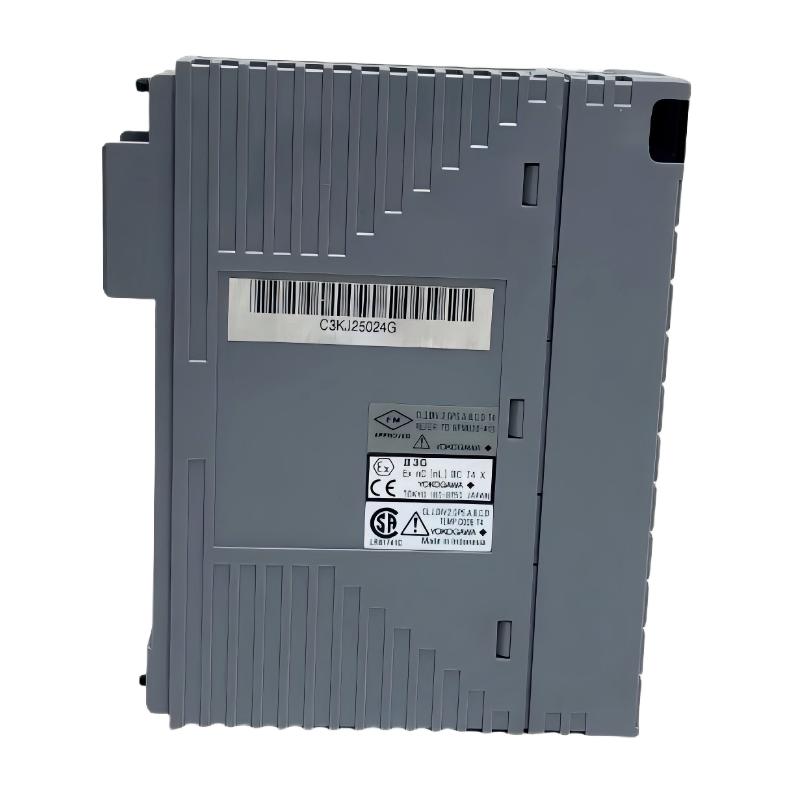

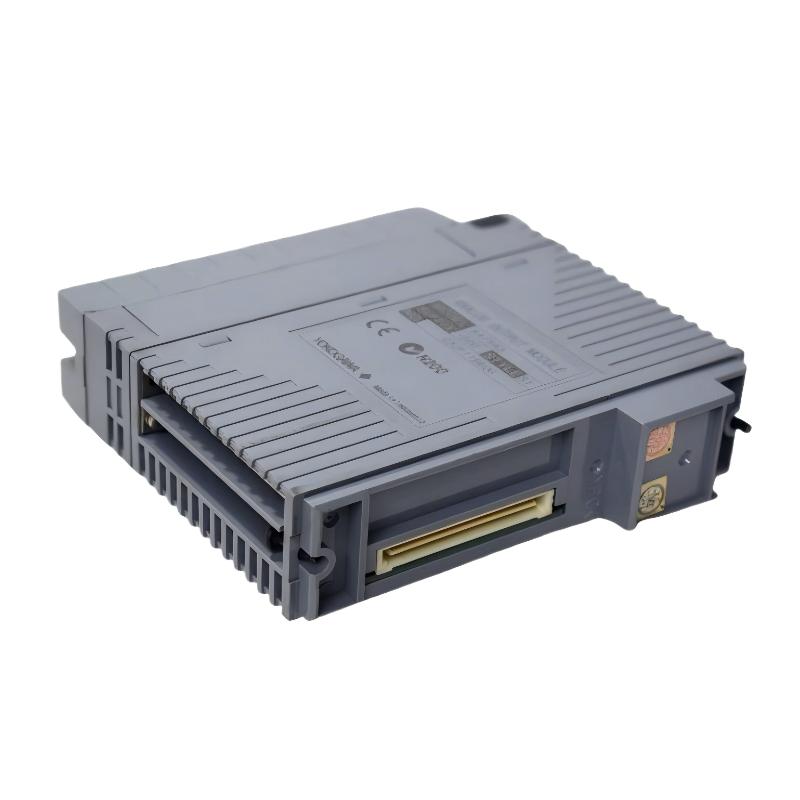

Yokogawa ADV144 Numeric Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Yokogawa Numeric Input Module |
| Model | ADV144 |
| Product Type | Digital / Numeric Input Module |
| Brand | Yokogawa |
| Main Function | Acquisition and processing of digital input signals |
| Input Type | Dry contact / discrete ON-OFF signals |
| Signal Processing | State detection and logic conversion |
| Application Area | Industrial automation and process control systems |
| Compatible Systems | Yokogawa DCS systems |
| Mounting Method | Modular plug-in installation |
| Communication Method | High-speed internal system bus |
| Input Characteristics | Multi-channel digital input |
| Input Isolation | Electrical isolation between channels |
| EMI Protection | Industrial-grade electromagnetic interference resistance |
| Diagnostic Function | Channel status monitoring and fault detection |
| Operating Environment | Industrial control cabinet environments |
| Maintenance Mode | Online diagnostics and module replacement |
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
FAQ
1. What is the main function of the Yokogawa ADV144 Numeric Input Module?
The ADV144 module is designed to collect discrete field signals such as dry contacts or ON-OFF switch signals and convert them into logical signals readable by the control system. It is widely used for equipment status monitoring, alarm signal acquisition, and interlock control logic in industrial automation systems.
2. In which industrial applications is this module commonly used?
This module is widely applied in power generation, oil and gas, petrochemical, metallurgy, water treatment, manufacturing, and building automation systems. Typical uses include equipment start/stop status monitoring, valve position feedback, alarm signal collection, and safety interlock inputs.
3. Why are digital input modules important in control systems?
Digital input modules standardize the collection of discrete signals from field devices, allowing control systems to accurately interpret equipment status. Compared to direct wiring, modular input systems improve reliability, simplify maintenance, and support centralized diagnostics and communication.
4. How can the operating status of the ADV144 module be checked?
The module’s status can be monitored through the system diagnostic interface, which displays channel activity, input signal changes, and communication status. Abnormal readings, inactive channels, or alarm indications typically suggest wiring or module-related issues.
5. Does the input signal require an external power supply?
Depending on system configuration, some digital inputs may require an external power source to provide excitation voltage, while the module itself is responsible for signal acquisition and state detection. Wiring design should follow system engineering specifications.
6. Can electromagnetic interference affect this module?
Yes. Industrial environments often contain electromagnetic noise from variable frequency drives, motors, and high-voltage equipment. Poor grounding or shielding may cause false triggering or unstable input signals, so proper EMC practices are required.
7. Does the module support online maintenance?
Yes. The ADV144 supports modular replacement and online diagnostics, allowing maintenance or replacement without shutting down the entire system. This reduces downtime and improves system availability.
8. How can long-term reliability of the ADV144 module be improved?
Long-term stability can be improved by maintaining stable cabinet temperature and humidity, ensuring tight and secure wiring connections, minimizing electromagnetic interference, and performing regular system diagnostics and preventive maintenance.
Yokogawa ADV144 Numeric Input Module is in stock. Please contact us for a quick quote and competitive pricing.
