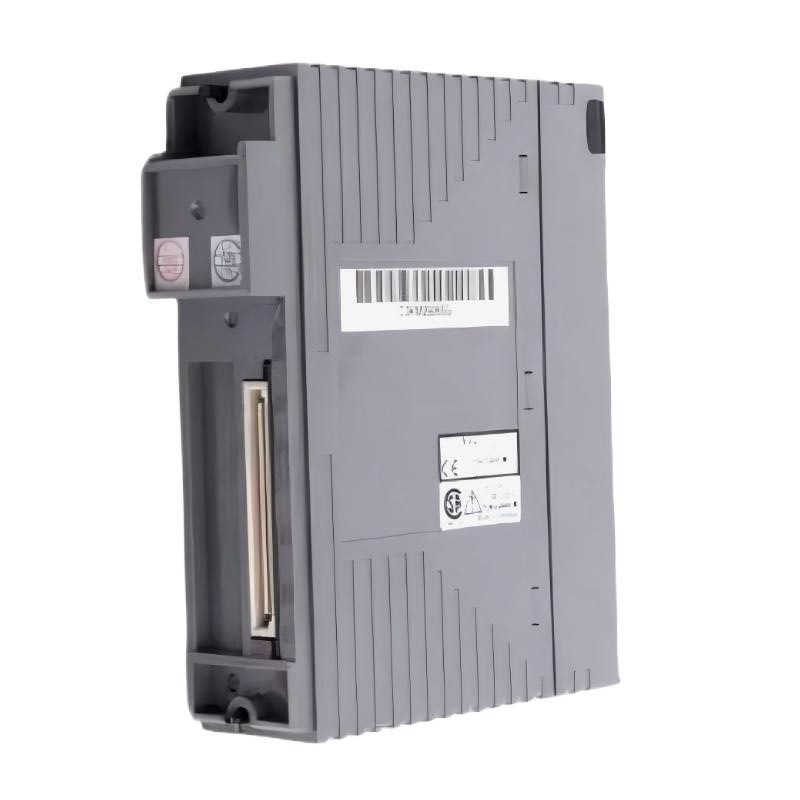

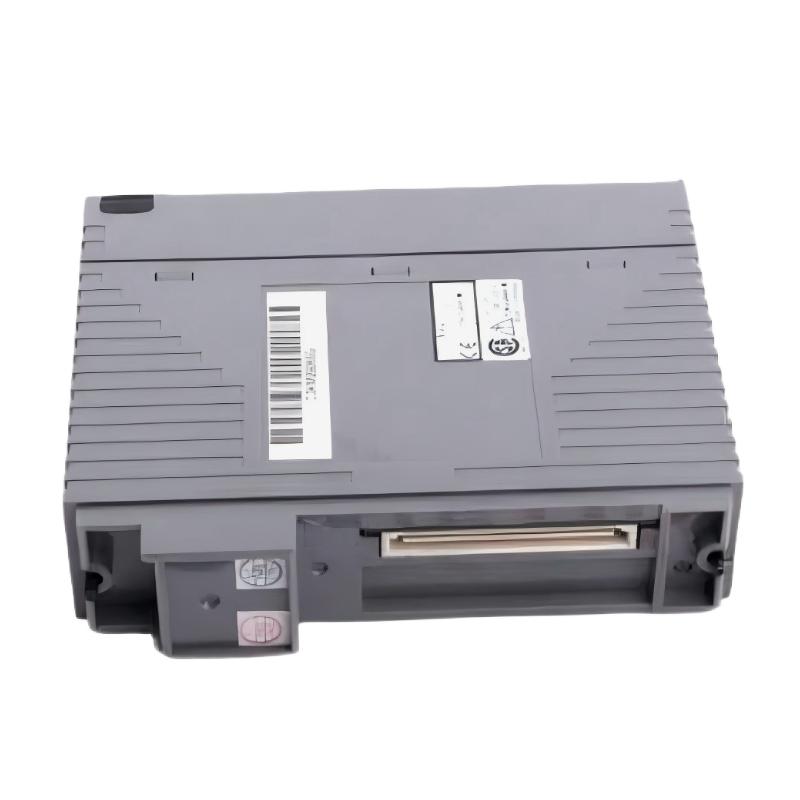

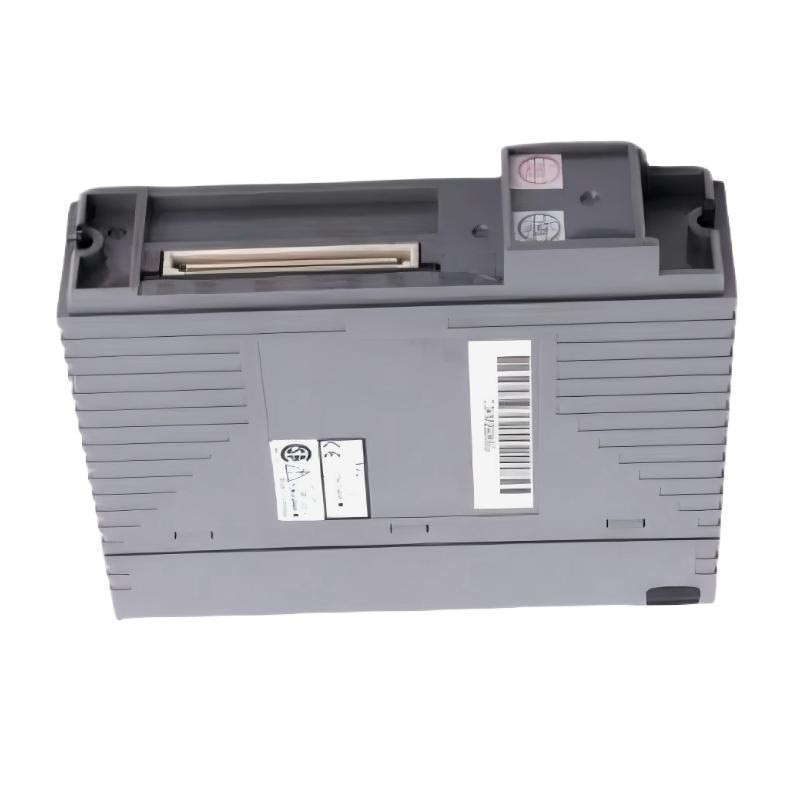

Yokogawa ADV541 Digital Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Yokogawa Digital Output Module |
| Model | ADV541 |
| Product Type | Digital Output Module |
| Brand | Yokogawa |
| Main Function | Digital signal output for industrial control and actuation |
| Output Type | Discrete ON-OFF output (relay or transistor depending on configuration) |
| Control Function | Equipment start/stop, interlock control, alarm output |
| Application Area | Industrial process control and automation systems |
| Compatible Systems | Yokogawa DCS systems |
| Mounting Method | Modular plug-in installation |
| Communication Method | High-speed internal system bus |
| Output Channels | Multi-channel digital outputs |
| Output Isolation | Electrical isolation between channels |
| EMI Protection | Industrial-grade electromagnetic interference resistance |
| Protection Functions | Short-circuit and overload protection (system dependent) |
| Diagnostic Function | Output status monitoring and fault diagnostics |
| Operating Environment | Industrial control cabinet environments |
| Maintenance Mode | Online diagnostics and module replacement |
| Dimensions | 130 × 129.5 × 32.8 mm |
| Weight | 0.24 kg |
FAQ
1. What is the main function of the Yokogawa ADV541 Digital Output Module?
The ADV541 module is designed to convert control system logic signals into physical ON-OFF output signals for field devices. It is used to drive actuators such as valves, motor starters, relays, and other control elements, enabling automated operation of industrial processes and interlock systems.
2. In which industries is the ADV541 commonly used?
This module is widely used in power generation, oil and gas, petrochemical, chemical processing, metallurgy, water treatment, and manufacturing industries. Typical applications include equipment start/stop control, valve actuation, alarm signaling, and safety interlock systems.
3. Why are digital output modules important in automation systems?
Digital output modules serve as the interface between control systems and field actuators. They ensure reliable transmission of control commands from DCS or PLC systems to physical equipment, enabling precise and automated process control while improving system integration and reliability.
4. How can the operating status of the ADV541 be verified?
The module status can be checked through system diagnostics, which display output channel states, communication status, and fault indications. Abnormal conditions such as non-responsive outputs or alarms usually indicate wiring issues, load problems, or module faults.
5. Can the output directly drive field equipment?
Some output types, such as relay outputs, can directly control low-power devices. However, for high-power loads, intermediate devices like contactors or auxiliary relays are typically required to ensure safe and reliable operation.
6. Can electromagnetic interference affect this module?
Yes. Industrial environments often contain strong electromagnetic noise from motors, drives, and high-voltage equipment. Improper grounding or shielding may cause unintended output behavior or signal instability, so proper EMC practices are essential.
7. Does the ADV541 support online maintenance?
Yes. The module supports hot-swapping and online diagnostics, allowing replacement or troubleshooting without shutting down the entire control system. This helps reduce downtime and improves system availability.
8. How can long-term reliability of the ADV541 module be improved?
Long-term stability can be improved by maintaining a stable cabinet environment, ensuring proper wiring and load matching, minimizing electromagnetic interference, and performing regular system diagnostics and preventive maintenance.
Yokogawa ADV541 Digital Output Module is in stock. Please contact us for a quick quote and competitive pricing.
