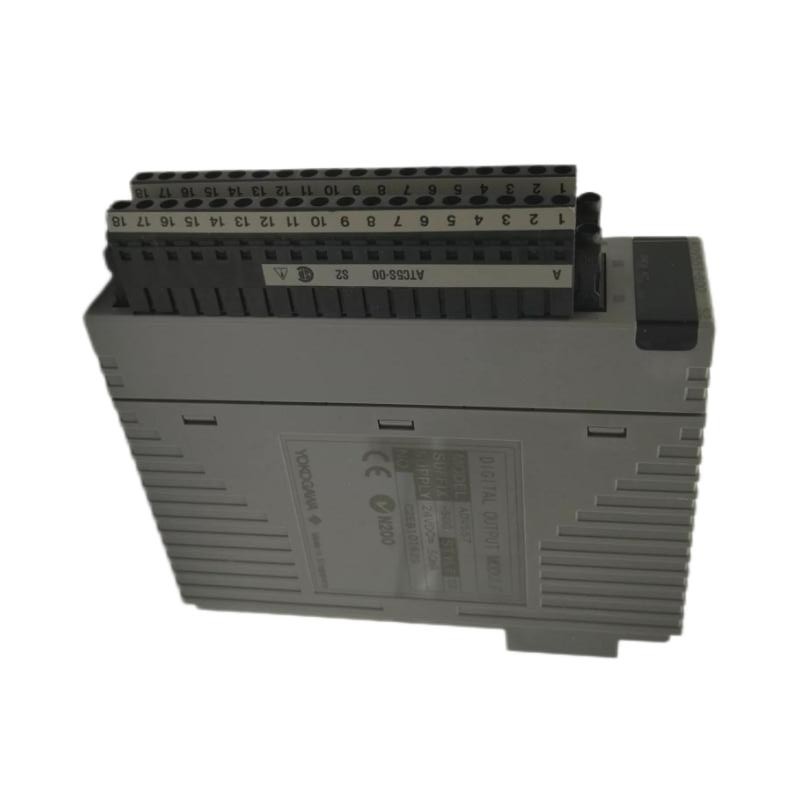

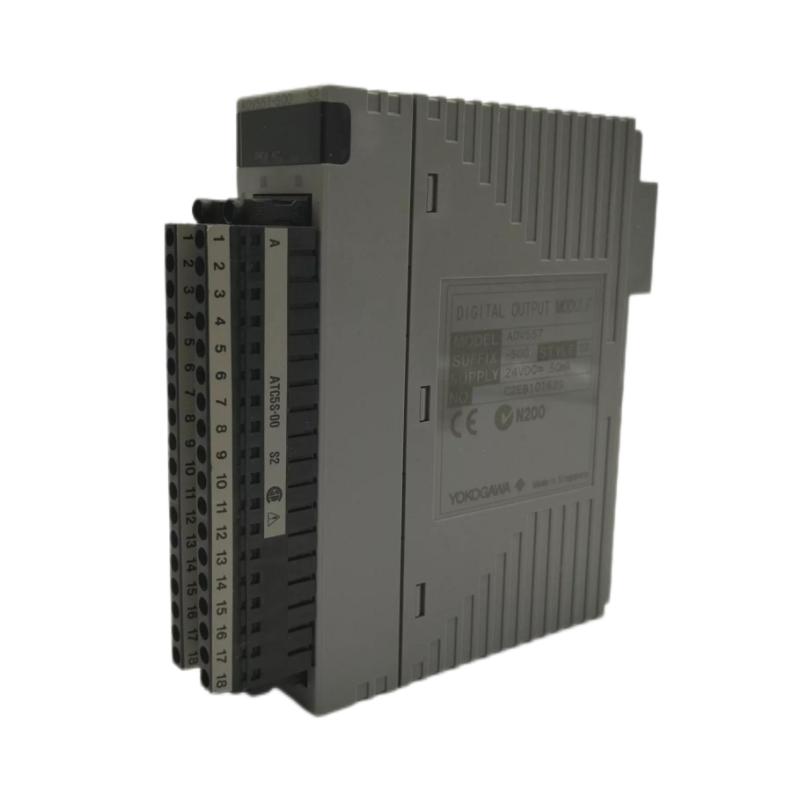

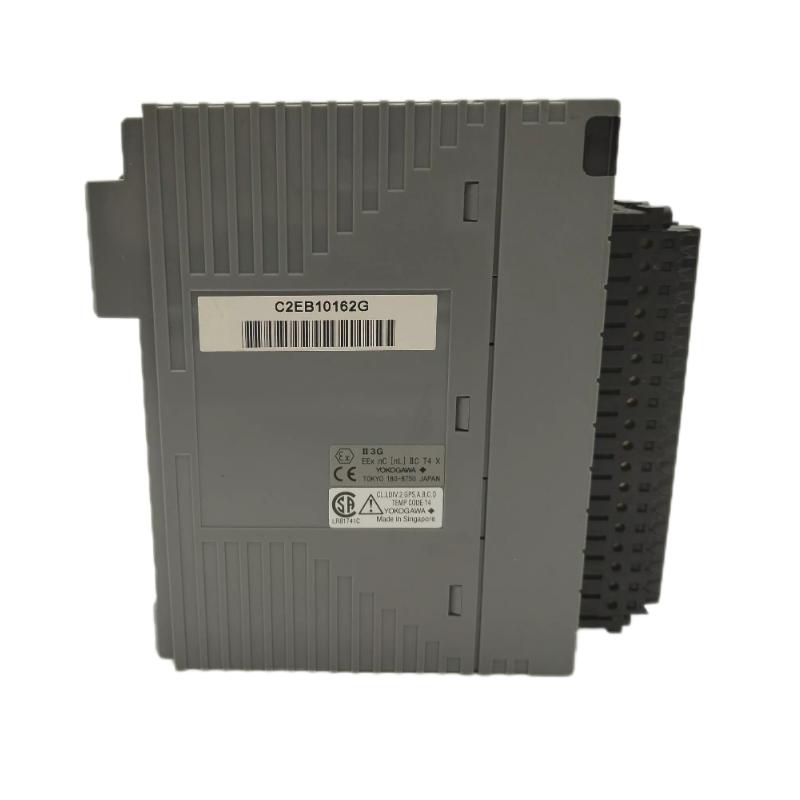

Yokogawa ADV557 Digital Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Yokogawa Digital Output Module |
| Model | ADV557 |
| Product Type | Digital Output Module |
| Brand | Yokogawa |
| Main Function | Digital signal output for industrial automation and control |
| Output Type | Discrete ON/OFF output (relay/transistor depending on configuration) |
| Control Function | Equipment start/stop, interlock control, alarm output |
| Application Area | Industrial process control and automation systems |
| Compatible Systems | Yokogawa DCS systems |
| Mounting Method | Modular plug-in installation |
| Communication Method | High-speed internal system bus |
| Output Channels | Multi-channel digital outputs |
| Output Isolation | Electrical isolation between channels |
| EMI Protection | Industrial-grade electromagnetic interference resistance |
| Protection Functions | Short-circuit and overload protection (system dependent) |
| Diagnostic Function | Output status monitoring and fault diagnostics |
| Operating Environment | Industrial control cabinet environments |
| Maintenance Mode | Online diagnostics and module replacement |
| Dimensions | 130 × 127.2 × 32.8 mm |
| Weight | 0.3 kg |
FAQ
1. What is the main function of the Yokogawa ADV557 Digital Output Module?
The ADV557 module converts control system logic signals into physical ON/OFF outputs used to operate field devices. It is commonly used to drive actuators such as solenoid valves, motor starters, relays, and other industrial equipment, enabling automated process control and interlock execution.
2. In which industries is the ADV557 typically used?
This module is widely applied in power generation, oil and gas, petrochemical, chemical processing, metallurgy, water treatment, and manufacturing industries. Typical uses include equipment start/stop control, valve actuation, alarm output, and safety interlock systems.
3. Why are digital output modules important in control systems?
Digital output modules act as the interface between control logic and physical field devices. They ensure reliable transmission of control commands from DCS systems to actuators, improving automation accuracy, system integration, and operational reliability.
4. How can the operating status of the ADV557 be checked?
The module status can be monitored through system diagnostics, which display output channel activity, communication status, and fault indicators. Abnormal conditions such as non-responsive outputs or alarms usually indicate wiring issues, load problems, or module faults.
5. Can the output directly drive field devices?
Some low-power devices can be directly driven by relay outputs, but high-power loads typically require intermediate devices such as contactors or auxiliary relays to ensure safe and stable operation.
6. Can electromagnetic interference affect this module?
Yes. Industrial environments often contain strong electromagnetic noise from motors, drives, and high-voltage equipment. Poor grounding or shielding may lead to unstable outputs or false triggering, so proper EMC practices are essential.
7. Does the ADV557 support online maintenance?
Yes. The ADV557 supports modular replacement and online diagnostics, allowing maintenance or replacement without shutting down the entire control system, which helps reduce downtime.
8. How can long-term reliability of the ADV557 be improved?
Long-term stability can be improved by maintaining a stable control cabinet environment, ensuring correct wiring and load matching, minimizing electromagnetic interference, and performing regular diagnostics and preventive maintenance.
Yokogawa ADV557 Digital Output Module is in stock. Please contact us for a quick quote and competitive pricing.
