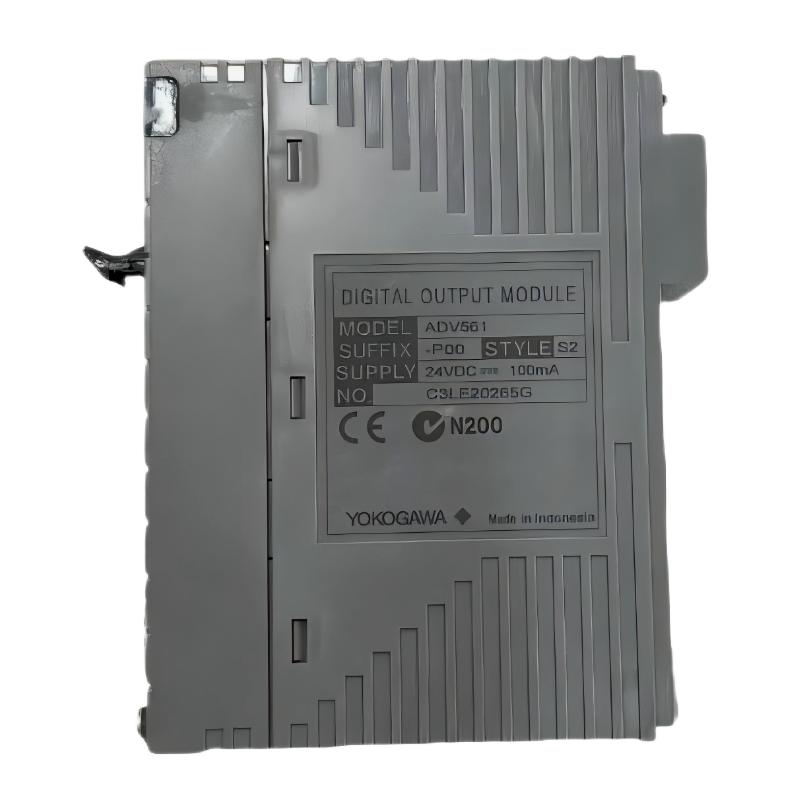

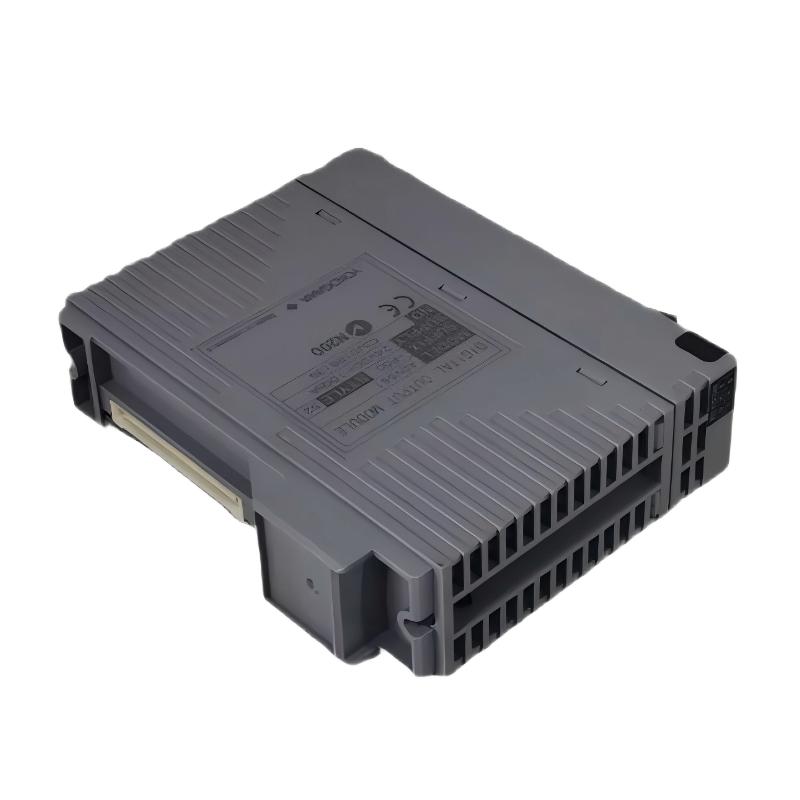

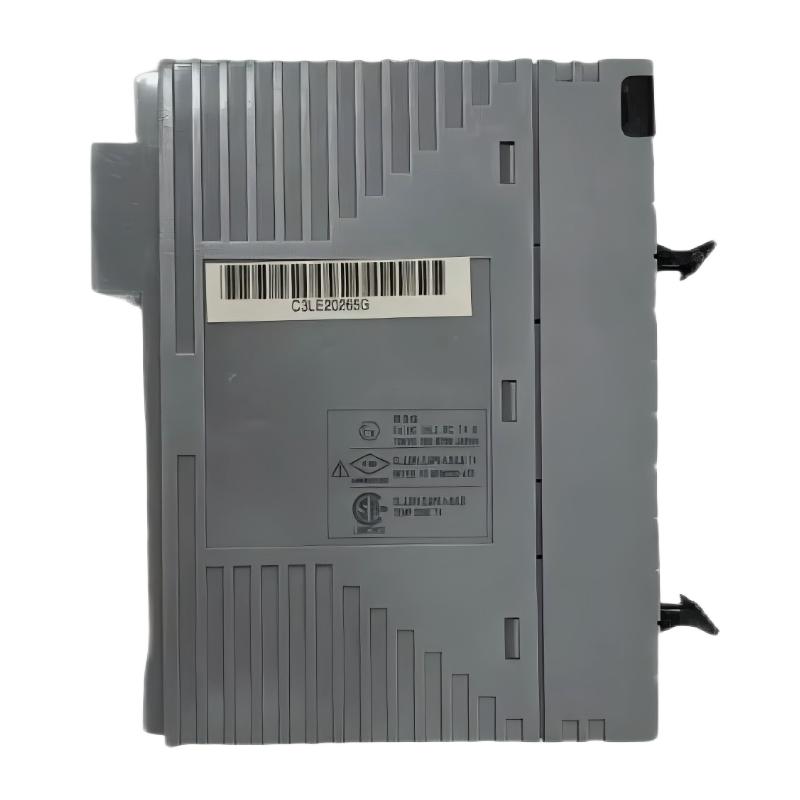

Yokogawa ADV561 Digital Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Yokogawa Digital Output Module |
| Model | ADV561 |
| Product Type | Digital Output Module |
| Brand | Yokogawa |
| Main Function | Digital signal output for industrial automation and control |
| Output Type | Discrete ON/OFF output (relay/transistor depending on configuration) |
| Control Function | Equipment start/stop control, interlock execution, alarm output |
| Application Area | Industrial process control and automation systems |
| Compatible Systems | Yokogawa DCS systems |
| Mounting Method | Modular plug-in installation |
| Communication Method | High-speed internal system bus |
| Output Channels | Multi-channel digital outputs |
| Output Isolation | Electrical isolation between channels |
| EMI Protection | Industrial-grade electromagnetic interference resistance |
| Protection Functions | Overload and short-circuit protection (system dependent) |
| Diagnostic Function | Output status monitoring and fault diagnostics |
| Operating Environment | Industrial control cabinet environments |
| Maintenance Mode | Online diagnostics and module replacement |
| Dimensions | 130 × 119.9 × 32.8 mm |
| Weight | 0.3 kg |
FAQ
1. What is the main function of the Yokogawa ADV561 Digital Output Module?
The ADV561 module converts logic signals from a control system into physical ON/OFF outputs used to operate field devices. It is commonly used for equipment start/stop control, interlock execution, and alarm signal output in industrial automation systems.
2. Where is the ADV561 typically used?
It is widely used in industries such as power generation, oil and gas, petrochemical, chemical processing, metallurgy, water treatment, and manufacturing. Typical applications include process control, safety interlocks, and automated production systems.
3. Why are digital output modules important in automation systems?
Digital output modules act as the interface between control logic and field actuators. They ensure reliable transmission of commands from DCS systems to physical devices, improving system reliability, consistency, and automation efficiency.
4. How can the operating status of the ADV561 be checked?
The module status can be monitored through system diagnostics, which show output channel activity, communication status, and fault indications. Abnormal conditions such as non-responsive outputs or alarms typically indicate wiring, load, or module issues.
5. Can the output directly drive field devices?
Some relay outputs can directly drive low-power devices. However, higher-power loads typically require intermediate devices such as contactors or auxiliary relays to ensure safe and stable operation.
6. Can electromagnetic interference affect this module?
Yes. Industrial environments often contain strong electromagnetic noise from motors, drives, and high-voltage equipment. Improper grounding or shielding may cause unstable outputs or false triggering, so proper EMC design is essential.
7. Does the ADV561 support online maintenance?
Yes. The ADV561 supports modular replacement and online diagnostics, allowing maintenance or replacement without shutting down the entire control system, reducing downtime and improving availability.
8. How can long-term reliability of the ADV561 be improved?
Long-term stability can be improved by maintaining a stable control cabinet environment, ensuring correct wiring and load matching, minimizing electromagnetic interference, and performing regular diagnostics and preventive maintenance.
Yokogawa ADV561 Digital Output Module is in stock. Please contact us for a quick quote and competitive pricing.
