FAQ

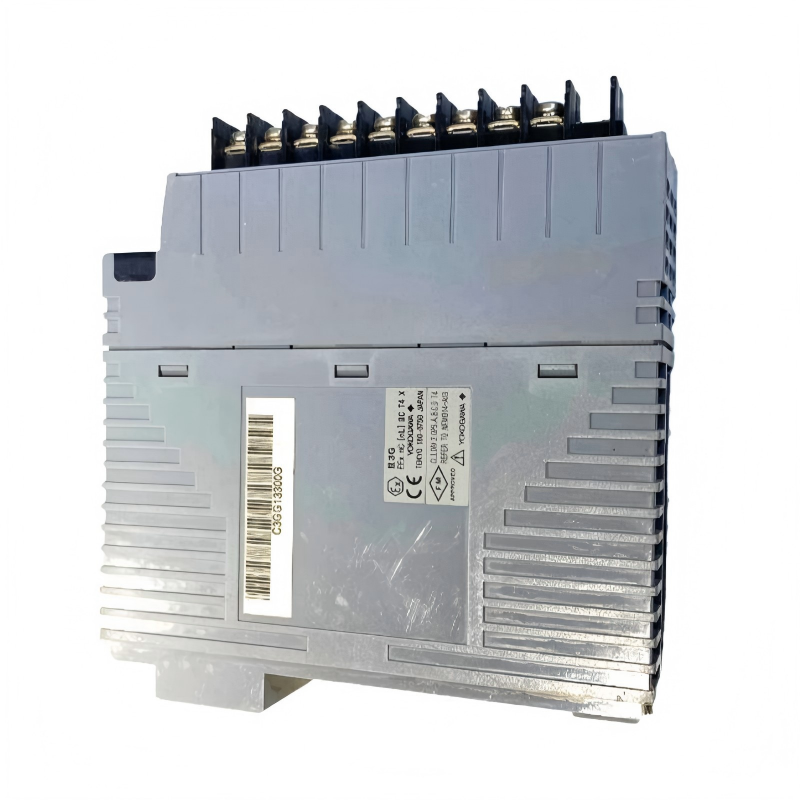

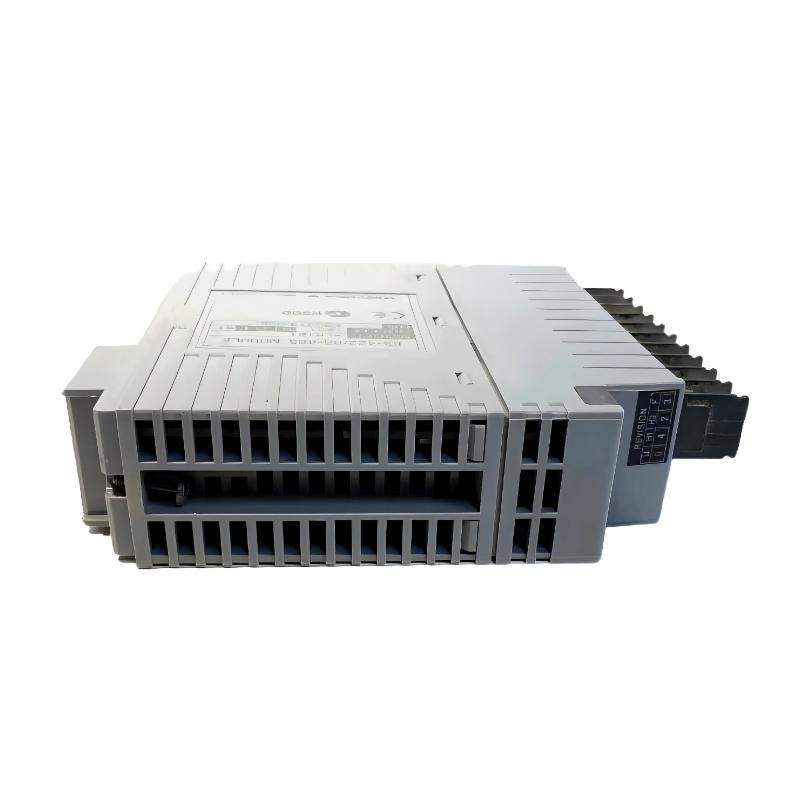

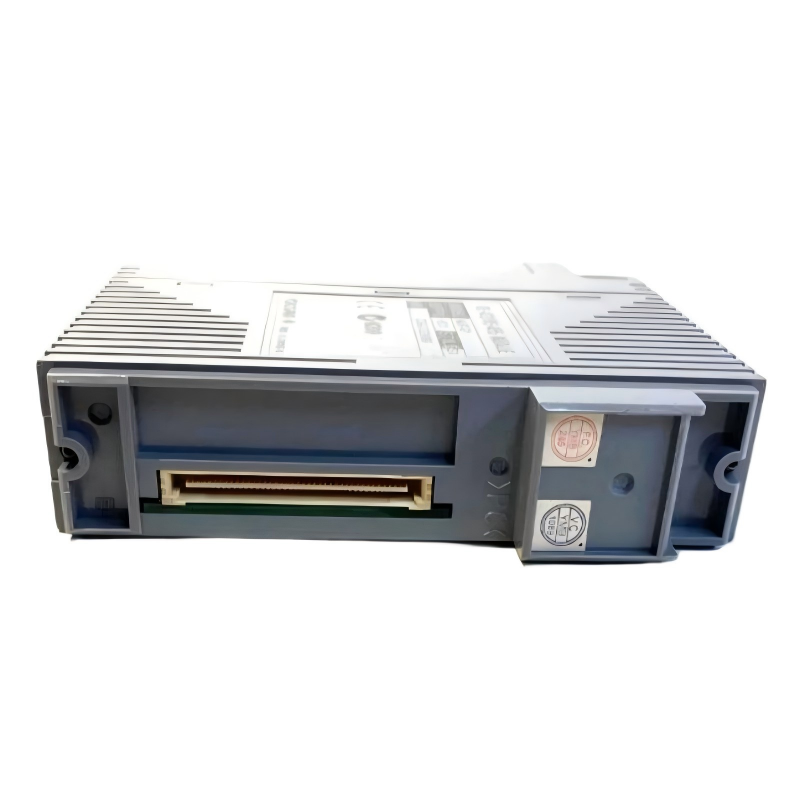

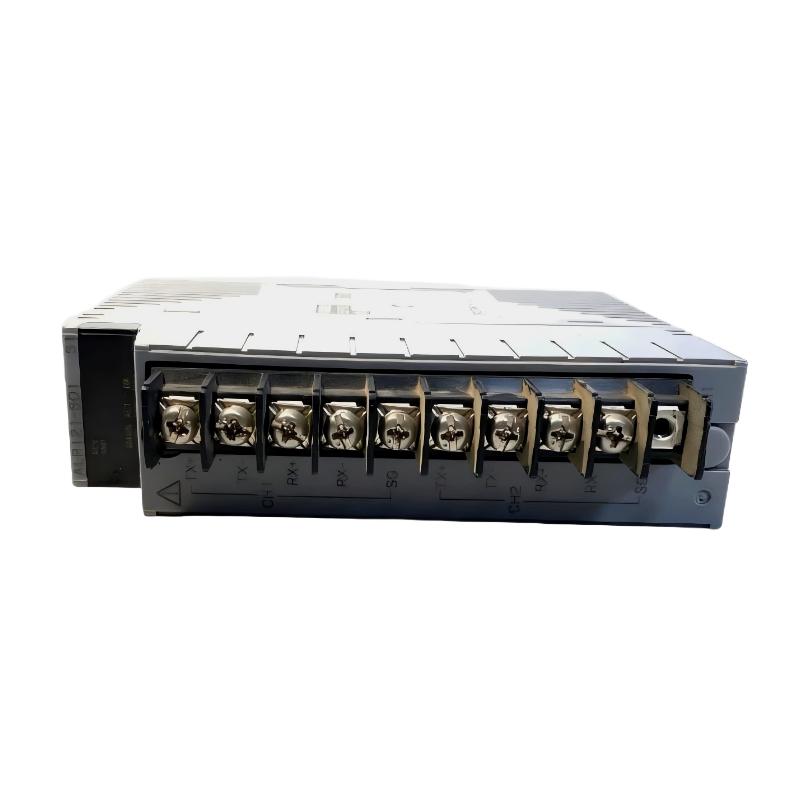

Q1: What is the main function of the Yokogawa ALR121 Serial Communication Module?

A: The ALR121 Serial Communication Module is designed to provide reliable serial communication between the control system and external field devices. It acts as an interface layer that enables the exchange of control commands, process data, and diagnostic information between distributed automation components. In industrial environments where multiple devices must operate in coordination, this module ensures that data is transmitted accurately and consistently, supporting stable process control and system integration.

Q2: What communication standards does the ALR121 support?

A: The ALR121 typically supports RS-232, RS-422, and RS-485 serial communication standards, depending on system configuration. These standards are widely used in industrial automation because they allow flexible connection options for both short-distance and long-distance communication. RS-232 is often used for point-to-point connections, while RS-422 and RS-485 are preferred for multi-device networks and longer cable runs in industrial environments.

Q3: What systems is this module designed for?

A: This module is designed for Yokogawa distributed control systems (DCS) and automation platforms. It is installed in system racks and operates as part of the overall control architecture, working alongside controllers, I/O modules, and other communication interfaces. Its role is to extend system connectivity to external devices that rely on serial communication.

Q4: Why is serial communication still widely used in industrial systems?

A: Serial communication remains widely used because it is simple, robust, and highly reliable in industrial environments. It is particularly effective for long-distance communication and for connecting legacy equipment that does not support modern network protocols. Many industrial instruments, analyzers, and third-party devices still rely on serial interfaces, making modules like the ALR121 essential for system integration.

Q5: In which industries is the ALR121 commonly used?

A: The ALR121 is widely applied in industries such as oil and gas, petrochemical processing, power generation, metallurgy, water treatment, and large-scale manufacturing. These industries often operate mixed-generation equipment and require reliable communication between modern control systems and older field devices, which makes serial communication modules essential.

Q6: How does the module ensure communication reliability?

A: Communication reliability is achieved through industrial-grade electronic design and stable integration into the system backplane. By being installed inside a controlled cabinet environment, the module is protected from electrical noise, vibration, and environmental interference. This ensures consistent signal transmission even in demanding industrial conditions where long cable runs and harsh electromagnetic environments are common.

Q7: What happens if the module fails during operation?

A: If the ALR121 fails, communication between the control system and connected serial devices will be interrupted. This may result in loss of process data, inability to send control commands, and reduced visibility of field equipment status. Depending on the system configuration, this could also trigger alarms or fallback control strategies to maintain safe operation, but overall system monitoring capability would be significantly reduced.

Q8: What maintenance practices are recommended for long-term operation?

A: The ALR121 is designed for low-maintenance operation, but periodic inspection is still recommended. Maintenance typically includes verifying that the module is securely seated in the rack, checking that connectors are clean and free of oxidation, and confirming stable communication status through system diagnostics. In most cases, if a fault is detected, the module is replaced at the unit level rather than repaired internally, ensuring minimal downtime and simplified maintenance procedures.
