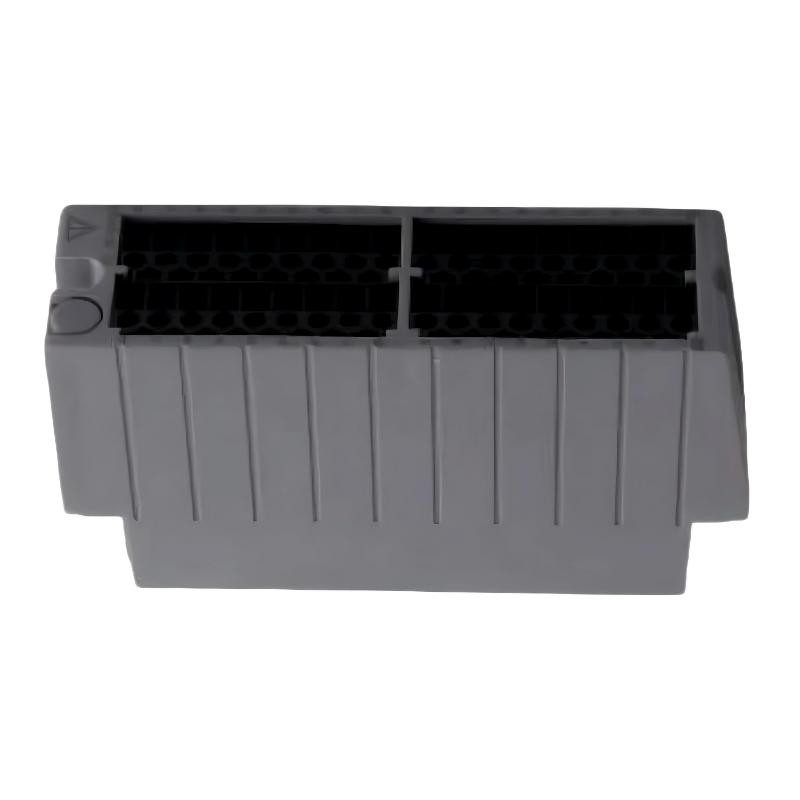

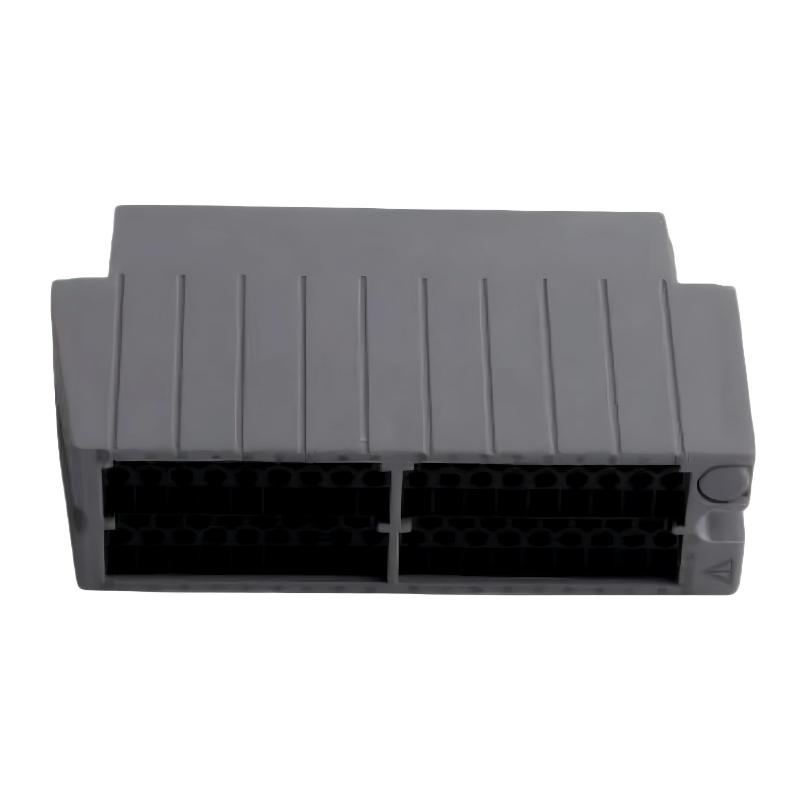

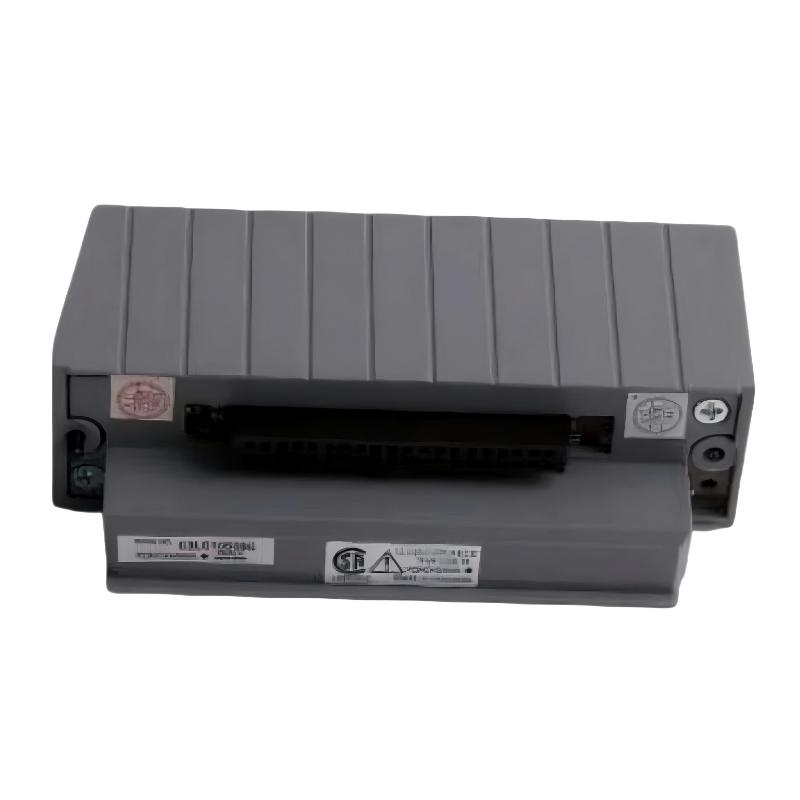

Yokogawa ATA4S-10 Pressure Clamp Terminal
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ATA4S-10 |
| Product Type | Pressure Clamp Terminal |
| Brand | Yokogawa |
| Connection Type | Pressure clamp (spring pressure) terminal |
| Rated Voltage | Industrial control signal applications |
| Rated Current | Low-voltage signal and control circuits |
| Conductor Compatibility | Solid and stranded copper conductors |
| Wiring Method | Tool-free pressure clamp insertion |
| Mounting Type | DIN rail mounting |
| Insulation Material | Flame-retardant industrial-grade polymer |
| Operating Environment | Industrial control panels |
| Temperature Range | Standard industrial operating range |
| Application | Signal distribution and terminal connection |
| Dimensions | 114 x 32.6 x 60.5 mm |
| Weight | 0.2 kg |
FAQ
1. What is the primary function of this pressure clamp terminal?
This pressure clamp terminal is used to provide secure and stable electrical connections in industrial control panels. It enables fast wiring of signal and control lines without the need for screw tightening. The spring-pressure mechanism ensures consistent contact force over time, reducing the risk of loosening due to vibration or thermal cycling in industrial environments.
2. What types of electrical systems is it typically used in?
It is commonly used in industrial automation systems, process control panels, instrumentation cabinets, and distributed control systems. These environments require reliable signal distribution for sensors, actuators, and controllers. The terminal helps maintain stable electrical connectivity in applications involving continuous operation and high vibration conditions.
3. How does the pressure clamp mechanism work?
The pressure clamp mechanism uses an internal spring structure to apply constant force on the inserted conductor. When a wire is inserted, the spring automatically adjusts to grip the conductor securely. This design eliminates the need for periodic retightening, ensuring long-term stable contact resistance and reducing maintenance requirements in control panel wiring.
4. What types of conductors are compatible with this terminal?
It is compatible with both solid and stranded copper conductors commonly used in industrial wiring. The clamp design accommodates different conductor structures while maintaining consistent electrical contact. This flexibility allows it to be used in a wide range of signal and control applications without requiring specialized connectors.
5. What are the advantages compared to screw-type terminals?
Compared to screw-type terminals, pressure clamp terminals provide faster installation and improved resistance to vibration-induced loosening. They also eliminate the risk of improper torque during installation. Over time, they maintain more stable contact pressure, which helps reduce signal degradation and improves long-term reliability in industrial environments.
6. Can it be used in high-vibration environments?
Yes, the spring-pressure mechanism is specifically designed to maintain stable electrical contact even under continuous vibration. This makes it suitable for industrial environments such as manufacturing plants, power systems, and process control installations where mechanical vibration is common.
7. What maintenance is required for this terminal?
Maintenance requirements are minimal. Once installed correctly, the pressure clamp maintains consistent contact force without periodic tightening. Routine inspections typically focus on ensuring wiring integrity, checking for insulation damage, and verifying that terminal blocks remain securely mounted within the control panel.
8. Is it suitable for modular control panel design?
Yes, it is well-suited for modular control panel architectures. Its DIN rail mounting system and compact connection design allow for efficient space utilization and easy expansion. This makes it ideal for scalable automation systems where additional I/O or signal routing may be required over time.
Yokogawa ATA4S-10 Pressure Clamp Terminal is in stock. Please contact us for a quick quote and competitive pricing.
