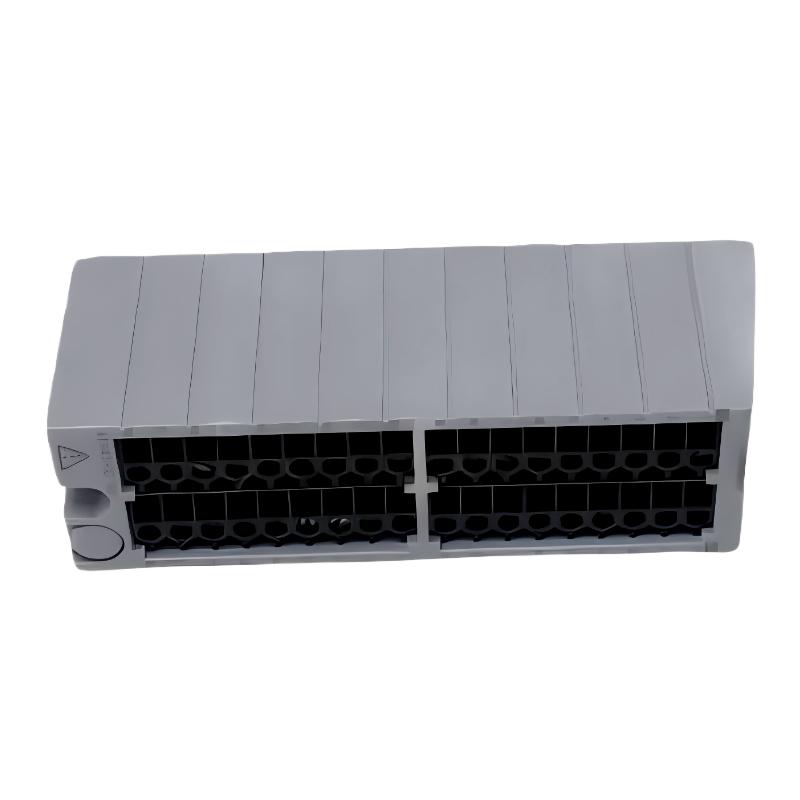

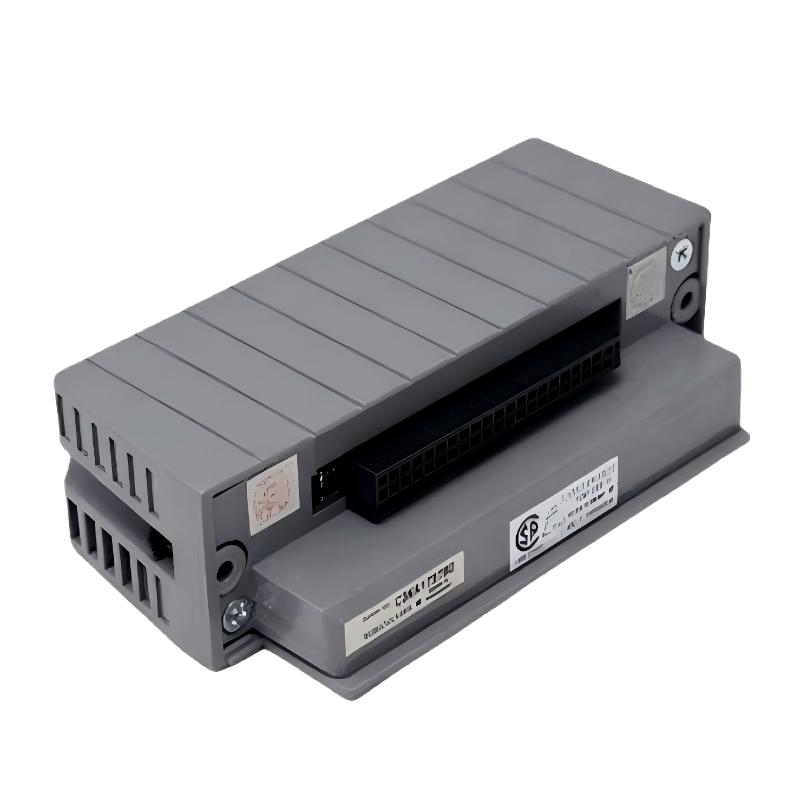

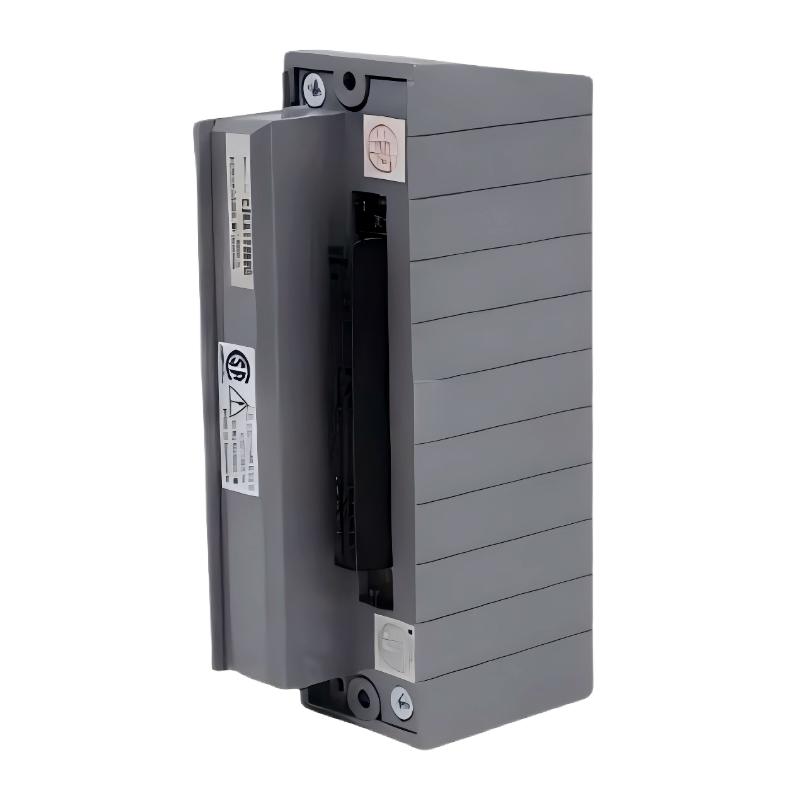

Yokogawa ATA4S-10 S2 Pressure Clamp Terminal
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ATA4S-10 S2 |
| Product Type | Pressure Clamp Terminal |
| Brand | Yokogawa |
| Connection Method | Spring pressure clamp (tool-free wiring) |
| Rated Voltage | Industrial control and signal level |
| Rated Current | Low-voltage signal transmission |
| Conductor Type | Solid and stranded copper conductors |
| Wiring Method | Direct push-in pressure clamp |
| Mounting Type | DIN rail mounting |
| Insulation Material | Flame-retardant industrial-grade polymer |
| Operating Environment | Industrial control cabinet environments |
| Temperature Range | Standard industrial operating range |
| Application | Signal distribution and control wiring |
| Dimensions | 114 x 32.6 x 60.5 mm |
| Weight | 0.2 kg |
FAQ
1. What is the main purpose of this pressure clamp terminal?
This pressure clamp terminal is designed for reliable signal distribution and wiring in industrial control systems. It enables fast, tool-free connection of conductors using a spring-pressure mechanism, reducing installation time and minimizing wiring errors. It is widely used in control cabinets where stable long-term electrical connections are required.
2. What does the “S2” version indicate?
The S2 variant typically refers to an enhanced design version with improved mechanical stability and contact reliability. It is optimized for applications requiring higher resistance to vibration and long-term thermal cycling, ensuring more consistent electrical performance in demanding industrial environments.
3. How does the spring pressure mechanism work?
The internal spring mechanism applies constant force on the inserted conductor, ensuring stable electrical contact. Once the wire is inserted, the spring automatically adjusts to maintain consistent pressure over time. This design helps prevent loosening caused by vibration, temperature changes, or mechanical stress.
4. What types of conductors are compatible?
The terminal supports both solid and stranded copper conductors commonly used in industrial signal and control wiring. Its push-in design allows flexible wiring options while maintaining reliable electrical contact and mechanical stability.
5. What are the advantages compared to screw-type terminals?
Compared to screw terminals, this pressure clamp design offers faster installation without tools and eliminates the risk of improper tightening torque. It also provides better vibration resistance and long-term stability, reducing the need for periodic maintenance or retightening.
6. Is it suitable for high-vibration environments?
Yes, it is well-suited for high-vibration environments. The spring mechanism maintains constant contact force, preventing loosening over time. This makes it ideal for industrial control panels, machinery systems, and applications exposed to continuous mechanical vibration.
7. What maintenance is required?
Maintenance requirements are minimal. Routine inspections typically focus on verifying wiring integrity, checking for insulation damage, and ensuring the terminal block is securely mounted. No periodic tightening is normally required due to the spring-based design.
8. Is it suitable for modular control cabinet systems?
Yes, it is highly suitable for modular control cabinet designs. The DIN rail mounting system allows easy installation and expansion, making it ideal for scalable automation architectures where flexible wiring and high-density terminal arrangements are required.
Yokogawa ATA4S-10 S2 Pressure Clamp Terminal is in stock. Please contact us for a quick quote and competitive pricing.
