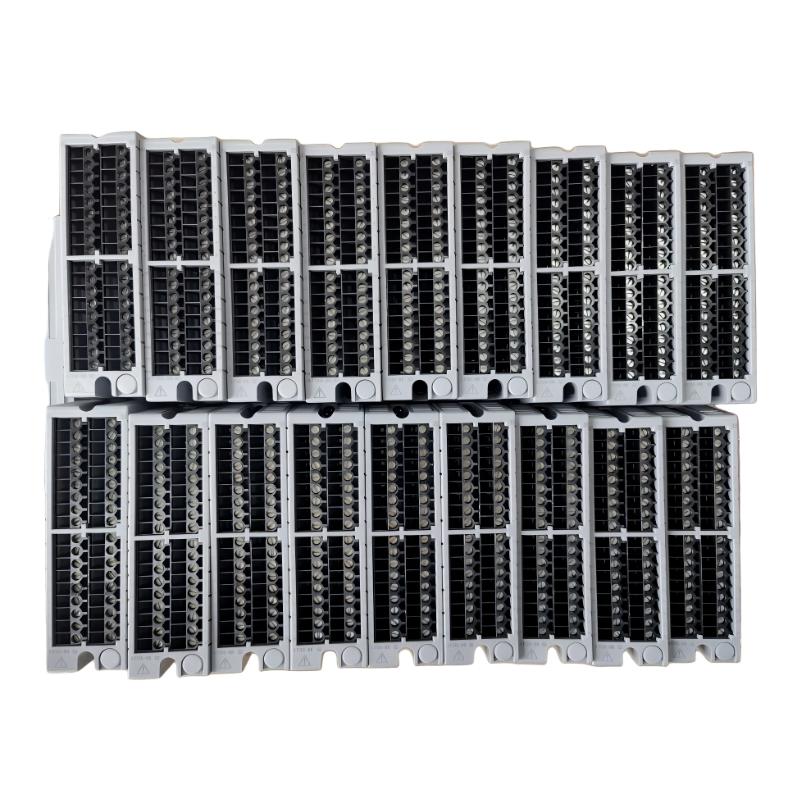

Yokogawa ATB3A-00 Pressure Clamp Terminal
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ATB3A-00 |
| Product Type | Pressure Clamp Terminal |
| Brand | Yokogawa Electric Corporation |
| Connection Method | Spring pressure clamp (tool-free push-in wiring) |
| Rated Voltage | Industrial signal and control circuit level |
| Rated Current | Low-voltage signal transmission |
| Conductor Type | Solid and stranded copper conductors |
| Wiring Method | Direct insertion pressure clamp |
| Mounting Type | DIN rail mounting |
| Insulation Material | Flame-retardant industrial-grade polymer |
| Operating Environment | Industrial control cabinet environments |
| Temperature Range | Standard industrial operating range |
| Application | Signal distribution and control wiring |
| Dimensions | 114 x 32.6 x 38.8 mm |
| Weight | 0.1 kg |
FAQ
1. What is the primary function of this pressure clamp terminal?
This pressure clamp terminal is designed for efficient and reliable electrical signal distribution in industrial control systems. It enables tool-free wiring using a spring-loaded mechanism, allowing quick installation while ensuring stable long-term electrical contact. It is commonly used in control panels where wiring efficiency and reliability are critical.
2. What makes the ATB3A-00 different from other terminal types?
The ATB3A-00 uses a compact spring pressure clamp design optimized for smaller control cabinet spaces. Compared with screw-type terminals, it provides faster installation, reduced maintenance requirements, and improved resistance to vibration-induced loosening, making it suitable for modern industrial automation systems.
3. How does the pressure clamp mechanism ensure reliable contact?
The internal spring mechanism applies constant mechanical force on the inserted conductor. This ensures continuous pressure on the wire, maintaining a stable electrical connection even under vibration or thermal cycling conditions. The system automatically compensates for minor conductor deformation over time.
4. What types of conductors can be used with this terminal?
It is compatible with both solid and stranded copper conductors commonly used in industrial signal wiring. The push-in design ensures secure fixation of different conductor types without requiring additional tools or complex preparation.
5. What are the advantages over traditional screw terminals?
Compared to screw terminals, this pressure clamp design eliminates the need for torque control during installation, significantly reducing installation time and human error. It also provides better long-term stability, especially in environments with vibration or frequent temperature fluctuations.
6. Is this terminal suitable for vibration-prone environments?
Yes, it is specifically designed to maintain stable contact under continuous vibration. The spring mechanism ensures consistent contact force, preventing loosening that can occur with traditional screw-based connections in industrial environments.
7. What maintenance is required during operation?
Maintenance requirements are minimal. Periodic inspection is generally sufficient to verify wiring integrity, ensure proper seating of conductors, and check for any insulation damage. No routine retightening is required due to the spring-based contact system.
8. Is it suitable for compact or modular control cabinet design?
Yes, its compact structure and DIN rail mounting system make it well-suited for modular and high-density control cabinet layouts. It supports efficient space utilization while maintaining reliable wiring performance, making it ideal for modern automation system designs.
Yokogawa ATB3A-00 Pressure Clamp Terminal is in stock. Please contact us for a quick quote and competitive pricing.
