1. What is the primary function of the F3NC51-0N module?

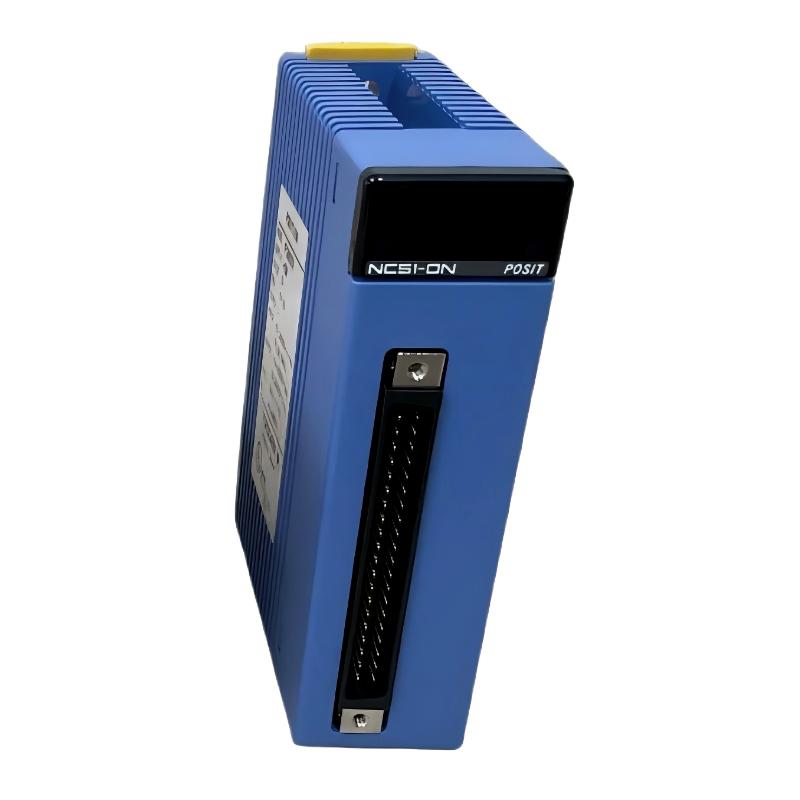

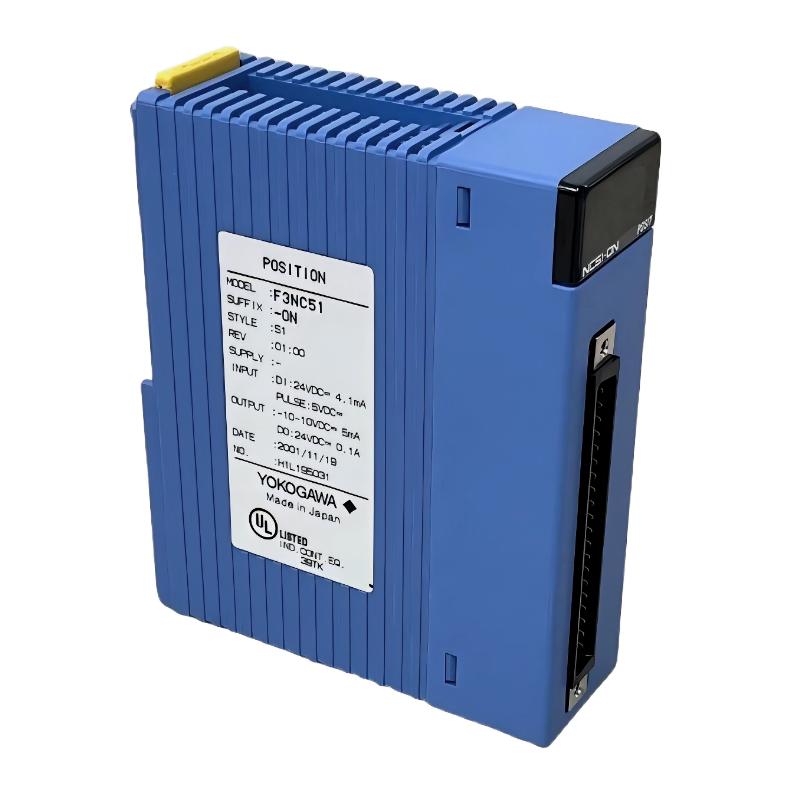

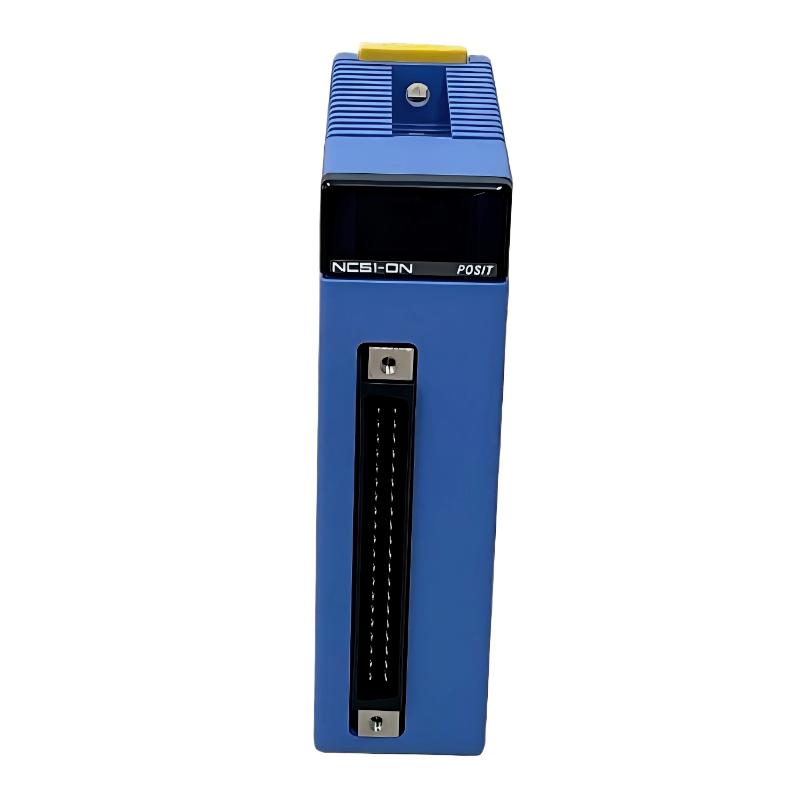

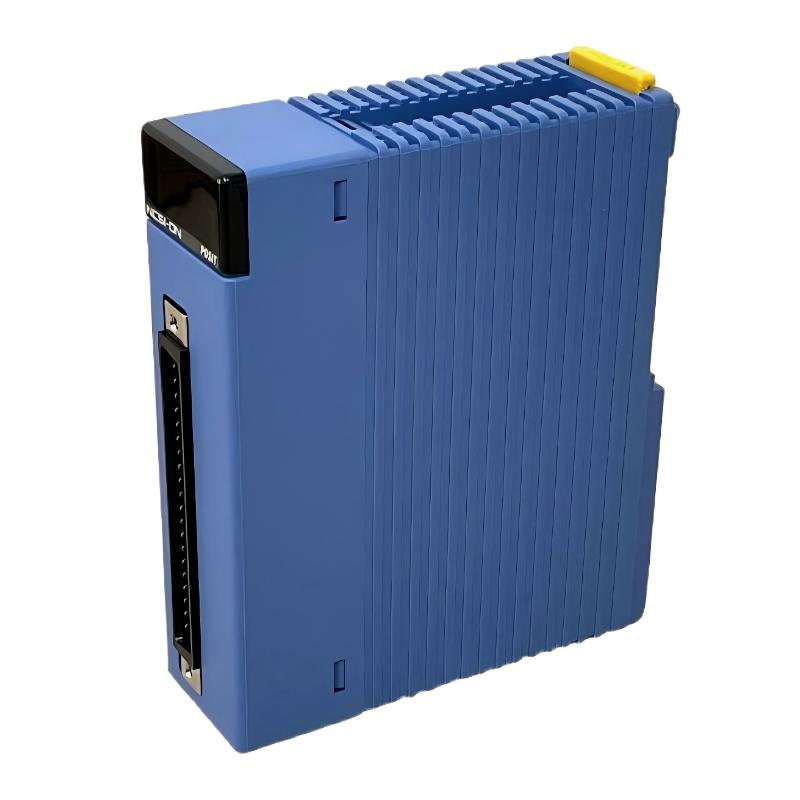

The F3NC51-0N is a high-speed positioning module designed for Yokogawa FA-M3 PLC systems. Its main function is to provide accurate motion control and positioning for industrial automation equipment. The module generates high-speed pulse outputs to control servo drives and stepper motor systems, enabling precise movement, speed adjustment, and coordinated multi-axis operation in automated machinery.

2. Which motion control modes are supported by the F3NC51-0N?

The module supports multiple positioning modes, including absolute positioning, relative positioning, and continuous path control. Absolute positioning allows equipment to move to predefined coordinates, while relative positioning performs movement based on the current position. Continuous path control is suitable for complex motion sequences and high-speed automation processes requiring smooth and uninterrupted movement.

3. Does the F3NC51-0N support multi-axis synchronous control?

Yes. The F3NC51-0N supports multi-axis synchronized control, allowing multiple motion axes to operate simultaneously with precise coordination. This capability is important for applications such as robotic systems, conveyor equipment, packaging machinery, and automated assembly lines where synchronized movement is essential for maintaining operational accuracy and efficiency.

4. What types of drive systems can be connected to the F3NC51-0N?

The module can be connected to servo drive systems and stepper motor controllers through high-speed pulse signal outputs. It provides accurate control of motor position, movement direction, acceleration, and operating speed. This makes the module suitable for industrial equipment requiring high-precision motion control and stable high-speed performance.

5. What is the purpose of encoder feedback support in the F3NC51-0N?

The encoder feedback function allows the module to monitor motor position and motion status in real time. Through closed-loop control, the system can automatically correct positioning deviations and improve motion accuracy. This feature is especially important in high-speed and high-precision industrial applications where repeatability and synchronization are critical for production quality.

6. Which industries commonly use the F3NC51-0N?

The module is widely used in industries such as electronics manufacturing, semiconductor production, automotive assembly, packaging systems, and intelligent manufacturing facilities. These industries require precise positioning and reliable motion control to ensure production efficiency, product consistency, and stable operation of automated machinery.

7. What should be considered during installation and operation of the F3NC51-0N?

During installation, it is important to properly configure motor parameters, acceleration/deceleration settings, and positioning control parameters to ensure smooth system operation. Shielded cables and proper grounding are recommended to reduce electromagnetic interference affecting pulse signals. In high-speed motion systems, regular inspection of mechanical transmission components is also necessary to maintain long-term operational stability.

8. How is the F3NC51-0N different from a standard PLC output module?

Standard PLC output modules are generally designed for basic ON/OFF signal control, while the F3NC51-0N is a dedicated motion control module developed specifically for high-speed positioning applications. It supports advanced features such as high-speed pulse output, multi-axis synchronization, encoder feedback processing, and precision motion management, making it much more suitable for sophisticated industrial automation and motion control systems.
