1. What is the primary function of the F3PU10-0N power supply module?

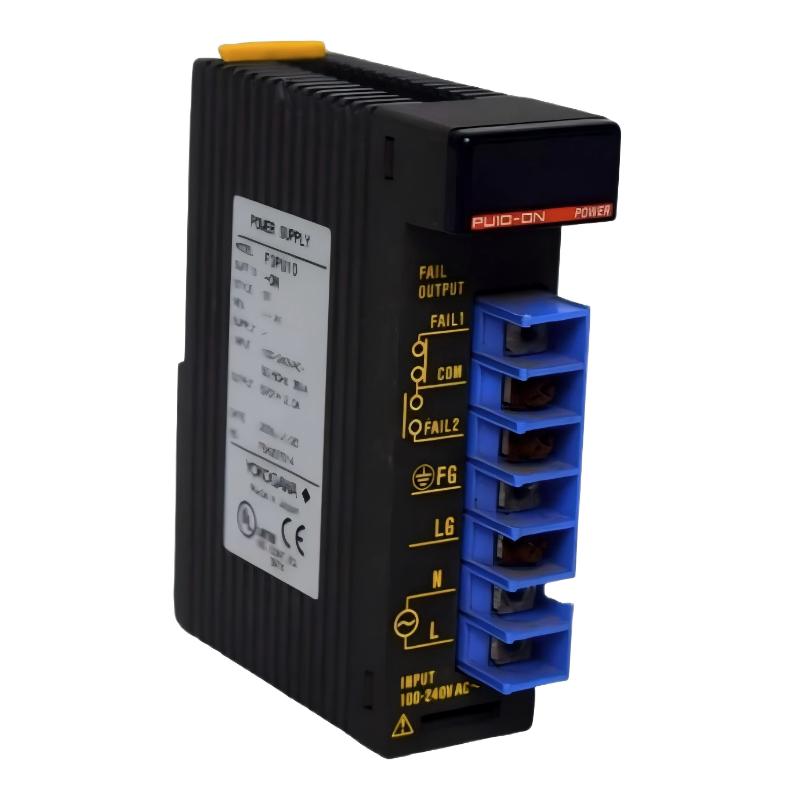

The F3PU10-0N is an industrial power supply module designed for Yokogawa FA-M3 PLC systems. Its main function is to provide stable and reliable DC power to PLC CPUs, I/O modules, and expansion modules. By converting AC input power into regulated DC output, the module ensures continuous and stable operation of industrial automation systems in demanding environments.

2. Which industrial applications commonly use the F3PU10-0N?

The module is widely used in factory automation systems, process control applications, intelligent manufacturing facilities, and industrial machinery control systems. Stable power delivery is critical in these environments because voltage fluctuations or power interruptions can directly affect PLC operation and production stability. The F3PU10-0N is designed to support continuous industrial operations with reliable power performance.

3. What protection features are included in the F3PU10-0N?

The F3PU10-0N includes built-in overcurrent protection and overvoltage protection functions. These protective features help prevent damage to PLC systems and connected equipment during abnormal operating conditions. If excessive current or abnormal voltage is detected, the module can respond automatically to protect both the power supply and the automation system.

4. Why is the F3PU10-0N suitable for industrial automation environments?

The module is designed with industrial-grade reliability and strong resistance to electromagnetic interference. In industrial environments containing motors, inverters, and high-power electrical equipment, electrical noise can negatively impact system stability. The F3PU10-0N maintains stable power output under such conditions, making it highly suitable for demanding automation applications.

5. What is the purpose of the electrical isolation design in the F3PU10-0N?

The electrical isolation design helps reduce interference between the input and output sides of the power supply. It protects the PLC system from voltage fluctuations, electrical noise, and grounding-related issues that may occur in industrial facilities. This isolation improves both system safety and overall operational stability in complex industrial environments.

6. What should be considered during installation and operation of the F3PU10-0N?

During installation, it is important to ensure that the input power meets the specified electrical requirements of the module. Proper ventilation should also be maintained to support effective heat dissipation. In industrial installations, proper grounding practices and separation from high-power electrical wiring are recommended to minimize electromagnetic interference and maintain stable power operation.

7. Is the F3PU10-0N suitable for long-term continuous operation?

Yes. The F3PU10-0N is built with industrial-grade components and designed specifically for long-term continuous operation in automation systems. It provides stable power to PLCs and connected modules over extended operating periods, helping reduce the risk of unexpected downtime caused by unstable power conditions.

8. How is the F3PU10-0N different from a standard industrial power supply?

Unlike general-purpose industrial power supplies, the F3PU10-0N is specifically designed for Yokogawa FA-M3 PLC systems. It offers optimized compatibility, integrated PLC mounting capability, and enhanced reliability for automation environments. Its modular design simplifies system integration, while its protection features and industrial-grade performance provide greater stability for critical control applications.
