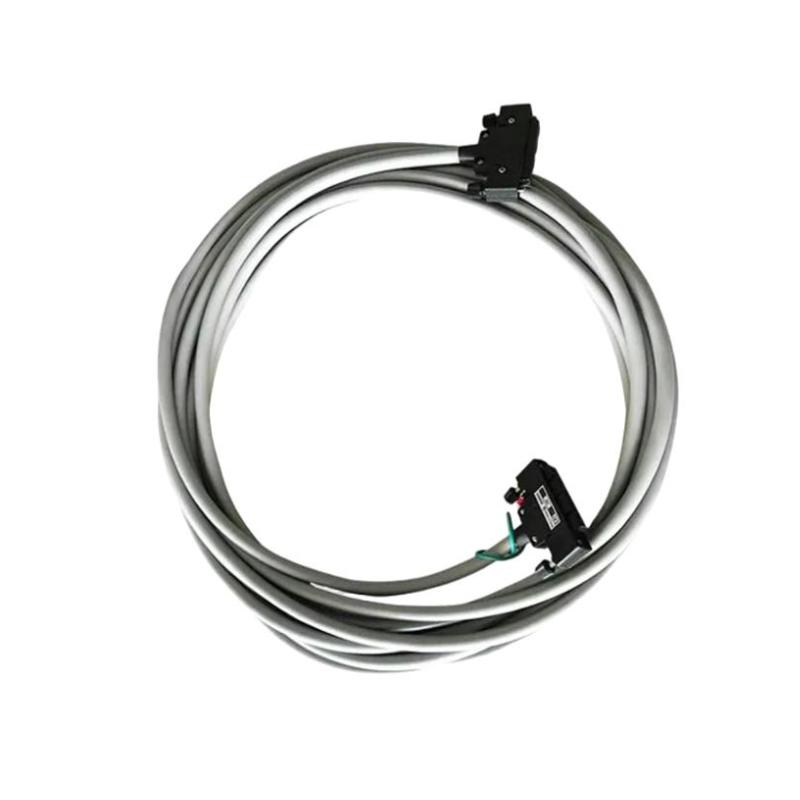

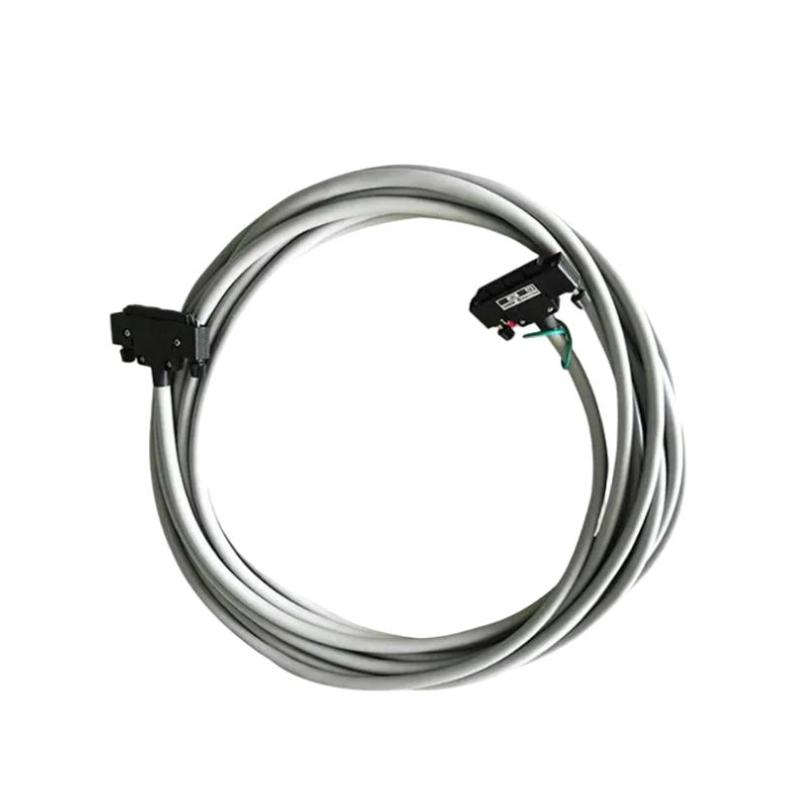

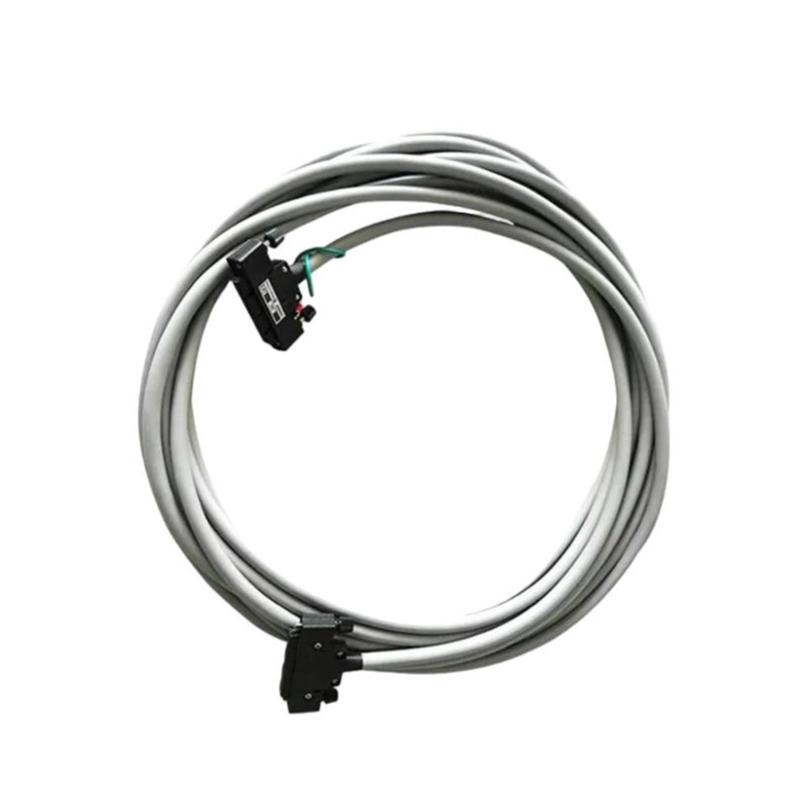

Q1: What is the main function of the Yokogawa KS1-10/SAI143 signal cable?
A1: The KS1-10/SAI143 signal cable is designed to provide reliable transmission of control and measurement signals between field devices and Yokogawa SAI143 I/O modules or related control system components. In industrial automation systems, this cable serves as a critical communication link that ensures process signals such as temperature, pressure, flow, and level are accurately transmitted to the control system without distortion or loss.

In real-world applications, it plays a vital role in maintaining system stability, enabling accurate process monitoring, and ensuring that control actions are executed based on reliable and real-time data.

Q2: Where is this cable typically used?
A2: This cable is widely used in Yokogawa distributed control systems (DCS) and PLC-based automation platforms. It is commonly deployed in industries such as oil and gas, petrochemicals, power generation, chemical processing, pharmaceuticals, metallurgy, and large-scale industrial manufacturing plants.

Typical installation points include connections between field transmitters, marshalling cabinets, junction boxes, and SAI143 I/O modules within control systems, forming part of the plant’s critical signal infrastructure.

Q3: Why is shielding important in this cable?
A3: Shielding is essential because industrial environments contain significant electromagnetic interference generated by motors, transformers, variable frequency drives, and switching equipment. Without proper shielding, these disturbances can induce noise into signal lines, resulting in inaccurate measurements, unstable readings, or communication errors.

The KS1-10/SAI143 cable uses high-density shielding to block and redirect electromagnetic noise away from the signal conductors. This ensures that low-level analog or digital signals remain clean and stable even in electrically noisy environments.

Q4: What are common causes of signal instability?
A4: Signal instability is typically caused by a combination of installation, environmental, and aging factors. Common causes include improper grounding of the cable shield, loose terminal connections, routing signal cables too close to power cables, or exposure to strong electromagnetic fields.

Mechanical stress such as repeated bending, pulling, or vibration can gradually damage the internal conductors or shielding layer. Over time, insulation aging or moisture ingress in harsh environments can also degrade signal quality, leading to intermittent faults or measurement drift.

Q5: How can proper cable performance be verified?
A5: Proper performance can be verified through both electrical testing and system behavior analysis. Continuity testing confirms that conductors are intact, while insulation resistance testing ensures there is no leakage between cores or to ground.

In live operation, stable process variables, consistent controller response, and absence of random signal fluctuations are strong indicators of correct cable performance. Any irregular readings, signal dropout, or noise should be investigated as potential wiring or shielding issues.

Q6: Is this cable suitable for high electromagnetic interference environments?
A6: Yes, the KS1-10/SAI143 is specifically designed for industrial environments with high levels of electromagnetic noise. Its shielding structure provides strong protection against EMI and RFI, making it suitable for installation near heavy machinery, electrical panels, and automation equipment.

However, achieving optimal performance depends not only on cable design but also on proper installation practices, including correct grounding of the shielding layer and maintaining adequate separation from high-power cables.

Q7: What should be considered during installation?
A7: During installation, the cable should be routed carefully to avoid excessive bending, stretching, or mechanical compression. It should be kept away from high-voltage and high-current power cables to minimize interference.

The shielding must be properly terminated according to system grounding practices to avoid floating shields or ground loops. Additionally, using cable trays or conduits is recommended to provide mechanical protection and maintain organized routing within industrial environments.

Q8: How can long-term reliability be improved?
A8: Long-term reliability can be significantly improved through proper design, installation, and maintenance practices. Regular inspection of cable insulation helps detect early signs of wear, cracking, or environmental damage. Ensuring secure terminal connections and proper shielding grounding is essential for maintaining signal integrity.

It is also important to maintain proper cable segregation from power lines and high-noise equipment. In critical applications, periodic testing and preventive maintenance programs should be implemented to ensure stable performance throughout the system lifecycle.
