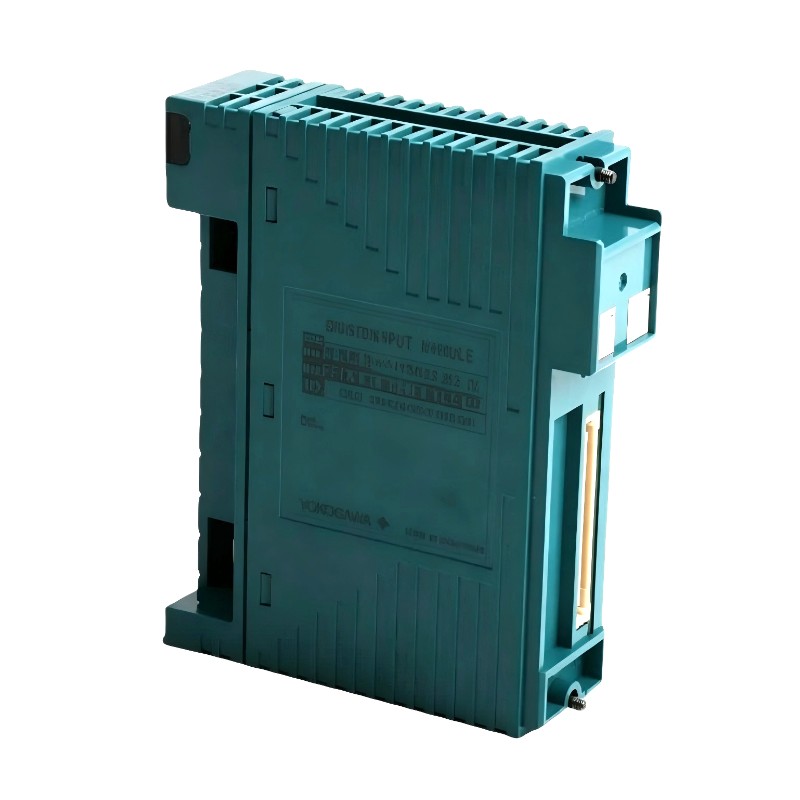

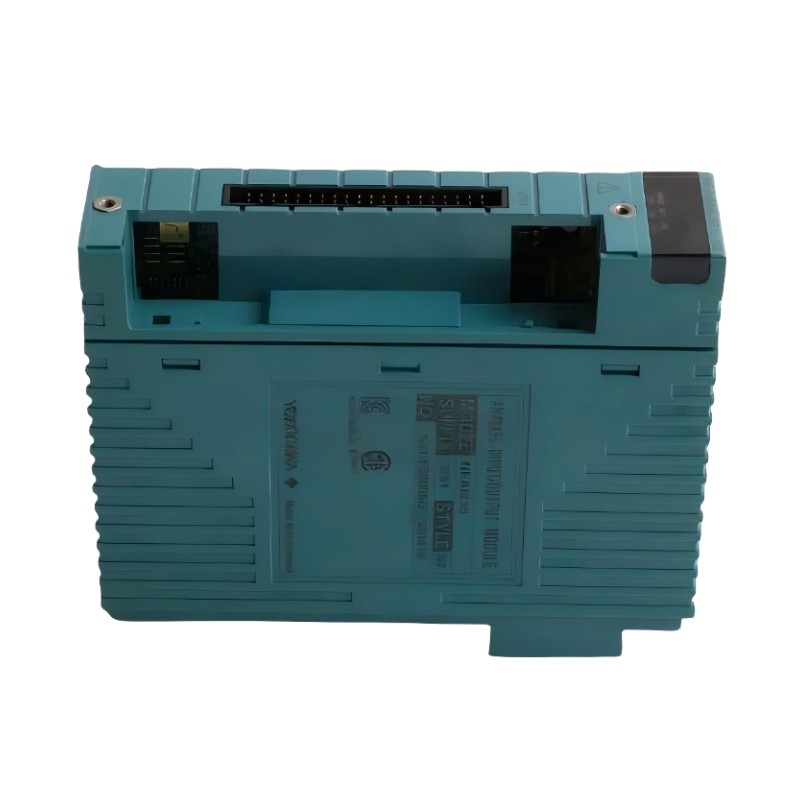

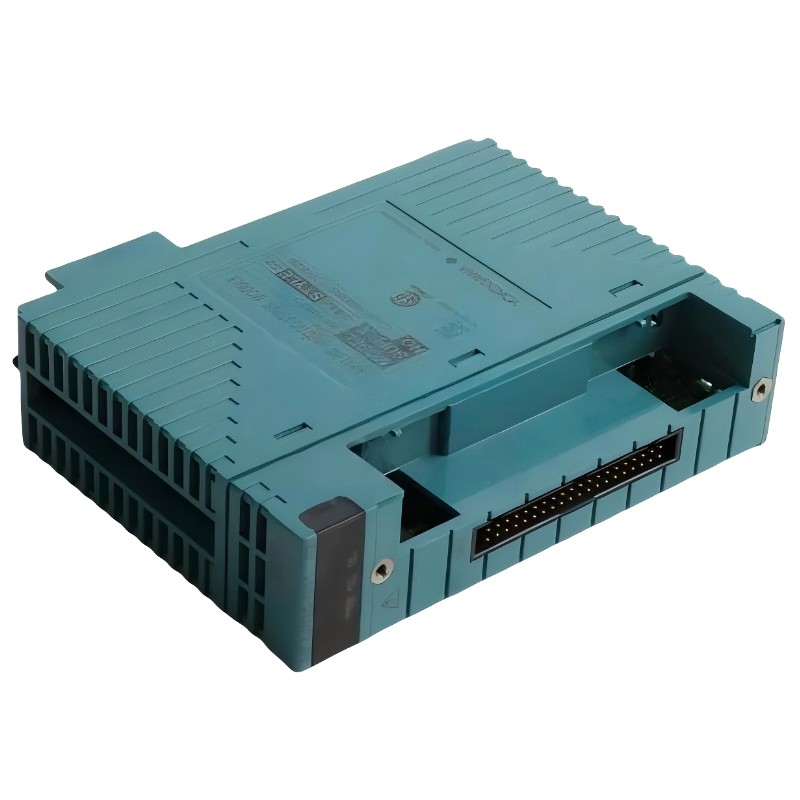

Q1: What is the main function of the Yokogawa NFAI835-S51 Analog Input/Output Module?

A: The NFAI835-S51 is an integrated analog I/O module designed for Distributed Control Systems (DCS). Its primary function is to handle both analog signal acquisition from field instruments and analog signal output to control field devices. On the input side, it receives process variables such as pressure, temperature, flow, and level from transmitters. On the output side, it sends control signals to actuators such as control valves, dampers, or variable frequency drives. This dual functionality allows it to act as a compact interface between field instrumentation and the control system, enabling efficient closed-loop process automation.

Q2: What types of analog signals does this module support?

A: The module supports standard industrial analog signals, including 4–20 mA current signals and voltage-based signals commonly used in process control applications. These signal types are widely adopted due to their reliability and compatibility with a broad range of field devices. The module ensures that both input and output signals are properly conditioned and converted to maintain accuracy and stability throughout operation.

Q3: How does the module maintain signal accuracy in industrial environments?

A: Signal accuracy is maintained through a combination of high-precision A/D and D/A conversion circuits, advanced filtering techniques, and stable reference voltage design. In addition, the module incorporates electrical isolation between channels and the control system, which helps eliminate noise, ground loops, and electrical disturbances. These design features ensure reliable performance even in environments with high electromagnetic interference or long signal transmission distances.

Q4: Why is electrical isolation important in this module?

A: Electrical isolation is essential because it separates the field-side signals from the internal electronics and control system. This prevents voltage spikes, transient surges, and electrical noise from damaging sensitive components or distorting signals. It also eliminates ground loop issues, which can lead to measurement errors or unstable control behavior. As a result, isolation significantly improves both system safety and signal integrity in industrial applications.

Q5: In which industries is the NFAI835-S51 commonly used?

A: The module is widely used in process industries such as oil and gas, petrochemical refining, chemical production, power generation, water treatment, and metallurgical processing. These industries require continuous and reliable process monitoring and control. The NFAI835-S51 provides stable signal acquisition and output capabilities, making it suitable for critical automation systems in these environments.

Q6: How does this module integrate into a DCS system?

A: The module is installed in a rack-based I/O system and communicates with the DCS controller via a system bus. Input signals from field devices are converted into digital data and transmitted to the controller for processing. Conversely, control commands from the controller are converted into analog output signals and sent to field actuators. This seamless integration enables real-time closed-loop control and efficient process automation.

Q7: Does the module require calibration or configuration after installation?

A: The module is factory-calibrated and ready for use upon installation. However, it can be further configured using DCS engineering software to match specific process requirements. Parameters such as signal scaling, channel configuration, and input/output ranges can be adjusted. This flexibility allows the module to be adapted to different applications without hardware modification while maintaining high accuracy.

Q8: What maintenance practices are recommended for long-term operation?

A: Although the module is designed for low-maintenance operation, periodic inspections are recommended. These include checking rack mounting stability, verifying terminal connections, monitoring signal stability through system diagnostics, and ensuring the operating environment remains within acceptable temperature and cleanliness conditions. Regular review of system alarms and trend data can also help detect early signs of signal degradation or configuration issues, ensuring reliable long-term performance.
