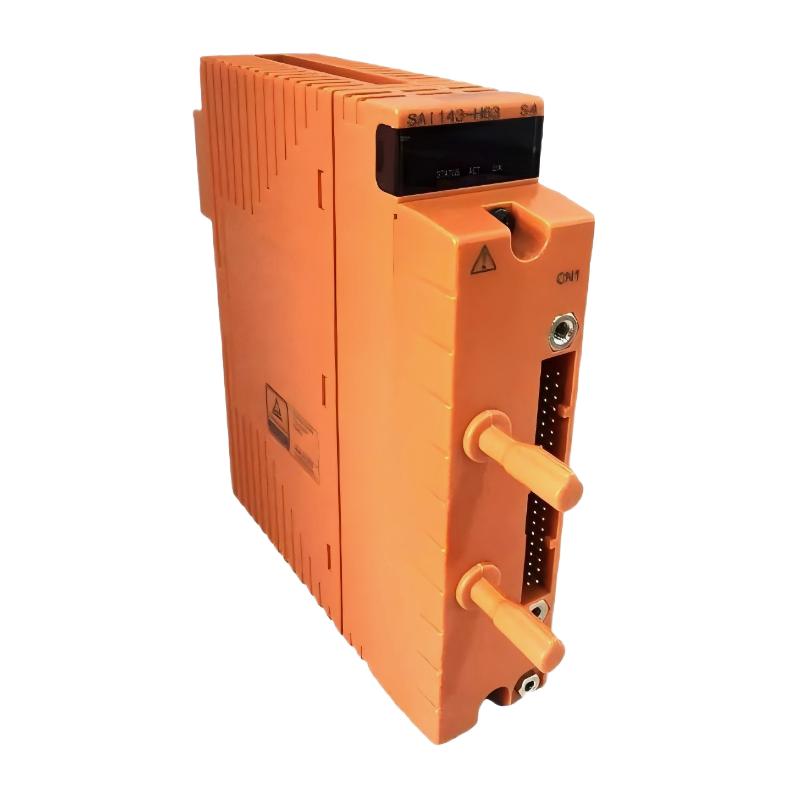

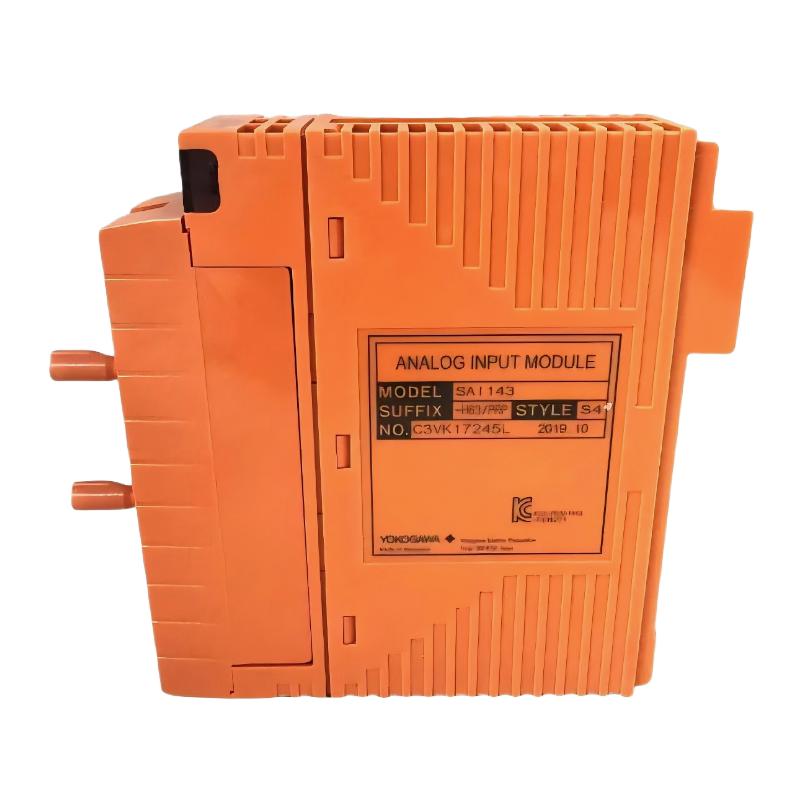

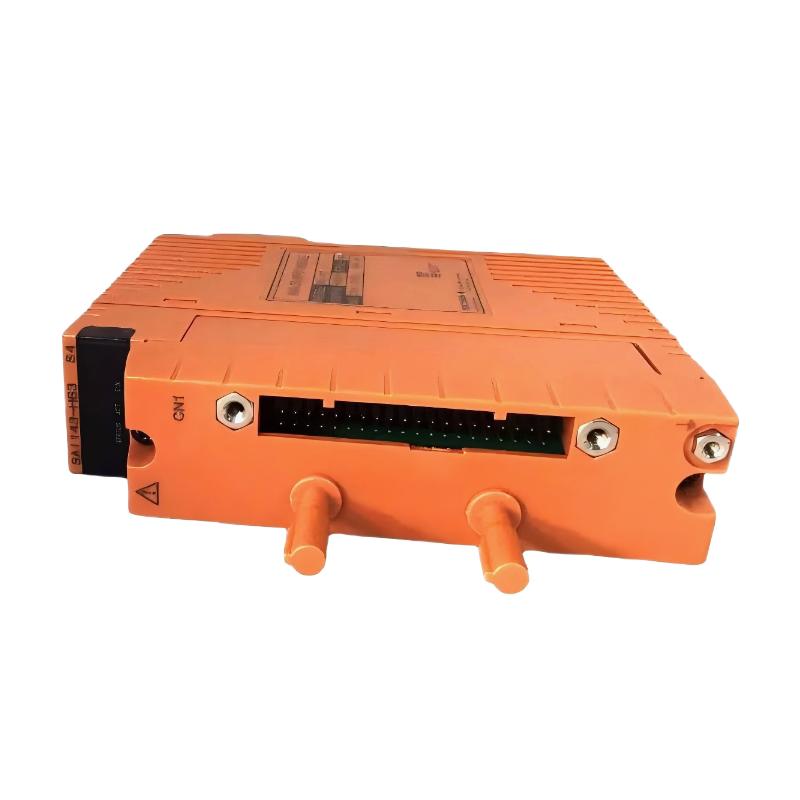

Q1: What is the core function of the Yokogawa SAI143-H63/A4S00 Analog Input Module?

The primary function of the SAI143-H63/A4S00 analog input module is to acquire analog signals from field instruments and convert them into digital data for use within a distributed control system (DCS). It receives standard industrial signals such as 4–20 mA current loops or voltage signals from transmitters measuring process variables like pressure, temperature, flow, or level. Once received, the module performs signal conditioning, including analog-to-digital conversion, filtering, and basic diagnostics, ensuring that only stable and reliable data is transmitted to the control system. This enables accurate process monitoring and control in real time.

Q2: In which industries is this module typically used?

This module is widely used in continuous process industries such as oil and gas, petrochemicals, power generation, metallurgy, pharmaceuticals, and water treatment. In these environments, hundreds or even thousands of analog signals must be collected and processed reliably. The module plays a key role in centralizing field data acquisition, allowing operators to monitor complex processes from a unified control interface. Its reliability and precision make it suitable for critical applications where process stability and safety are essential.

Q3: How does this module integrate into a Yokogawa DCS system?

The module integrates directly into a Yokogawa CENTUM VP or CS series DCS via a system backplane. Field signals are connected to the module’s input terminals, where they are conditioned and converted into digital format. These digital values are then transmitted through the backplane communication bus to the controller and operator stations. The DCS uses this data for real-time control logic, alarm handling, trend analysis, and process optimization. Configuration parameters such as scaling, filtering, and diagnostics are managed through the system engineering station.

Q4: What signal processing capabilities does the module provide?

The module includes multiple signal processing functions designed to improve data quality and reliability. These include analog-to-digital conversion with high resolution, digital filtering to reduce noise, and diagnostic functions to detect abnormal signal conditions such as open circuits or signal drift. It also supports channel isolation, which prevents interference between adjacent input channels. These features ensure that the control system receives accurate and stable process data even in electrically noisy industrial environments.

Q5: What are the key installation considerations for this module?

Proper installation requires mounting the module securely in a dedicated system rack or DIN rail assembly within a control cabinet. Signal wiring should use shielded twisted-pair cables to minimize electromagnetic interference. It is important to separate signal cables from power cables to avoid noise coupling. Proper grounding of the shield is essential for stable operation. Additionally, each channel must be correctly wired according to system documentation to prevent signal misrouting or configuration errors.

Q6: What are common causes of signal abnormalities in operation?

Signal abnormalities can be caused by several factors, including faulty field transmitters, loose wiring connections, improper grounding, or damaged signal cables. Configuration errors in the DCS system, such as incorrect scaling or channel assignment, can also lead to incorrect readings. In some cases, external electromagnetic interference from variable frequency drives or high-power equipment may introduce noise into the signal. A systematic approach is required to isolate and identify the root cause.

Q7: Does this module support online replacement or maintenance?

In many Yokogawa system configurations, modules like the SAI143-H63/A4S00 are designed to support hot-swapping or online replacement under controlled maintenance conditions. This allows technicians to replace a faulty module without shutting down the entire control system. However, proper procedures must be followed, including placing the channel or system in maintenance mode and ensuring safe operating conditions before removal or insertion. This helps avoid unintended process disruptions.

Q8: What role does this module play in industrial automation systems?

This module acts as a critical interface between field instrumentation and the control system. It ensures that raw analog signals from sensors are accurately captured, converted, and delivered to the DCS for processing. By providing reliable and continuous data acquisition, it enables advanced automation functions such as closed-loop control, alarm management, interlocking, and process optimization. Without such modules, real-time monitoring and automated control of complex industrial processes would not be possible.
