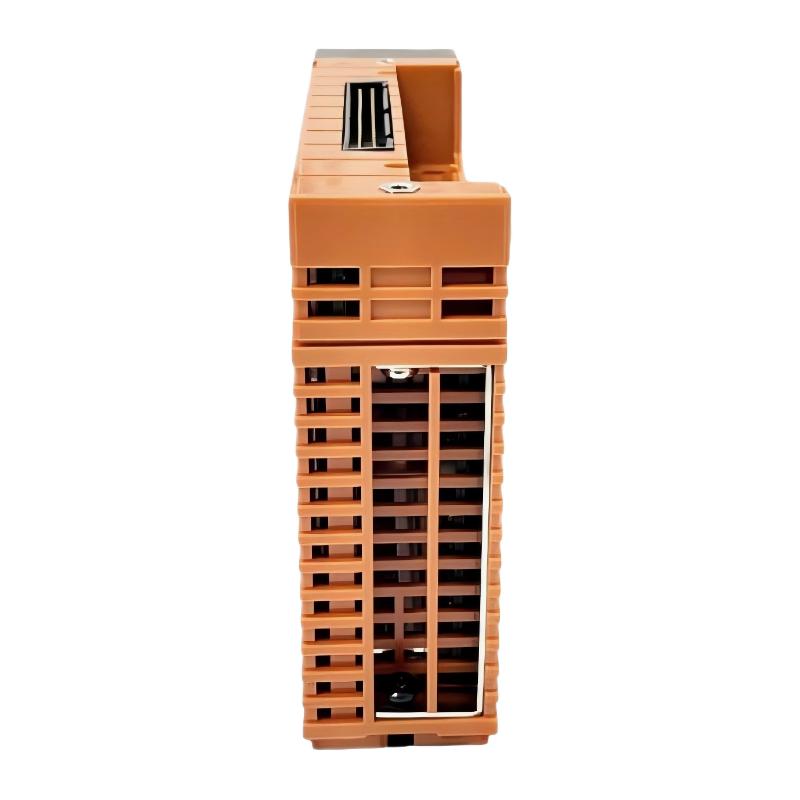

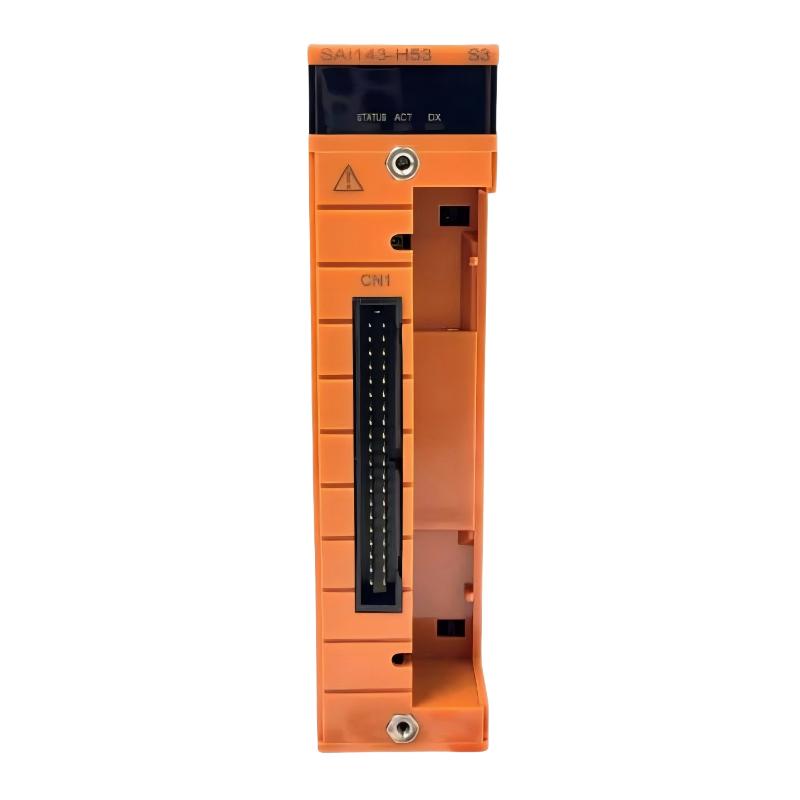

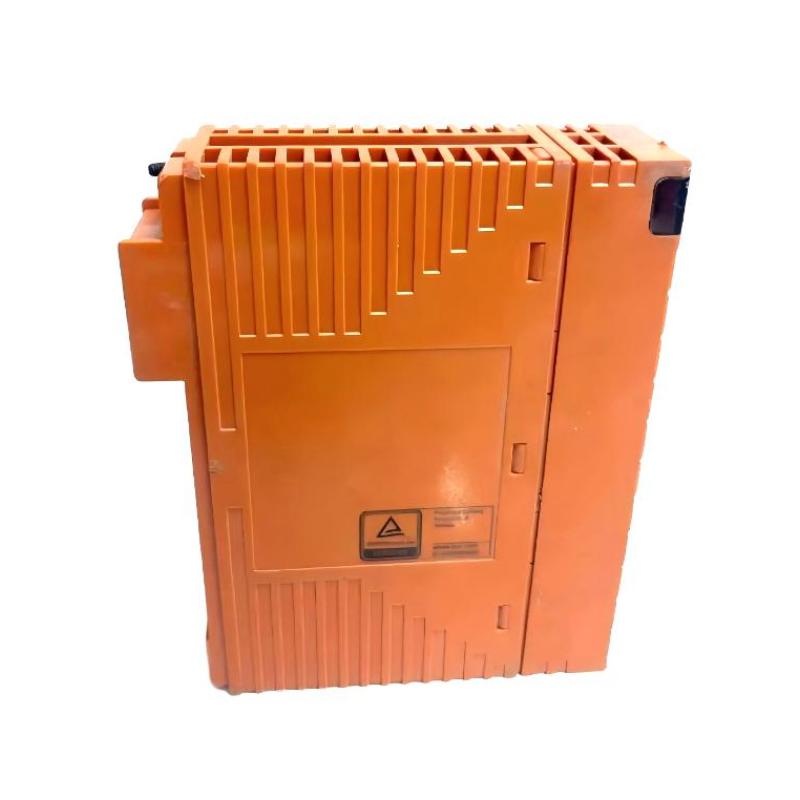

Q1: What is the primary function of the Yokogawa SAI143-S03/K4A00 Analog Input Module?

The primary function of the SAI143-S03/K4A00 analog input module is to acquire analog process signals from field instruments and convert them into digital data for use in a distributed control system (DCS). It accepts standard industrial signals such as 4–20 mA current loops or voltage inputs from transmitters measuring process variables like pressure, temperature, flow, and level. Once the signals are received, the module performs signal conditioning, including analog-to-digital conversion, filtering, and diagnostic checks. This ensures that only accurate, stable, and reliable process data is transmitted to the control system for monitoring and control purposes. It plays a foundational role in bridging field instrumentation and automation systems.

Q2: In which industries is this module commonly used?

This module is widely used across continuous process industries where large volumes of analog data must be collected and processed reliably. Typical industries include oil and gas production, petrochemical refining, thermal and nuclear power generation, metallurgy, pharmaceuticals, pulp and paper, and water treatment. In these environments, thousands of field instruments continuously generate analog signals that must be monitored in real time. The SAI143-S03/K4A00 enables centralized data acquisition, allowing operators to visualize and control complex processes efficiently from a distributed control system interface.

Q3: How does this module integrate with Yokogawa CENTUM systems?

The module integrates directly into Yokogawa CENTUM VP or CS distributed control systems via a system backplane. Field devices are connected to the module’s input terminals, where the analog signals are conditioned and converted into digital values. These values are then transmitted through the backplane communication network to the controller. The control system uses this data for real-time process control, alarm management, trend recording, and advanced control strategies such as PID loops and interlocking logic. Configuration settings such as scaling, filtering, and diagnostics are managed through engineering and maintenance tools within the system.

Q4: What signal processing functions does the module provide?

The module includes a range of signal processing functions designed to ensure data accuracy and reliability. These include high-resolution analog-to-digital conversion, digital filtering to reduce electrical noise, signal linearization, and diagnostic detection of abnormal conditions such as open circuits or signal drift. It also supports channel-to-channel isolation, which helps prevent interference between adjacent inputs. These features ensure that even in electrically noisy industrial environments, the control system receives stable and high-quality process data suitable for precise automation control.

Q5: What are the critical installation and wiring considerations?

Proper installation is essential for reliable operation. The module must be securely mounted in a dedicated system rack or DIN rail within a control cabinet. Signal wiring should use shielded twisted-pair cables to minimize electromagnetic interference. It is important to keep signal cables physically separated from power cables and high-voltage lines to prevent noise coupling. Proper grounding of the cable shield is also critical to ensure signal stability. Additionally, each input channel must be wired according to system documentation to avoid misconnection, which could result in incorrect readings or system alarms.

Q6: What are common causes of signal abnormalities in operation?

Signal abnormalities can arise from several sources. Field-side issues such as transmitter failure, incorrect calibration, or power supply problems are common causes. Wiring issues like loose terminals, broken conductors, or poor shielding can also degrade signal quality. On the system side, incorrect configuration parameters such as scaling errors or wrong channel assignments may lead to inaccurate readings. External electromagnetic interference from variable frequency drives or heavy electrical equipment can also introduce noise. Effective troubleshooting requires checking the entire signal chain from field instrument to DCS input.

Q7: Does the module support online replacement or maintenance?

In many Yokogawa CENTUM system configurations, this module supports online replacement or hot-swapping under controlled maintenance conditions. This allows technicians to replace a faulty module without shutting down the entire control system, minimizing process disruption. However, proper maintenance procedures must be strictly followed, including placing the system or affected channel into maintenance mode before removal or insertion. This ensures safe operation and prevents unintended disturbances to active control loops or process variables.

Q8: What role does this module play in industrial automation systems?

The SAI143-S03/K4A00 plays a critical role as the interface between field instrumentation and the automation control system. It converts raw analog signals into usable digital data, enabling real-time monitoring, control, and optimization of industrial processes. This data supports key automation functions such as closed-loop control, alarm handling, safety interlocks, and historical data trending. Without such modules, distributed control systems would not be able to reliably acquire field information, making stable and automated process operation impossible.
