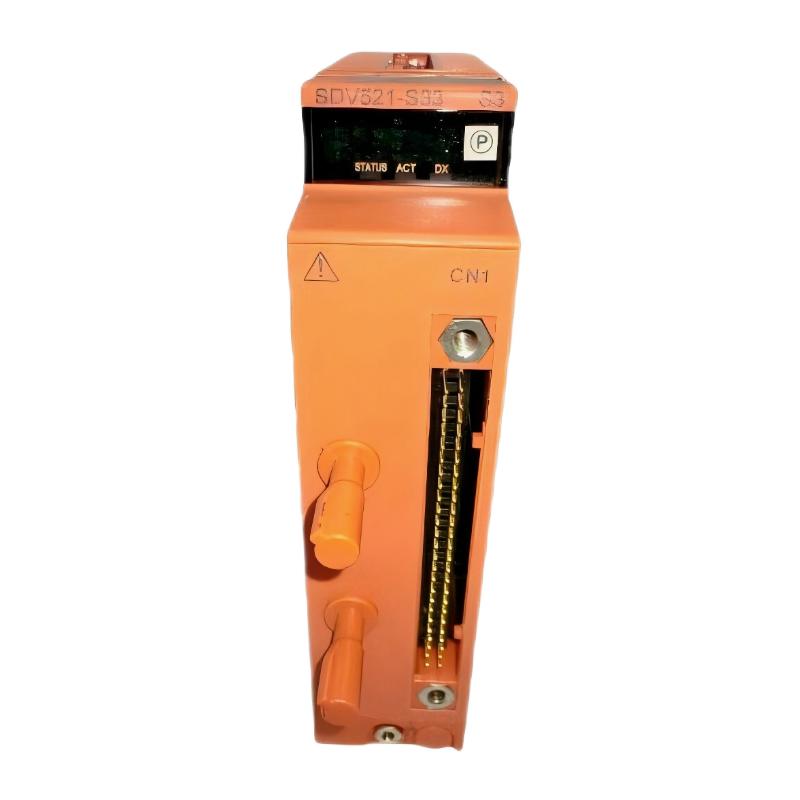

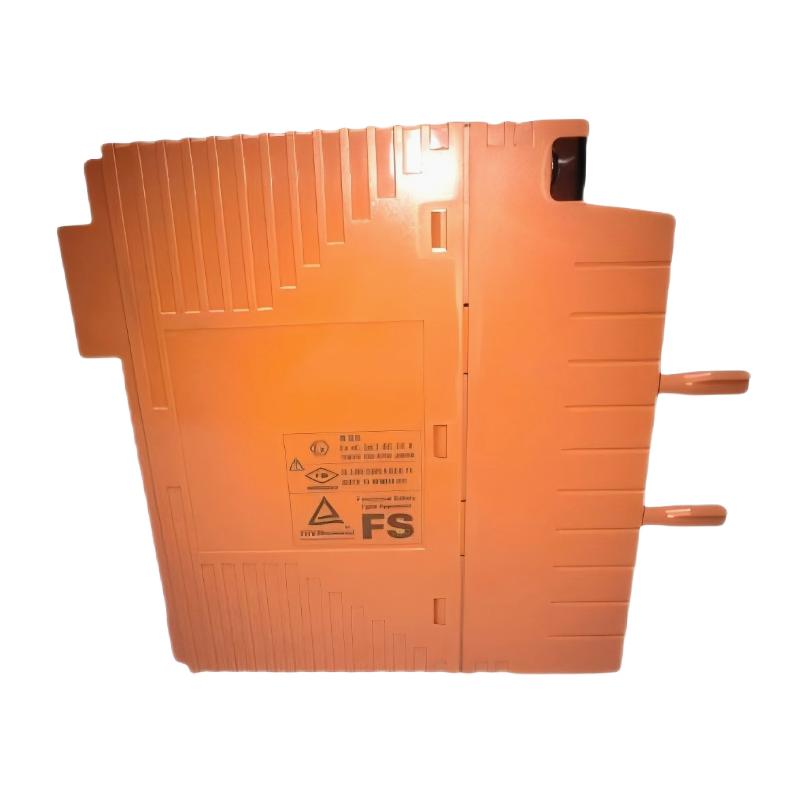

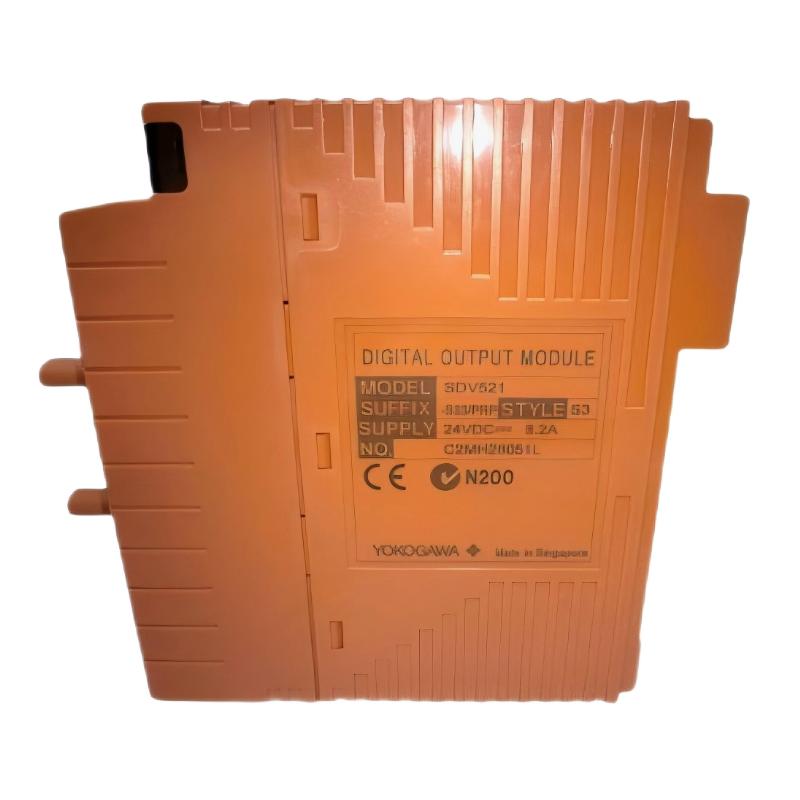

Q1: What is the primary function of the Yokogawa SDV521-S33 Digital Output Module?

A: The primary function of the SDV521-S33 digital output module is to convert control system logic signals into physical electrical outputs that drive field devices. It serves as the execution interface between the automation system and industrial equipment. Based on control logic from the CENTUM or ProSafe-RS system, the module generates ON/OFF output signals that activate devices such as solenoid valves, relays, alarms, contactors, and other actuators. In industrial automation architectures, it plays a critical role in ensuring that control decisions are properly executed in the physical process environment, making it an essential component in both process control and safety systems.

Q2: How does the digital output function operate in this module?

A: The module operates by receiving digital commands from the control system through the backplane bus. When a logic “ON” signal is received, the corresponding output channel is activated, allowing current to flow to the connected field device. When a logic “OFF” signal is received, the output is deactivated, stopping current flow. This simple but reliable switching mechanism enables precise control of industrial equipment. The output behavior is deterministic and synchronized with the control system, ensuring accurate execution of process logic and safety commands.

Q3: What is the purpose of optical isolation in this module?

A: Optical isolation is used to electrically separate the control system circuitry from the field output circuits. This prevents high voltage transients, ground loops, and electromagnetic noise from propagating back into the control system. In harsh industrial environments where inductive loads and switching surges are common, this isolation protects sensitive electronics and enhances system stability. It also improves safety by reducing the risk of electrical faults affecting the core control hardware.

Q4: What types of field devices can be controlled by this module?

A: The SDV521-S33 module can control a wide range of industrial field devices, including solenoid valves, motor starters, relays, contactors, indicator lamps, alarm buzzers, and small actuators. It is commonly used in process industries to control valve operations, pump start/stop sequences, and alarm signaling systems. Its flexibility makes it suitable for both standard process control and safety-related applications where reliable switching is required.

Q5: In which industries is this module commonly used?

A: This module is widely used in industries such as oil and gas, petrochemical processing, power generation, chemical manufacturing, water treatment, and heavy industrial production. These industries rely heavily on automated control systems to manage complex processes. The module is particularly important in applications where reliable output control is required for process continuity, equipment safety, and emergency shutdown functions.

Q6: How does the module communicate with the control system?

A: The module communicates with the Yokogawa control system via a high-speed backplane bus integrated into the rack architecture. This internal communication method allows real-time transmission of output commands from the controller to the module. The design eliminates the need for external signal wiring between controller and output module, reducing complexity and improving reliability. Communication is deterministic, ensuring predictable response times in control applications.

Q7: What diagnostic functions are available in this module?

A: The module provides channel-level diagnostics that continuously monitor the status of each output channel. It can detect abnormal conditions such as open load, short circuit, or output failure. When a fault is detected, diagnostic information is reported back to the control system, allowing operators to quickly identify and resolve issues. This improves system maintainability and reduces downtime caused by undetected output failures.

Q8: What factors can affect the performance and reliability of this module?

A: Several factors can influence performance, including incorrect load matching, poor wiring practices, insufficient grounding, and electromagnetic interference from nearby high-power equipment. Inductive loads without proper suppression can also generate voltage spikes that stress the output circuitry. Loose terminal connections and environmental factors such as high temperature inside control cabinets may further reduce long-term reliability. Proper installation practices, correct load design, and routine maintenance are essential to ensure stable operation over time.
