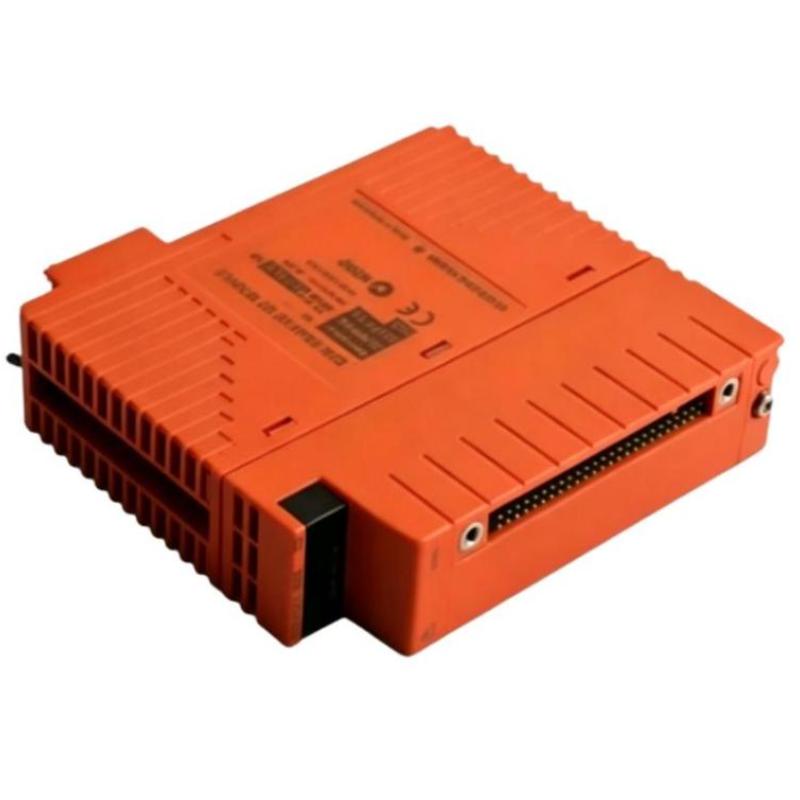

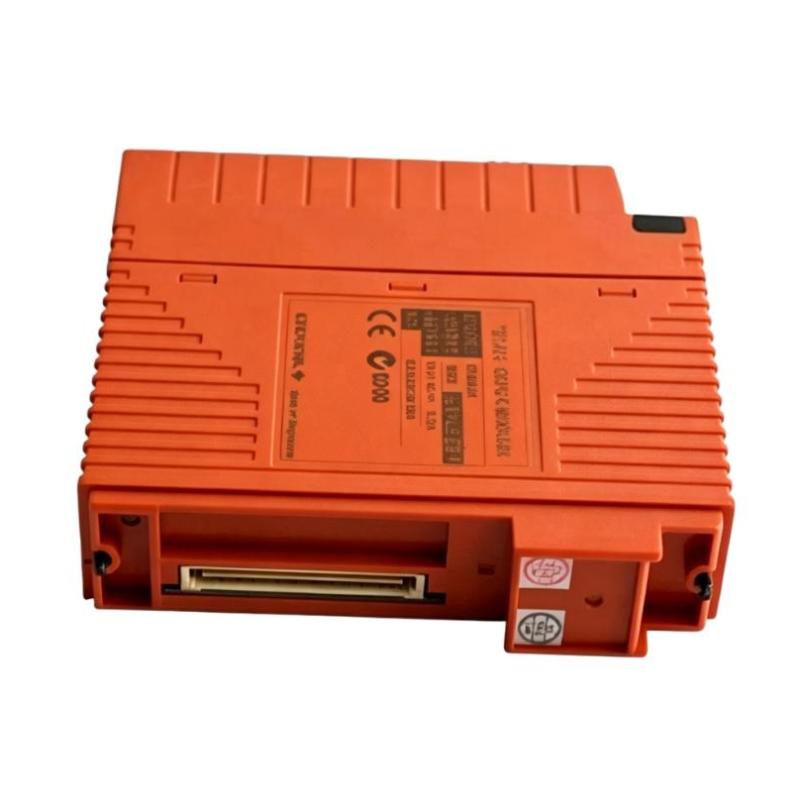

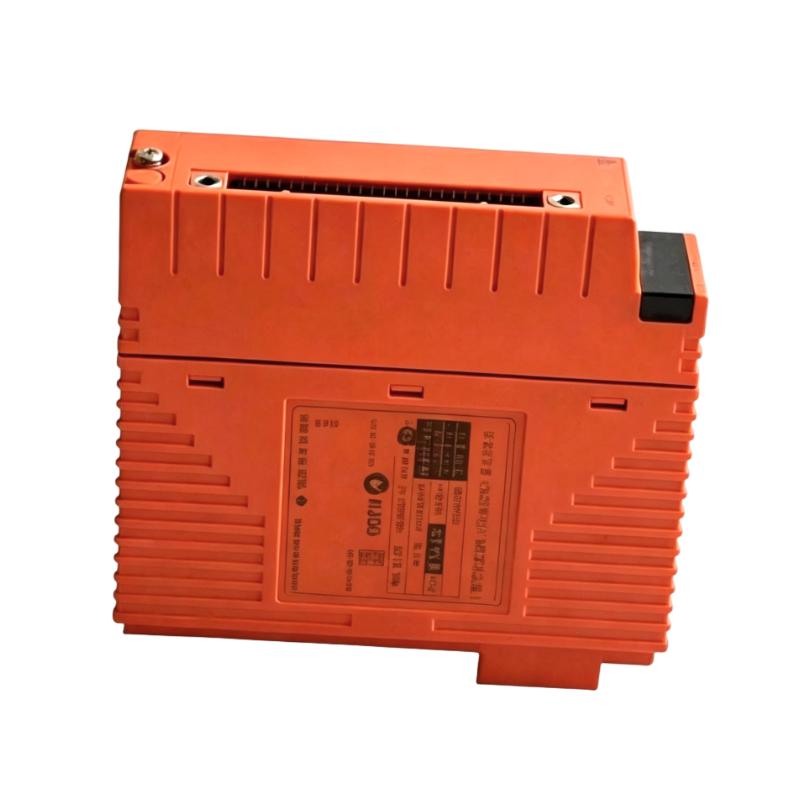

Q1: What is the primary function of the Yokogawa SDV521-S33 S2 Digital Output Module?

A: The primary function of the SDV521-S33 S2 digital output module is to convert logic signals generated by a control or safety system into physical electrical outputs that operate field devices. It serves as the final execution interface in an industrial automation loop, meaning it takes decisions made by the controller and translates them into real-world actions. These actions typically include starting or stopping pumps, opening or closing valves, energizing relays, or activating alarm devices. In systems such as CENTUM or ProSafe-RS, this module ensures that process control strategies are effectively implemented at the field level. Without this type of module, the control system would only be able to compute decisions without physically influencing the process.

Q2: How does the output switching mechanism work in this module?

A: The module operates using a binary switching principle where each output channel is controlled by ON/OFF logic from the system controller. When the controller sends an ON command, the corresponding channel is energized, allowing electrical current to flow to the connected device. When an OFF command is issued, the channel is de-energized, stopping current flow. This switching process is highly deterministic and synchronized with the control system scan cycle, ensuring that field devices respond precisely to process logic without delay or ambiguity. The simplicity of this mechanism also contributes to its high reliability in industrial environments.

Q3: What is the purpose of optical isolation in the output channels?

A: Optical isolation is used to create a complete electrical separation between the internal electronics of the control system and the external field output circuits. This is achieved using opto-couplers, which transmit signals using light instead of direct electrical connection. The main purpose is to protect sensitive control hardware from voltage spikes, electrical noise, ground potential differences, and inductive load switching transients. In industrial environments where large motors, solenoids, and contactors are frequently switched, such disturbances are common. Optical isolation ensures that these disturbances remain confined to the field side and do not affect system stability.

Q4: What types of industrial equipment can be controlled using this module?

A: This module can control a wide range of industrial actuators and switching devices. Common examples include solenoid valves used in fluid control systems, motor starters for pumps and compressors, electromagnetic relays, contactors for power switching, warning lights, and audible alarm devices. In process industries, it is frequently used to control valve sequencing, pump start-stop logic, and safety shutdown actions. Its ability to handle both standard control functions and safety-related outputs makes it a versatile component in automation systems.

Q5: In which industrial sectors is this module commonly deployed?

A: The SDV521-S33 S2 module is widely deployed in industries such as oil and gas production, petrochemical refining, chemical processing, thermal and nuclear power generation, water and wastewater treatment, and large-scale manufacturing facilities. These sectors rely heavily on automated systems to manage continuous and complex processes. The module is particularly important in environments where reliable and timely actuation of equipment is critical for both operational efficiency and safety compliance.

Q6: How does this module communicate with the control system?

A: Communication between the module and the control system is handled through a high-speed backplane bus integrated within the Yokogawa rack architecture. This internal communication channel allows the controller to send output commands directly to the module without requiring external wiring or separate communication networks. The result is a fast, reliable, and deterministic signal transfer process. Because the communication is tightly integrated into the system architecture, it reduces latency and minimizes the risk of communication failure.

Q7: What diagnostic features does this module provide?

A: The module includes advanced diagnostic capabilities at the channel level, allowing it to continuously monitor the health of each output point. It can detect abnormal conditions such as open load circuits, short circuits, overcurrent situations, or unexpected output behavior. When a fault is detected, the module reports diagnostic information back to the control system in real time. This enables maintenance personnel to quickly identify the affected channel and take corrective action. Such diagnostics significantly improve system maintainability and reduce downtime caused by undetected output failures.

Q8: What factors can affect the reliability and performance of this module?

A: Several factors can influence the reliability of the module, including improper load matching, poor wiring practices, inadequate grounding, and electromagnetic interference from nearby high-power equipment. Inductive loads such as solenoids and motors can generate voltage spikes if not properly suppressed, potentially stressing the output circuitry. Loose terminal connections may lead to intermittent operation or signal loss. Additionally, environmental conditions such as excessive heat or poor ventilation inside the control cabinet can shorten component lifespan. Proper installation practices, correct electrical design, and regular maintenance are essential to ensure long-term stable operation.
