In industrial automation, home appliances, and security systems, the reliability of switches directly impacts overall equipment performance. Issues such as poor contact or frequent malfunction are often linked to micro switch failures. As a core component for circuit control, a micro switch’s performance depends on its design structure and environmental adaptability. This guide explains its working principle, key parameters, and practical selection criteria to support more informed decision-making.

A micro switch is an electronic component that enables circuit switching through very small mechanical displacement. It is widely used for position detection, safety limit control, and signal switching. Its core structure typically includes a contact system, an actuator, and a sealed housing, all of which determine response speed, durability, and environmental resistance.

The contact system is critical for current switching performance. A common configuration is SPDT (Single Pole Double Throw), which allows switching between two circuit states, such as Normally Open (NO) and Normally Closed (NC). This design is suitable for bidirectional control applications like motor direction control or signal switching. Contact materials significantly affect conductivity and lifespan: silver alloys provide low resistance and high conductivity, while gold alloys enhance corrosion resistance and reduce oxidation-related contact failure. Material selection should be based on load current and environmental humidity.

The actuator is responsible for triggering the switching mechanism. Designs such as a long overtravel plunger help absorb excess mechanical movement, preventing internal damage from excessive force. This improves both reliability and repeat accuracy, especially in high-frequency operation environments.

Sealing protection is defined by IP ratings such as IP64. This indicates full protection against dust ingress (level 6) and resistance to water splashes (level 4), making it suitable for industrial dust or humid environments. Operating temperature ranges (e.g., -55°C to +85°C) ensure stable performance under extreme conditions. Together, these parameters form the technical foundation of a micro switch’s performance.

When selecting a micro switch, it is essential to evaluate application requirements rather than simply choosing the highest specification or lowest cost option. Key selection guidelines include:

Current Rating Matching: Select a rated current based on load requirements. For example, a 15A switch is suitable for medium-load applications such as appliance motors. It is recommended to maintain at least 20% safety margin to handle peak current and prevent contact welding or premature wear.

Mechanical Life Expectancy: Mechanical durability (e.g., 20 million cycles) indicates product lifespan. High-frequency applications such as automated production lines require higher cycle ratings, while low-frequency use cases may allow lower specifications.

Contact Type and Material: SPDT configurations are suitable for circuit switching applications. Silver/gold alloy contacts balance conductivity and corrosion resistance, making them ideal for humid or corrosive environments.

Sealing Level and Environmental Suitability: IP ratings should match operating conditions. IP64 is suitable for indoor industrial environments, while harsher conditions may require higher protection levels. Temperature range must also cover expected extremes.

Actuator Design: Features such as long overtravel plungers improve resistance to shock and vibration, ensuring stable triggering under dynamic conditions.

Brand Reliability and Consistency: Established manufacturers typically offer stricter quality control and better batch consistency. Always verify certifications and original technical documentation before selection.

In practical use, sample testing is recommended to validate response time and durability to ensure real-world performance matches specifications.

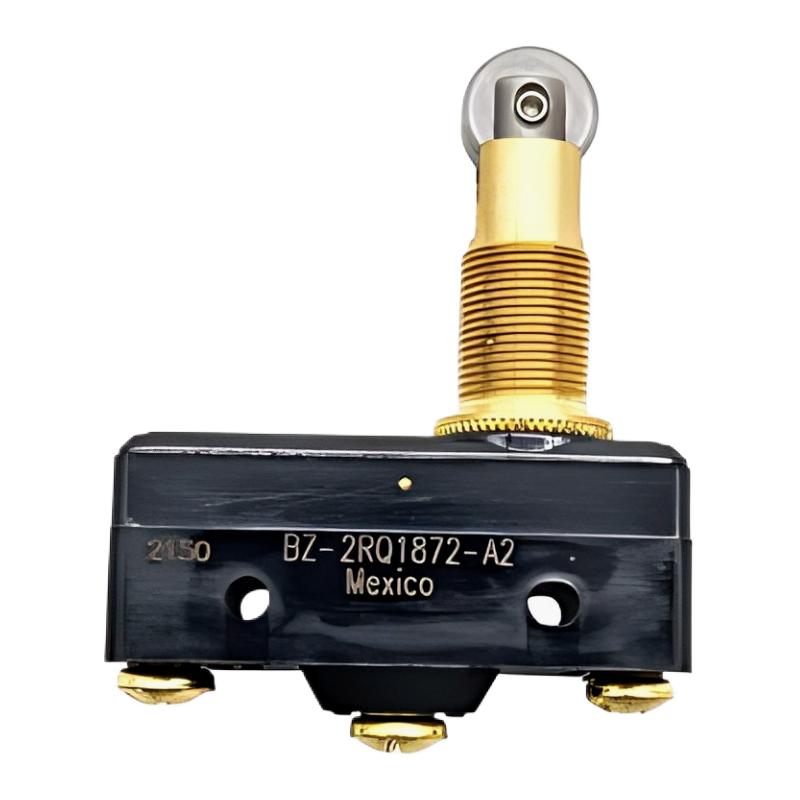

As an example, the Honeywell BZ series micro switches demonstrate balanced engineering performance. The BZ-2RQ1872-A2 model features a 15A current rating suitable for industrial loads, a 20-million-cycle mechanical life for long-term durability, and an SPDT contact configuration for flexible circuit control. It uses silver/gold alloy contacts for optimized conductivity and corrosion resistance, an IP64 protection rating for dust and splash resistance, and an operating temperature range of -55°C to +85°C for harsh environments. Its long overtravel plunger design enhances switching reliability, while original packaging ensures product consistency and traceability. These characteristics make it suitable for stable performance in automation and appliance applications.

In conclusion, selecting a micro switch should start with understanding its operating principles and application requirements. By focusing on key parameters such as current rating, mechanical life, and sealing protection, users can significantly improve long-term equipment reliability. Professional selection is not just about the component itself, but about preventing system-level failures.
