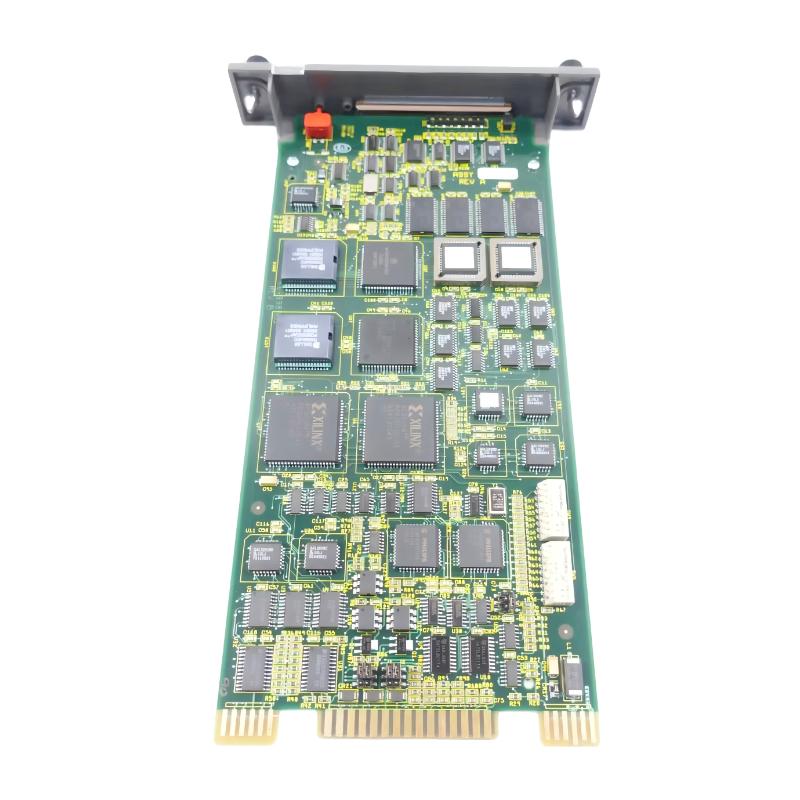

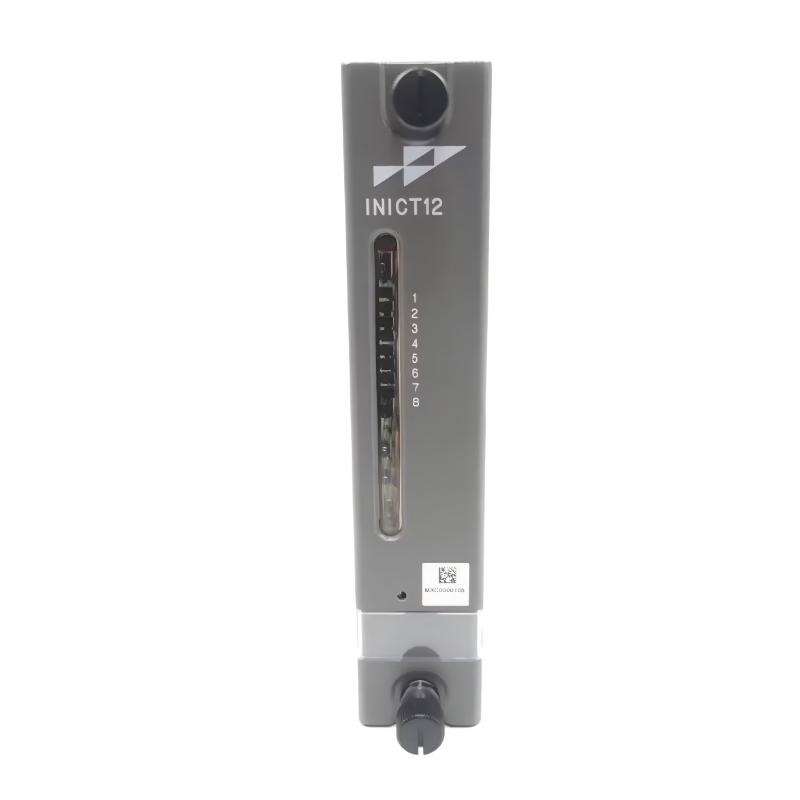

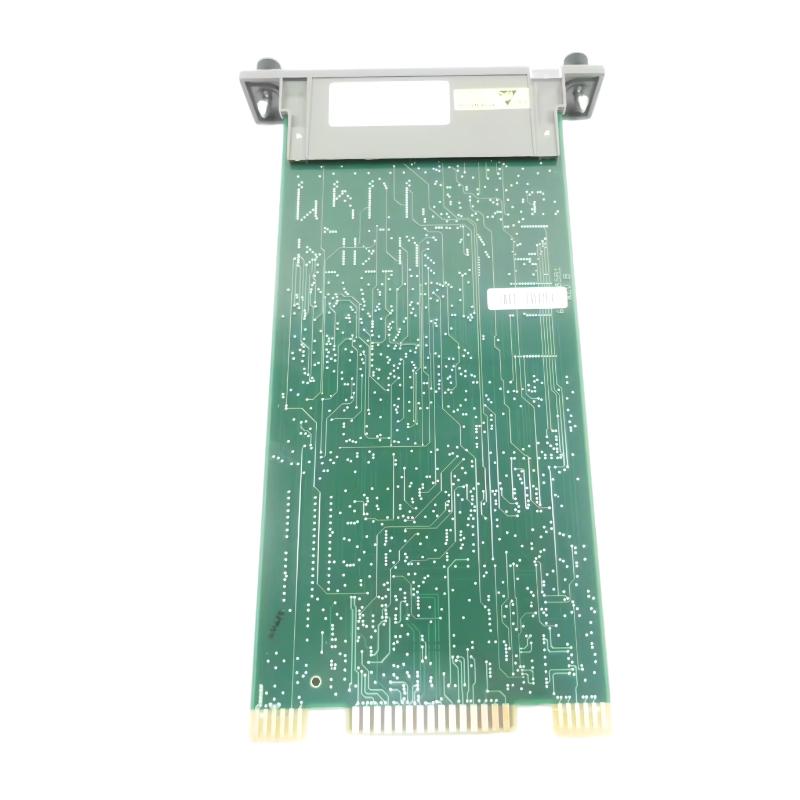

ABB Bailey INICT12 Computer Transmission Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB Bailey |
| Model | INICT12 |
| Product Type | Infi-Net to Computer Transfer Module |
| Product Family | ABB Bailey INFI 90 / Harmony Rack |
| Main Function | Provides communication between the control network and a host computer for process data acquisition, monitoring, control and system management |
| Interface Architecture | INICI12 Cnet-to-Computer Interface |
| Communication Interface | 2 × RS-232-C serial ports |
| Communication Mode | Full-duplex serial communication |
| Communication Rate | User-selectable: 2,400 / 4,800 / 9,600 / 19,200 baud |
| Point Definition Capacity | Up to 10,000 point definitions |
| ROM | 512 kbytes |
| RAM | 512 kbytes |
| NVRAM | 128 kbytes |
| Power Supply | +5 VDC |
| Current Requirement | 2.0 A |
| Power Consumption | 10 W |
| Host Communication | Command-driven communication with the host computer |
| Network Interface | Communicates with the INFI-NET/Cnet control network through the associated network interface module |
| Related Network Module | INNIS01 |
| Termination Unit | NTMP01 |
| RS-232-C Configuration | DTE or DCE operation can be selected through the termination-unit configuration |
| Mounting | One slot in the standard module mounting unit |
| Processor Function | Executes host commands and manages process data exchange between the control network and computer |
| Typical Applications | INFI 90 DCS, Harmony control systems, industrial process monitoring, supervisory computer interfaces and process data acquisition |
| Operating Temperature | 0°C to +70°C |
| Relative Humidity | 5%–90% up to 55°C; 5%–40% above 55°C, non-condensing |
| Altitude | Up to approximately 3,000 m |
| Dimensions | 280 × 30 × 150 mm |
| Weight | 0.59 kg |
FAQ
1. What is the main function of the ABB Bailey INICT12?
The INICT12 is an Infi-Net to Computer Transfer Module used to provide communication between an ABB Bailey control network and a host computer. It processes host commands and supports data acquisition, process monitoring, process control, status monitoring and system configuration functions.
2. Which ABB Bailey systems use the INICT12?
The INICT12 is used with ABB Bailey INFI 90 and related Harmony control-system architectures. It forms part of the INICI12 computer interface and works with the appropriate network and termination modules.
3. What communication interfaces does the INICT12 provide?
The INICT12 provides two full-duplex RS-232-C serial communication channels. The host-side connection is made through the associated termination hardware, with the interface configuration determining the required DTE or DCE operating mode.
4. What communication rates are supported by the INICT12?
The serial communication rate is user-selectable. Supported rates include 2,400, 4,800, 9,600 and 19,200 baud, allowing the module to match the communication requirements of the connected host computer.
5. How many point definitions can the INICT12 handle?
The INICT12 supports up to 10,000 point definitions. The actual number used depends on the configured control system and the types of process data being exchanged with the host computer.
6. What modules are normally associated with the INICT12?
The INICT12 works with the appropriate network interface and termination hardware. INNIS01 provides the network-side interface, while NTMP01 provides the RS-232-C termination and physical host-side connections. These components should be checked as a complete interface configuration when troubleshooting or replacing the module.
7. What should be checked when the INICT12 cannot communicate with the host computer?
Check the module status, RS-232-C cables, NTMP01 termination unit and host communication settings. Verify the selected baud rate and DTE/DCE configuration. The INFI-NET or Cnet network connection and the status of the associated INNIS01 module should also be checked for communication faults.
8. What should be done after replacing an INICT12?
After replacement, verify that the module is correctly installed and that all power, network and RS-232-C connections are secure. Confirm the communication rate and DTE/DCE configuration, then check the network and module status. Finally, verify host data acquisition, process monitoring and required control commands before returning the system to normal operation.
ABB Bailey INICT12 Computer Transmission Module is in stock. Please contact us for a quick quote and competitive pricing.
