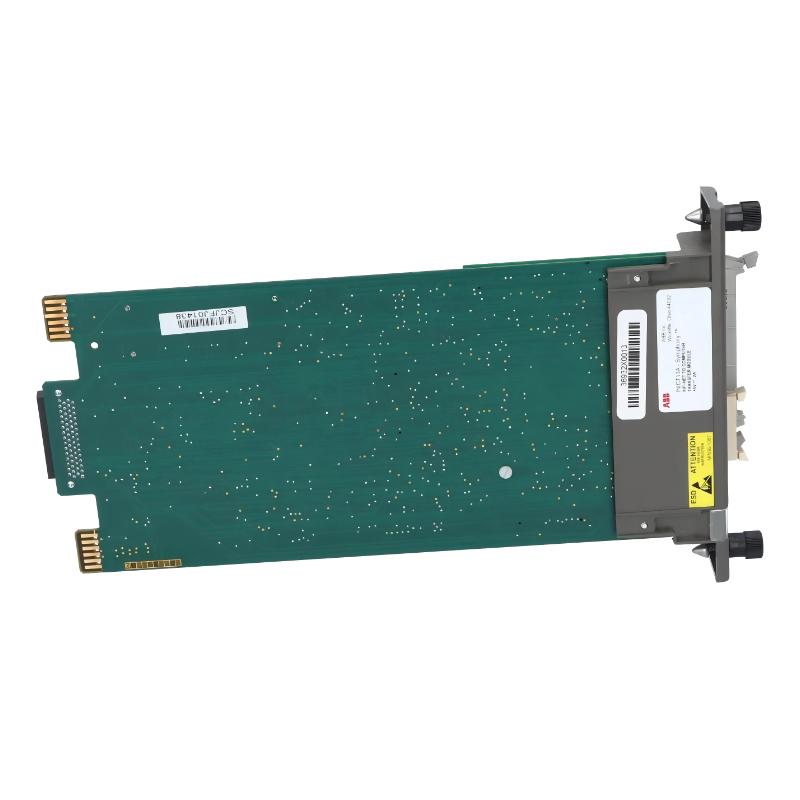

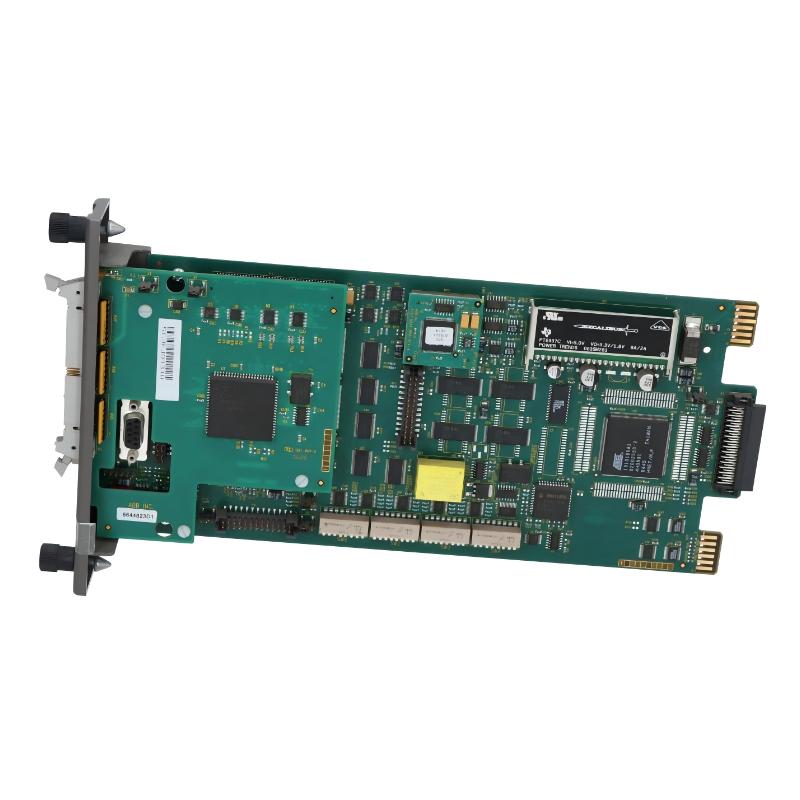

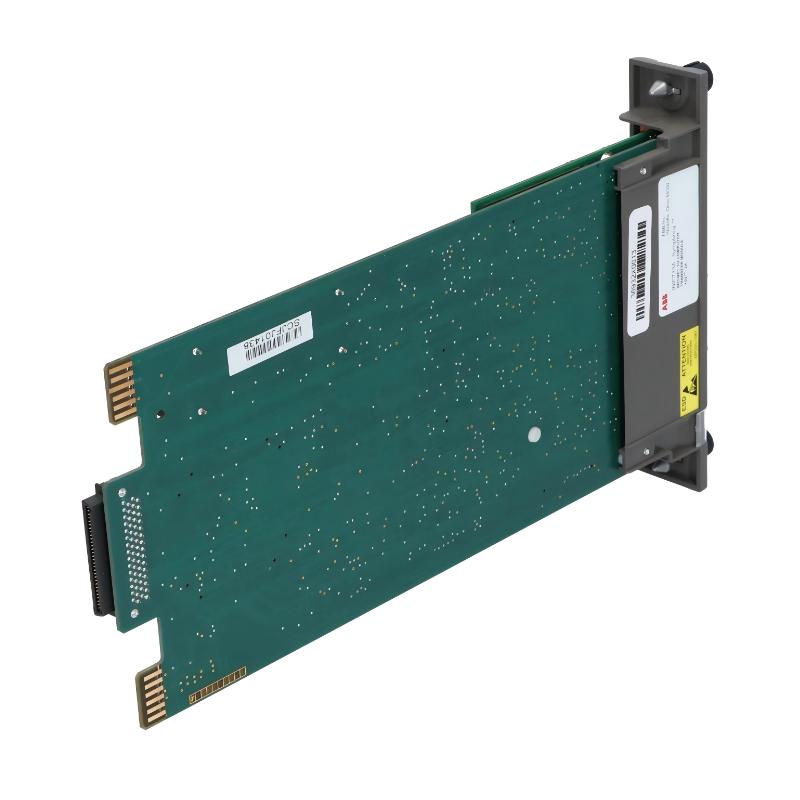

ABB Bailey INICT13A Computer Transmission Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB Bailey |
| Model | INICT13A |
| Product Type | Infi-Net to Computer Transfer Module |
| Product Family | ABB Bailey Harmony / INFI 90 |
| Main Function | Provides the communication interface between the Cnet/INFI-NET control network and a host computer |
| Communication Interfaces | RS-232-C and SCSI |
| RS-232-C Communication Rate | 50 to 19,200 baud |
| SCSI Communication Rate | Up to 4 Mbytes/sec |
| Memory | 512 kbytes ROM; 2 Mbytes RAM |
| Point Definition Capacity | Up to 30,000 point definitions, depending on point types |
| Power Supply | +5 VDC |
| Typical Current | 1.1 A |
| Maximum Current | 1.4 A |
| Typical Power Consumption | 5.1 W |
| Maximum Power Consumption | 7 W |
| Network Interface | Communicates with the associated INNIS21 module through the I/O expander bus |
| Host Computer Function | Data acquisition, process monitoring, process control, system status monitoring, security, time synchronization and module configuration |
| Communication Architecture | Command-driven host computer interface with buffered data exchange between the computer and Cnet network |
| RS-232-C Operating Mode | DTE or DCE, selected through the associated NTMP01 termination unit configuration |
| SCSI Function | Supports direct SCSI communication with a host computer; SCSI configuration includes address, parity and cache settings |
| Related Network Module | INNIS21 |
| Related Termination Unit | NTMP01 |
| Typical Cable Options | NKTU01 / NKTU11 for RS-232-C; 1948720_60 for SCSI |
| Mounting | Occupies one slot in a standard module mounting unit |
| Front Panel Indicators | Red/green status LED, 16 CPU LEDs and SCSI status LED |
| Diagnostic Functions | Module, INNIS21 and Cnet/INFI-NET diagnostic functions |
| Operating Temperature | 0°C to +70°C |
| Relative Humidity | 20%–95% up to 55°C, non-condensing |
| Maximum Installation Altitude | Up to approximately 3 km above sea level |
| Dimensions | 360.7 × 73.7 × 269.2 mm |
| Weight | 0.658 kg |
FAQ
1. What is the main function of the ABB Bailey INICT13A?
The INICT13A is an Infi-Net to Computer Transfer Module used in ABB Bailey Harmony and INFI 90 systems. It manages communication between a host computer and the Cnet/INFI-NET control network, allowing the computer to acquire process data, monitor the system, issue control commands and perform system-related functions.
2. Which network module works with the INICT13A?
The INICT13A works with the INNIS21 network interface module. The two modules communicate through the I/O expander bus, allowing data received from the Cnet network to be processed and exchanged with the host computer.
3. What communication interfaces are available on the INICT13A?
The INICT13A supports both RS-232-C and SCSI communication. RS-232-C can be used for serial host communication, while the SCSI interface provides a higher-speed connection to a compatible host computer.
4. What RS-232-C communication speeds does the INICT13A support?
The RS-232-C ports support selectable communication rates from 50 to 19,200 baud. The required rate is configured using the module’s communication settings and must match the configuration of the connected host computer.
5. How many point definitions can the INICT13A store?
The module can store up to approximately 30,000 point definitions, depending on the types of points configured in the system. The stored point table allows the module to organize process information exchanged between the Cnet network and host computer.
6. What should be checked if the INICT13A cannot communicate with the host computer?
Check the module status LED and CPU diagnostic LEDs first. Then verify the RS-232-C or SCSI cable, NTMP01 termination unit, communication rate and DTE/DCE configuration. If the network side is affected, check the INNIS21 module, I/O expander bus connection and Cnet/INFI-NET diagnostic status.
7. What is the purpose of the INICT13A DIP-switch settings?
The DIP switches configure important operating characteristics, including RS-232-C communication rates, diagnostic functions and SCSI operation. The SCSI settings can also determine the SCSI address, parity checking and cache mode. Incorrect switch settings can prevent normal communication or produce diagnostic faults.
8. What should be checked after replacing an INICT13A?
After replacement, verify that the module is correctly seated in the mounting unit and that the I/O expander bus connection is correct. Confirm the required DIP-switch and jumper settings, reconnect the appropriate RS-232-C or SCSI interface, and check the status and CPU LEDs. Finally, verify Cnet/INFI-NET communication, host data acquisition and control commands before returning the system to normal operation.
ABB Bailey INICT13A Computer Transmission Module is in stock. Please contact us for a quick quote and competitive pricing.
