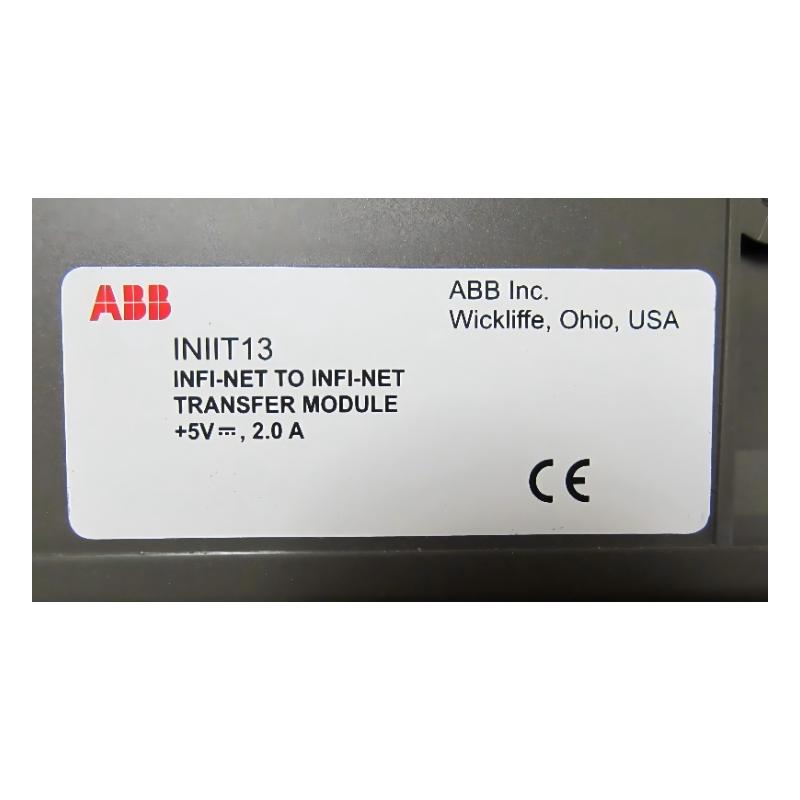

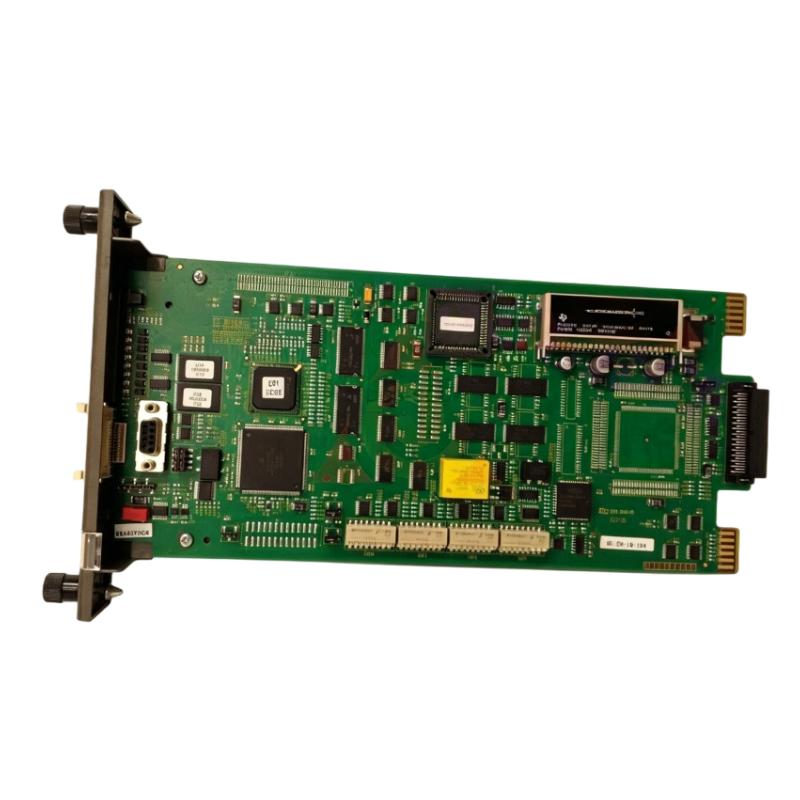

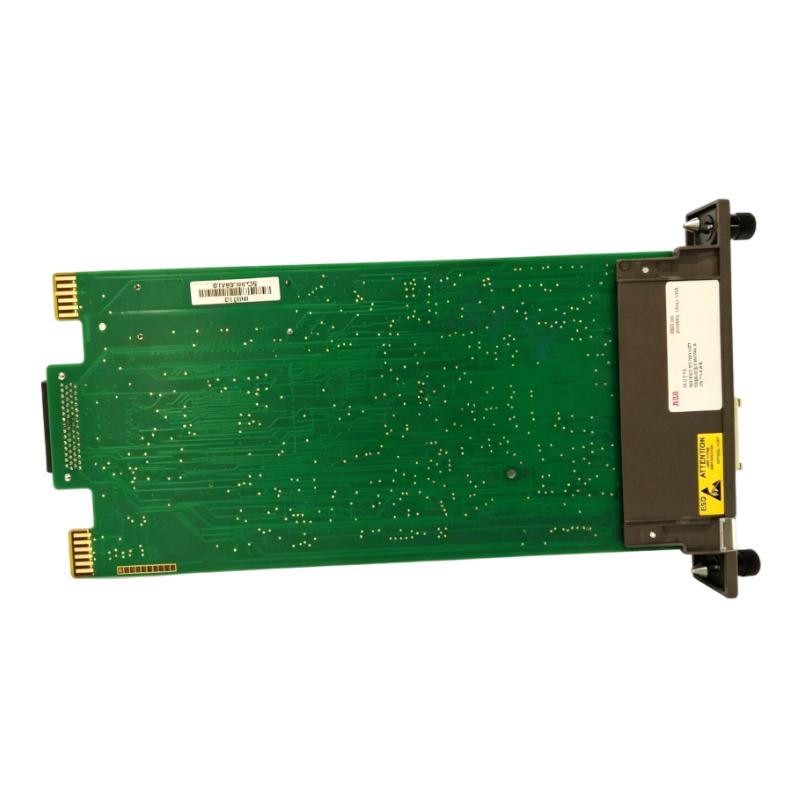

ABB Bailey INIIT13 Infinet-To-Infinet Transmission Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB Bailey |
| Model | INIIT13 |
| Product Type | Infi-Net to Infi-Net Transfer Module |
| Catalog Description | Infi to Infi-Net Local Transfer |
| Product Category | Communication Module |
| System Family | ABB Bailey INFI 90 / Symphony Harmony |
| Main Function | Provides local network-to-network data transfer between two Infi-Net control networks |
| Network Role | Local bridge/interface between separate Infi-Net network segments |
| Communication Architecture | Infi-Net to Infi-Net local transfer |
| Typical System Application | INFI 90 and Harmony rack-based distributed control systems |
| Data Transfer Function | Transfers configured process data and system communication information between connected Infi-Net networks |
| Installation | Installed in a standard INFI 90 module mounting unit |
| System Configuration | Used as part of an Infi-Net local transfer interface with the associated network interface and termination hardware |
| Typical Use | Interconnecting separate control-network segments within the same industrial plant |
| Operating Temperature | 0°C to +70°C |
| Relative Humidity | Up to 95%, non-condensing, depending on operating temperature |
| Maximum Installation Altitude | Up to approximately 3 km above sea level |
| Network Technology | ABB Bailey Infi-Net |
| Maintenance | Verify network configuration, associated interface hardware and module status before replacement |
| Dimensions | 280 × 30 × 150 mm |
| Weight | 0.18 kg |
FAQ
1. What is the main function of the ABB Bailey INIIT13?
The INIIT13 is an Infi-Net to Infi-Net Transfer Module designed to exchange data between two local Infi-Net control networks. It provides a bridge between network segments so that configured process and system information can be transferred between them.
2. Which ABB Bailey systems use the INIIT13?
The INIIT13 is associated with ABB Bailey INFI 90 and Symphony Harmony rack-based control systems. It is intended for legacy control-network architectures that use Infi-Net communication.
3. Is the INIIT13 a remote communication modem?
No. The INIIT13 is intended for local network-to-network transfer within an Infi-Net architecture. It should not be treated as a conventional remote serial modem or Ethernet gateway.
4. How does the INIIT13 improve communication between separate Infi-Net networks?
The module provides a dedicated transfer path between the two network sides, allowing configured process information and system messages to cross the local network boundary. This allows separate network segments to exchange required information while maintaining their individual network structures.
5. What should be checked before replacing an INIIT13?
Confirm the exact INIIT13 model and inspect the complete local-transfer configuration. The associated network interface modules, termination hardware, cables, mounting unit and network configuration should all be checked to ensure that the replacement module matches the existing system architecture.
6. What can cause an INIIT13 communication fault?
Possible causes include a faulty transfer module, incorrect network configuration, defective interface hardware, loose connections or a problem on either of the connected Infi-Net network segments. Troubleshooting should therefore include both network sides rather than checking the INIIT13 alone.
7. How should an INIIT13 communication problem be diagnosed?
Start by checking module status indications and the physical connections on both network sides. Then verify the associated network-interface hardware and termination connections, followed by network status and diagnostic information. If one side of the transfer link is unavailable, determine whether the fault originates from that network or from the transfer interface itself.
8. What should be tested after replacing an INIIT13?
After installation, verify that the module is correctly seated and that all associated network and termination connections are secure. Check the status of both connected Infi-Net networks, confirm that the transfer path is active, and verify that required process data and system communication can pass between the two network segments.
ABB Bailey INIIT13 Infinet-To-Infinet Transmission Module is in stock. Please contact us for a quick quote and competitive pricing.
