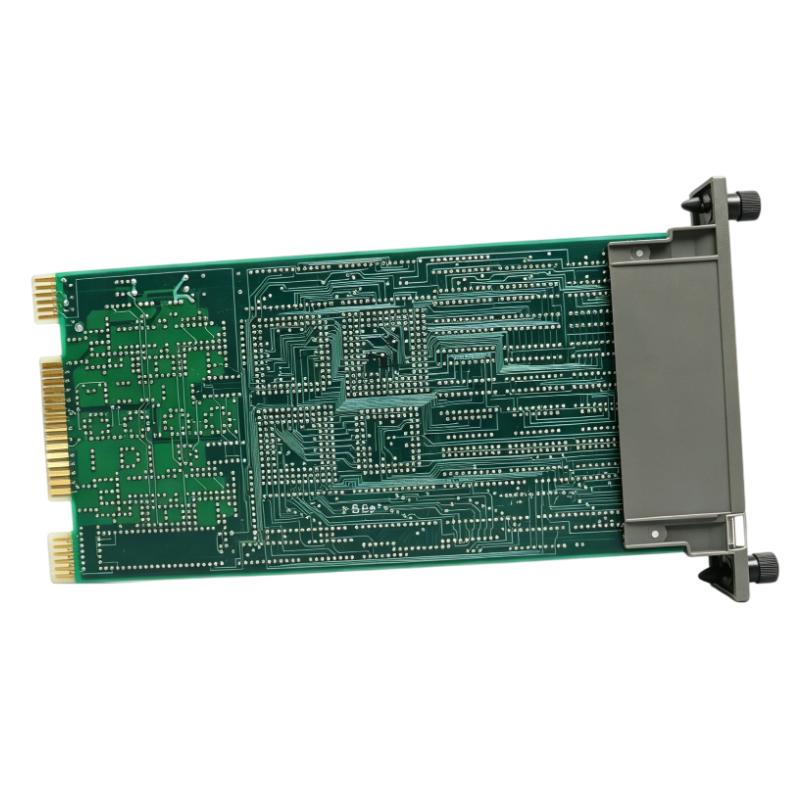

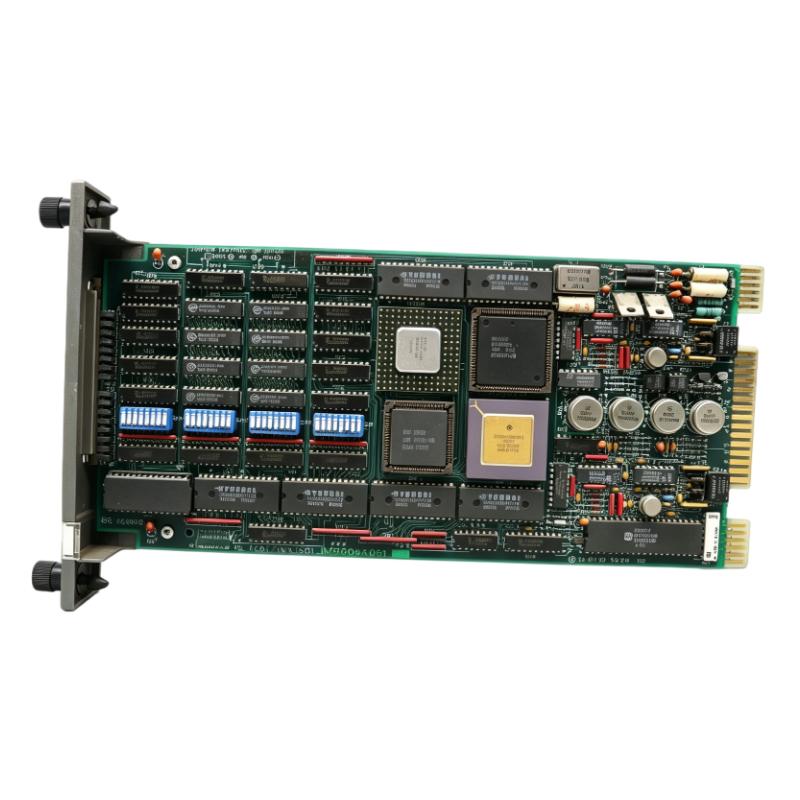

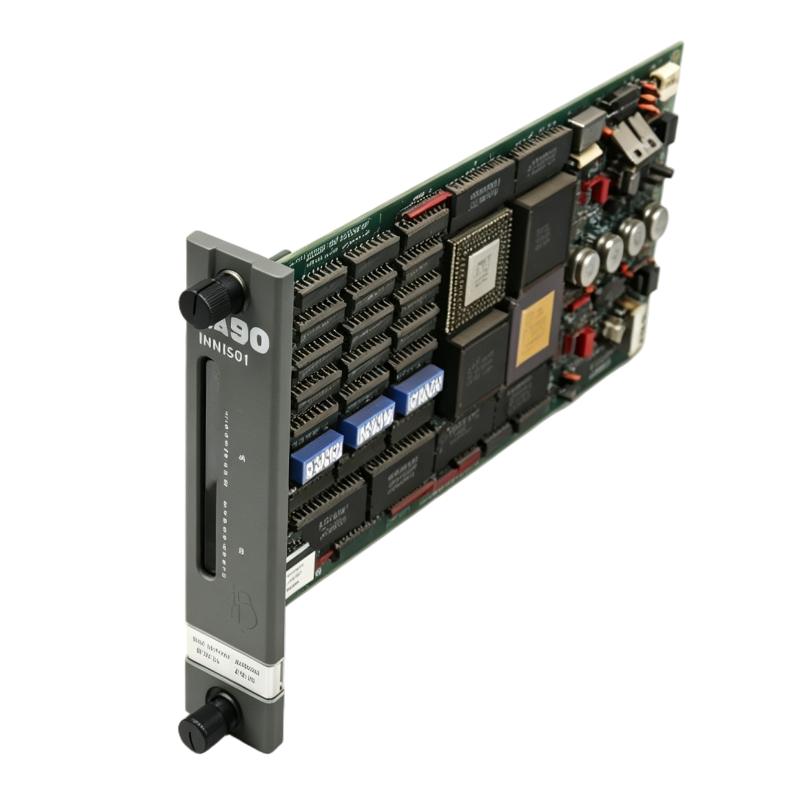

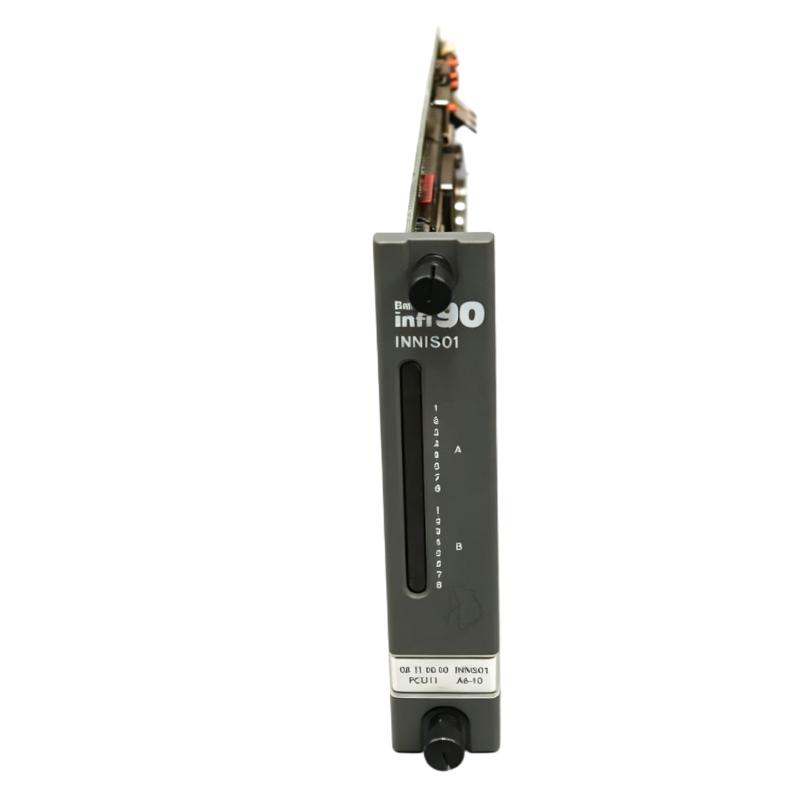

ABB Bailey INSOE01 Event Sequence Server
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB Bailey |
| Model | INSOE01 |
| Product Type | Sequence of Events Server Node |
| System Family | ABB Bailey INFI 90 / Harmony |
| Main Function | Central collection, time ordering, storage, and reporting of Sequence of Events (SOE) data |
| Server Node Configuration | INNIS11 Network Interface + INSEM01 Sequence of Events Master + INTKM01 Time Keeper Master |
| Network Interface | INNIS11 |
| SOE Master Module | INSEM01 |
| Time Keeper Module | INTKM01 |
| Control Network | Cnet |
| SOE Capacity | Up to 1,500 SOE points |
| HCU Coverage | Up to 1,000 Harmony Control Units (HCU) |
| Complex Triggers | Up to 256, with up to 16 operands per trigger |
| Simple Triggers | Up to 3,000 |
| Event Processing | Collects, time-stamps, sorts, and manages digital state-change events |
| Event Resolution | Up to 1 ms within the distributed SOE system |
| Time Synchronization | External IRIG-B time reference through INTKM01 |
| Time Synchronization Link | RS-485 |
| Time Distribution | INTKM01 distributes absolute time to the SOE system |
| SOE Input Modules | IMSED01 and IMSET01 |
| Data Reporting | SOE data can be transferred to the human system interface after predefined trigger conditions |
| INSEM01 Configuration | Function Codes FC 243, FC 244, FC 245, and FC 246 |
| Installation | Harmony / INFI 90 module mounting unit |
| Typical Application | Power generation, process control, event analysis, sequence monitoring, and fault investigation |
| Dimensions | 230 × 115 × 25 mm |
| Weight | 0.35 kg |
FAQ
1. What is the main function of the ABB Bailey INSOE01?
INSOE01 is a Sequence of Events Server Node for ABB Bailey INFI 90 and Harmony control systems. It collects event information from distributed control units, organizes events according to their occurrence time, and makes the resulting SOE data available for operator displays and event reports.
2. Which modules are included in an INSOE01 Server Node?
The INSOE01 architecture consists of the INNIS11 Network Interface module, INSEM01 Sequence of Events Master module, and INTKM01 Time Keeper Master module. These modules handle network communication, SOE data processing, and time synchronization respectively.
3. How many SOE points can the INSOE01 system manage?
The INSEM01 within the INSOE01 Server Node can manage up to 1,500 SOE points distributed across as many as 1,000 Harmony Control Units. The actual system capacity depends on the installed SOE I/O configuration.
4. How does INSOE01 maintain accurate event timing?
The INTKM01 Time Keeper Master provides the timing reference for the distributed SOE system. It can receive an external IRIG-B time signal and distribute absolute time through the RS-485 time synchronization link to the relevant SOE modules.
5. What types of triggers are supported by INSOE01?
The INSEM01 supports up to 256 complex triggers, with up to 16 operands for each complex trigger, as well as up to 3,000 simple triggers. These trigger functions can be used to determine when stored event information should be presented to the human system interface.
6. What should be checked if SOE events are missing?
Check the status of the INNIS11, INSEM01, and INTKM01 modules first. Then verify Cnet communication, SOE input modules such as IMSED01 and IMSET01, the time synchronization path, and the configured SOE channels. Incorrect trigger definitions or communication problems can also prevent expected event data from being reported.
7. How is INSOE01 different from a standard digital input module?
A standard digital input module primarily detects field-level digital signals. INSOE01 operates at the server level of the distributed SOE architecture, collecting event information from multiple control units and organizing the events according to their time of occurrence for sequence analysis and reporting.
8. What tests should be performed after replacing an INSOE01-related module?
After replacement, verify module status, Cnet communication, time synchronization, and SOE data acquisition. Generate or monitor known digital state changes and confirm that the events are received, correctly ordered, and displayed with the expected time information. Trigger functions and SOE reporting should also be checked before returning the system to normal operation.
ABB Bailey INSOE01 Event Sequence Server is in stock. Please contact us for a quick quote and competitive pricing.
