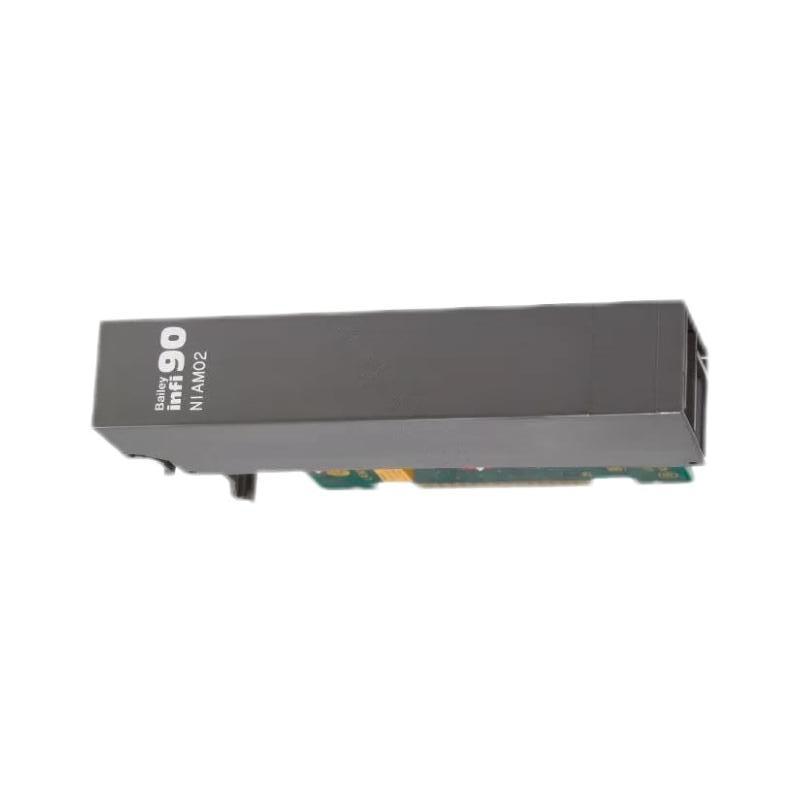

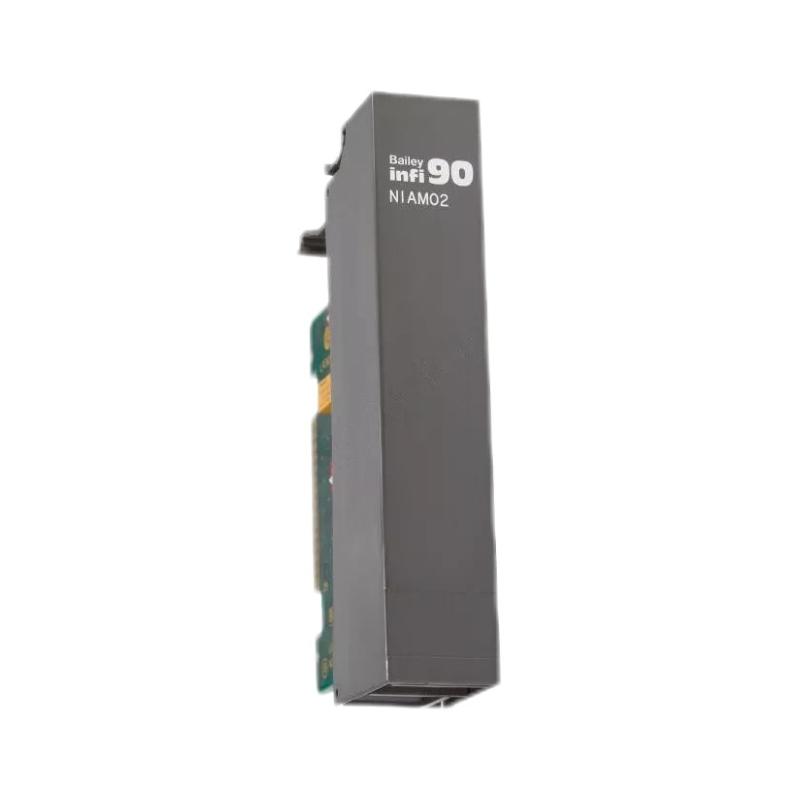

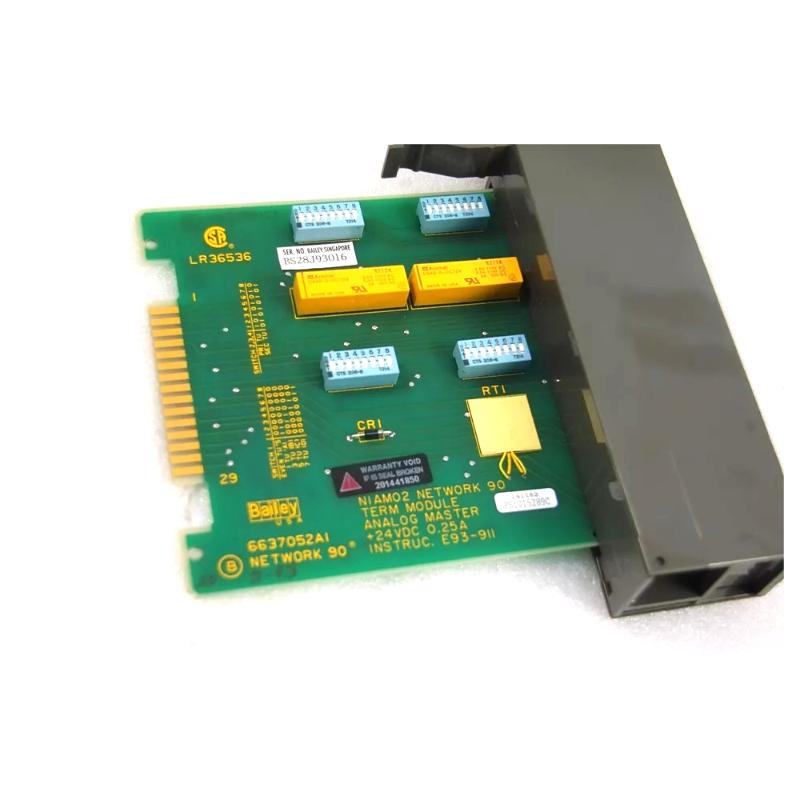

ABB Bailey NIAM02 Simulated Master Terminal
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB Bailey |
| Model | NIAM02 |
| Product Type | Analog Master Termination Module |
| System Family | ABB Bailey INFI 90 / Network 90 |
| Main Function | Provides the master termination interface for analog input modules, including cold-junction compensation and internal calibration functions |
| Primary Interface | IMAMM03 Analog Master Module |
| Slave Termination Interface | Up to 8 NIAI02 Analog Input Slave Termination Modules |
| Input Signal Application | Thermocouple analog input signals |
| Cold Junction Compensation | Local cold-junction temperature compensation |
| Calibration Function | Transfers internal calibration voltage from the IMAMM03 to the associated calibration module |
| Indicator Interface | Provides an interface for NDIS01 Digital Indicator Station |
| Calibration Module | NIAC02 |
| Compatible Slave Termination | NIAI02 |
| Main Module Connection | IMAMM03 |
| Termination Cables | NKTM01 ribbon cable or NKTU02/NKTU12 round cable |
| Maximum NKTM01 Cable Length | 30 m (100 ft) |
| Maximum NKTU02/NKTU12 Cable Length | 61 m (200 ft) |
| Power Requirement | +24 VDC, approximately 17 mA per NIAM02 |
| Mounting | Single slot in NTMU01 / NTMU02 termination mounting unit |
| Operating Temperature | 0 to 70°C |
| Relative Humidity | 5 to 90% ±5% up to 55°C; 5 to 40% ±5% up to 70°C, non-condensing |
| Operating Altitude | Sea level to approximately 3 km |
| Environmental Requirement | Non-corrosive environment |
| Surge Protection | Meets IEEE-472-1974 Surge Withstand Capability requirements |
| Cooling | No additional cooling required within specified operating limits in Bailey control cabinets |
| Typical Applications | Thermocouple signal termination, analog input processing, cold-junction compensation, calibration and process indication |
| Dimensions | 78.74 × 215.9 × 233.68 mm |
| Weight | 0.7 kg |
FAQ
1. What is the main function of the ABB Bailey NIAM02?
NIAM02 is an Analog Master Termination Module used in ABB Bailey INFI 90 systems. It provides the interface between the IMAMM03 Analog Master Module and the NIAI02 analog input termination modules, while also providing local cold-junction temperature compensation and calibration functions.
2. How many NIAI02 termination modules can one NIAM02 support?
A single NIAM02 can interface with up to eight NIAI02 Analog Input Slave Termination Modules. This allows multiple thermocouple input groups to be connected to the corresponding analog master module within the INFI 90 architecture.
3. Which analog master module is used with NIAM02?
NIAM02 is designed to work with the IMAMM03 Analog Master Module. The IMAMM03 provides the associated analog processing, while NIAM02 handles the master termination functions and interfaces with the connected slave termination modules.
4. What is the purpose of cold-junction compensation in NIAM02?
Cold-junction compensation corrects the thermocouple measurement for the temperature at the reference junction. NIAM02 provides local cold-junction temperature compensation so that the thermocouple input can be processed correctly by the associated analog input system.
5. Which calibration module is associated with NIAM02?
NIAM02 works with the NIAC02 Analog Calibration Termination Module. It transfers the internal calibration voltage from the IMAMM03 through the termination architecture, allowing the associated analog input channels to be checked and calibrated.
6. Can NIAM02 be connected to an NDIS01 Digital Indicator Station?
Yes. NIAM02 provides an interface for the NDIS01 Digital Indicator Station. This allows analog input information from the associated system to be presented through the digital indicator interface for local process monitoring.
7. Which cables can be used with the NIAM02?
The NIAM02 can use the NKTM01 ribbon cable or the NKTU02/NKTU12 round termination cables, depending on the installation configuration. The maximum recommended cable length is approximately 30 m for NKTM01 and 61 m for NKTU02/NKTU12.
8. What should be checked when troubleshooting an NIAM02 system?
First check the +24 VDC supply, module seating, termination connections and cables between NIAM02, IMAMM03 and the NIAI02 modules. Then verify cold-junction compensation, calibration connections and NDIS01 communication if installed. If several analog channels show abnormal readings simultaneously, the common termination, power or master-module path should be checked before replacing individual slave termination modules.
ABB Bailey NIAM02 Simulated Master Terminal is in stock. Please contact us for a quick quote and competitive pricing.
