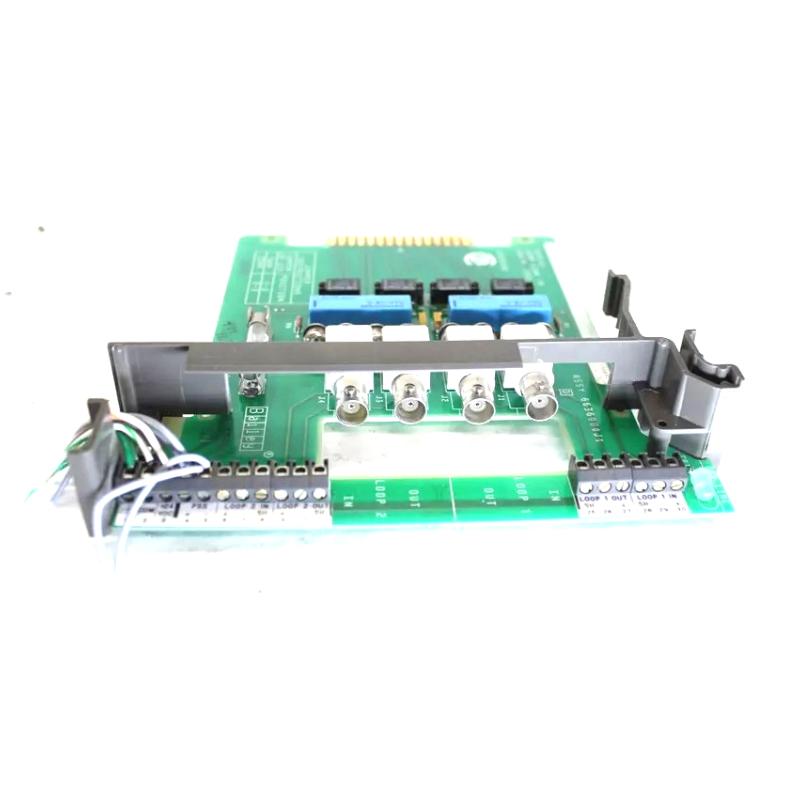

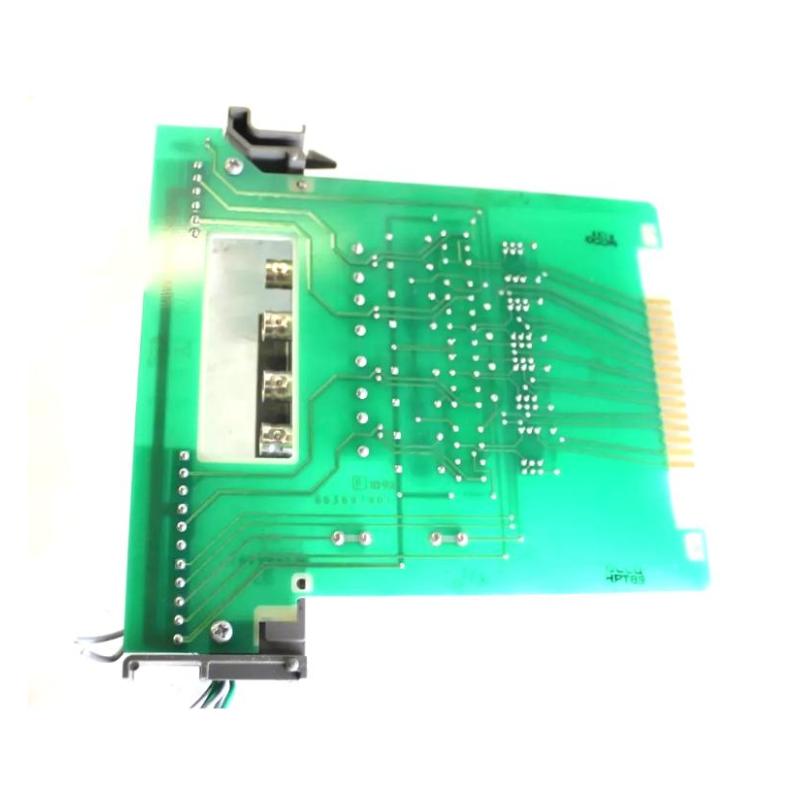

ABB Bailey NICL01 Communication Link Terminal Unit
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB Bailey |
| Model | NICL01 |
| Product Type | Communication Link Termination Module |
| System Family | ABB Bailey INFI 90 / Network 90 |
| Main Function | Provides termination and field connection for communication links within the Bailey control system |
| Associated Network Interface | INNIS01 Network Interface Slave Module |
| Associated Loop Interface | INLIM03 Loop Interface Module |
| Communication Application | INFI-NET communication network and Plant Loop applications |
| Communication Cable | Twinaxial or coaxial cable |
| Termination Cable | NKLS02 or NKLS12 |
| Loop Connections | Loop 1 and Loop 2 communication connections |
| Cable Connection | Input and output loop connections |

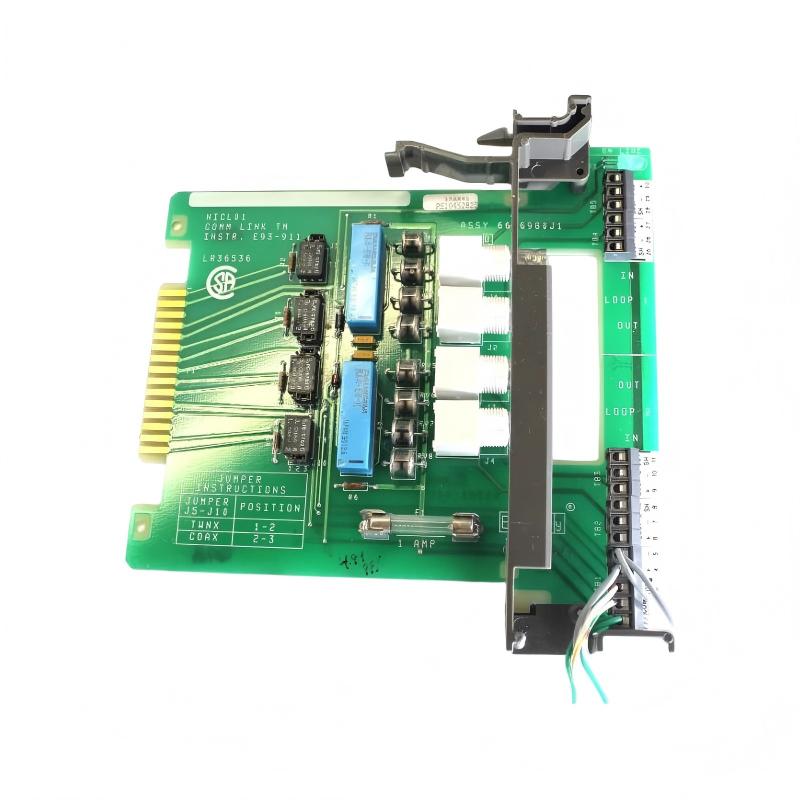

| Configuration | PCB jumpers are used to configure the module for the applicable Twinaxial or coaxial cable arrangement |
| Power Supply | +24 VDC |
| Power Connection | Dedicated power and common terminals |
| Installation | Mounts as a termination module in the Bailey termination mounting system |
| Typical Application | INFI-NET communication link termination and connection between communication cabling and the associated network interface hardware |
| Operating Environment | Suitable for the specified Bailey INFI 90 / Network 90 control-system environment |
| Dimensions | 100 × 89 × 240 mm |
| Weight | 0.3 kg |
FAQ
1. What is the main function of the ABB Bailey NICL01?
The NICL01 is a Communication Link Termination Module used in ABB Bailey INFI 90 and Network 90 systems. It provides the physical termination and connection point between the communication network cabling and associated communication interface hardware.
2. Which module is normally connected to the NICL01?
The NICL01 is commonly used with the INNIS01 Network Interface Slave Module. In certain Bailey communication configurations, it can also be associated with the INLIM03 Loop Interface Module.
3. What communication cables can be used with the NICL01?
The NICL01 supports Twinaxial and coaxial communication cable arrangements. The correct cable type and jumper configuration must match the existing communication network design.
4. What termination cables are used with the NICL01?
The NICL01 uses NKLS02 or NKLS12 termination cables for connection to the associated communication interface module. Cable selection should match the specific Bailey system configuration.
5. Does the NICL01 require a separate power supply?
Yes. The NICL01 uses a +24 VDC supply and includes dedicated power and common connections. Power wiring should be checked against the original system drawings before installation or replacement.
6. Why are jumper settings important on the NICL01?
The PCB jumper configuration determines the appropriate communication connection arrangement for the installed cable type. Incorrect jumper settings can result in communication problems even when the module and cables are otherwise correctly installed.
7. How should a NICL01 communication fault be diagnosed?
Start by checking the +24 VDC supply and module connections. Then inspect the NKLS02/NKLS12 termination cable, communication cable connections, loop input and output wiring, and PCB jumper settings. If the fault remains, check the associated INNIS01 or other communication interface hardware.
8. Can a NICL01 be directly replaced by another communication termination module?
Replacement should not be based only on physical compatibility. The replacement must match the required Bailey system architecture, communication cable type, termination cable, jumper configuration, and associated interface module. The original module identification and system drawings should be checked before replacement.
