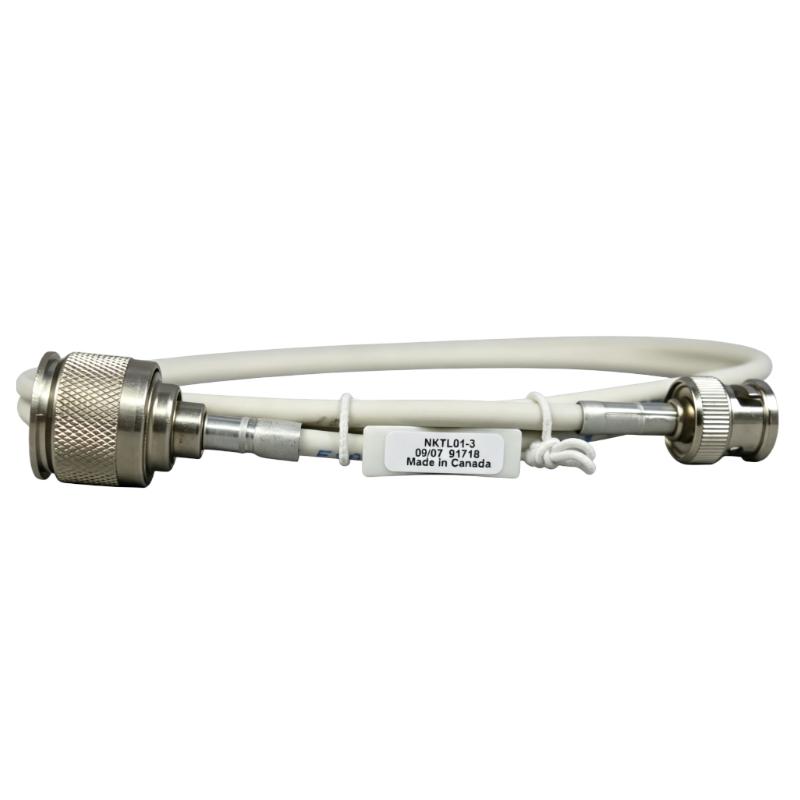

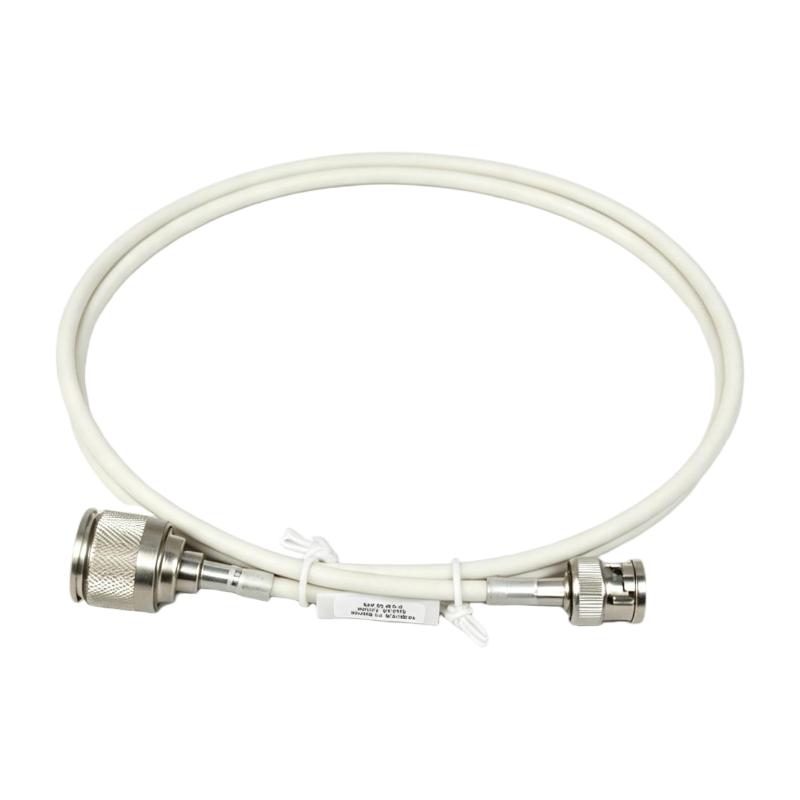

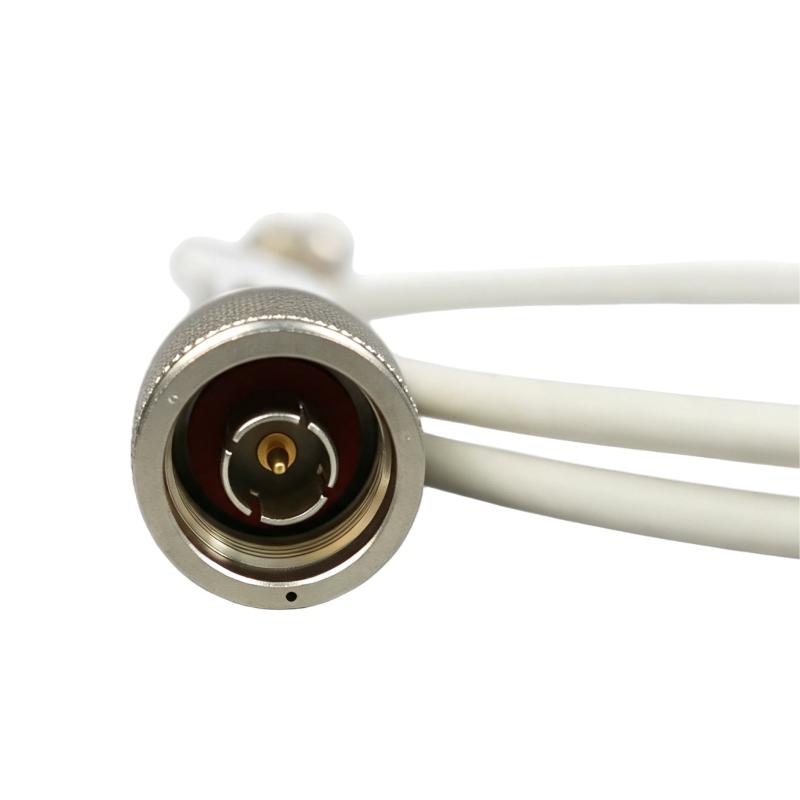

ABB Bailey NKTL01-3 Coaxial Termination Cable
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB Bailey |
| Model | NKTL01-3 |
| Product Type | Coaxial Termination Cable |
| Product Description | Coax Termination Cable – 3 Ft |
| Product Series | Bailey Infi 90 / Net 90 |
| Cable Type | Coaxial cable |
| Main Function | Connects NKCL coaxial cable to the NTCL termination unit |
| Typical Connection | NKCL01 / NKCL11 to NTCL01 |
| Application | INFI-NET communication loop connection |
| Maximum Cable Length | 3 feet |
| Connector/Application | Coaxial termination connection for INFI-NET loop |
| Typical Installation | Between termination equipment and coaxial communication cable entering or leaving another enclosure |
| Product Category | ABB Bailey Infi 90 DCS Spare Part |
| Cable Construction | Prefabricated industrial control cable |
| Cable Length | 3 feet |
| Shipping Weight | 3 kg |
FAQ
1. What is the main function of the ABB Bailey NKTL01-3?
The NKTL01-3 is a coaxial termination cable used to connect an NKCL coaxial communication cable to an NTCL01 termination unit in an ABB Bailey Infi 90 communication system.
2. Which ABB Bailey equipment is typically connected by the NKTL01-3?
It is typically used between an NTCL01 termination unit and NKCL01 or NKCL11 coaxial cable, providing the required connection for the INFI-NET communication loop.
3. Where is the NKTL01-3 normally installed?
The cable is used when an NKCL01 or NKCL11 cable enters or leaves an enclosure and needs to be connected to an NTCL01 termination unit.
4. What communication function does the NKTL01-3 provide?
It provides the physical coaxial connection required for INFI-NET communication signals between the termination unit and the external communication cable.
5. Can the NKTL01-3 be replaced with an ordinary coaxial cable?
Replacement with a generic coaxial cable is not recommended without confirming connector compatibility, electrical characteristics, shielding, signal requirements, and the correct termination arrangement.
6. What should be checked if the INFI-NET communication link is unstable?
Check the NKTL01-3 connectors, NTCL01 termination unit, NKCL coaxial cable, cable routing, and connection points. Also inspect for loose connections, damaged cable sections, or poor connector contact.
7. What are common symptoms of an NKTL01-3 connection problem?
Typical symptoms include intermittent communication, loss of an INFI-NET node, communication alarms, unstable loop operation, or failure to establish communication with connected nodes.
8. What should be checked before replacing the NKTL01-3?
Verify the NKTL01-3 model and 3-foot length, confirm the correct NTCL01 and NKCL connection points, inspect the coaxial connectors and cable condition, and follow the DCS power-isolation procedure before replacement.
ABB Bailey NKTL01-3 Coaxial Termination Cable is in stock. Please contact us for a quick quote and competitive pricing.
