1. What is the main function of the ABB Bailey NTDI01?

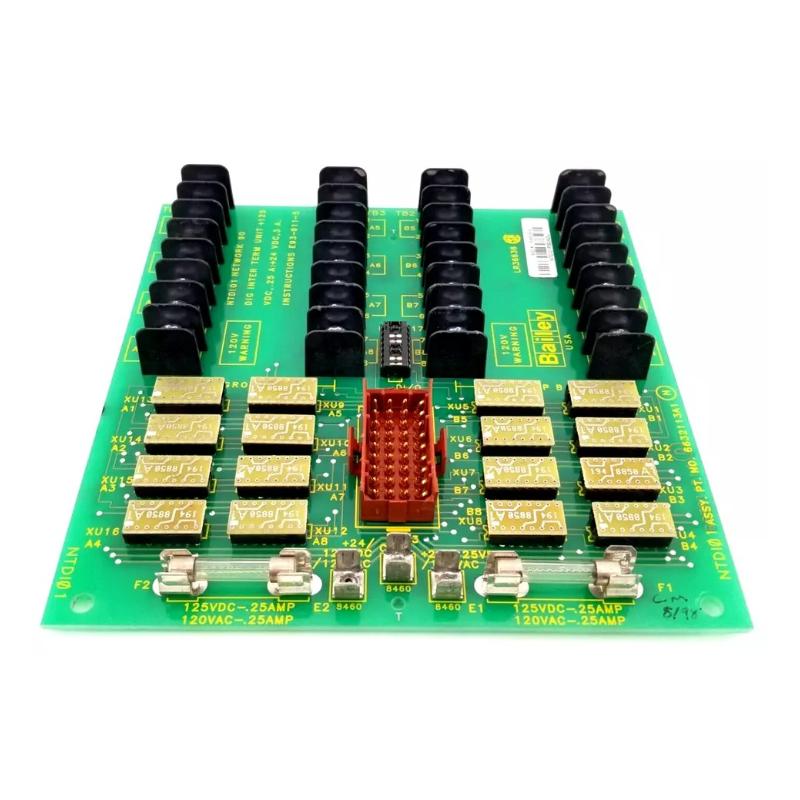

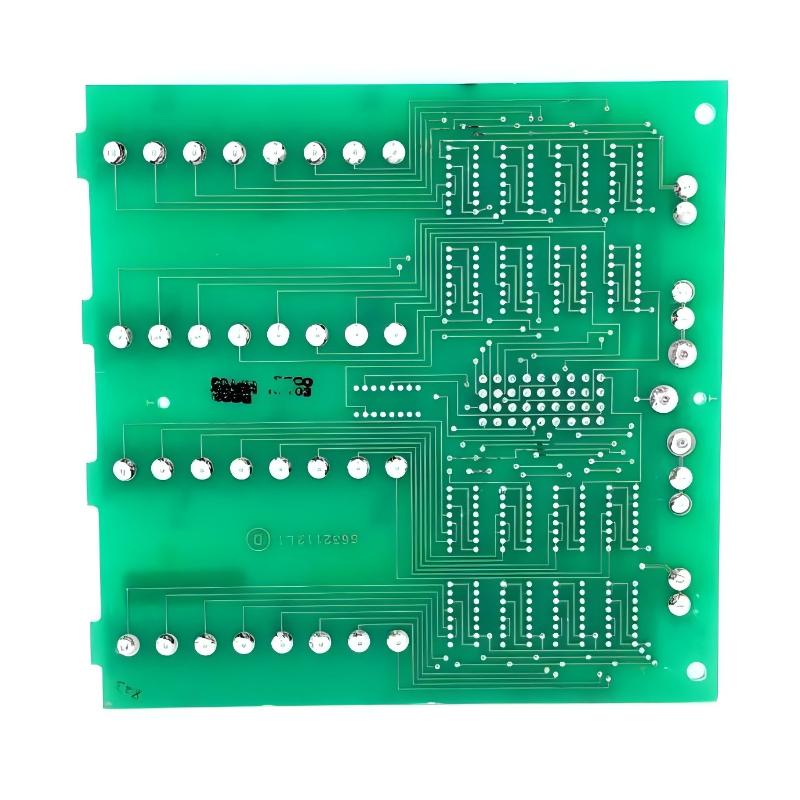

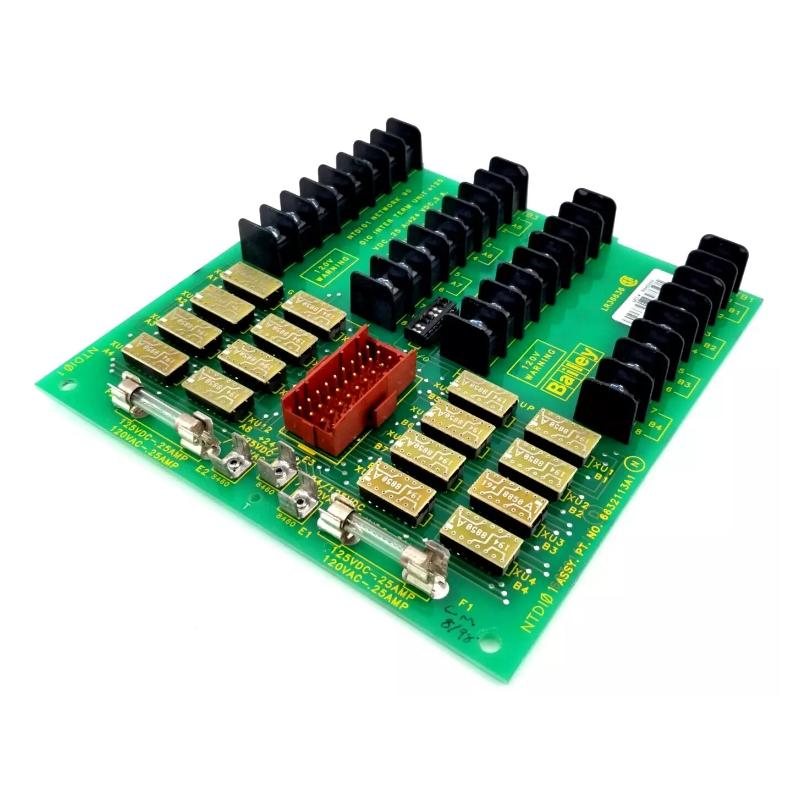

The NTDI01 is a Digital I/O Termination Unit used in ABB Bailey INFI 90 systems. Its main purpose is to provide a physical termination point between process field wiring and the associated I/O modules. It organizes field connections, provides configurable signal paths and allows the connected I/O module to interface with field devices such as contacts, switches, relays and other discrete process equipment.

2. How many I/O signals can the NTDI01 accommodate?
The NTDI01 can provide connection points for up to 16 individual I/O signals. The actual signal arrangement depends on the I/O module and application. Different configurations can use the available channels for digital input, digital output or other supported signal functions, so the associated I/O module and the NTDI01 dipshunt configuration should always be considered together.

3. Which ABB Bailey I/O modules can be used with the NTDI01?
The NTDI01 is designed for use with a range of Bailey I/O modules, including digital input modules such as IMDSI02, IMDSI12, IMDSI13, IMDSI14 and IMDSI15, as well as digital output modules such as IMDSO01, IMDSO03 and IMDSO04. Other compatible modules include IMDSM04, IMASO01/IMASO11, IMFCS01 and IMHSS03. Compatibility should be checked against the specific system configuration before replacement.

4. What is the purpose of the dipshunts on the NTDI01?
The dipshunts are used to configure the electrical signal path for the individual I/O channels. Depending on the connected module and application, they can determine how field signals and power are routed through the termination unit. Incorrect dipshunt settings can result in missing signals, incorrect signal states or improper operation, so the configuration should match the applicable Bailey wiring diagram.

5. Does the NTDI01 itself require a power supply?
The NTDI01 is fundamentally a passive termination assembly and does not require operating power as an independent electronic module. However, the termination unit can provide configured power paths for certain I/O applications, and some configurations use fused power inputs. Therefore, the system power arrangement must be checked according to the associated I/O module and selected field-wiring configuration.

6. What should be checked if an NTDI01 channel has no signal?
Start by checking the field device and field wiring, then verify the terminal connections and associated termination cable. Next, inspect the relevant NTDI01 dipshunt configuration and confirm that it matches the intended I/O application. If the wiring and configuration are correct, check the associated I/O module and its channel status. A channel-by-channel comparison with a known-good point is often useful for distinguishing a field wiring problem from a termination-unit or I/O-module problem.

7. What can cause intermittent digital I/O signals through an NTDI01?
Intermittent signals are commonly associated with loose terminal connections, damaged field wiring, poor cable connections, incorrect dipshunt settings or unstable field devices. Oxidation or mechanical deterioration at termination points can also create intermittent contact resistance. When troubleshooting, it is useful to monitor the affected channel while checking the field device, terminal connections, termination cable and corresponding I/O module rather than replacing the NTDI01 immediately.

8. What should be verified before replacing an NTDI01?
Before replacement, confirm the exact model and order number, the associated I/O module, termination cable and existing dipshunt configuration. Record the original jumper settings and field wiring before removing the unit. After installation, verify every terminal connection and reproduce the required dipshunt configuration. If the problem remains after replacement, the fault may be located in the field device, wiring, termination cable or associated I/O module rather than the NTDI01 itself.
