1. What is the main function of the ABB Bailey NTDI02?
The NTDI02 is a Digital I/O Termination Unit used in ABB Bailey Harmony Rack I/O systems. It provides the physical termination and signal interface between compatible I/O modules and field devices. The unit organizes field wiring, signal routing, field power connections and I/O configuration in one termination assembly. It can support digital inputs, digital outputs, pulse signals, frequency-related applications and selected analog-output configurations depending on the connected I/O module.

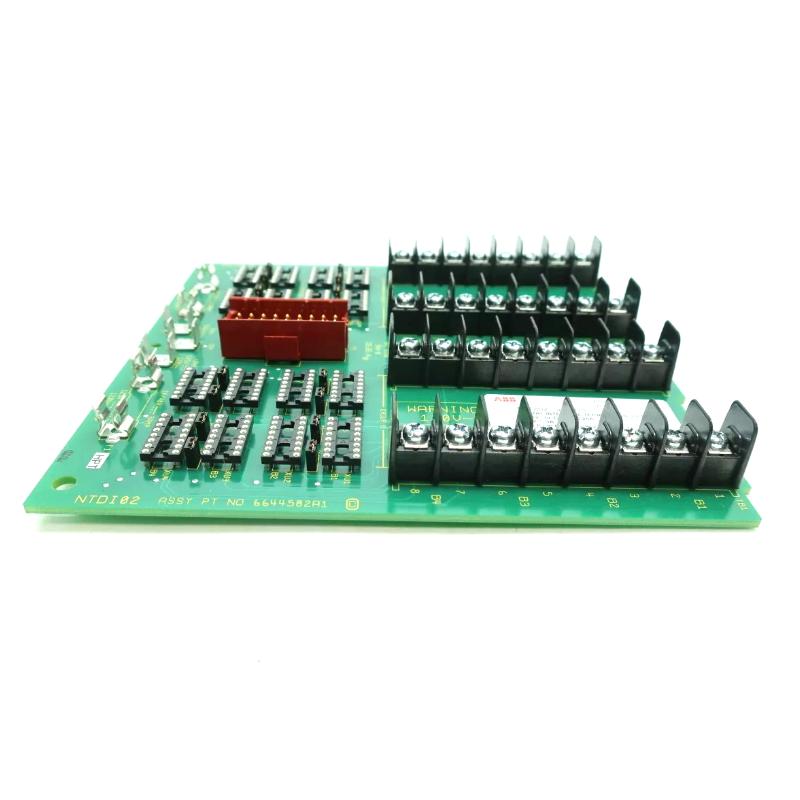

2. How many field I/O signals can the NTDI02 accommodate?
The NTDI02 provides termination for up to 16 individual field I/O signals. The actual function of each channel depends on the connected I/O module and the selected termination configuration. For example, digital input modules can use the channels for status and contact monitoring, while digital output modules can interface with relays or other field loads. Pulse and frequency applications use the termination points according to the requirements of their associated modules.

3. Which ABB Bailey I/O modules are compatible with the NTDI02?
The NTDI02 can be used with several Bailey I/O modules, including IMASO11 analog output, IMDSI13, IMDSI14 and IMDSI22 digital input modules, IMDSM04 pulse input, IMDSO14 and IMDSO15 digital output modules, and IMFCS01 frequency counter applications. The correct termination configuration varies by module, so the module-specific wiring and configuration documentation should be checked before installation or replacement.

4. What is the purpose of the Dipshunts and jumpers on the NTDI02?
The NTDI02 uses programmable Dipshunts and user-configurable jumpers to establish the appropriate signal paths for the installed I/O module and field application. Incorrect settings can cause missing signals, incorrect input states or improper output operation. When replacing a termination unit, the original Dipshunt and jumper positions should be documented before removal and reproduced on the replacement unit.

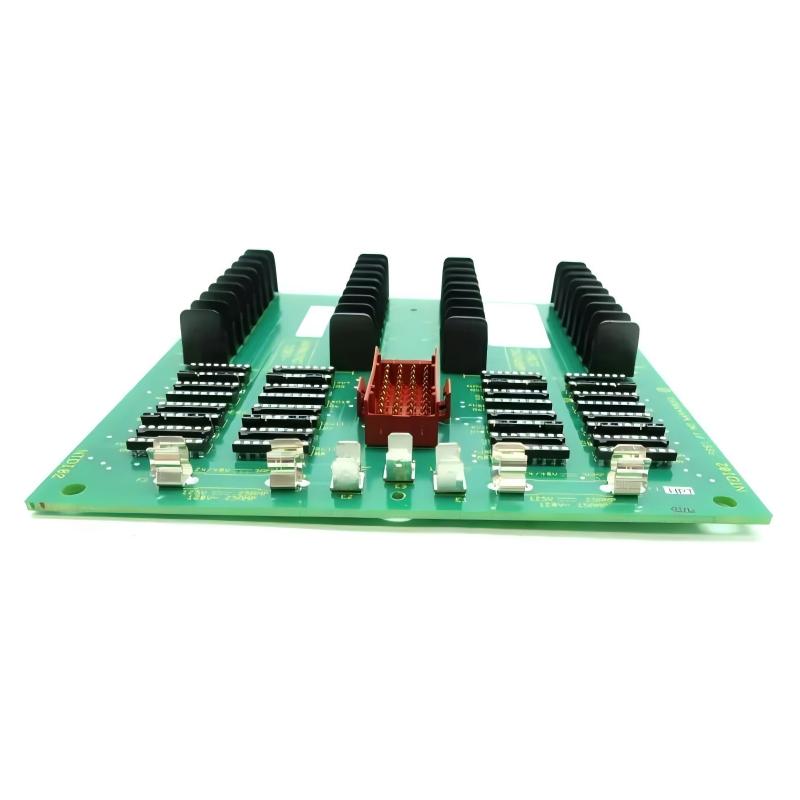

5. What are the field power connections and fuses used for?
The NTDI02 provides field power connections through E1 and E2, with E3 used as system common in the applicable configuration. F1 and F2 provide protection for the associated field power circuits. The termination unit can accommodate applications involving field power up to 250 VAC and 3 A, depending on the system configuration. If a fuse opens, the underlying field load, wiring or power circuit should be checked before installing a replacement fuse.

6. How should a failed NTDI02 I/O channel be troubleshot?
Troubleshooting should normally proceed from the field device toward the I/O module. First verify the field device and its output or input state. Then inspect field wiring and terminal connections for loose, damaged or incorrectly landed wires. Check the corresponding Dipshunt, jumper and fuse configuration, followed by the termination cable and associated I/O module. Comparing the affected channel with a known-good channel can help determine whether the problem is located in the field wiring, NTDI02 configuration, termination cable or I/O module.

7. What can cause intermittent I/O signals on an NTDI02?
Intermittent I/O problems are often caused by loose terminals, aging field wiring, poor cable connections, unstable jumpers, incorrect Dipshunt settings or mechanical contact problems in field switches and relays. Power-related issues can also occur if a field supply connection or fuse holder has a poor contact. For pulse and frequency signals, electrical interference and signal-quality problems should also be considered. Monitoring the field signal and I/O channel at the same time is useful for identifying the source of an intermittent fault.

8. Can the NTDI02 directly replace an NTDI01?
The NTDI02 can provide a functional alternative to the NTDI01 in supported system configurations, but it should not be treated as a universal plug-and-play replacement. Before replacement, verify the I/O module type, termination cable, field power arrangement, terminal wiring, Dipshunt settings and jumper configuration. After installation, each affected I/O channel should be tested from the field device through the termination unit to the I/O module. This verification is important because an apparently compatible termination unit can still produce incorrect signals if the field configuration does not match the installed I/O hardware.
