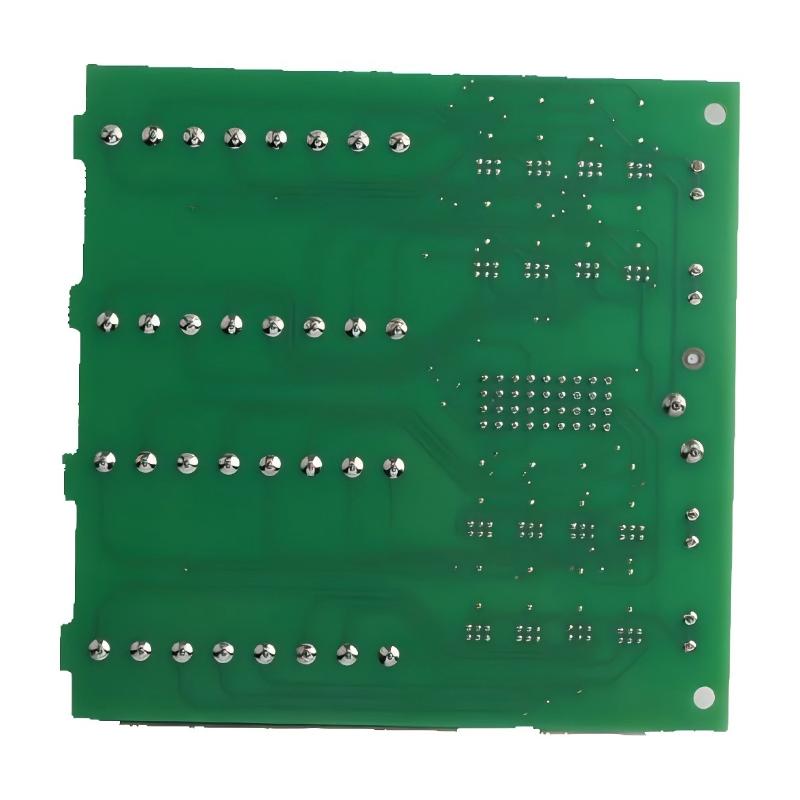

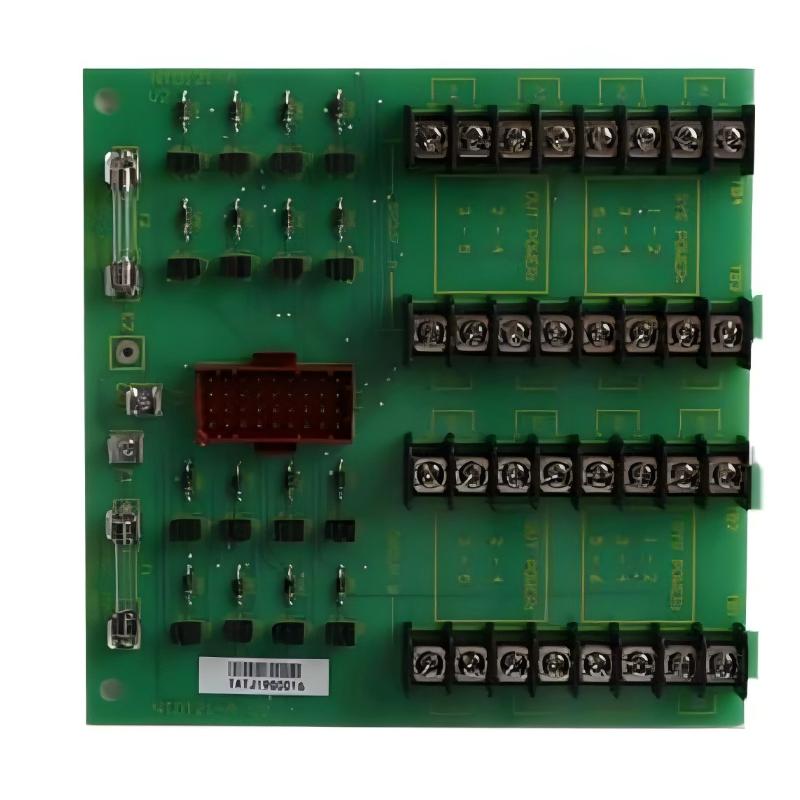

Q1: What is the main function of the ABB Bailey NTDI21 Digital I/O Terminal Unit?
The NTDI21 is used as a field termination and signal interface unit in an ABB Bailey control system. It provides an organized connection point between field digital wiring and the associated I/O electronics, allowing discrete field signals such as equipment status, alarms, interlocks, and control commands to be connected to the DCS.

Q2: What type of signals can be connected through the NTDI21?
The NTDI21 is intended for digital or discrete signals. Typical field signals include ON/OFF status, limit switches, auxiliary contacts, alarms, interlocks, relay signals, and other two-state process signals. The actual electrical signal characteristics should be matched to the specific I/O module connected to the terminal unit.

Q3: What systems is the NTDI21 designed for?
The NTDI21 belongs to the ABB Bailey family of industrial control hardware and is used as part of a Bailey DCS I/O architecture. Before installation, the terminal unit should be checked against the specific I/O module, termination configuration, and system revision to ensure proper compatibility.

Q4: What is the difference between the NTDI21 terminal unit and a digital I/O module?
The terminal unit primarily provides the physical field wiring interface and signal termination, while the digital I/O module performs the electronic processing of input or output signals. The two components work together: field devices are connected at the termination level, while the associated I/O electronics interpret or control the digital signals.

Q5: What should be checked if a digital input connected through the NTDI21 is not detected?
First check the field device and its wiring, then verify terminal tightness and correct channel assignment. Measure the signal at the relevant termination point and confirm that the voltage or contact state is appropriate for the connected I/O module. If the field signal is correct but the DCS still does not detect it, inspect the associated I/O module, cable connections, and channel configuration.

Q6: What can cause intermittent digital signals at the NTDI21?
Intermittent operation can be caused by loose terminal connections, damaged field wiring, oxidation or contamination at connection points, unstable field contacts, electrical interference, or problems in the associated I/O channel. Checking the signal while the equipment is operating can help identify whether the fault originates in the field circuit or the control-system side.

Q7: What precautions should be taken when replacing an NTDI21?
Before replacement, verify the exact NTDI21 model and the associated Bailey system configuration. Record the existing wiring and channel assignments before disconnecting the terminal unit. The affected control circuit should be placed in a safe maintenance state, and electrical power should be isolated when required by the equipment and site safety procedures.

Q8: How should the ABB Bailey NTDI21 be maintained?
Routine maintenance should include checking terminal tightness, field wiring condition, channel identification, connector condition, and the operation of connected digital signals. If multiple channels show abnormal behavior simultaneously, the common termination, wiring, I/O interface, and system power should be inspected rather than replacing individual field devices immediately.
