Q1: What is the main function of the ABB Bailey NTDI21-B Digital I/O Terminal Unit?

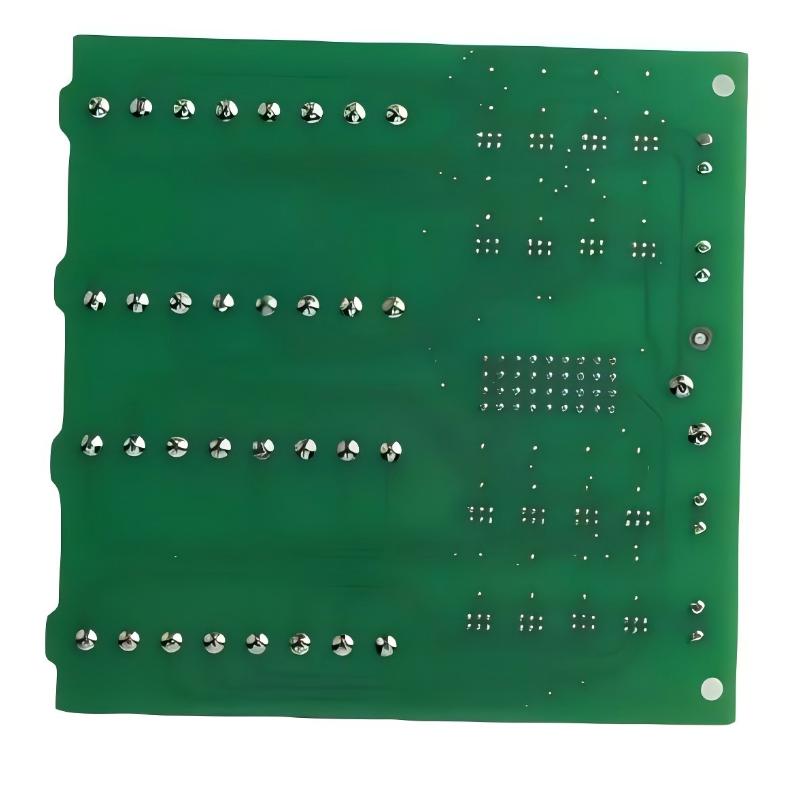

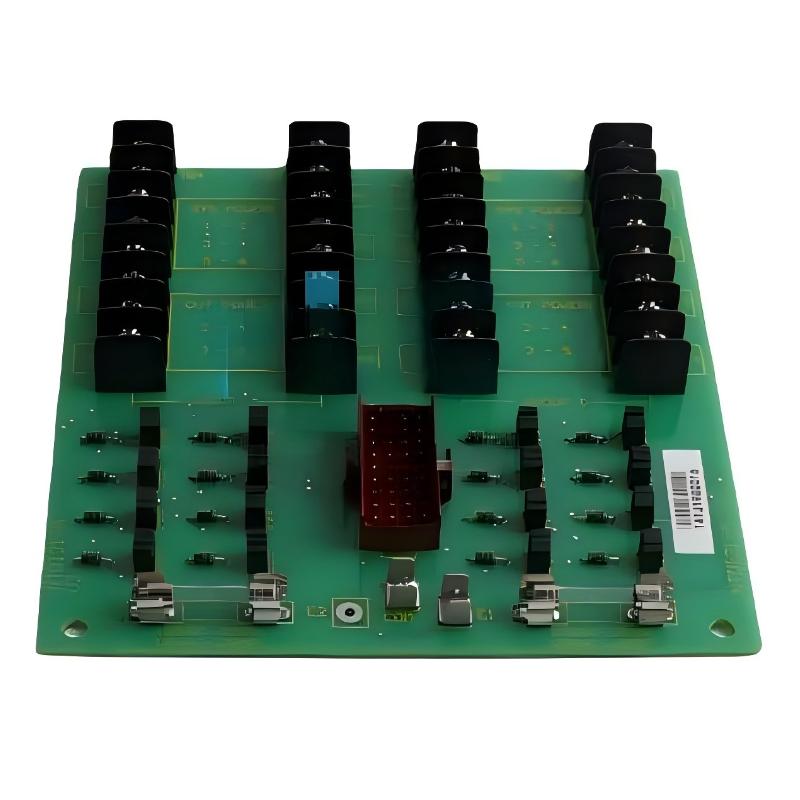

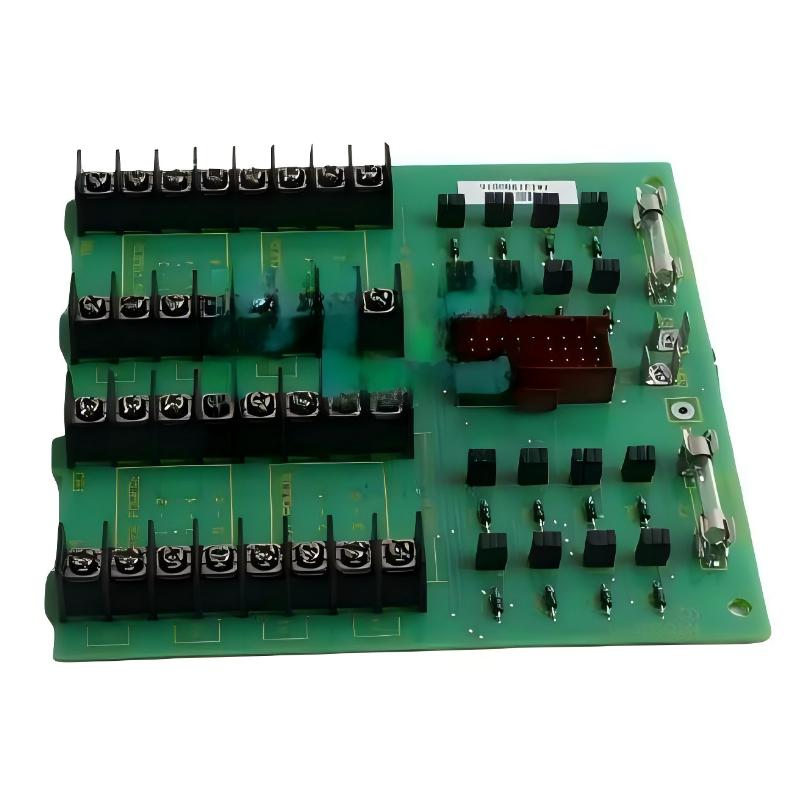

The NTDI21-B is a digital I/O termination unit used to provide an organized field wiring interface for ABB Bailey DCS systems. It connects field digital circuits with the associated I/O electronics, allowing status, alarm, interlock, and discrete control signals to be properly terminated and transferred within the control system.

Q2: What type of signals can be connected to the NTDI21-B?
The NTDI21-B is intended for digital or discrete signals. Typical applications include equipment running status, switch contacts, alarm signals, interlocks, relay contacts, and other two-state field signals. The electrical characteristics of the field signal should be verified against the corresponding Bailey I/O module before commissioning.

Q3: Which ABB Bailey systems can the NTDI21-B be used with?
The NTDI21-B is associated with ABB Bailey DCS hardware and is used within the digital I/O termination architecture. It is commonly considered in INFI 90-related system configurations. The exact compatibility should be confirmed by checking the associated I/O module, system configuration, and hardware revision.

Q4: What is the difference between the NTDI21-B and a digital I/O module?
The NTDI21-B primarily provides the field termination and connection interface, while the digital I/O module performs the electronic processing of input or output signals. In a typical DCS installation, the terminal unit handles field wiring and provides the connection path to the corresponding I/O electronics.

Q5: What should be checked if a digital input connected through the NTDI21-B is not detected?
First check the field device, wiring, terminal connections, and channel assignment. Measure the field signal at the appropriate terminal and verify that the expected electrical state is reaching the termination unit. If the field signal is correct, continue checking the associated I/O module, interconnection wiring, channel configuration, and system diagnostics.

Q6: What can cause intermittent signals on the NTDI21-B?
Intermittent digital signals can result from loose terminals, damaged field cables, poor contact at connection points, unstable switches or relay contacts, electrical interference, or faults in the associated I/O channel. A useful troubleshooting approach is to monitor the signal at both the field side and I/O side to determine where the signal becomes unstable.

Q7: What precautions should be taken when replacing an NTDI21-B?
Before replacement, verify the complete model number NTDI21-B and confirm its compatibility with the existing Bailey I/O configuration. Record all field wiring and channel assignments before disconnecting the original unit. The affected control loop should be placed in a safe maintenance condition, and power should be isolated when required by the system documentation and site safety procedures.

Q8: How should the ABB Bailey NTDI21-B be maintained?
Routine maintenance should include checking terminal tightness, field wiring condition, connector contacts, channel identification, and the operation of connected digital signals. If several channels become abnormal at the same time, inspect the common termination unit, interconnection wiring, associated I/O module, and system power before replacing individual field devices.
