1. What is the main function of the ABB Bailey NTLS01?

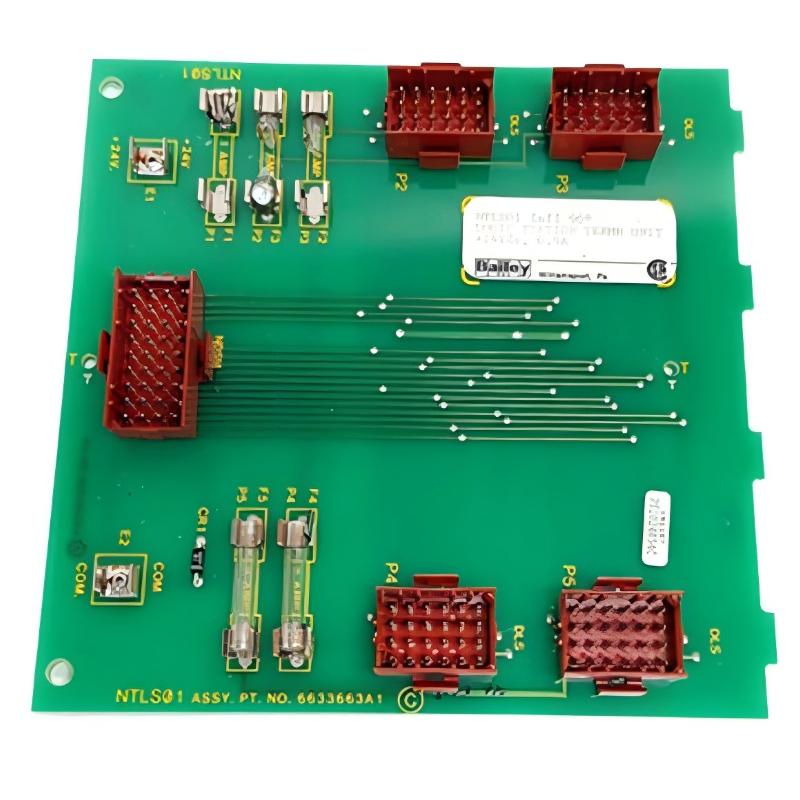

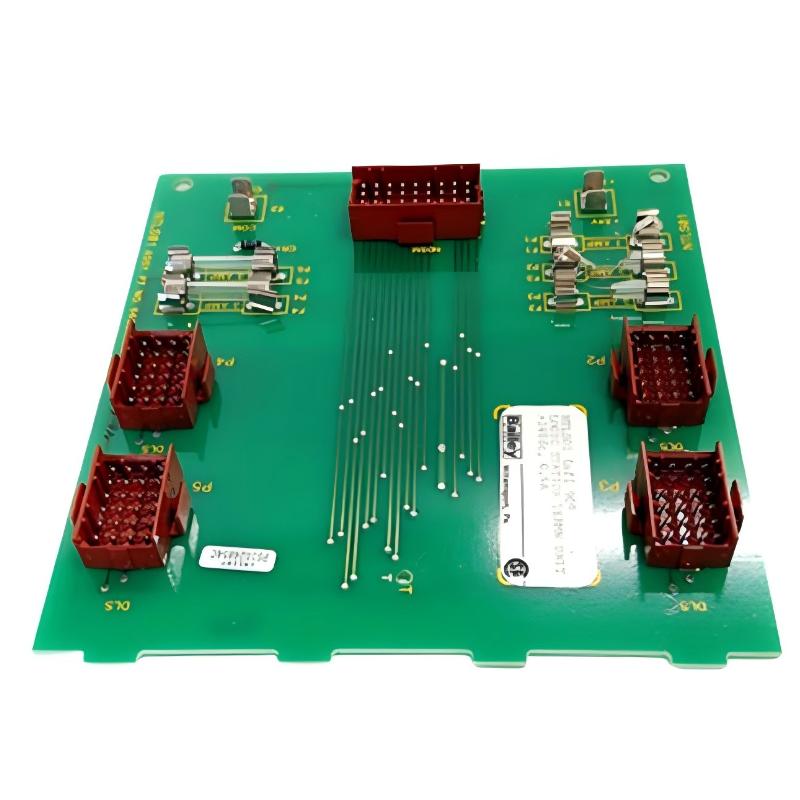

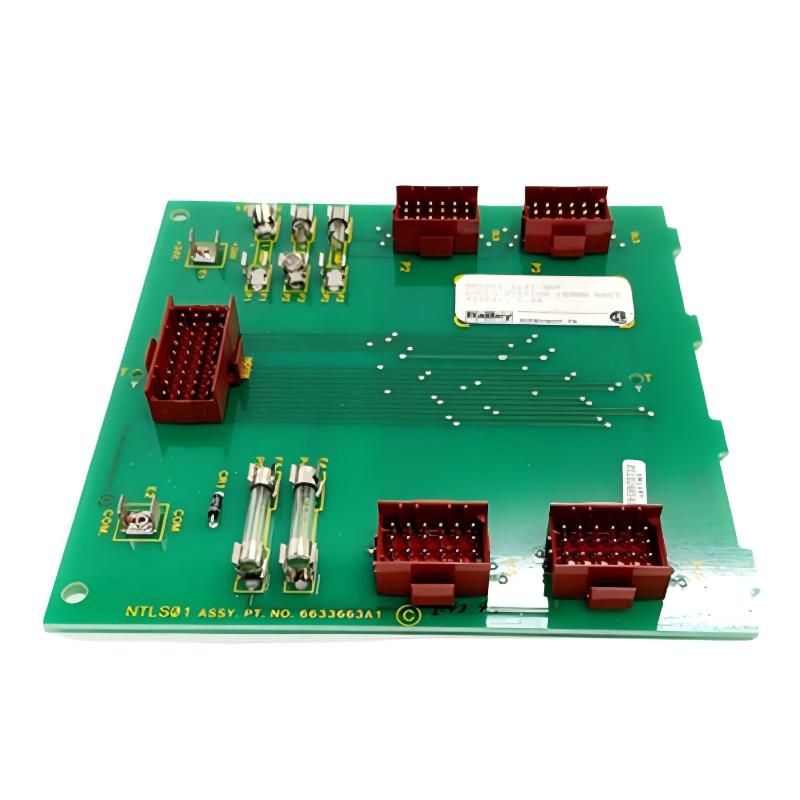

The NTLS01 is a Logical Station Terminal Unit used in ABB Bailey INFI 90 / Net 90 systems. Its primary purpose is to provide a reliable termination and connection point between logical station modules and the system cabling. It simplifies field wiring and provides an organized interface for connecting associated digital I/O modules.

2. Which ABB Bailey modules are typically used with the NTLS01?
The NTLS01 is typically associated with modules such as the IMDSM05 digital I/O module and NDLS02 logical station module. Depending on the system architecture, dedicated ABB Bailey cables such as NKDS01, NKDS04, NKDS05, and NKTU01 may be used to establish the required connections.

3. How many NDLS02 modules can be connected through one NTLS01?
In the applicable ABB Bailey configuration, one NTLS01 can support up to eight NDLS02 logical station modules. Multiple NDLS02 modules can be connected using the appropriate cable arrangement, including daisy-chain configurations where supported by the system design.

4. Does the NTLS01 execute control logic?
No. The NTLS01 is primarily a termination and signal-interface unit rather than a controller. It provides the physical and electrical connection for digital signals, while control logic, signal processing, and system-level operations are handled by the appropriate ABB Bailey control and I/O modules.

5. What should be checked if digital signals connected through the NTLS01 are not detected?
Start by checking the field wiring, terminal connections, and cable connectors. Then verify the NTLS01-to-NDLS02 connections and inspect the associated NKDS-series cables for damage or incorrect connection. The status of the connected I/O module and the corresponding system configuration should also be checked. If several channels fail simultaneously, common wiring and cable connections should be investigated first.

6. What can cause intermittent signal problems around the NTLS01?
Intermittent signals are commonly caused by loose terminals, poor connector contact, damaged cables, incorrect cable installation, or unstable field signals. Because the NTLS01 provides the termination interface, mechanical connection quality is particularly important. Checking terminals, connectors, cable continuity, and the associated I/O module can help isolate the source of the problem.

7. What precautions should be taken when replacing an NTLS01?
Before replacement, document the existing wiring, cable numbers, module connections, and logical station configuration. Put the system into the appropriate maintenance or safe state before disconnecting the unit. Reconnect the NKDS-series cables according to the original configuration and verify each connected NDLS02 after installation. Signal testing should be completed before returning the system to normal operation.

8. How should the NTLS01 be maintained and troubleshot?
Routine maintenance should include inspection of terminals, connectors, cables, and mounting conditions. Check for loose connections, corrosion, contamination, or physical damage. For troubleshooting, follow the signal path from the field device through the NTLS01, associated cables, NDLS02, and system I/O. Multiple-channel failures generally point toward common connections or cabling, while a single-channel problem is more likely to involve the individual field circuit or terminal connection.
