1. What is the main function of the ABB Bailey NTMU02?

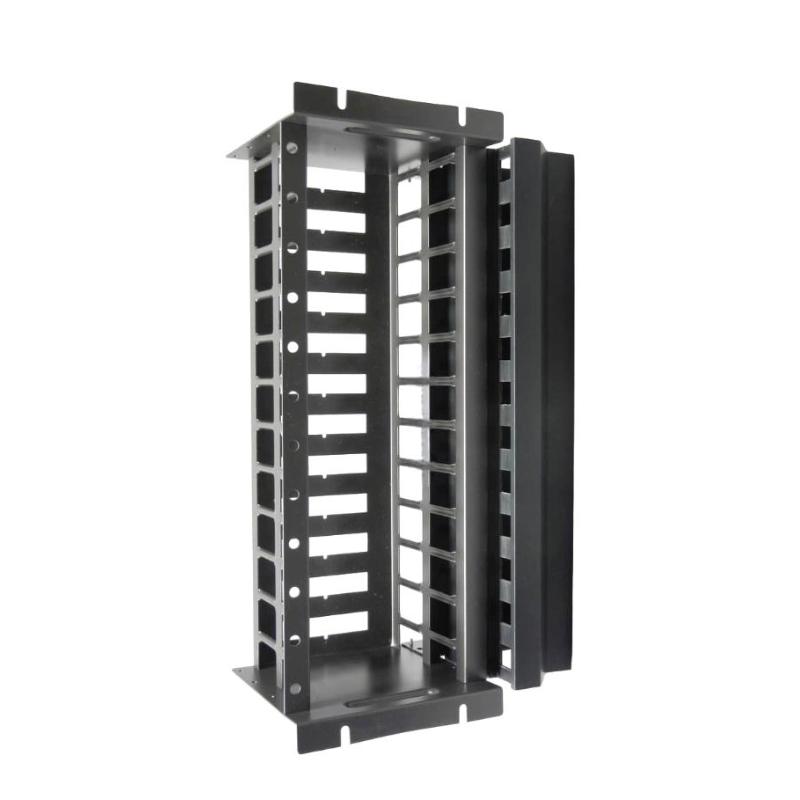

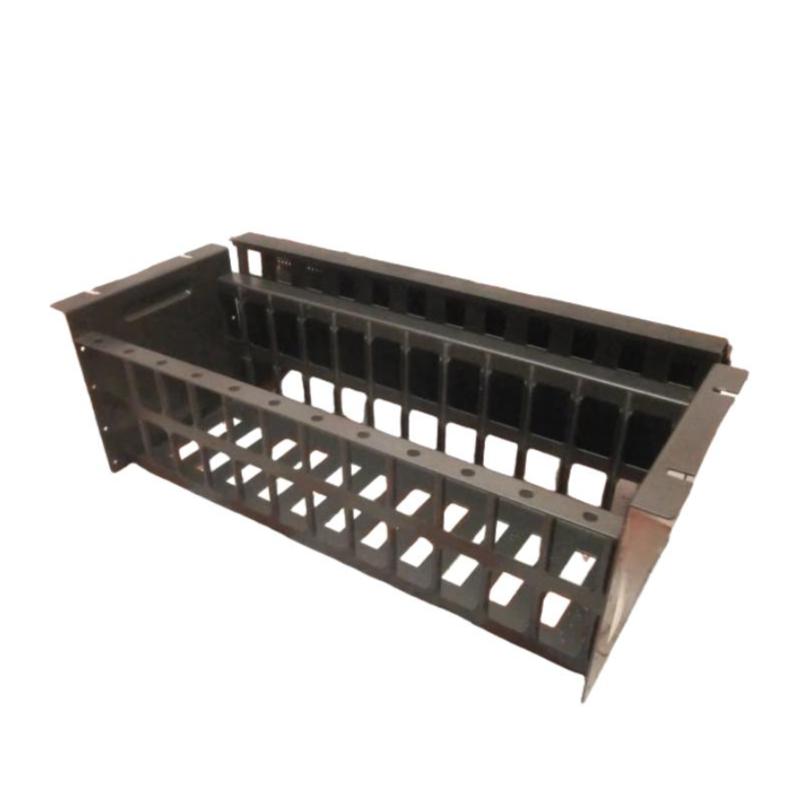

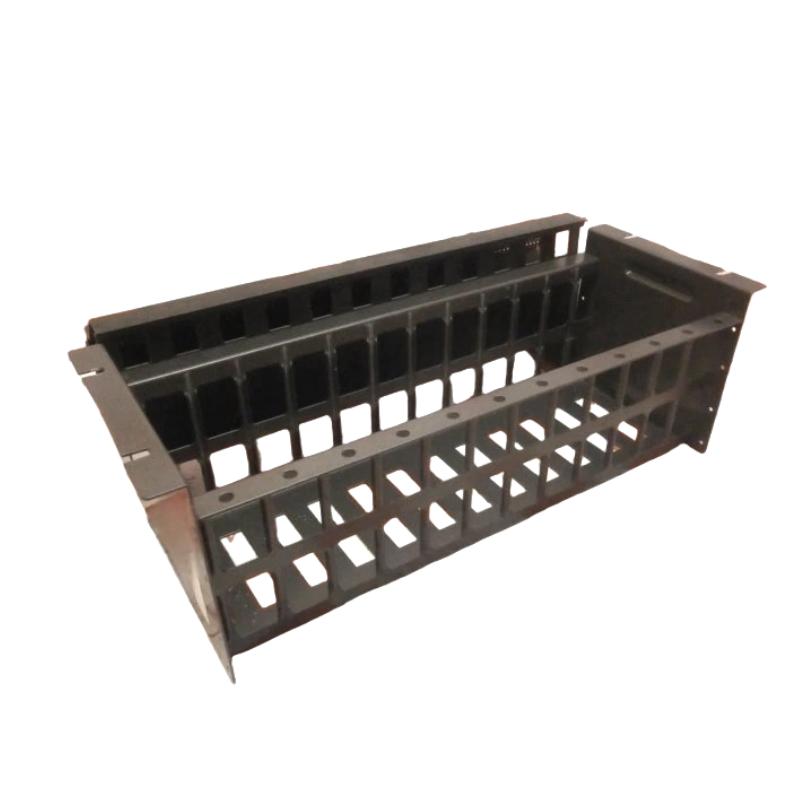

The NTMU02 is a Termination Mounting Unit designed to provide a secure physical mounting location for ABB Bailey termination modules. It helps organize field wiring and creates a structured interface between termination modules and the associated DCS I/O system. Unlike an active I/O module, the NTMU02 is primarily a mechanical mounting and wiring-support component.

2. How many termination modules can the NTMU02 accommodate?
The NTMU02 is designed to mount up to 12 termination modules. This high-density arrangement allows multiple field signal interfaces to be installed in an organized manner within an ABB Bailey INFI 90 or Net 90 control-system cabinet.

3. Is the NTMU02 an active electrical module?
No. The NTMU02 is a passive mounting unit and does not perform signal acquisition, signal conversion, control logic, or communication processing. The electrical signal functions are provided by the termination modules and associated I/O or controller modules installed within the system.

4. Which ABB Bailey systems use the NTMU02?
The NTMU02 is associated primarily with ABB Bailey INFI 90 and Net 90 system architectures. It is used as part of the termination infrastructure for compatible Bailey termination modules and can be found in DCS cabinets where multiple field signal connections need to be organized.

5. What should be checked when installing an NTMU02?
Before installation, verify the cabinet mounting position, mounting hardware, termination-module arrangement, and cable routing. The mounting surface should be secure and properly aligned. After installation, make sure the termination modules are firmly seated and that connected cables are routed without excessive bending or mechanical stress.

6. Can the NTMU02 be used with different ABB Bailey termination modules?
Yes, the NTMU02 is intended to support compatible Bailey termination modules rather than being dedicated to a single signal type. The exact termination module and cable combination should be selected according to the I/O module and field-device configuration used in the particular INFI 90 or Net 90 system.

7. What are common problems associated with an NTMU02 installation?
Because the NTMU02 is a passive mounting component, problems are generally related to mechanical installation, termination-module seating, cable connections, or wiring organization rather than internal electronics. Loose mounting hardware, improperly seated termination modules, damaged connectors, and excessive cable strain can cause intermittent field-signal problems.

8. How should the NTMU02 be maintained?
Maintenance should include checking mounting hardware, termination-module seating, connectors, and cable routing during scheduled system inspections. Look for loose hardware, damaged cables, corrosion, contamination, or excessive mechanical stress. When replacing a termination module or cable, verify the wiring against the original system configuration and perform signal checks before returning the DCS to normal operation.
