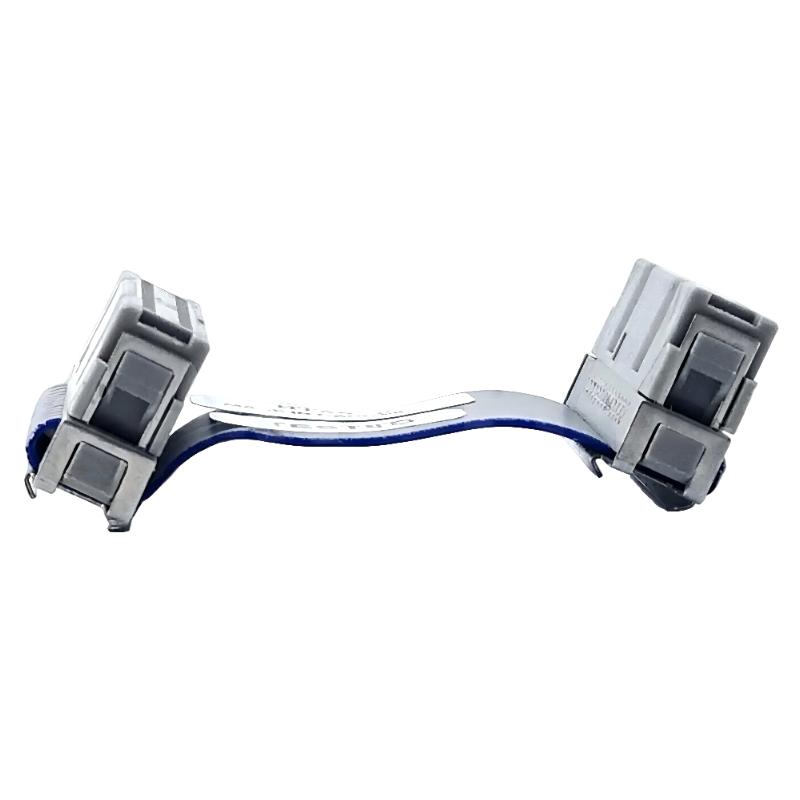

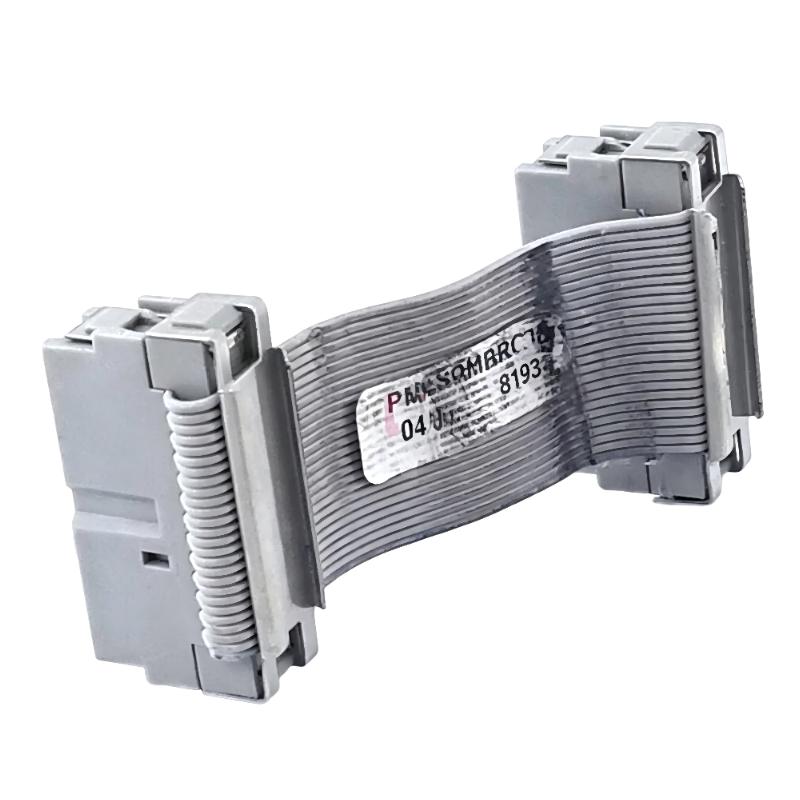

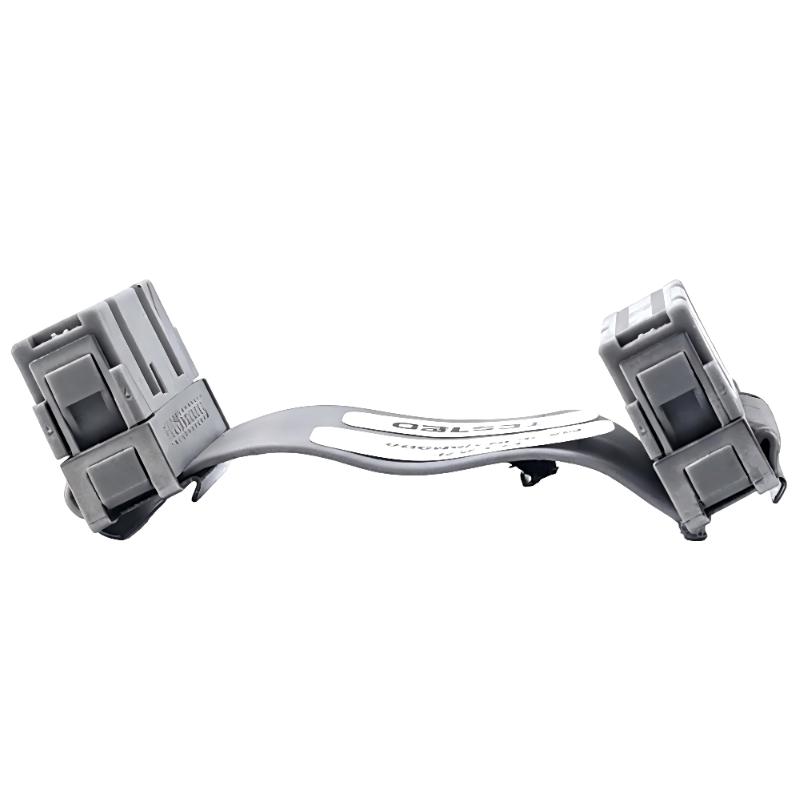

ABB Bailey P-MK-HRM-BRC1000A Redundant Cable Assemblies
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB Bailey |
| Model | P-MK-HRM-BRC1000A |
| Product Name | Redundant Cable Assembly |
| Product Type | Redundant Cable Assembly |
| Product Family | ABB Bailey Infi 90 |
| Main Function | Provides a redundant connection between compatible BRC modules |
| Redundancy Function | Connects primary and backup BRC modules for redundant operation |
| Cable Application | Redundant processor bus connection |
| Compatible Equipment | Compatible ABB Bailey BRC control modules |
| Connection Interface | Harmony I/O hood connector interface |
| Installation Application | ABB Bailey Infi 90 control systems |
| Installation Type | Control cabinet and MMU installation |
| Typical Application | Industrial process control and automation systems |
| PBA Kit | Without PBA Kit |
| Cable Length | Optional |
| Shipping Weight | 3 kg |
FAQ
1. What is the ABB Bailey P-MK-HRM-BRC1000A used for?
The P-MK-HRM-BRC1000A is a redundant cable assembly designed to provide a redundant connection between compatible ABB Bailey BRC modules. It is used when a redundant connection is required between a primary BRC module and its backup module, helping establish the hardware connection required for redundant operation.
2. Which ABB Bailey system is the P-MK-HRM-BRC1000A designed for?
The cable assembly is associated with ABB Bailey Infi 90 control systems and BRC redundancy configurations. It is intended for compatible BRC modules installed within the appropriate module mounting unit and system architecture. The exact controller configuration should be checked before installation.
3. How is the P-MK-HRM-BRC1000A connected to BRC modules?
The BRC redundancy installation uses Harmony I/O hood connectors installed at the designated BRC module connectors. The redundant cable is then connected between the two hood connectors. The cable ends are keyed, so their alignment with the connector slots should be checked before firmly seating the connections.
4. What is the purpose of using a redundant cable between two BRC modules?
The redundant cable establishes the physical connection required between the primary and backup BRC modules in a redundant configuration. This allows the two compatible controllers to operate as part of a redundancy arrangement designed to improve system availability and maintain control functionality if a primary component requires service.
5. What should be checked before installing P-MK-HRM-BRC1000A?
Before installation, verify that the two BRC modules are compatible, correctly configured, and mounted in the required adjacent positions. Check the cable ends, hood connectors, module connectors, and mounting arrangement for damage or contamination. The redundancy configuration should also be reviewed before connecting the cable.
6. What problems can occur if the redundant cable is installed incorrectly?
Incorrect installation may prevent the primary and backup BRC modules from establishing the required redundant connection. Possible symptoms include redundancy status alarms, failure to recognize the backup controller, unstable redundancy status, or abnormal controller diagnostics. Connector alignment and complete seating should therefore be checked carefully during installation.
7. Does the P-MK-HRM-BRC1000A include a PBA mounting kit?
The P-MK-HRM-BRC1000A is identified as a redundant cable assembly without the PBA kit. The cable should therefore be considered a connection component rather than a complete mounting hardware package. If additional mounting or processor bus adapter hardware is required by the system configuration, those components should be verified separately.
8. How should the P-MK-HRM-BRC1000A be maintained?
Maintenance should include periodic inspection of the cable jacket, connector housings, keyed ends, and connection points. During troubleshooting, verify that both ends are fully seated and that the cable is not subjected to excessive bending, pulling, or mechanical stress. If redundancy diagnostics indicate a connection problem, inspect the cable and connectors together with the BRC module configuration before replacing other system components.
ABB Bailey P-MK-HRM-BRC1000A Redundant Cable Assemblies is in stock. Please contact us for a quick quote and competitive pricing.
