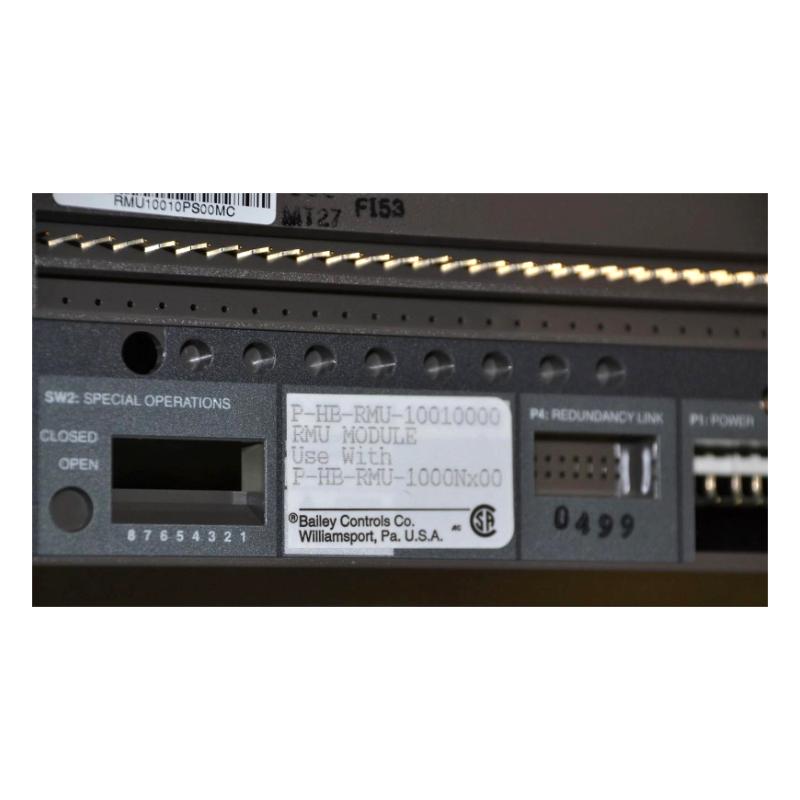

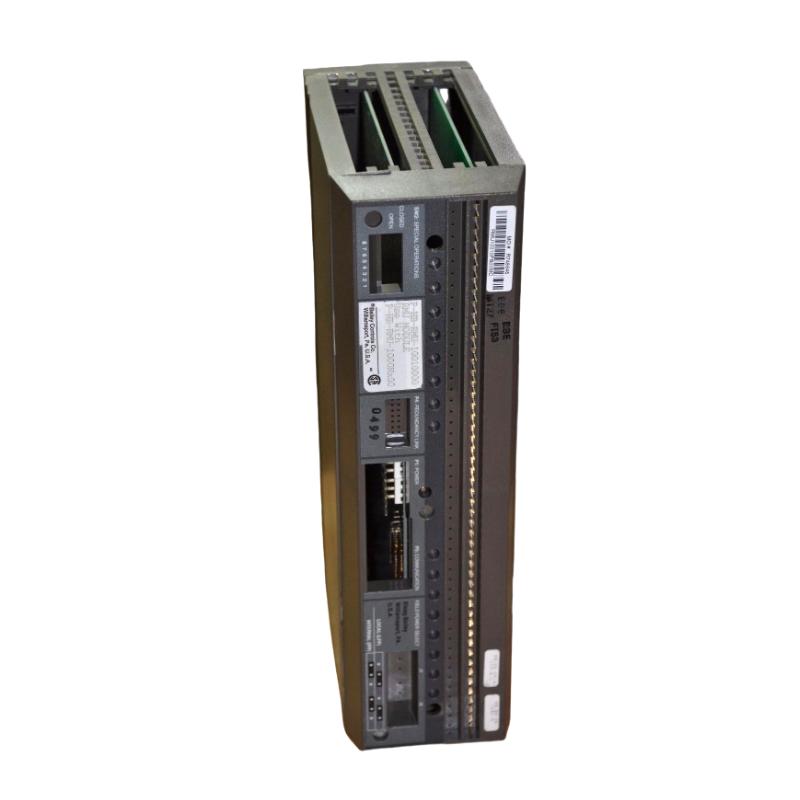

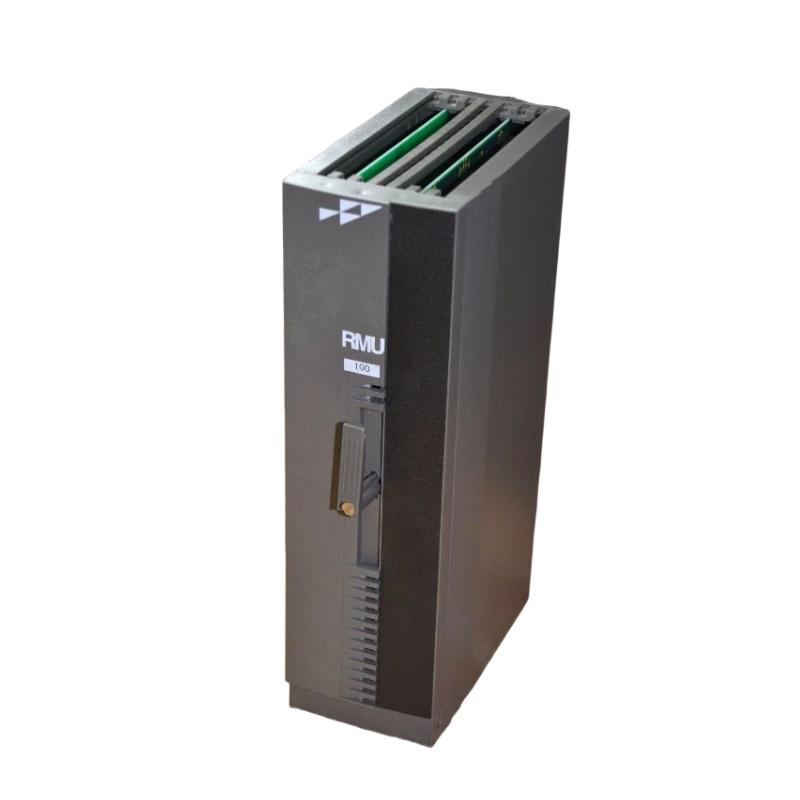

ABB Bailey RMU-100 PHBRMU10010000 Repeater Installation Unit
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB Bailey |
| Model | RMU-100 |
| Ordering Number | PHBRMU10010000 |
| Product Name | Repeater Installation Unit |
| Product Type | Repeater Mounting Unit |
| Product Family | ABB Bailey Infi 90 |
| I/O Type | Harmony Block I/O |
| Main Function | Provides the mounting and connection interface for the compatible repeater module |
| Repeater Application | Supports repeater installation within the ABB Bailey Infi 90 system |
| Communication Application | Used for repeater-based HNet communication configurations |
| Installation Application | ABB Bailey Infi 90 industrial control systems |
| Mounting Function | Provides mechanical support and electrical connection for the associated repeater |
| System Integration | Integrates the repeater into the Harmony Block I/O architecture |
| Typical Applications | Industrial process control, DCS communication, and automation systems |
| Maintenance Function | Supports repeater installation, replacement, and servicing |
| Dimensions | 250 × 120 × 80 mm |
| Weight | 1 kg |
FAQ
1. What is the ABB Bailey RMU-100 PHBRMU10010000 used for?
The ABB Bailey RMU-100 PHBRMU10010000 is a repeater mounting unit designed for use with compatible ABB Bailey Infi 90 systems. Its primary purpose is to provide the mechanical mounting and electrical connection required for installing a compatible repeater within the Harmony Block I/O architecture.
2. What is the difference between RMU-100 and PHBRMU10010000?
RMU-100 is the product model, while PHBRMU10010000 is the ordering number used to identify the specific ABB Bailey component. When purchasing or replacing the unit, both identifiers can be used to confirm that the correct repeater mounting unit has been selected.
3. What role does the RMU-100 play in an Infi 90 system?
The RMU-100 provides the physical interface between the compatible repeater and the system’s I/O architecture. It allows the repeater to be properly mounted and connected so that the repeater can perform its intended communication function within the control system.
4. Is PHBRMU10010000 a repeater module itself?
PHBRMU10010000 is a repeater mounting unit rather than the active repeater electronics. The mounting unit provides the required installation and connection interface, while the compatible repeater module contains the electronic circuitry responsible for the communication function.
5. What should be checked before installing the RMU-100?
Before installation, verify the model and ordering number, confirm compatibility with the intended repeater module, and check the mounting location and system configuration. The connectors and mounting interfaces should be inspected for damage, contamination, or loose contacts before the repeater is installed.
6. What problems can occur if the RMU-100 has a poor electrical connection?
A poor connection may cause intermittent communication, loss of repeater status, unstable system communication, or diagnostic alarms. Troubleshooting should include the repeater module, mounting unit connections, associated cables, power supply, and communication path so that a connection problem can be distinguished from a module or system fault.
7. How should the RMU-100 be maintained?
Routine maintenance should include checking the mounting condition, connector contacts, associated wiring, and the connection between the mounting unit and repeater. The installation area should be kept clean and dry, and excessive dust, moisture, vibration, or mechanical stress should be avoided to maintain reliable electrical connections.
8. What should be verified after replacing PHBRMU10010000?
After replacement, confirm that the RMU-100 is securely mounted and that all connectors and associated wiring are correctly restored. Install the compatible repeater module and check its status through the control system. Verify that communication is stable and that no repeater or network-related diagnostic alarms remain before returning the system to normal operation.
ABB Bailey RMU-100 PHBRMU10010000 Repeater Installation Unit is in stock. Please contact us for a quick quote and competitive pricing.
