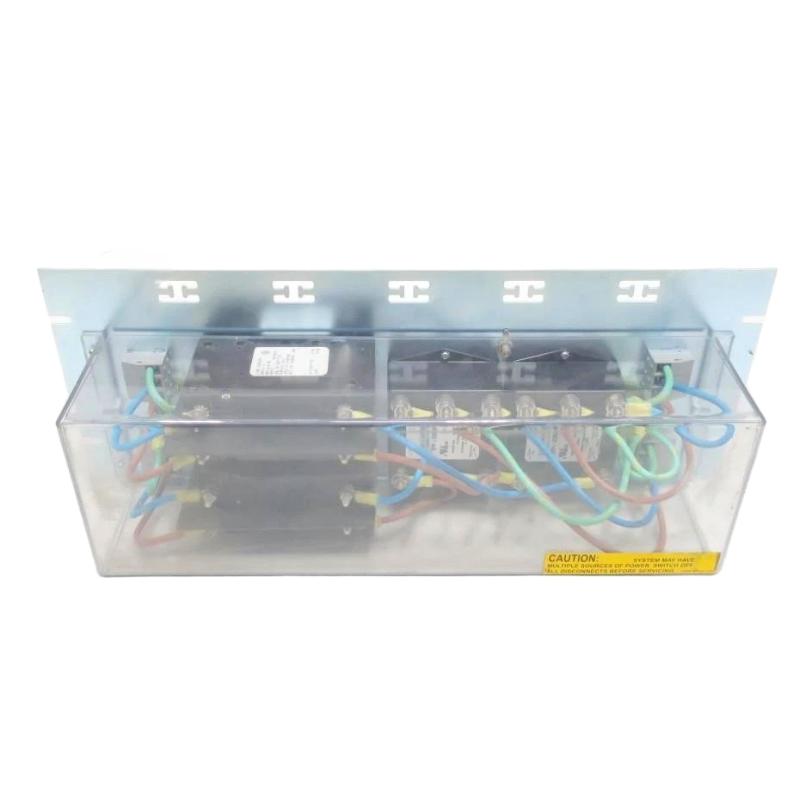

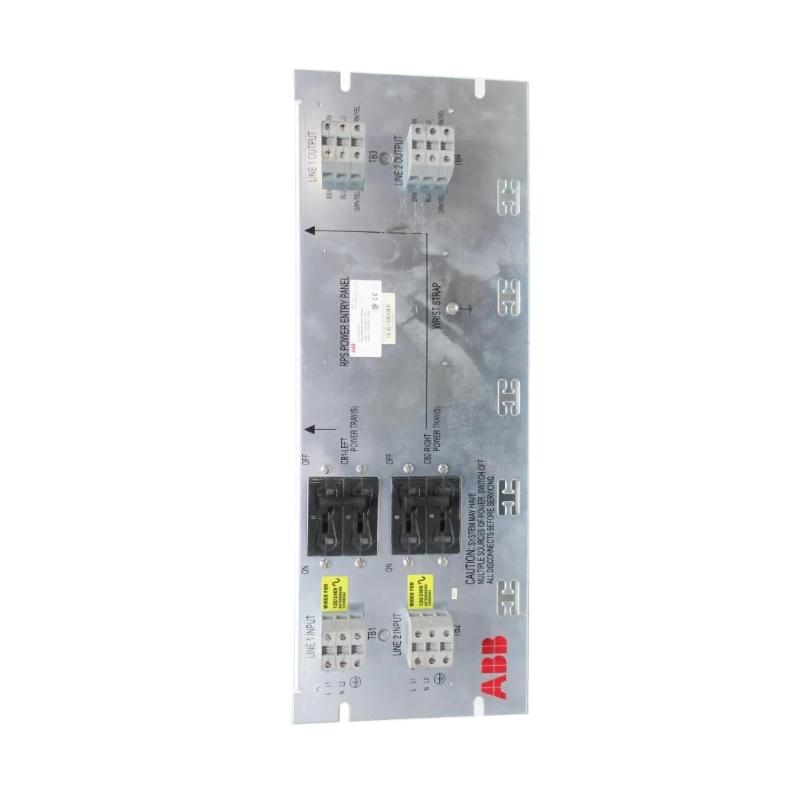

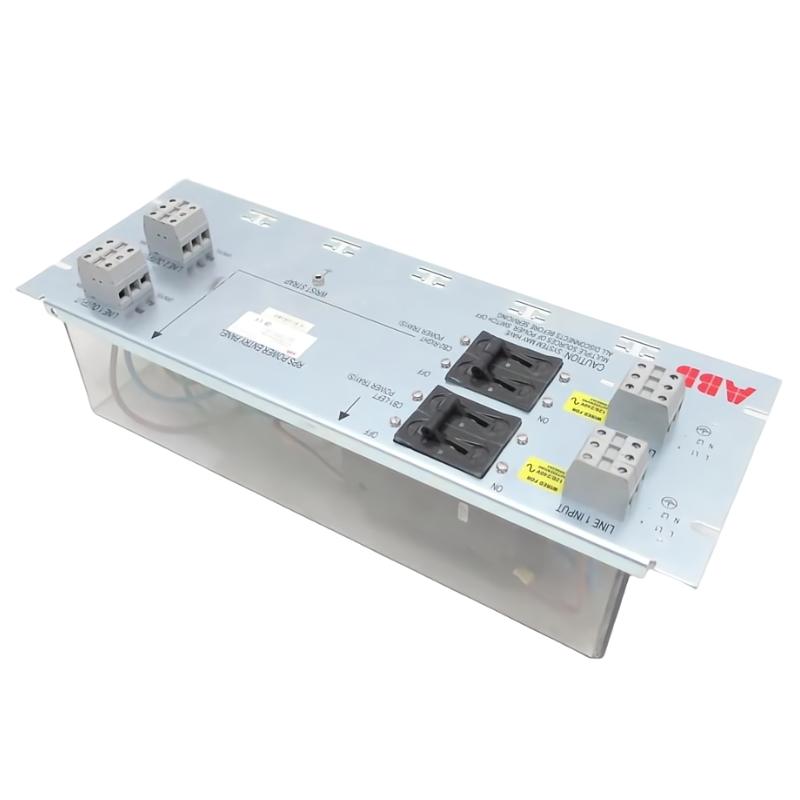

ABB Bailey PHARPSPEP11013 6644463A2 Single-Chassis Power Input Panel
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB Bailey |
| Model | PHARPSPEP11013 |
| Ordering Number | 6644463A2 |
| Product Name | Single-Chassis Power Input Panel |
| Product Type | Power Entry Panel |
| Product Series | MPS III |
| Chassis Type | Single Chassis |
| Application Category | Category III |
| Main Power Input | 120/240 VAC |
| Auxiliary Power Input | 120/240 VAC |
| Rated Current | 25 A |
| Main Function | Provides power input, distribution and electrical interface for the power chassis |
| Line Filter | Integrated line-filter configuration |
| Application | ABB Bailey industrial process control and automation systems |
| System Compatibility | ABB Bailey INFI 90 and related MPS III power system configurations |
| Mounting Application | Industrial control cabinet and power chassis installation |
| Dimensions | 187.96 × 535.94 × 226.06 mm |
| Weight | 4.99 kg |
FAQ
1. What is the ABB Bailey PHARPSPEP11013 used for?
The ABB Bailey PHARPSPEP11013 is a single-chassis power input panel used to provide the electrical input interface for an ABB MPS III power system. It handles the main and auxiliary AC power connections and provides the required interface between the incoming power supply and the power chassis.
2. What is the relationship between PHARPSPEP11013 and 6644463A2?
PHARPSPEP11013 is the ABB model designation, while 6644463A2 is the corresponding ordering number for the power input panel. When purchasing or replacing the unit, both identifiers should be checked to ensure that the correct hardware version is being selected.
3. What input voltage does the PHARPSPEP11013 support?
The PHARPSPEP11013 is designed for 120/240 VAC main power input and 120/240 VAC auxiliary power input. The actual site wiring must match the applicable system power configuration and electrical installation requirements before the panel is energized.
4. What is the function of the main and auxiliary power inputs?
The main input supplies the primary power path for the power chassis, while the auxiliary input provides the corresponding auxiliary power connection required by the system configuration. Correct identification and wiring of these inputs are essential for stable operation and proper power distribution.
5. Which ABB control systems can use the PHARPSPEP11013?
The PHARPSPEP11013 belongs to the ABB Bailey MPS III power system family and is associated with ABB Bailey process control platforms such as INFI 90 and related configurations. Compatibility should always be verified against the specific chassis, power supply modules and system revision before installation.
6. What should be checked before replacing a PHARPSPEP11013?
Before replacement, verify the model PHARPSPEP11013, ordering number 6644463A2, chassis configuration, input voltage requirements and existing wiring arrangement. The technician should also confirm that the replacement panel matches the installed MPS III power architecture and that all incoming power circuits have been safely isolated.
7. What are common symptoms of a faulty power input panel?
Possible symptoms include loss of power to the associated chassis, abnormal power-supply status, intermittent system shutdowns, input protection trips or unstable operation of connected control modules. Troubleshooting should begin with the incoming AC supply, terminal connections, protective devices and panel wiring before replacing the complete unit.
8. What precautions are important when installing PHARPSPEP11013?
Installation should be performed by qualified personnel following the applicable ABB system documentation and site electrical procedures. Power must be isolated before wiring work, and the main and auxiliary connections should be verified carefully. After installation, check terminal tightness, grounding, input voltage and power-system status before placing the control system back into normal operation.
ABB Bailey PHARPSPEP11013 6644463A2 Single-Chassis Power Input Panel is in stock. Please contact us for a quick quote and competitive pricing.
