1. What industrial applications is the ABB ACS510-01-09A4-4 suitable for?

The ABB ACS510-01-09A4-4 is a general-purpose AC variable frequency drive designed for industrial applications that require stable motor speed control, energy efficiency, and reliable operation. It is widely used in fans, pumps, HVAC systems, compressors, conveyors, water treatment equipment, and various industrial machinery. The ACS510 series is optimized for variable torque loads and can automatically adjust motor speed according to process requirements. With integrated PID control functions, the drive can accurately regulate pressure, flow, and air volume, making it suitable for continuous operation in industrial environments where efficiency and reliability are important.

2. How should an overcurrent fault on the ACS510-01-09A4-4 be diagnosed?

When the ACS510-01-09A4-4 experiences an overcurrent fault, troubleshooting should include mechanical load inspection, motor condition checks, electrical wiring verification, and parameter review. First, check whether the driven equipment has problems such as mechanical blockage, excessive load, bearing damage, or abnormal resistance, which may cause increased motor current. Then verify that the motor parameters configured in the drive, including rated voltage, rated current, frequency, power, and speed, match the actual motor specifications. The output power cables should be inspected for short circuits, grounding faults, or insulation problems. If excessive current occurs during startup, increasing the acceleration time and adjusting torque boost settings can help achieve smoother starting and reduce overcurrent protection events.

3. How can the ACS510-01-09A4-4 parameters be optimized for better performance?

To improve the stability and efficiency of the ACS510-01-09A4-4, the drive parameters should be configured according to the actual application requirements. Accurate motor nameplate data should be entered to ensure proper motor control. Acceleration time, deceleration time, frequency limits, and protection parameters should be adjusted based on the load characteristics. For fan and pump applications, the built-in PID controller can automatically adjust output frequency according to feedback signals to achieve constant pressure, constant flow, or temperature control. Maintaining stable input power, proper cabinet ventilation, and regular inspection of electrical connections also contribute to reliable operation. Correct parameter configuration helps reduce operating fluctuations, improve system efficiency, and extend equipment service life.

4. How does the ACS510-01-09A4-4 communicate with PLC or DCS systems?

The ACS510-01-09A4-4 features an integrated RS-485 communication interface with Modbus RTU support, allowing direct connection with PLC, DCS, and SCADA systems for remote monitoring and automation control. During commissioning, communication settings such as address, baud rate, data bits, stop bits, and parity must be configured correctly and matched between the drive and the control system. After communication is established, PLC or DCS systems can monitor operating frequency, output current, output voltage, running status, and fault information. Remote commands such as start, stop, speed reference adjustment, parameter modification, and fault reset can also be performed through the communication network. Using shielded twisted-pair cables and proper grounding improves communication stability and resistance to industrial interference.

5. What causes unstable motor speed operation?

Motor speed instability can be caused by unstable reference signals, incorrect motor parameters, improper PID tuning, electromagnetic interference, or changing mechanical loads. First, verify that the speed reference signal remains stable and that analog input or communication signals are operating correctly. The control wiring should be checked to ensure proper shielding and grounding to prevent interference from nearby power equipment. Motor parameters should also be verified because incorrect settings may affect torque and speed control accuracy. For systems using PID control, the control parameters should be adjusted according to actual process requirements to achieve a balance between response speed and stability. For applications with significant load variations, optimizing acceleration and deceleration times can improve motor smoothness and overall control performance.

6. How should an overheating alarm on the ACS510-01-09A4-4 be handled?

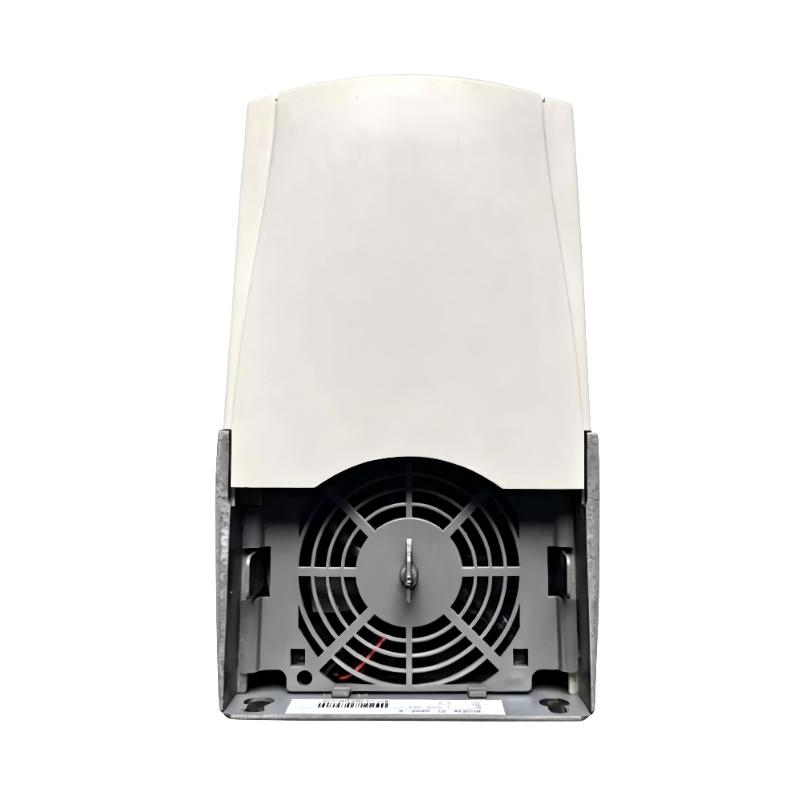

When the ACS510-01-09A4-4 generates an overheating alarm, the operating environment should be checked first, including ambient temperature, cabinet ventilation, and airflow conditions. Inspect the cooling fan to confirm proper operation and remove dust or debris from the heat sink, ventilation openings, and cooling passages to restore heat dissipation performance. If the drive has been operating under continuous high-load conditions, verify whether the actual load exceeds the recommended operating range and consider improving cooling conditions or adjusting the operating load. After corrective actions are completed, allow the temperature to return to normal before resetting the fault and restarting the drive. Monitoring current, temperature, and operating status after restart confirms that the overheating issue has been resolved.

7. What maintenance procedures are recommended for the ABB ACS510-01-09A4-4?

To ensure long-term reliable operation of the ACS510-01-09A4-4, a preventive maintenance schedule should be established. Regular maintenance should include inspection of power connections, control terminals, grounding points, and communication wiring to ensure all connections remain secure. The cooling fan, heat dissipation areas, and ventilation channels should be cleaned periodically to maintain proper thermal performance. Motor cables and control wiring insulation should also be inspected to identify aging or damage before failures occur. It is recommended to save a backup copy of drive parameters after commissioning and regularly review fault records and operating data. These practices help identify potential issues early, reduce unexpected downtime, and improve the reliability of industrial automation systems.

8. What is the correct troubleshooting procedure after an ACS510-01-09A4-4 fault occurs?

When the ACS510-01-09A4-4 experiences a fault, the first step is to record the fault code and operating conditions at the time of failure, including output current, operating frequency, motor load, and power supply status. Avoid performing repeated resets without identifying the actual cause of the problem. Troubleshooting should include checking the input power supply, motor condition, output wiring, control signals, and parameter settings according to the fault information. After the cause has been identified and corrected, the fault can be reset through the keypad or external control system, followed by a controlled restart while monitoring operating performance. If the same fault occurs repeatedly, historical alarm records and operating data should be analyzed to identify the root cause and apply appropriate corrective actions, ensuring safe, stable, and continuous operation of the entire automation system.
