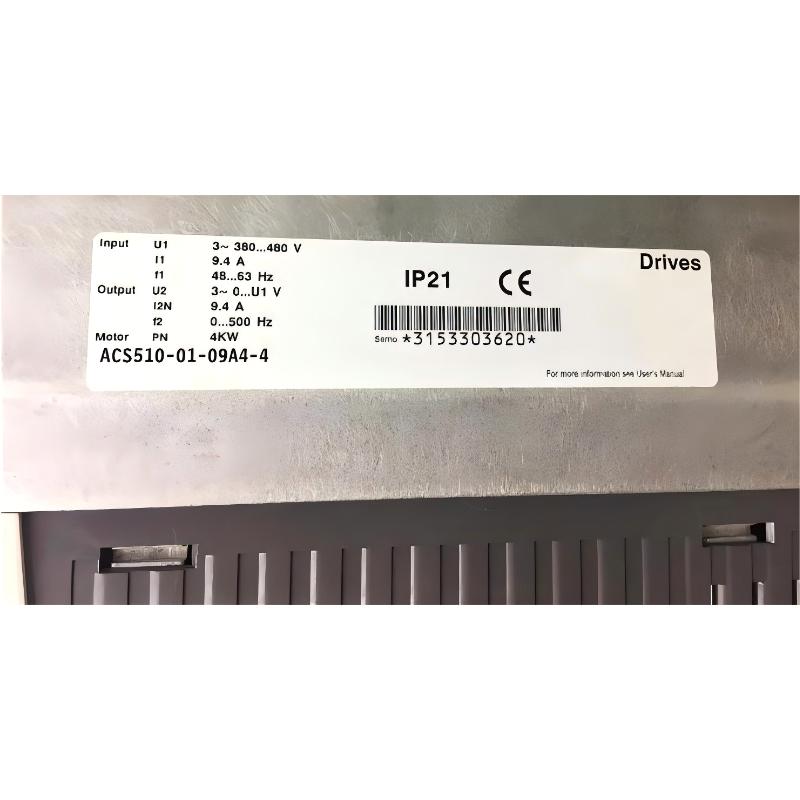

Technical Specifications

FAQ

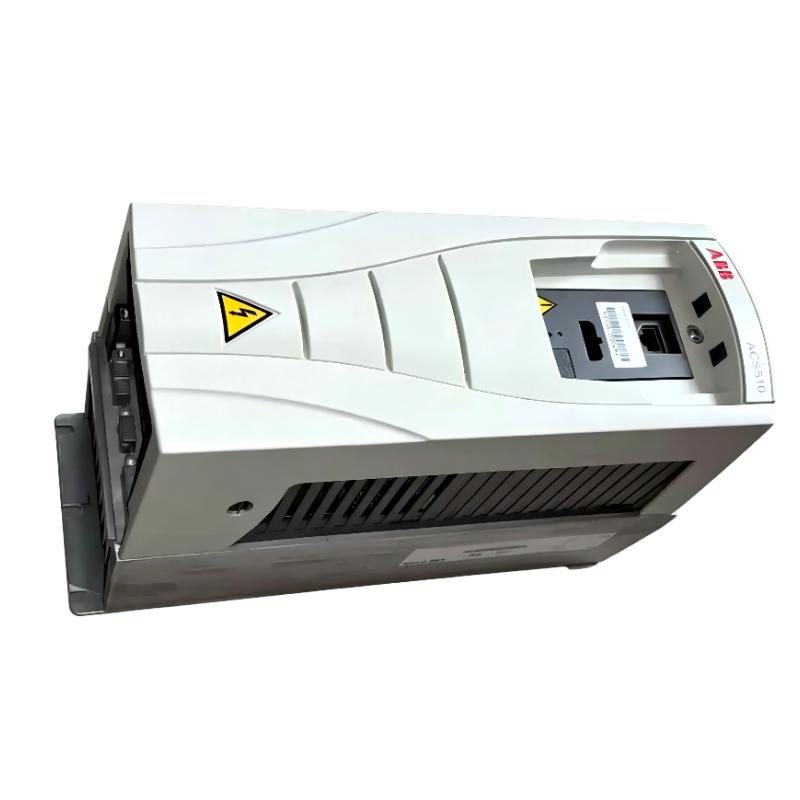

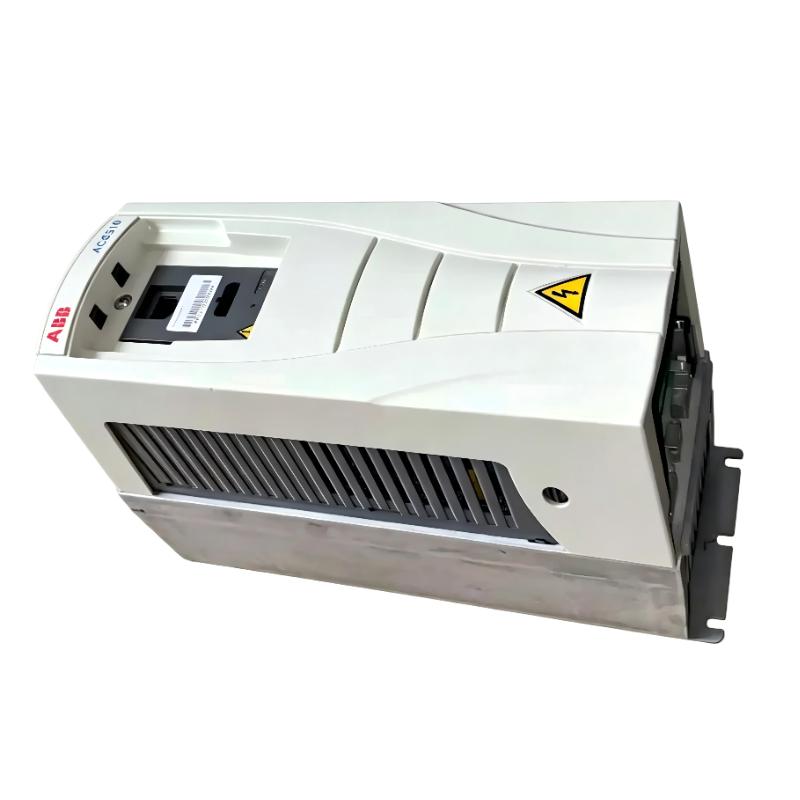

1. What applications is the ABB ACS510-01-09A4-4 designed for?

The ABB ACS510-01-09A4-4 is primarily designed for HVAC systems, pumps, fans, conveyors, compressors, and other variable torque applications. It provides reliable motor speed control, helping reduce energy consumption while improving process efficiency. Its integrated application macros and built-in PID controller make it especially suitable for building automation, water treatment facilities, industrial ventilation systems, and general-purpose motor control applications.

2. How can the ACS510-01-09A4-4 communicate with PLC or DCS systems?

This drive features a built-in RS-485 communication interface that supports the Modbus RTU protocol, allowing seamless integration with PLCs, DCS platforms, HMIs, and SCADA systems. Users can configure communication parameters such as node address, baud rate, and parity settings directly through the keypad. For applications requiring additional industrial communication protocols such as PROFIBUS, DeviceNet, or Ethernet-based networks, optional communication adapters can be installed.

3. What motor parameters should be configured during commissioning?

Before operating the drive, it is recommended to enter the motor’s rated voltage, rated current, rated frequency, rated speed, and rated power according to the motor nameplate. Proper parameter configuration enables accurate speed regulation, optimized torque output, improved motor protection, and enhanced energy efficiency. Additional settings such as acceleration time, deceleration time, maximum frequency, and minimum frequency should also be adjusted according to the application’s operating requirements.

4. What are the common causes of an overcurrent fault?

An overcurrent alarm may be caused by excessive mechanical load, motor shaft blockage, short acceleration times, motor cable short circuits, or deteriorated motor insulation. Incorrect parameter settings may also lead to excessive current during startup. Troubleshooting should include inspecting the driven equipment for mechanical issues, checking cable insulation, verifying motor condition, and adjusting acceleration parameters if necessary. Systematic diagnosis can usually identify and eliminate the root cause efficiently.

5. How can the service life of the ACS510-01-09A4-4 be extended?

Regular preventive maintenance is essential for maximizing the drive’s lifespan. Users should periodically clean the cooling fan and ventilation passages to prevent dust accumulation, inspect power and control terminals for secure connections, and ensure adequate ventilation around the drive. Monitoring input power quality and replacing aging cooling fans or capacitors during scheduled maintenance can significantly improve long-term reliability and reduce unexpected downtime.

6. What should be checked if the drive fails to start the motor?

If the motor does not start, first verify that the input power supply is present and within the specified voltage range. Next, confirm that the correct start command source has been selected, whether from the keypad, digital inputs, or communication network. Safety circuits, emergency stop contacts, and digital input wiring should also be inspected. Finally, review the drive’s fault history and diagnostic messages to identify any active protection functions preventing operation.

7. What protection features are built into the ACS510-01-09A4-4?

The drive incorporates comprehensive protection functions, including overvoltage, undervoltage, overcurrent, overload, overheating, ground fault, short-circuit, and motor stall protection. These features continuously monitor operating conditions and automatically generate alarms or stop the drive when abnormal situations occur. The stored fault history and diagnostic information help maintenance personnel quickly determine the cause of a fault, minimizing downtime and simplifying troubleshooting.

8. What should be done after replacing an ACS510-01-09A4-4 drive?

After installing a replacement drive, users should restore all application parameters from a backup if available or manually configure the motor data, I/O assignments, communication settings, and control parameters. A functional test should then be performed under both no-load and normal operating conditions to verify motor rotation direction, communication performance, acceleration and deceleration characteristics, and protection functions. Continuous monitoring during initial operation is recommended to confirm stable performance before returning the equipment to full production.
