1. What are the main industrial applications of the ABB ACS550-01-087A-4 Variable Frequency Drive?

The ABB ACS550-01-087A-4 is a general-purpose AC variable frequency drive designed for controlling medium-power three-phase motors in industrial automation systems. It is suitable for applications requiring stable speed regulation, energy efficiency, and reliable motor protection. This model is commonly used in industrial equipment such as pumps, fans, compressors, conveyors, mixers, centrifugal machines, and automated production machinery. It is widely applied in industries including water treatment, manufacturing, HVAC systems, chemical processing, food processing, and material handling. By adjusting the motor operating frequency according to actual process requirements, the ACS550-01-087A-4 helps optimize equipment performance, reduce energy consumption, and minimize mechanical stress during motor startup and operation. With flexible control functions, communication capability, and built-in protection features, it can be integrated into both standalone machines and complex PLC or DCS-based automation systems.

2. What motor control methods are supported by the ACS550-01-087A-4?

The ACS550-01-087A-4 supports both V/f control and Sensorless Vector Control to meet different industrial application requirements. V/f control maintains a stable relationship between output voltage and frequency, providing reliable and simple motor speed adjustment. This control method is suitable for applications such as fans and pumps where load changes are relatively predictable and basic speed regulation is required. Sensorless Vector Control uses advanced motor modeling algorithms to calculate motor operating conditions internally without requiring an external encoder. This technology provides improved torque performance, better low-speed operation, and faster response to load variations. It is suitable for applications such as conveyors, mixers, and industrial machines where accurate speed control and dynamic performance are important. Selecting the correct control mode allows users to improve system stability, reduce mechanical stress, and increase overall equipment efficiency.

3. How can overcurrent faults on the ACS550-01-087A-4 be diagnosed and solved?

When an overcurrent fault occurs on the ACS550-01-087A-4, troubleshooting should be performed by checking the mechanical load, electrical connections, and drive parameter settings. First, inspect the connected mechanical equipment for possible issues such as blockage, excessive friction, bearing damage, or sudden load increases. These conditions can force the motor to generate higher torque, causing the operating current to exceed normal levels. Next, check the motor cables and terminals for short circuits, grounding problems, damaged insulation, or loose connections. The motor parameters configured in the drive should also be verified to ensure they match the actual motor specifications, including rated voltage, current, frequency, and speed. If overcurrent occurs during startup, the acceleration time setting should be checked because an excessively short acceleration time may cause high current spikes. If external conditions are normal, further inspection of the power module, output circuit, and motor condition may be necessary.

4. How can communication failures between the ACS550-01-087A-4 and PLC or DCS systems be resolved?

When communication problems occur between the ACS550-01-087A-4 and PLC or DCS systems, the issue should be analyzed from communication parameters, wiring connections, and control software configuration. First, verify that both devices use the same communication protocol and that parameters such as communication address, baud rate, parity, and data format are correctly matched. For RS-485 networks, check that the A and B signal wires are connected correctly and that the communication cable shielding is properly grounded to reduce electromagnetic interference. If a fieldbus expansion module is installed, confirm that the module configuration matches the automation system settings. The PLC program should also be checked to ensure that control words, status feedback, and data registers correspond correctly with the drive parameters. Reviewing communication diagnostics and fault history can help identify whether the problem is caused by incorrect settings, wiring issues, or network interruptions.

5. How does the ABB ACS550-01-087A-4 improve energy efficiency in industrial systems?

The ACS550-01-087A-4 improves energy efficiency by controlling motor speed according to actual process requirements instead of allowing motors to operate continuously at maximum speed. In traditional motor systems, equipment often runs at a fixed speed even when the required output is lower, resulting in unnecessary energy consumption. With a variable frequency drive, the motor speed can be adjusted according to feedback signals such as pressure, flow, temperature, or speed requirements. This is especially beneficial for fan and pump applications, where reducing motor speed can significantly lower power consumption. The built-in PID controller enables automatic closed-loop regulation, improving process stability while reducing energy waste. The energy optimization function also helps reduce motor losses during partial-load operation. Through intelligent motor control and flexible operating modes, the ACS550-01-087A-4 helps reduce operating costs and improve system efficiency.

6. What are the common causes of overheating in the ACS550-01-087A-4 and how can they be prevented?

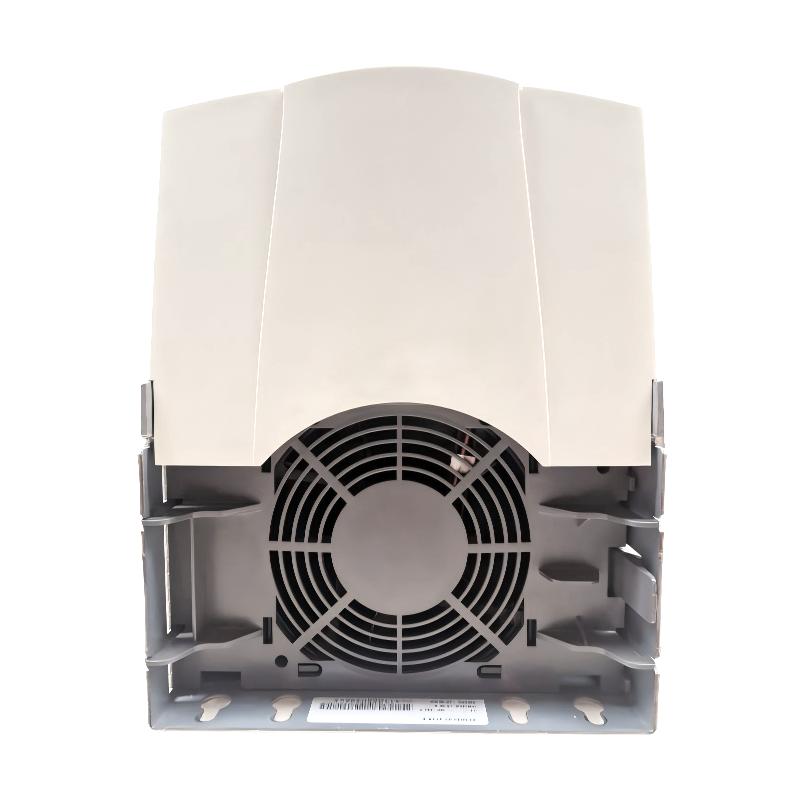

Overheating problems in the ACS550-01-087A-4 are usually related to insufficient cooling, high ambient temperature, poor ventilation, or continuous operation under excessive load. Common causes include cooling fan failure, blocked airflow channels, dust accumulation, insufficient electrical cabinet ventilation, and improper installation conditions. When overheating occurs, the cooling system should be checked first to ensure that fans are operating correctly and ventilation areas are clean. If the drive is installed inside a control cabinet, the cabinet cooling design should be evaluated to ensure that generated heat can be effectively removed. The operating current should also be monitored to prevent long-term overload conditions. In high-temperature environments, appropriate derating measures may be required. Regular cleaning, temperature monitoring, and preventive maintenance can significantly reduce overheating risks and improve the long-term reliability of the drive.

7. Why is accurate motor parameter configuration important during ACS550-01-087A-4 commissioning?

Accurate motor parameter configuration is essential for achieving stable and efficient operation of the ACS550-01-087A-4. Each motor has unique electrical characteristics, including rated voltage, current, power, frequency, and speed. If incorrect parameters are entered, the drive may not control the motor properly, leading to unstable speed, insufficient torque, excessive current, or frequent protection alarms. During commissioning, engineers should enter the correct motor nameplate data and select suitable control settings according to the application requirements. Motor identification or automatic tuning can be performed to allow the drive to obtain more accurate motor characteristics. Proper parameter configuration improves speed regulation accuracy, optimizes torque output, and ensures that protection functions operate correctly. A correct commissioning process helps achieve reliable performance and prevents unnecessary operational issues.

8. How can the service life and reliability of the ABB ACS550-01-087A-4 be improved?

To improve the service life and reliability of the ACS550-01-087A-4, proper maintenance procedures and operating practices should be followed. Regular maintenance should include checking cooling fan operation, cleaning ventilation areas, inspecting power and control terminals, verifying grounding connections, and reviewing fault history. The installation environment should remain clean, dry, and free from excessive dust, moisture, corrosive gases, and strong vibration that may affect electronic components. For equipment operating continuously, periodic inspection of cooling systems, electrical connections, and critical components is recommended to identify potential problems before failures occur. Proper motor parameter settings, suitable acceleration and deceleration times, and correct operating modes can reduce stress on the drive components. Through preventive maintenance, correct commissioning, and standardized operation, users can reduce failure rates, extend the service life of the ACS550-01-087A-4, and ensure stable performance of industrial automation systems.
