1. What are the main applications of the ABB ACS550-01-08A8-4 Variable Frequency Drive?

The ABB ACS550-01-08A8-4 is a general-purpose variable frequency drive designed for controlling low to medium power three-phase AC motors in industrial automation systems. With its compact design, reliable motor control performance, and flexible configuration options, this model is widely used in applications such as pumps, fans, conveyors, compressors, mixers, and small production machinery. It is commonly applied in industries including manufacturing, HVAC systems, water treatment, material handling, and process automation. The drive allows users to adjust motor speed according to actual operating requirements, improving process control accuracy while reducing unnecessary energy consumption. Its built-in protection functions help protect motors and drive components from abnormal conditions, while communication functions allow easy integration with PLC, DCS, and other industrial control systems. The ACS550-01-08A8-4 is suitable for applications where stable operation, simple commissioning, and efficient motor management are required.

2. What control technologies are supported by the ACS550-01-08A8-4?

The ACS550-01-08A8-4 supports both V/f control and Sensorless Vector Control technologies to provide flexible motor control solutions for different industrial applications. V/f control maintains a constant relationship between output voltage and frequency, providing stable and reliable operation for applications where precise torque control is not required, such as fans and standard pumps. Sensorless Vector Control uses advanced control algorithms to estimate motor conditions without requiring an external encoder, improving torque response and speed regulation performance. This control method is especially useful for applications with changing loads, frequent starts and stops, or higher torque requirements. By selecting the appropriate control mode, users can achieve better motor performance, smoother operation, and improved energy efficiency while reducing mechanical stress on connected equipment.

3. How should users troubleshoot overcurrent faults on the ACS550-01-08A8-4?

When an overcurrent fault occurs on the ACS550-01-08A8-4, troubleshooting should begin by checking the motor load, electrical connections, and parameter settings. First, inspect the mechanical system connected to the motor to determine whether there are problems such as excessive load, mechanical blockage, bearing failure, or abnormal friction. These conditions can increase motor torque demand and cause the current to exceed normal operating levels. Next, check the motor cables and terminal connections for possible short circuits, grounding faults, insulation damage, or loose wiring. The motor parameters configured in the drive should also be verified to ensure they match the actual motor specifications, including voltage, current, frequency, and speed values. If the fault occurs during acceleration, the acceleration time may need adjustment because overly rapid acceleration can create a temporary current surge. If external conditions are normal, further inspection of the motor and drive output circuit may be required.

4. How can communication issues between the ACS550-01-08A8-4 and PLC systems be resolved?

Communication problems between the ACS550-01-08A8-4 and PLC systems are usually related to incorrect settings, wiring problems, or configuration mismatches. First, verify that both devices use the same communication protocol and confirm that parameters such as communication address, baud rate, parity, and data format are correctly configured. For RS-485 communication, check that the communication wires are connected correctly and that the signal polarity is not reversed. Proper cable shielding and grounding should also be confirmed to reduce electromagnetic interference in industrial environments. If an optional fieldbus module is installed, ensure that the module parameters match the PLC configuration. In addition, the PLC program should be checked to confirm that control commands, monitoring values, and register addresses correspond correctly with the drive settings. Reviewing communication diagnostics and fault information can help identify the cause and restore reliable communication quickly.

5. How does the ACS550-01-08A8-4 help improve energy efficiency?

The ACS550-01-08A8-4 improves energy efficiency by adjusting motor speed based on actual process requirements instead of allowing motors to operate continuously at full speed. Many industrial applications, especially pumps and fans, do not always require maximum motor output. By reducing motor speed when demand decreases, the drive can significantly lower energy consumption and reduce operating costs. The built-in PID control function enables automatic adjustment based on feedback signals such as pressure, flow, or temperature, maintaining stable process conditions without unnecessary energy usage. The energy optimization function further improves efficiency by reducing motor losses during partial-load operation. Through intelligent speed regulation and flexible control functions, the ACS550-01-08A8-4 helps industrial equipment achieve better performance while supporting energy-saving operation.

6. What are the common causes of overheating in the ACS550-01-08A8-4 and how can they be prevented?

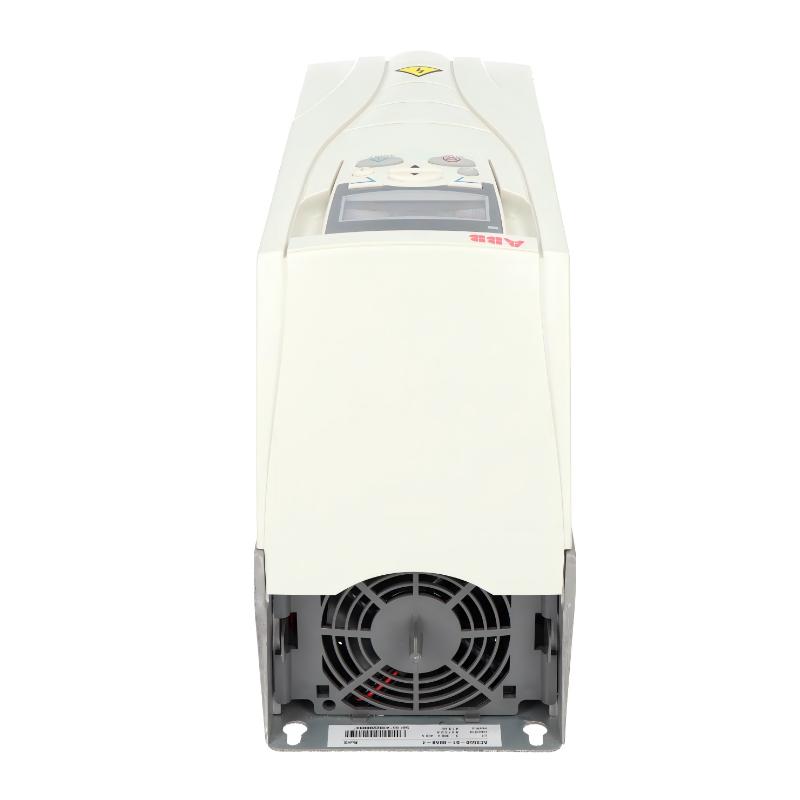

Overheating in the ACS550-01-08A8-4 is commonly caused by insufficient ventilation, blocked airflow, high ambient temperature, excessive load, or poor maintenance conditions. Dust accumulation on cooling surfaces, cooling fan failure, and improper installation environments can reduce heat dissipation performance and cause internal temperature increases. When overheating occurs, users should check whether the cooling fan is operating normally and ensure that ventilation paths are clean and unobstructed. The surrounding installation environment should also be inspected to confirm that sufficient airflow is available. Continuous operation above rated load should be avoided because excessive current increases internal heat generation. Regular maintenance, including cleaning, temperature monitoring, and checking cooling components, can help prevent overheating problems and improve the long-term reliability of the drive.

7. Why is correct parameter configuration important during ACS550-01-08A8-4 commissioning?

Correct parameter configuration is essential for achieving stable and efficient operation of the ACS550-01-08A8-4. Each motor has different electrical characteristics, including rated voltage, current, frequency, and speed. If incorrect motor data is entered, the drive may not provide accurate control, resulting in unstable speed, insufficient torque, increased current, or unnecessary fault alarms. During commissioning, technicians should enter the actual motor nameplate information into the drive parameters and select the appropriate control mode according to the application requirements. Motor identification or automatic tuning can improve control accuracy by allowing the drive to calculate more accurate motor characteristics. Proper configuration ensures better performance, improves protection accuracy, and helps the system operate reliably under different load conditions.

8. What maintenance practices can improve the reliability of the ABB ACS550-01-08A8-4?

To maintain reliable operation of the ACS550-01-08A8-4, users should perform regular inspection and preventive maintenance. Recommended maintenance tasks include checking cooling fan operation, cleaning ventilation areas, inspecting electrical connections, verifying grounding conditions, and reviewing fault history records. The operating environment should be kept clean and dry to prevent dust, moisture, and corrosive substances from affecting internal electronic components. For systems running continuously, periodic inspection of electrical terminals and cooling systems can help identify potential problems before they cause unexpected downtime. Proper motor parameter settings, suitable acceleration and deceleration times, and correct operating procedures also reduce stress on the drive. Through regular maintenance and proper operation, the ACS550-01-08A8-4 can provide stable performance and extended service life in industrial automation applications.
