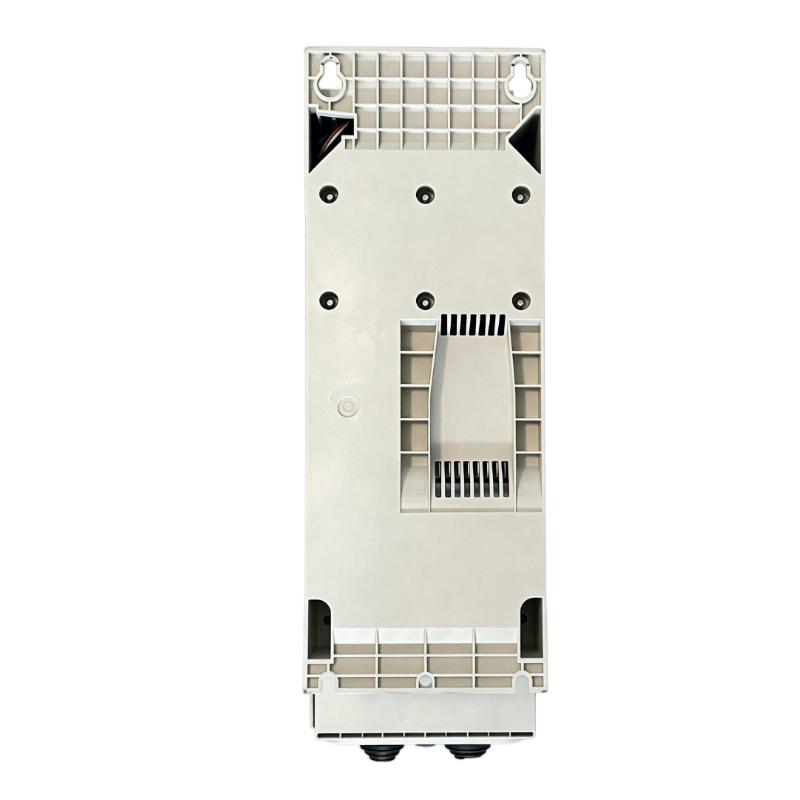

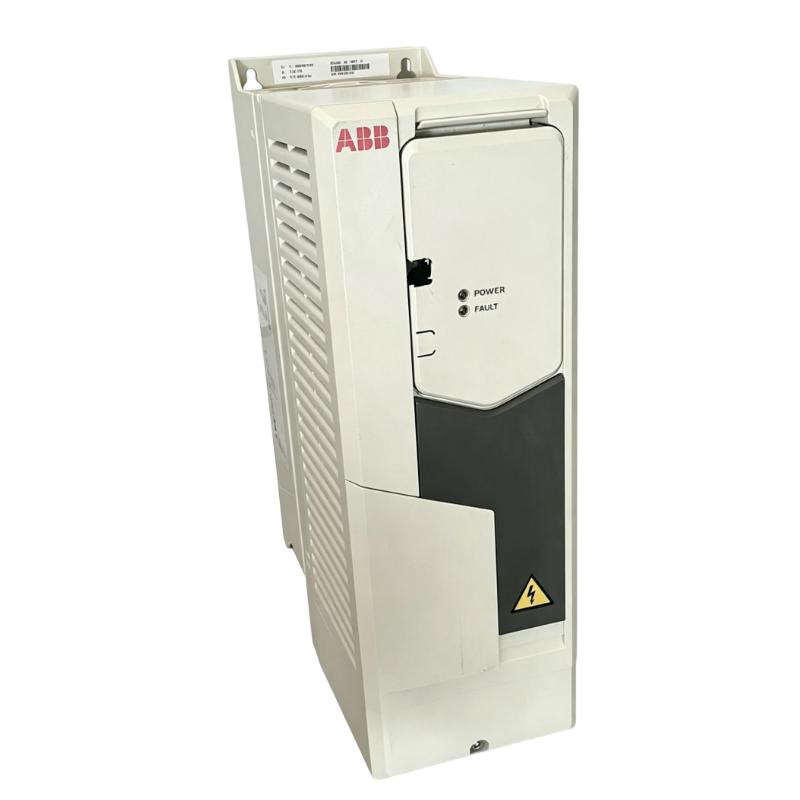

1. What is the ABB ACS580-01-02A7-4 designed for?

The ABB ACS580-01-02A7-4 is a general-purpose variable frequency drive designed to control the speed and operation of three-phase AC motors in industrial applications. It can be used for equipment such as pumps, fans, conveyors, compressors and other machinery where adjustable motor speed, controlled acceleration and improved process control are required. The drive allows the motor to operate according to the actual process demand instead of continuously running at a fixed speed. This can improve operating efficiency and provide smoother starting and stopping. When selecting the drive for a particular application, the motor rated current and actual load characteristics should be checked in addition to the motor power.

2. What are the input and output electrical ratings of the ACS580-01-02A7-4?

The ACS580-01-02A7-4 is designed for a three-phase 380–480 V AC supply with a nominal frequency of 50/60 Hz. Its rated output current is 2.7 A, making the output-current rating an important factor when matching the drive with a motor. The motor nameplate current should be compared with the drive output current under the intended operating conditions. The motor power rating alone should not be used as the only selection criterion because different motors and load types can have different current requirements. For applications involving high starting torque, frequent acceleration or continuous heavy loading, the actual operating duty should be reviewed carefully before installation.

3. How should the ACS580-01-02A7-4 be configured for a new motor?

Before operating a new motor, the essential motor nameplate information should be entered into the drive. This normally includes the motor rated voltage, rated current, rated frequency, rated speed and rated power. Accurate motor data is important because the drive uses these values for motor control and protection functions. After entering the parameters, the control source and frequency reference should be checked to make sure they correspond to the actual control method. If the drive is controlled by external terminals, the digital and analog signal wiring should be verified. For PLC-based control, the command and reference signals should also be checked before the motor is started.

4. What should be checked when an overcurrent fault occurs on the ACS580-01-02A7-4?

An overcurrent fault should first be investigated from the mechanical side. Check whether the motor or driven machine is blocked, overloaded or experiencing abnormal friction. The motor cable, terminals and connections should then be inspected for short circuits, ground faults or incorrect phase connections. If the wiring is correct, check the acceleration time because an excessively short acceleration period can require a large current from the motor. The motor rated current and other motor parameters should also be compared with the actual nameplate values. If the fault occurs only during acceleration, deceleration or under a particular load, monitoring the motor current and operating frequency during that condition can help identify whether the cause is related to the load, motor or drive configuration.

5. Why might the motor fail to start when the ACS580-01-02A7-4 is ready?

If the drive is powered and appears ready but the motor does not start, first verify that there is no active fault, alarm or external interlock preventing operation. Next, check the source of the start command. For local control, confirm that the drive receives the correct run command. For terminal control, inspect the digital input wiring and control signals. If a PLC or other automation controller is being used, verify that the communication connection, start command and frequency reference are valid. It is also important to check whether the frequency reference is set to zero. External emergency-stop circuits, permissive signals and safety interlocks can also prevent the motor from starting even when the drive itself is operating normally.

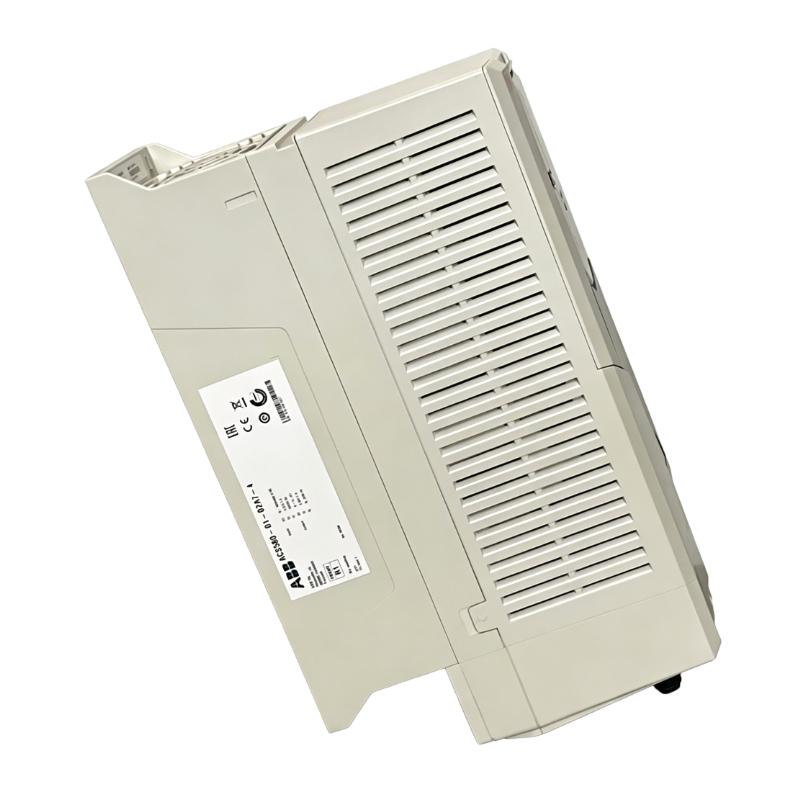

6. How can overheating of the ABB ACS580-01-02A7-4 be prevented?

Proper ventilation and heat dissipation are important for reliable operation. The drive should be installed in an environment where sufficient airflow is available and should not be placed close to strong heat sources or inside an enclosure with inadequate ventilation. Continuous operation at high load can increase internal temperature, so the actual load and ambient temperature should be considered during installation. The cooling fan and ventilation passages should be inspected periodically, particularly in environments where dust or other contaminants may accumulate. If an overtemperature condition occurs even when the load is relatively low, the cooling system, ambient conditions and temperature monitoring should be checked rather than simply resetting the alarm.

7. How should acceleration and deceleration times be set for the ACS580-01-02A7-4?

Acceleration and deceleration settings should be selected according to the motor, mechanical load and process requirements. A very short acceleration time can cause a high current demand and may result in an overcurrent condition, particularly when the driven machine has a high mechanical inertia. Similarly, a very short deceleration time can increase regenerative energy and cause the DC bus voltage to rise. A practical commissioning method is to begin with moderate acceleration and deceleration times and then gradually optimize the settings while observing motor current, machine response and drive fault conditions. If the application requires frequent rapid stopping or involves a high-inertia load, the braking requirements should also be evaluated.

8. Can the ACS580-01-02A7-4 be integrated into a PLC or DCS control system?

Yes. The ACS580-01-02A7-4 can be incorporated into an industrial automation system using its available control interfaces and, when required, an appropriate communication option. Basic control can be implemented through digital signals for functions such as start, stop and direction, while analog signals can be used for speed or frequency references. For more advanced PLC or DCS integration, a compatible fieldbus communication module can be used to exchange control commands, speed references, operating status and fault information. During commissioning, the control source, reference source, communication settings and signal scaling should be checked carefully. The complete sequence should also be tested to ensure that start/stop commands, fault feedback, communication loss handling and external interlocks operate correctly.
