1. What is the ABB ACS580-01-039A-4 designed for?

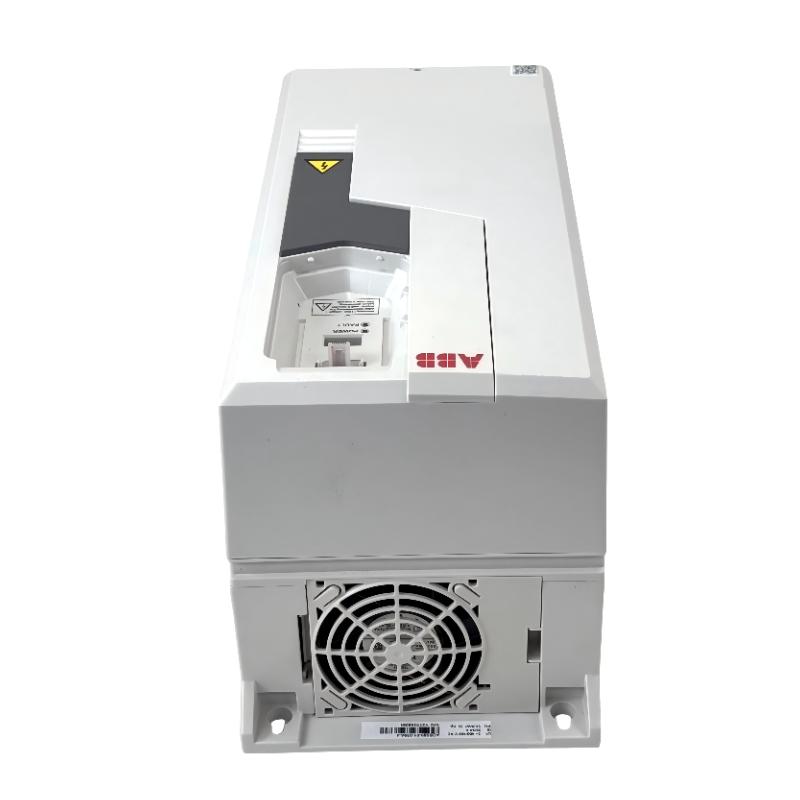

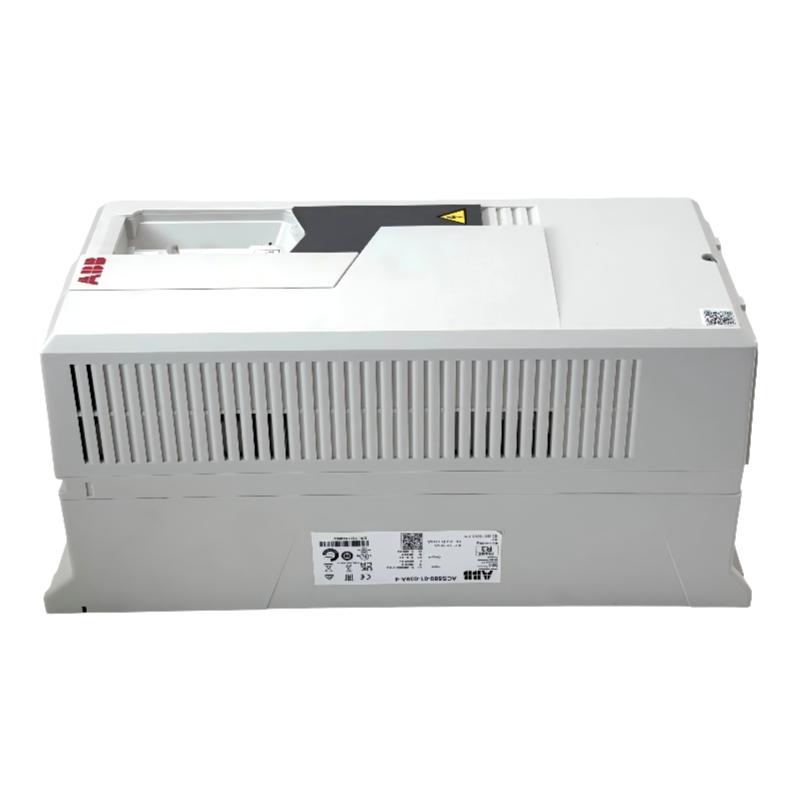

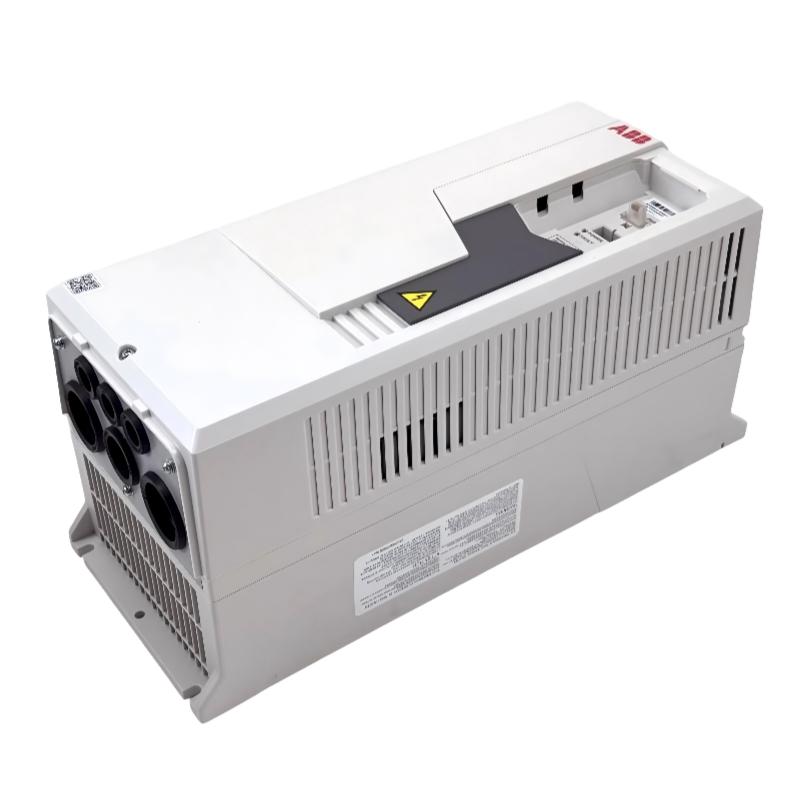

The ABB ACS580-01-039A-4 is a general-purpose variable frequency drive designed to control three-phase AC motors in industrial applications. With a rated output current of 39 A and a typical motor power rating of 22 kW, it is suitable for medium-power machinery requiring adjustable speed, controlled acceleration and deceleration, and reliable motor protection. Typical applications include pumps, fans, conveyors, compressors, mixers and extruders. The drive can adjust motor speed according to process requirements, helping equipment operate smoothly under changing load conditions. Final selection should consider motor rated current, load characteristics, starting torque and operating duty rather than motor power alone.

2. What are the main electrical ratings of the ACS580-01-039A-4?

The ACS580-01-039A-4 is designed for a three-phase 380–480 V AC power supply with an input frequency of 50/60 Hz. Its rated output current is 39 A, with a typical motor power rating of 22 kW. The 39 A output-current rating is an important parameter when selecting a motor for the drive. The motor nameplate rated current should be compared with the drive output current under the intended operating conditions. Motor power should not be used as the only selection criterion because actual current requirements depend on motor efficiency, load type and operating conditions. Applications with high starting torque, frequent acceleration and deceleration, or continuous heavy loading should be evaluated carefully.

3. Which motor parameters should be configured during initial commissioning?

During initial commissioning, the motor nameplate data should be entered accurately, including rated voltage, rated current, rated frequency, rated speed and rated power. These parameters are used by the drive for motor control and protection functions. Incorrect motor data may result in unstable operation, excessive current, insufficient torque or unnecessary protective trips. After entering the motor information, the control source, frequency reference, start/stop logic and direction commands should also be checked. If external terminal control is used, the digital and analog signal wiring should be verified. For PLC or DCS applications, the control commands and frequency references should be tested before normal operation.

4. How should an overcurrent fault on the ACS580-01-039A-4 be diagnosed?

When an overcurrent fault occurs, first inspect the mechanical load for blockage, excessive friction, bearing problems, abnormal torque requirements or sudden load increases. The motor cables and terminal connections should then be checked for phase-to-phase short circuits, ground faults or incorrect wiring. If the mechanical and electrical systems are normal, check whether the acceleration time is too short. High-inertia loads can require substantial current during rapid acceleration, which may trigger overcurrent protection. The motor rated current and configured motor parameters should also be compared with the actual motor nameplate. If the fault occurs only during startup, acceleration or a specific process condition, monitoring current, output frequency and load behavior at the time of the fault can help identify the root cause.

5. What should be checked if the motor does not start after the ACS580-01-039A-4 is powered on?

If the drive is powered but the motor does not start, first check for active faults, alarms, start inhibition or external interlocks. Then verify the source of the start command. For local control, confirm that the correct run command has been issued. For external terminal control, inspect the digital input signals, control wiring and enable conditions. If the drive is controlled by a PLC or DCS, verify the communication status, run command and frequency reference. The frequency reference should also be checked to ensure it is not zero. Emergency-stop circuits, safety interlocks and external permissive signals can also prevent motor operation. If all control conditions are correct, inspect the motor connection and output circuit for additional problems.

6. How can overheating of the ABB ACS580-01-039A-4 be prevented?

The ACS580-01-039A-4 requires adequate airflow and heat dissipation, especially during continuous or high-load operation. The drive should be installed away from strong heat sources and should not be placed in an enclosure with inadequate ventilation. Continuous operation at high output current increases internal heat generation, so ambient temperature and actual load should be considered when determining whether derating is required. During maintenance, inspect the cooling fan and ventilation paths for dust accumulation, obstruction or abnormal operation. If overtemperature alarms continue despite normal loading and acceptable ambient conditions, the cooling system, airflow and temperature monitoring functions should be checked instead of simply resetting the alarm.

7. How should acceleration and deceleration times be configured for the ACS580-01-039A-4?

Acceleration and deceleration times should be selected according to motor characteristics, mechanical load inertia and process requirements. If acceleration is set too short, the motor may require high current to develop torque rapidly, potentially resulting in an overcurrent fault. During deceleration, an excessively short time can cause regenerative energy to increase the DC bus voltage and potentially trigger an overvoltage condition. During commissioning, it is preferable to start with moderate acceleration and deceleration settings and then optimize them based on motor current, machine response and actual process requirements. High-inertia loads and applications requiring frequent rapid stopping should also be evaluated for appropriate braking arrangements.

8. Can the ABB ACS580-01-039A-4 be integrated with PLC and DCS systems?

Yes. The ACS580-01-039A-4 can be integrated into industrial automation systems through its digital and analog control interfaces and suitable communication options. Digital inputs can be used for start, stop and direction commands, while analog signals can provide speed or frequency references. For advanced PLC or DCS integration, an appropriate fieldbus communication module can be used to exchange control commands and operating data. The controller can send start, stop and speed commands while receiving drive status, actual frequency, current and fault information. During commissioning, the control source, reference scaling, communication parameters, control words and status feedback should be verified. The complete control sequence should also be tested for normal operation, fault response, communication interruption and external safety interlocks.
