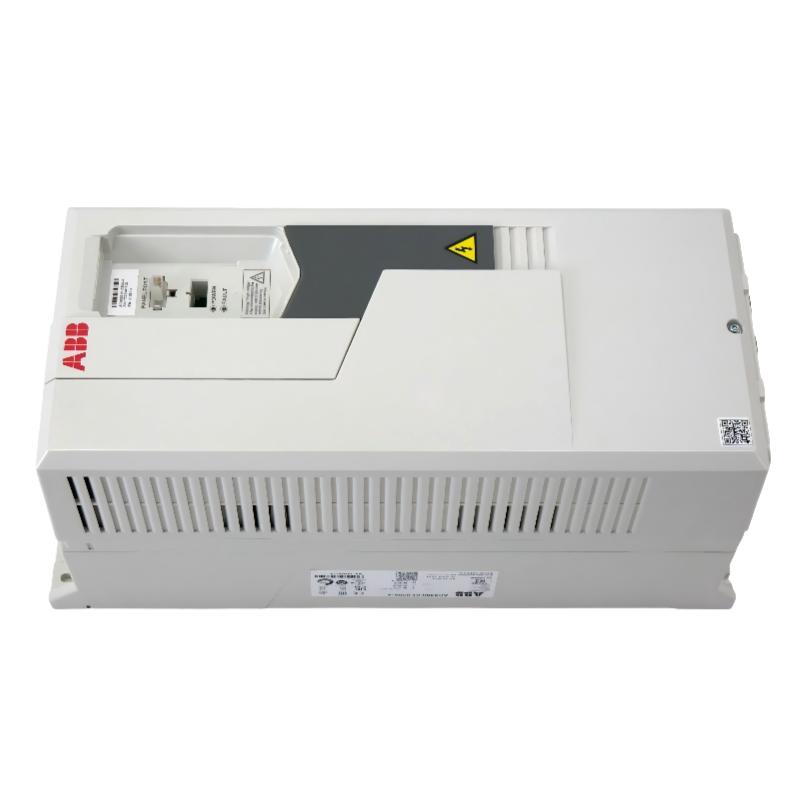

1. What is the ABB ACS580-01-039A-4 designed for?

The ABB ACS580-01-039A-4 is a general-purpose variable frequency drive designed to control three-phase AC motors in industrial applications. With a rated output current of 39 A and a typical motor power rating of 22 kW, it is suitable for medium-power machinery requiring adjustable speed, controlled acceleration and deceleration, and reliable motor protection. Typical applications include pumps, fans, conveyors, compressors, mixers, extruders and other production machinery. The drive adjusts motor speed by changing the output frequency, allowing equipment to operate according to process requirements instead of running continuously at a fixed speed. When selecting the drive, motor rated current, load characteristics, starting torque and operating duty should all be considered.

2. What are the main electrical ratings of the ACS580-01-039A-4?

The ACS580-01-039A-4 is designed for a three-phase 380–480 V AC supply with a 50/60 Hz input frequency. It has a rated output current of 39 A and a typical motor power rating of 22 kW. The 39 A rated output current is an important parameter when matching the drive to a motor. The motor nameplate rated current should be compared directly with the drive’s rated output current under the intended operating conditions. Motor power alone should not be used to determine compatibility because current requirements vary according to motor characteristics and load type. Applications involving high starting torque, frequent acceleration and deceleration, or continuous heavy-duty operation require additional consideration of the actual load profile.

3. Which motor parameters should be configured during initial commissioning?

During initial commissioning, the motor nameplate data should be entered accurately, including rated voltage, rated current, rated frequency, rated speed and rated power. These values are used by the drive for motor control and protection. Incorrect settings can cause unstable motor operation, excessive current, insufficient torque or unnecessary protective trips. After entering the motor data, the control source, frequency reference, start/stop logic and forward/reverse commands should also be verified. If external terminal control is used, the digital and analog signal wiring should be checked carefully. When the drive is connected to a PLC or DCS, the command source, frequency reference and feedback signals should be tested before normal operation.

4. How should an overcurrent fault on the ACS580-01-039A-4 be diagnosed?

When an overcurrent fault occurs, first inspect the driven machinery for mechanical blockage, excessive friction, bearing problems, abnormal torque demand or a sudden increase in load. Then check the motor cables and terminals for phase-to-phase short circuits, ground faults and incorrect wiring. If the mechanical and electrical systems are normal, check whether the acceleration time is too short. High-inertia loads can require significant current during rapid acceleration, potentially causing an overcurrent trip. The motor rated current and configured motor parameters should also be compared with the actual nameplate data. If the fault occurs only during startup, acceleration or a particular production condition, monitor the motor current, output frequency and load behavior at the moment the fault occurs to narrow down the cause.

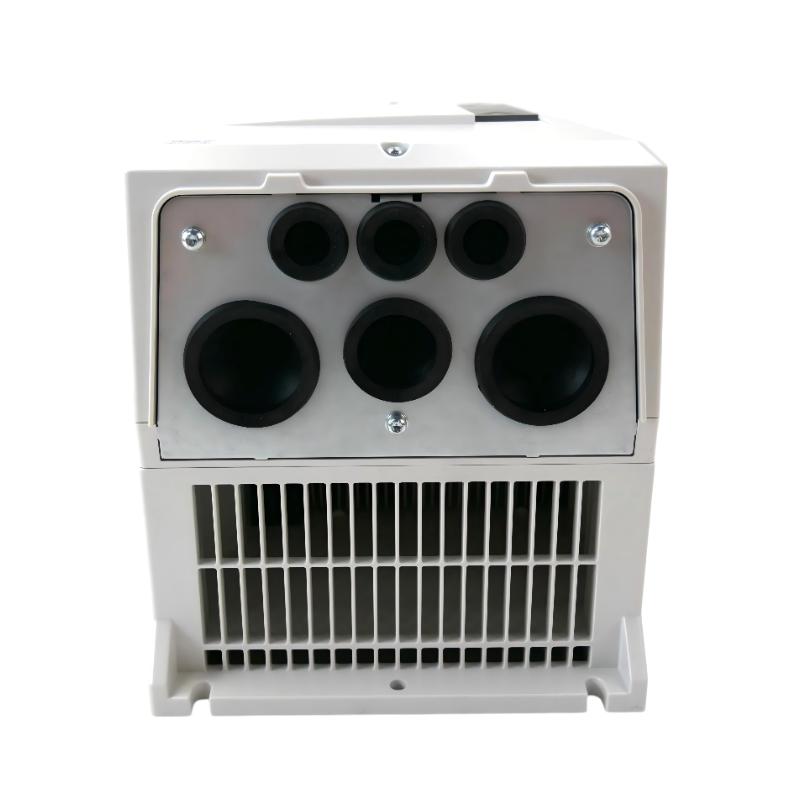

5. What should be checked if the motor does not start after the ACS580-01-039A-4 is powered on?

If the drive is powered but the motor does not start, first check whether an active fault, alarm, start inhibit or external interlock is present. Then verify the source of the start command. For local control, confirm that the run command has been issued correctly. For external terminal control, inspect the digital input signals, control wiring and enable conditions. If a PLC or DCS controls the drive, verify communication status, the run command and the frequency reference. The frequency reference should also be checked to ensure it is not zero. Emergency-stop circuits, safety interlocks and external permissive signals can prevent the motor from starting even when the drive appears ready. If all control conditions are correct, inspect the motor connection and output circuit.

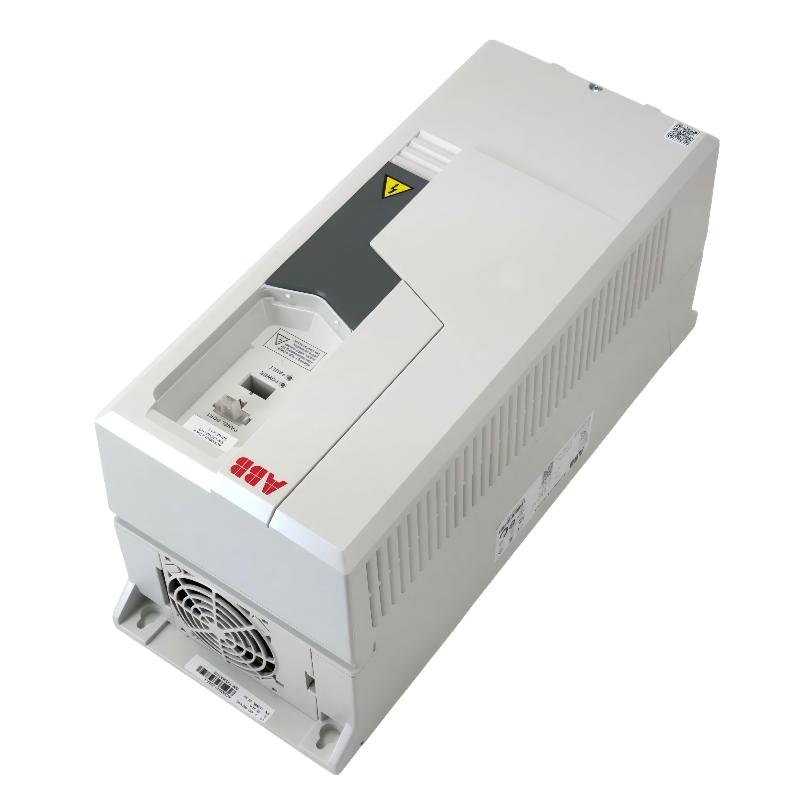

6. How can overheating of the ABB ACS580-01-039A-4 be prevented?

The ACS580-01-039A-4 requires adequate ventilation and heat dissipation, especially during continuous high-load operation. The drive should be installed away from strong heat sources and should not be placed in an enclosure with insufficient airflow. High output current generates additional internal heat, so ambient temperature and actual load should be considered when determining whether derating is necessary. During routine maintenance, inspect the cooling fan and ventilation passages for dust, blockage or abnormal operation. If overtemperature alarms occur repeatedly under normal loading and acceptable ambient conditions, the cooling fan, airflow, heat dissipation and temperature monitoring functions should be checked. Simply resetting the alarm without addressing the cause may result in repeated overheating.

7. How should acceleration and deceleration times be configured for the ACS580-01-039A-4?

Acceleration and deceleration times should be selected according to motor characteristics, mechanical load inertia and process requirements. An excessively short acceleration time can cause the motor to demand high current while rapidly developing torque, potentially triggering overcurrent protection. An excessively short deceleration time can cause regenerative energy to increase the DC bus voltage and potentially trigger an overvoltage fault. During commissioning, moderate acceleration and deceleration settings can be used initially, followed by gradual optimization based on motor current, machine response and process requirements. For high-inertia loads or applications requiring frequent rapid stopping, the braking requirements should also be evaluated to ensure that the selected braking method is appropriate.

8. Can the ABB ACS580-01-039A-4 be integrated with PLC and DCS systems?

Yes. The ACS580-01-039A-4 can be integrated into industrial automation systems using its digital and analog control interfaces together with suitable communication options. Digital signals can provide basic start, stop and direction commands, while analog signals can be used for speed or frequency references. For more advanced PLC or DCS integration, an appropriate fieldbus communication module can be selected to exchange control commands and operating data. The PLC or DCS can send start, stop and speed commands while receiving drive status, actual frequency, current and fault information. During commissioning, the control source, reference scaling, communication parameters, status feedback and fault handling should be checked. Communication-loss behavior and external safety interlocks should also be tested before the system is placed into continuous operation.
